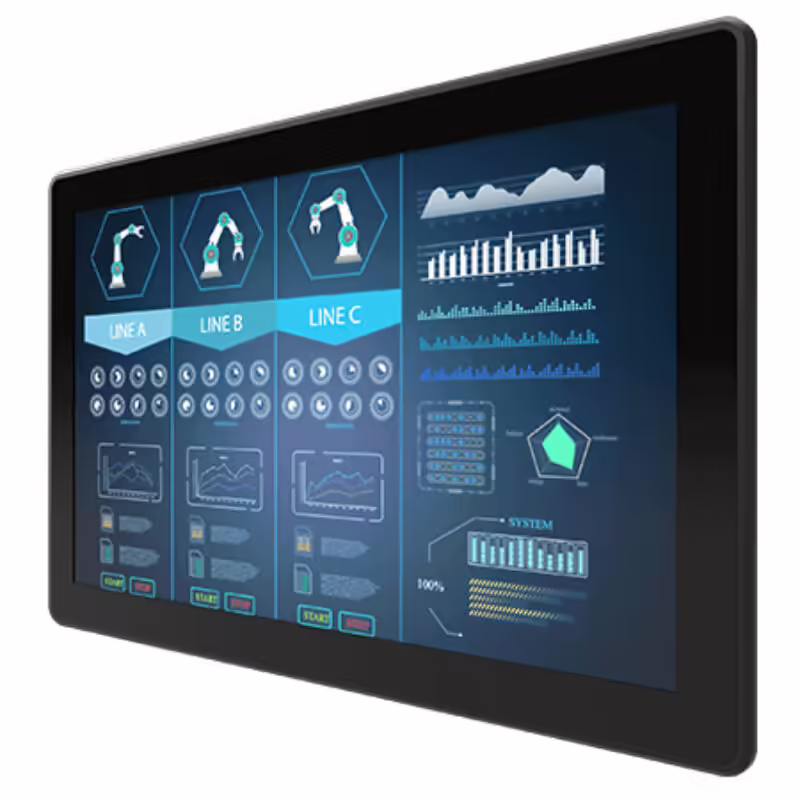

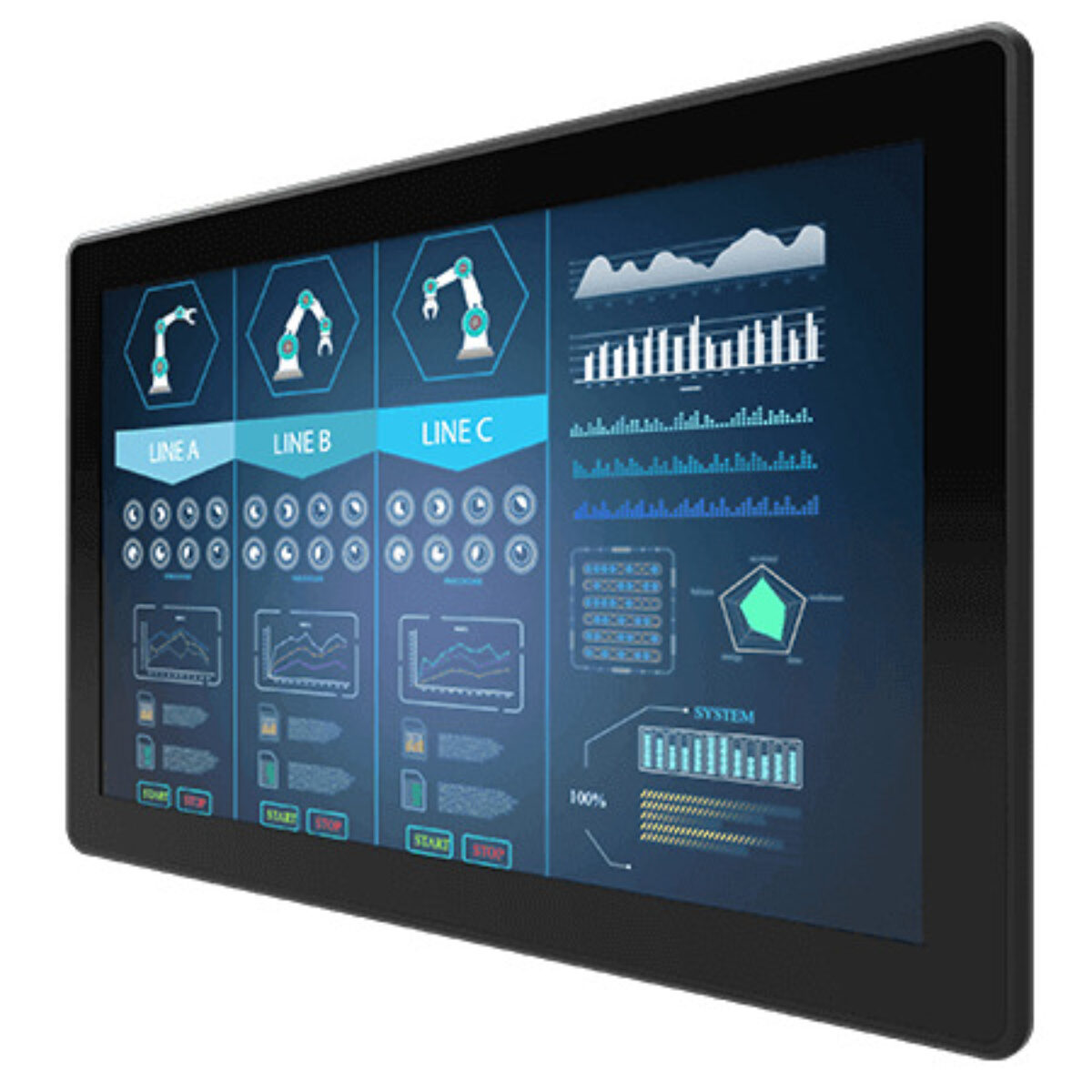

Winmate W24L100-EHC1OD 23.8″ Sunlight Readable PCAP Panel Mount Monitor with 1000 Nit FHD Display
PCAP
High Bright
Extended Temp
Front IP65
CE
FCCW24L100-EHC1OD Overview
Larger screens are easier to read from a distance, but only if the picture survives the light around them. The W24L100-EHC1OD is Winmate’s 23.8 inch panel mount PCAP touch monitor with a 1000 nit display, sized for outdoor terminals, loading bays and operator stations near windows or open doors.
The 1920 x 1080 panel delivers 1000 nits with a 1000:1 contrast ratio and 16.7 million colors, and its 88° viewing angle in each direction keeps the image usable from the side. Projected capacitive multi-touch connects to the host over USB, and a UV film option adds protection against solar radiation where the screen sits in direct sun. Kiosk users and operators can read it from a step back as well as up close.
The standard video input is VGA, with HDMI and DVI available as options, alongside an optional 3.5 mm audio line-in and two optional speakers. Setup runs through a five-key OSD panel on the rear. The W22L100-EHB1OD is the 21.5 inch version of this monitor, and the W24L100-GCC1OD carries the same 1000 nit PCAP panel in a chassis with a plastic bezel and metal back cover.
The fanless unit runs on 12 V DC, with a 100 to 240 V AC adapter supplied. It measures 604 x 373 x 64 mm, weighs 7.3 kg and fits a 583 x 352.5 mm panel cut-out, or mounts on 75 x 75 and 100 x 100 mm VESA holes. Operating range is -10 °C to 60 °C, extending to -25 °C with the heater option, at 10 to 90% humidity, and it carries CE and FCC marks. The optional remote controller covers adjustment when the rear panel is out of reach.
W24L100-EHC1OD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-EHC1OD |
| Features | Fanless Industrial |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 604mm x 373mm x 64mm (23.78" x 14.69" x 2.52") |
- W24L100-EHC1OD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-EHC1OD configured for USA outdoor and industrial HMI projects. Within the Winmate range the W22L100-EHB1OD is the 21.5 inch version of this build, and the W24L100-GCC1OD offers the 1000 nit panel in a chassis housing.
With its 1000 nit panel the W24L100-EHC1OD sits among our outdoor readable monitors, our 24 inch industrial monitors and our panel mount displays. Where a larger touch screen has to stay readable in daylight, this is the model to specify.
