Winmate W24L100-OFA2HB 23.8″ High Brightness Open Frame Monitor with 1000 Nit FHD Display
Resistive
High Bright
Fanless
CE
FCCW24L100-OFA2HB Overview

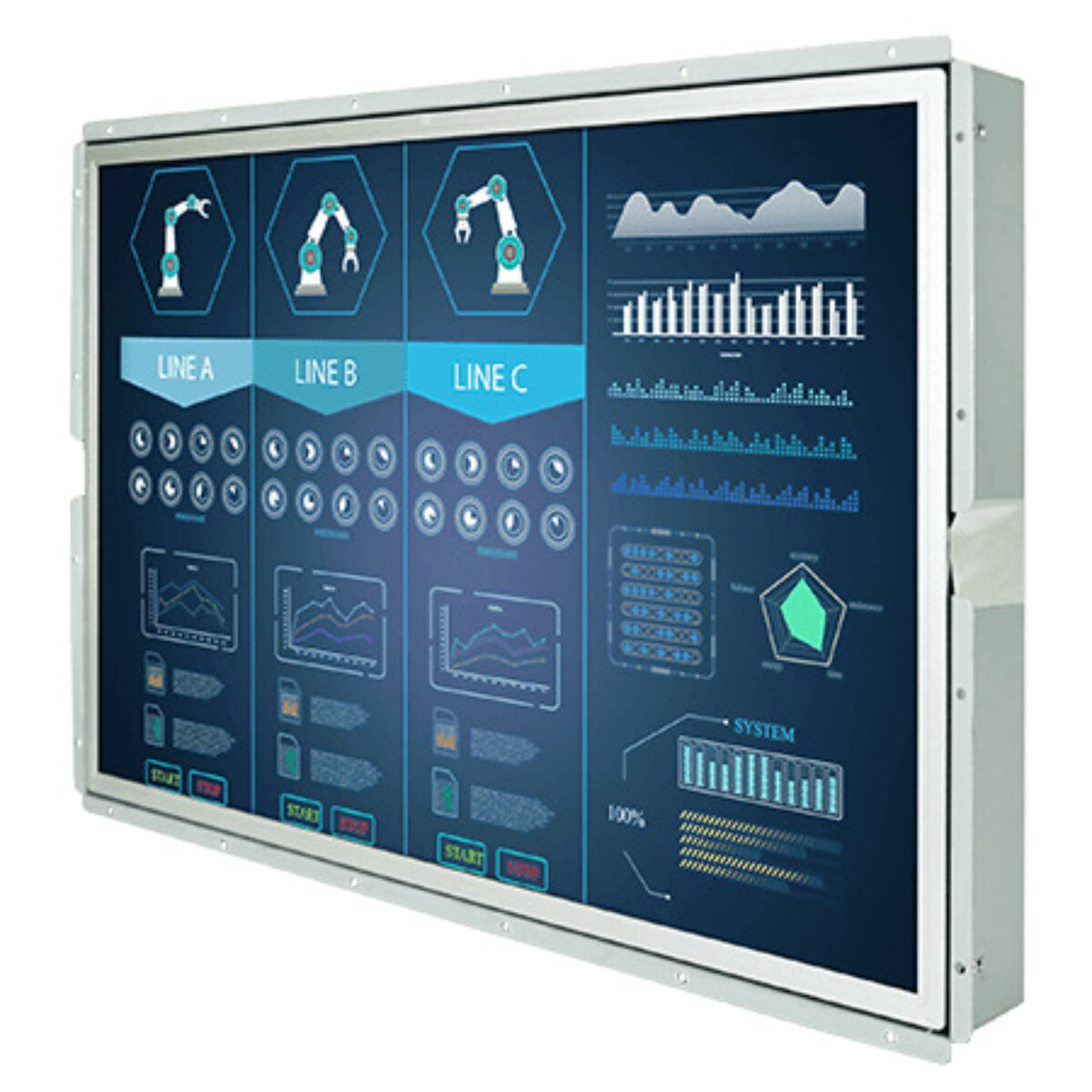

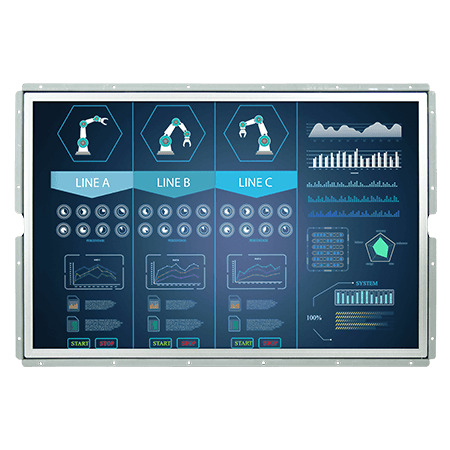

Larger kiosks in glazed foyers, station concourses and shop windows need a display that holds its own against daylight. The W24L100-OFA2HB is Winmate’s 23.8 inch high brightness open frame monitor, putting a 1000 nit 1920 x 1080 panel in a metal frame that builders fit behind their own bezel. It is a good fit for self-service and information kiosks built in small batches.
The panel delivers 1000 nits with a 3000:1 contrast ratio, 16.7 million colors and 178° viewing angles. Touch is not fitted as standard: resistive touch, SAW touch or a protection glass without touch are offered as options, with a USB port for the touch link, so the same frame can serve a view-only display or a public touch point.
Video enters over VGA, with HDMI and DVI inputs offered as options, and there is an optional audio line-in with two speakers. A five-key OSD panel sits on the rear, with an optional remote controller listed. The W24L100-OFA2 is the 250 nit version of this frame for indoor use, and the W22L100-OFA3HB is the 21.5 inch high brightness version.
Power is 12 V DC, with a 100 to 240 V AC adapter supplied. The fanless unit measures 576.4 x 343.6 x 58 mm and mounts into a panel or onto 75 x 75, 100 x 100 and 200 x 100 mm VESA holes. It operates from 0 °C to 50 °C at 10 to 90% humidity and carries CE and FCC marks. Direct sun on a window screen raises the enclosure temperature, so the 50 °C upper limit is worth checking against the build.
W24L100-OFA2HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-OFA2HB |
| Features | Fanless Industrial |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 1,000 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 576mm x 344mm x 58mm (22.68" x 13.54" x 2.28") |
- W24L100-OFA2HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-OFA2HB configured for USA kiosk and retail display projects. Within the Winmate range the W24L100-OFA2 is the 250 nit version, and the W22L100-OFA3HB gives 1000 nits at 21.5 inches.
With its 1000 nit panel the W24L100-OFA2HB sits among our open frame monitors, our high brightness displays and our 24 inch industrial monitors. Where a larger kiosk faces a bright foyer or window, this is the model to specify.
