Winmate W24L100-OFA2 23.8″ Open Frame Monitor with FHD 3000:1 Display and Optional Touch
Resistive
Fanless
CE
FCCW24L100-OFA2 Overview

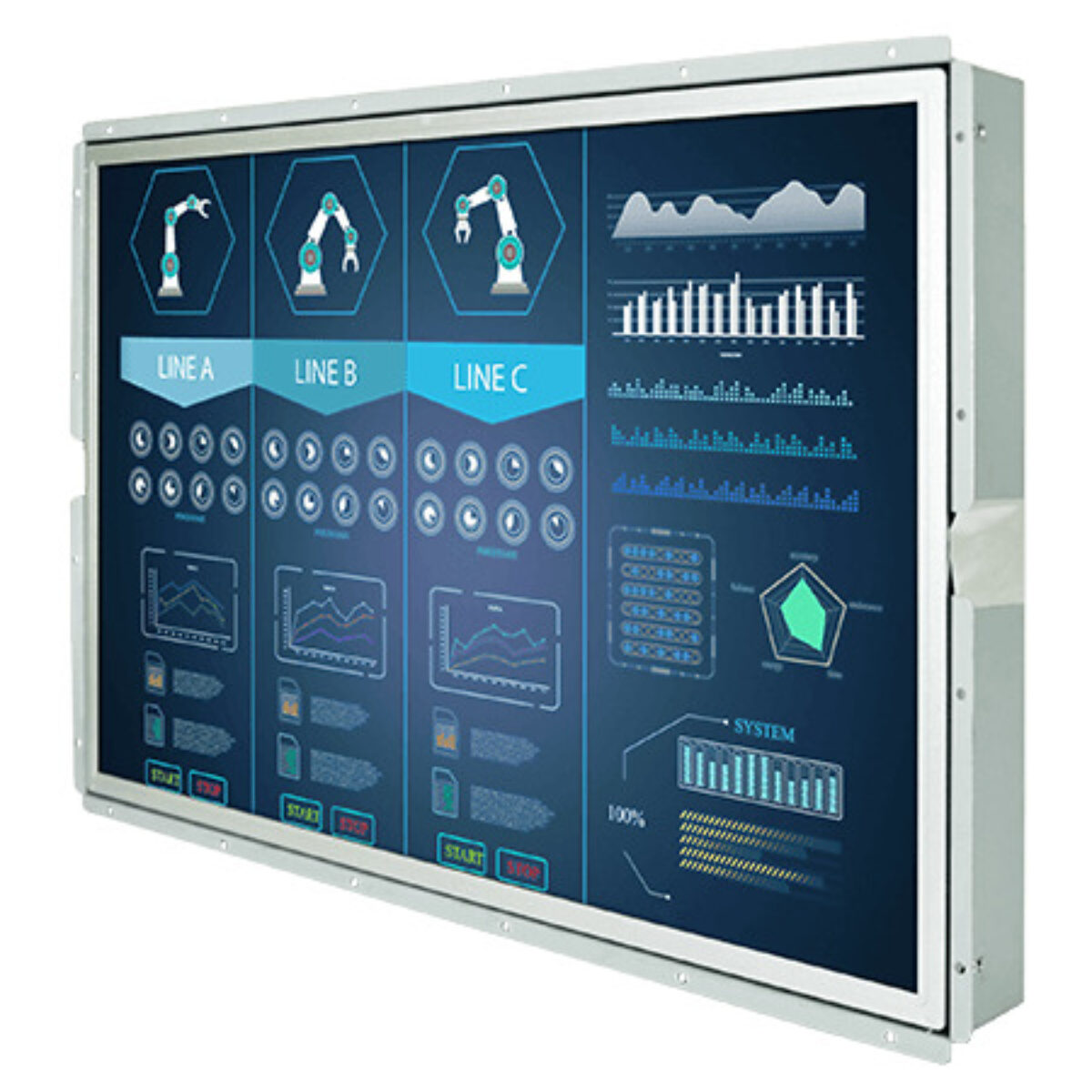

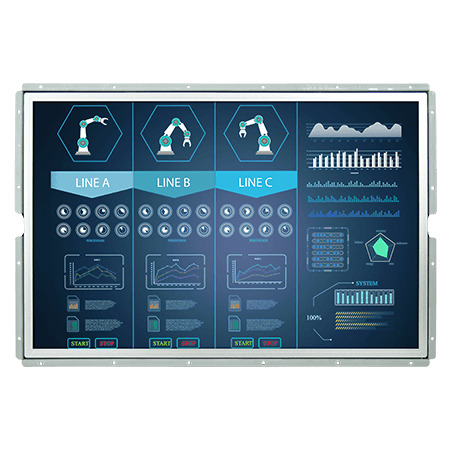

A larger kiosk or machine front often needs more screen than 21.5 inches allows, but still wants a bare display that sits behind a custom bezel. The W24L100-OFA2 is Winmate’s 23.8 inch open frame monitor, with a 1920 x 1080 panel in a fanless metal frame that rear mounts or bolts to VESA holes. It is a good fit for self-service terminals, vending and machine fronts built in small batches.
The panel runs at 250 nits with a 3000:1 contrast ratio, 16.7 million colors and 178° viewing angles for indoor use. Touch is not fitted as standard: resistive touch, SAW touch or a protection glass without touch are offered as options, with a USB port for the touch link. The same frame can therefore run as a view-only information screen or as an operator or customer touch point.
Video comes in over VGA as standard, with HDMI and DVI inputs available as options, plus an optional 3.5 mm audio line-in and two optional speakers. A five-key OSD panel sits on the rear, with an optional remote controller listed. The W24L100-OFA2HB is the 1000 nit version of this frame, and the W24L100-POA2 fits projected capacitive multi-touch as standard.
Power is 12 V DC, with a 100 to 240 V AC adapter supplied. The unit measures 576.4 x 343.6 x 58 mm, weighs 6.2 kg and mounts from the rear or on 75 x 75, 100 x 100 and 200 x 100 mm VESA holes. It operates from 0 °C to 50 °C at 10 to 90% humidity and carries CE and FCC marks.
W24L100-OFA2 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-OFA2 |
| Features | Fanless Industrial |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 576mm x 344mm x 58mm (22.68" x 13.54" x 2.28") |
- W24L100-OFA2 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-OFA2 configured for USA kiosk and machine building projects. Within the Winmate range the W24L100-OFA2HB is the 1000 nit version, and the W22L100-OFA3 is the 21.5 inch open frame model.
As a frame for builders the W24L100-OFA2 sits among our open frame industrial monitors, our 24 inch displays and our SAW touch monitors. Where a larger kiosk needs a display behind its own bezel, this is the model to specify.
