Winmate W27L100-PCA1 27″ PCAP Touch Monitor with FHD LCD and 300 Nits
PCAP
Fanless
Front IP65
CE
FCCW27L100-PCA1 Overview

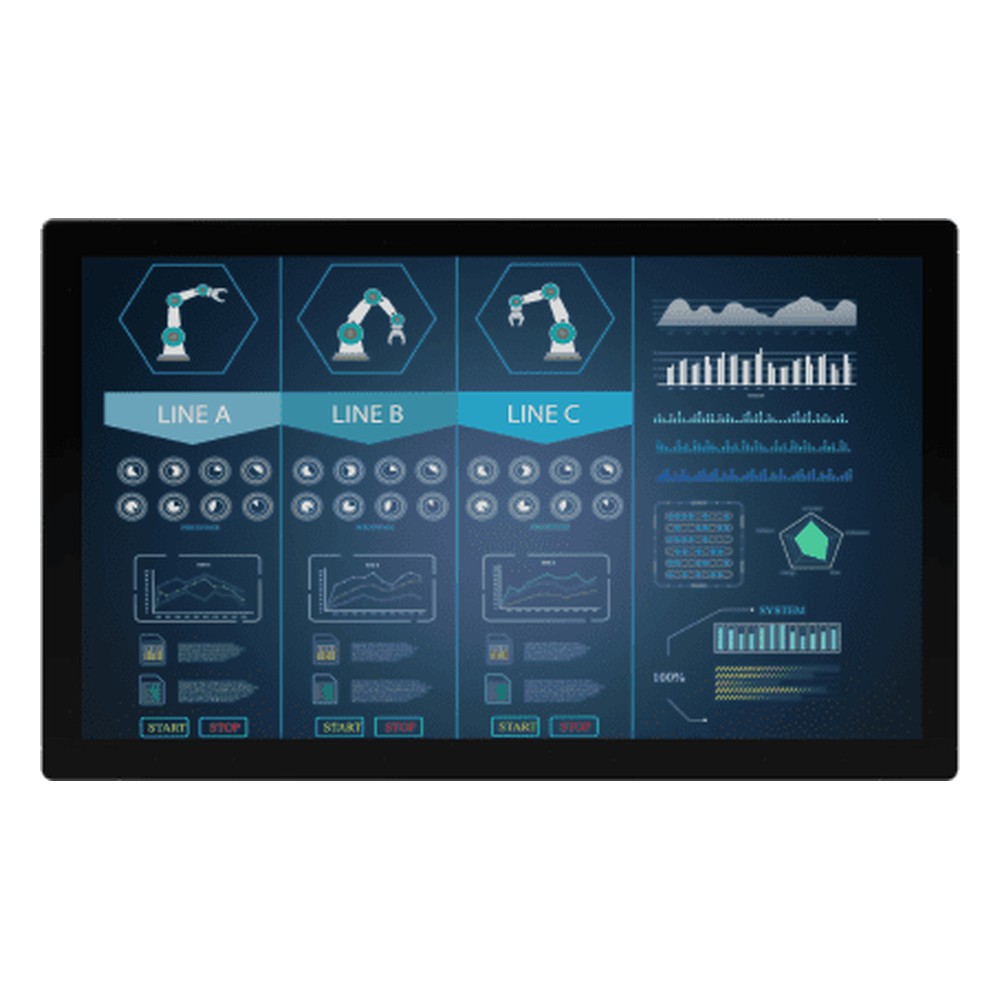

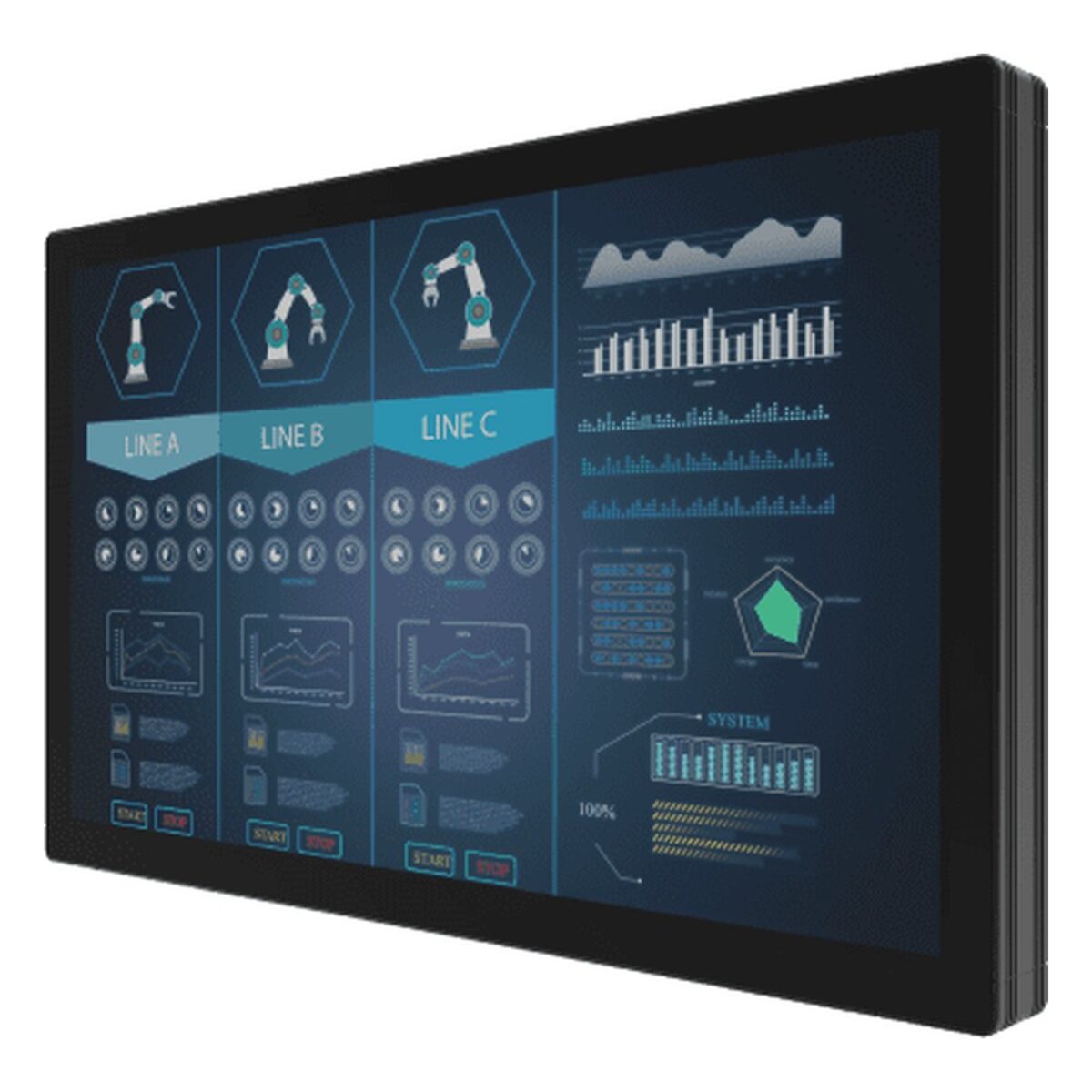

Not every touchscreen needs a computer built in. Where the PC already sits in a cabinet, under a counter or in a control room, a standalone display keeps screen and computer on separate replacement cycles. The W27L100-PCA1 is Winmate’s 27 inch chassis touch monitor for that set-up: a 27″ 1920 x 1080 FHD projected capacitive display in a metal housing, sealed to IP65 at the front.
The 1920 x 1080 panel runs at 300 nits with 3000:1 contrast and 178 degree viewing angles. Full HD gives current HMI, dashboard and web-based software a native canvas. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.

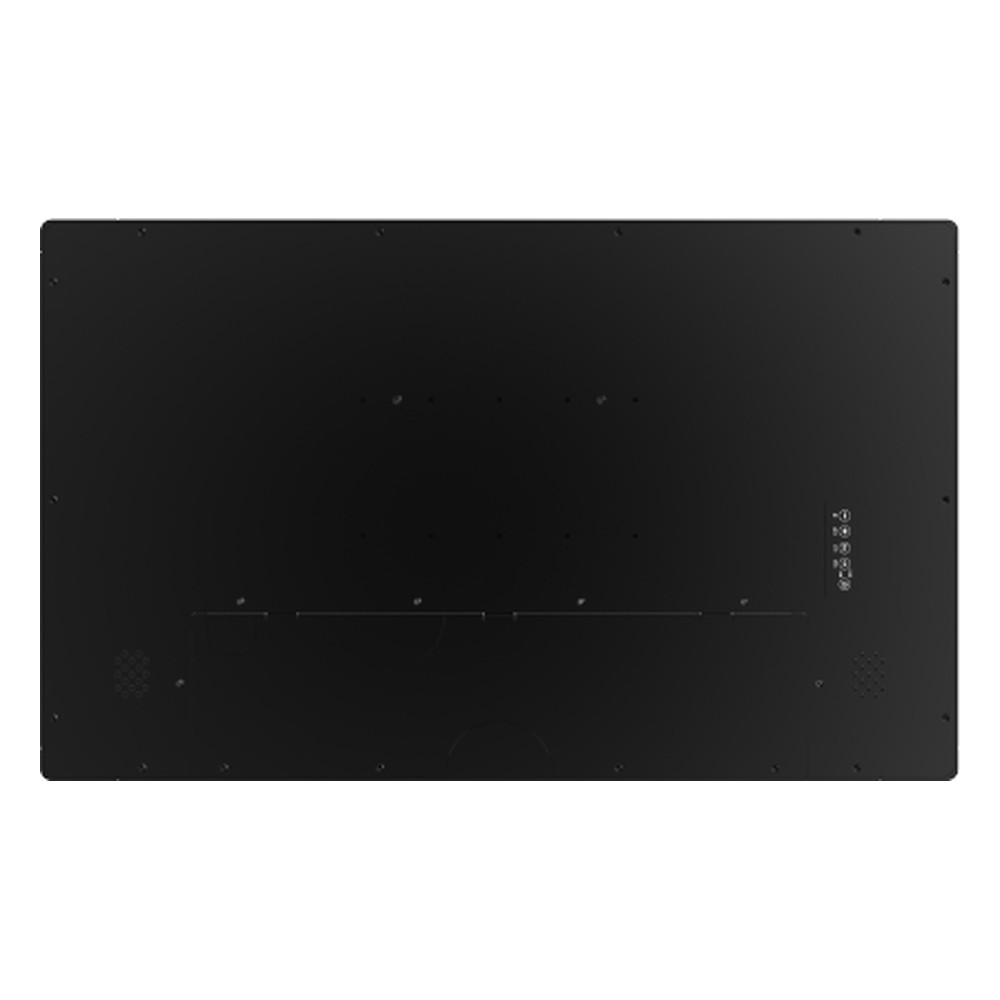

Video comes in over VGA and HDMI, with DVI as an option, and a single USB port carries touch back to the computer. Audio is listed as an option. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W27IT7T-PCA1 is the panel PC version of this housing with an 11th Gen Intel Core i5, and the W27IAD7T-PCA1 takes a choice of Intel Core i3 to i9 LGA1700 processors.
Power is 12 V DC, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 27 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -20 °C to 60 °C and carries CE and FCC marks. It fits a standard VESA mount. We supply the W27L100-PCA1 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
W27L100-PCA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W27L100-PCA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 27"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x HDMI Input 1x Optional DVI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 675mm x 413mm x 48mm (26.59" x 16.28" x 1.89") |
- W27L100-PCA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W27L100-PCA1 configured and tested for USA industrial and commercial display projects. Within the Winmate range the W27IT7T-PCA1 is the panel PC version of this housing with an 11th Gen Intel Core i5, and the W27IAD7T-PCA1 takes a choice of Intel Core i3 to i9 LGA1700 processors.
The W27L100-PCA1 sits among our 27 inch industrial monitors, our chassis monitors and our front IP65 monitors. Where the computer lives elsewhere and you need a 27 inch touchscreen on a VESA arm or bracket, it is a sensible model to shortlist.
