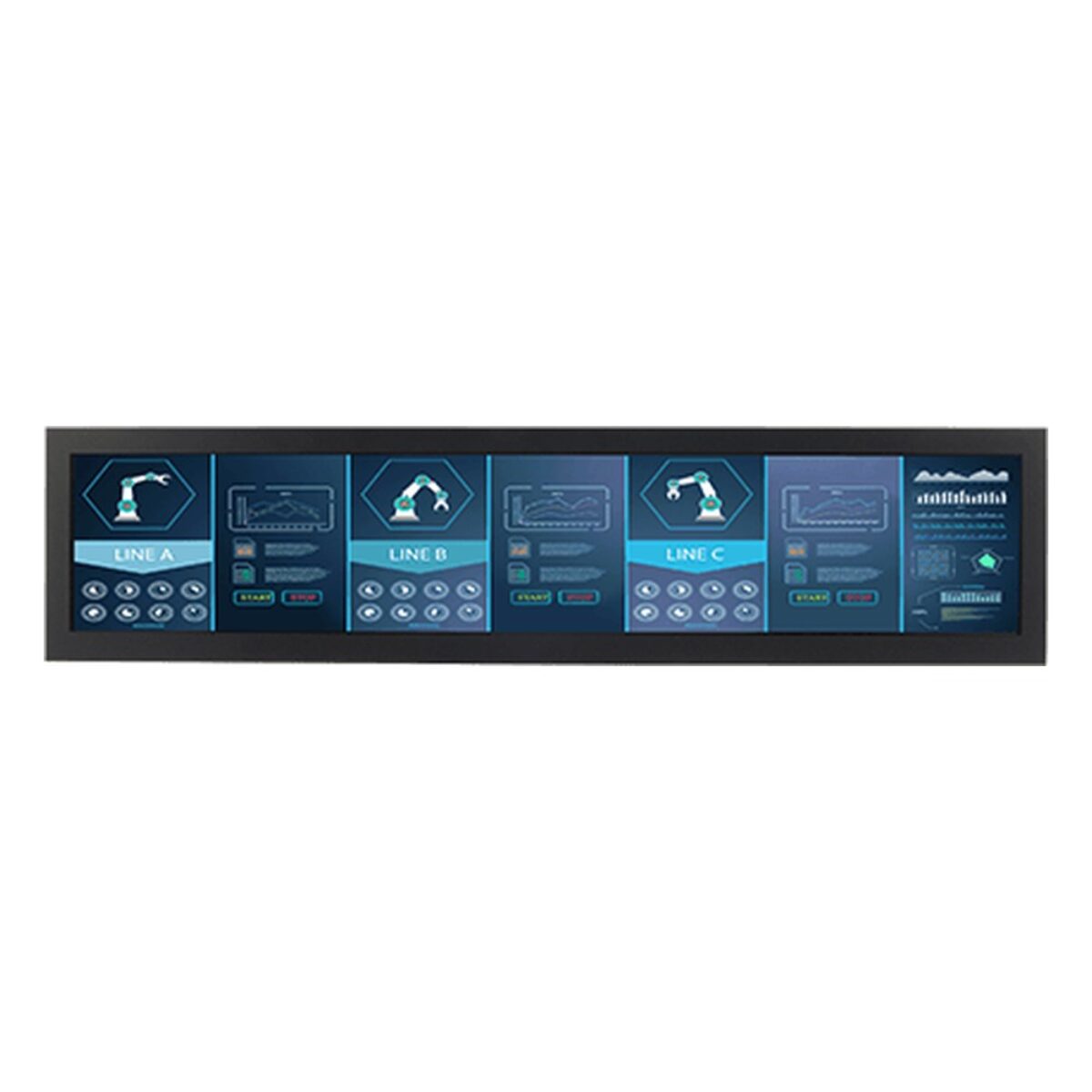

Winmate W28L100-CHA2 28.6″ Chassis Monitor with 1920 x 540 LCD and 700 Nits

Line status, queue information and machine data often need a long screen that fits a narrow strip of wall or console. The W28L100-CHA2 is Winmate’s 28.6 inch bar type chassis display for this: a stretched 1920 x 540 panel at 700 nits with a 4000:1 contrast ratio, protection glass and a front IP54 rating in a fanless metal housing. Winmate names industrial visualization, control rooms and equipment monitoring as its uses.

The 28.6″ LCD runs at 1920 x 540 with 700 nits, 4000:1 contrast and 178° viewing angles. The 700 nit backlight and 4000:1 contrast keep text and graphics clear under indoor factory lighting. The long, shallow format fits above machines, along conveyor lines or across the top of a console, where a standard 16:9 screen would waste height.

Video arrives over VGA as standard, with an HDMI input as an option, so the display connects to the computer, media player or controller already on site. An audio line-out, two speakers and a remote controller are optional. The W28L100-OFA2 is the open frame version of this panel, and the W38L100-CHA1 is the 37 inch bar type chassis model at 1500 nits.

Power is 24 V DC, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The W28L100-CHA2 operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing. It is IP54 rated at the front, mounts on VESA holes and carries CE and FCC marks. We supply it configured and tested, ready to connect to your player or computer.
