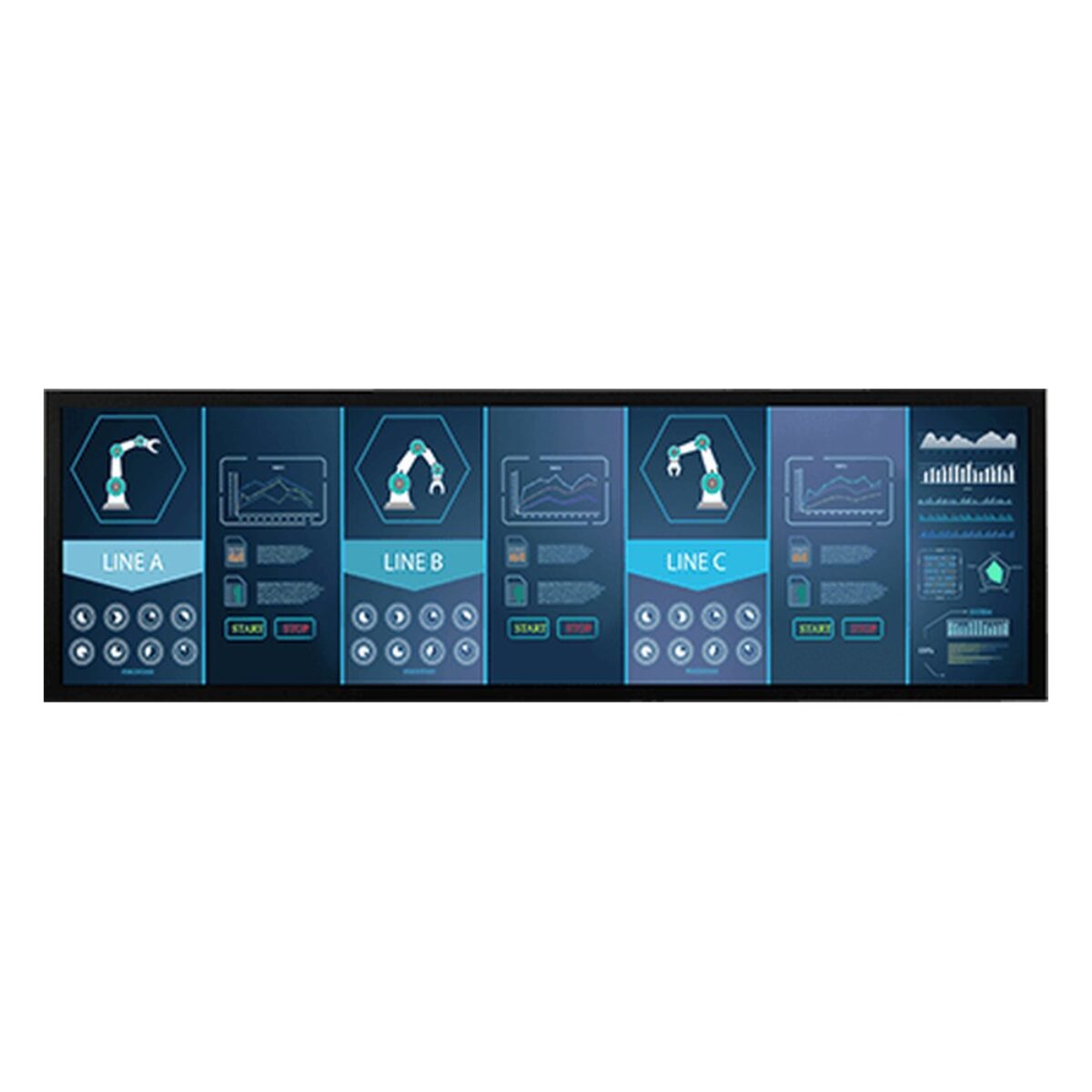

Winmate W38L100-CHA1 37″ Chassis Monitor with 1500 Nit 1920 x 540 Display and 4000:1 Contrast

Long information strips in bright halls, atriums and transport areas need both an unusual shape and a strong backlight. The W38L100-CHA1 is Winmate’s 37 inch bar type chassis display for this: a stretched 1920 x 540 panel at 1500 nits with a 4000:1 contrast ratio, protection glass and a front IP54 rating in a fanless metal housing. Winmate names industrial visualization, control rooms and equipment monitoring as its uses.

The 37″ LCD runs at 1920 x 540 with 1500 nits, 4000:1 contrast and 178° viewing angles. At 1500 nits the high brightness panel is sunlight readable, so the picture holds up near glazing and under strong light. The long, shallow format fits above machines, along conveyor lines or across the top of a console, where a standard 16:9 screen would waste height.

Video arrives over VGA as standard, with an HDMI input as an option, so the display connects to the computer, media player or controller already on site. An audio line-out, two speakers and a remote controller are optional. The W38L100-OFA1 is the open frame version of this 37 inch panel, and the W28L100-CHA2 is the 28.6 inch bar type chassis model at 700 nits.

Power is 24 V DC, and Winmate supplies a 100 to 240 V AC adapter with a power cord, VGA and HDMI cables and VESA screws. The W38L100-CHA1 operates from 0 °C to 50 °C and stores from -10 °C to 60 °C at 10 to 90% humidity, non-condensing. It is IP54 rated at the front, mounts on VESA holes and carries CE and FCC marks. We supply it configured and tested, ready to connect to your player or computer.
