Winmate W32L100-SPA3 32″ IP65 Stainless Steel PCAP Touch Monitor with 1920 x 1080 and 400 Nits
PCAP
CE
FCCW32L100-SPA3 Overview

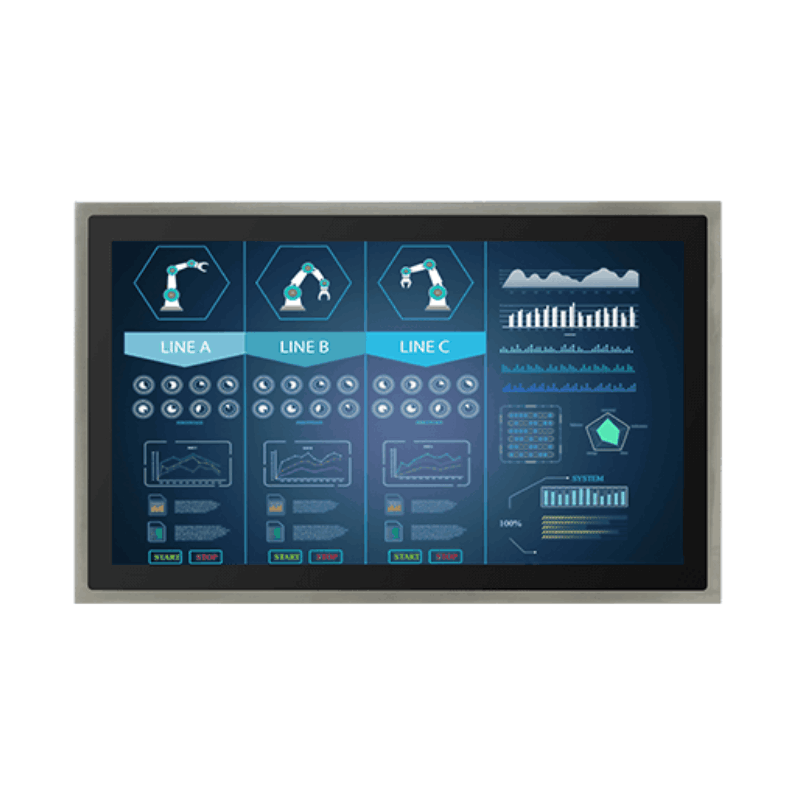

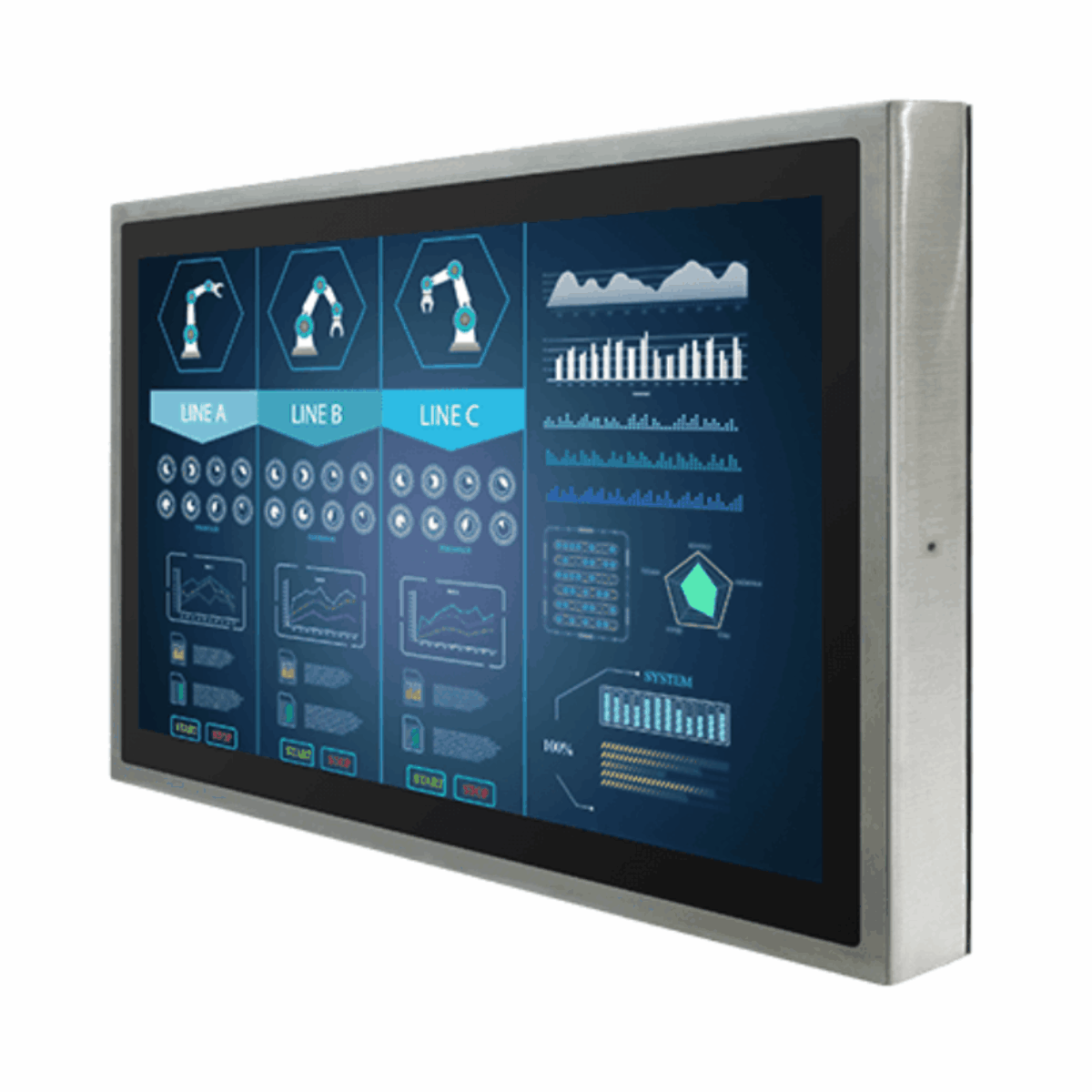

A line overview screen in a washdown area needs to be large enough to read across the floor and sealed everywhere, including the rear where cables enter. The W32L100-SPA3 is Winmate’s 32 inch IP65 stainless steel touch monitor: a fanless 1920 x 1080 PCAP display in an SUS 316 housing, sealed to IP65 as a whole unit with M12 connectors.
The 16:9 panel runs at 1920 x 1080 with 400 nits brightness, a 4000:1 contrast ratio and 178° viewing angles, showing 16.7 million colors. Projected capacitive multi-touch sits behind the sealed front so operators can work recipe, batch and alarm screens. At 32 inches the screen gives a line overview that reads from further away than a 24 inch panel. Optical bonding is an option where condensation or glare is a concern.
The touch screen connects over USB on an M12 waterproof connector, and video arrives on VGA through an M12 connector, with waterproof DVI and HDMI inputs as options. Power and status LEDs and a five-button OSD panel sit on the housing. The W24L100-SPA2 is the 23.8 inch IP65 model, and the W24L100-SPA269 adds IP69K sealing for high-pressure cleaning.
Power is 24 V DC on an M12 connector, and a 100 to 240 V AC adapter with a waterproof connector is supplied with waterproof caps and cables. The monitor measures 785 x 475 x 56 mm on Winmate’s drawing, mounts on VESA 200 x 100 holes, runs fanless from 0 to 45 °C at 10 to 90% humidity and carries CE and FCC marks. Winmate names food, beverage and pharmaceutical industries for this model.
W32L100-SPA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L100-SPA3 |
| Features | Fanless Industrial M12 Connectors Waterproof |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 24V DC [M12] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 45°C [32°F to 113°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 785mm x 475mm x 56mm (30.91" x 18.7" x 2.2") |
- W32L100-SPA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L100-SPA3 configured for USA food, beverage and process projects. Within the Winmate range the W24L100-SPA2 gives the same 316 stainless IP65 build at 23.8 inches, and the W24L100-SPA269 adds IP69K sealing for high-pressure washdown.
In 316 stainless steel with full IP65 sealing, the W32L100-SPA3 sits among our stainless steel displays, our IP65 monitors and our 32 inch industrial monitors. Where a washdown area needs a 32 inch sealed touch screen, this is the model to specify.
