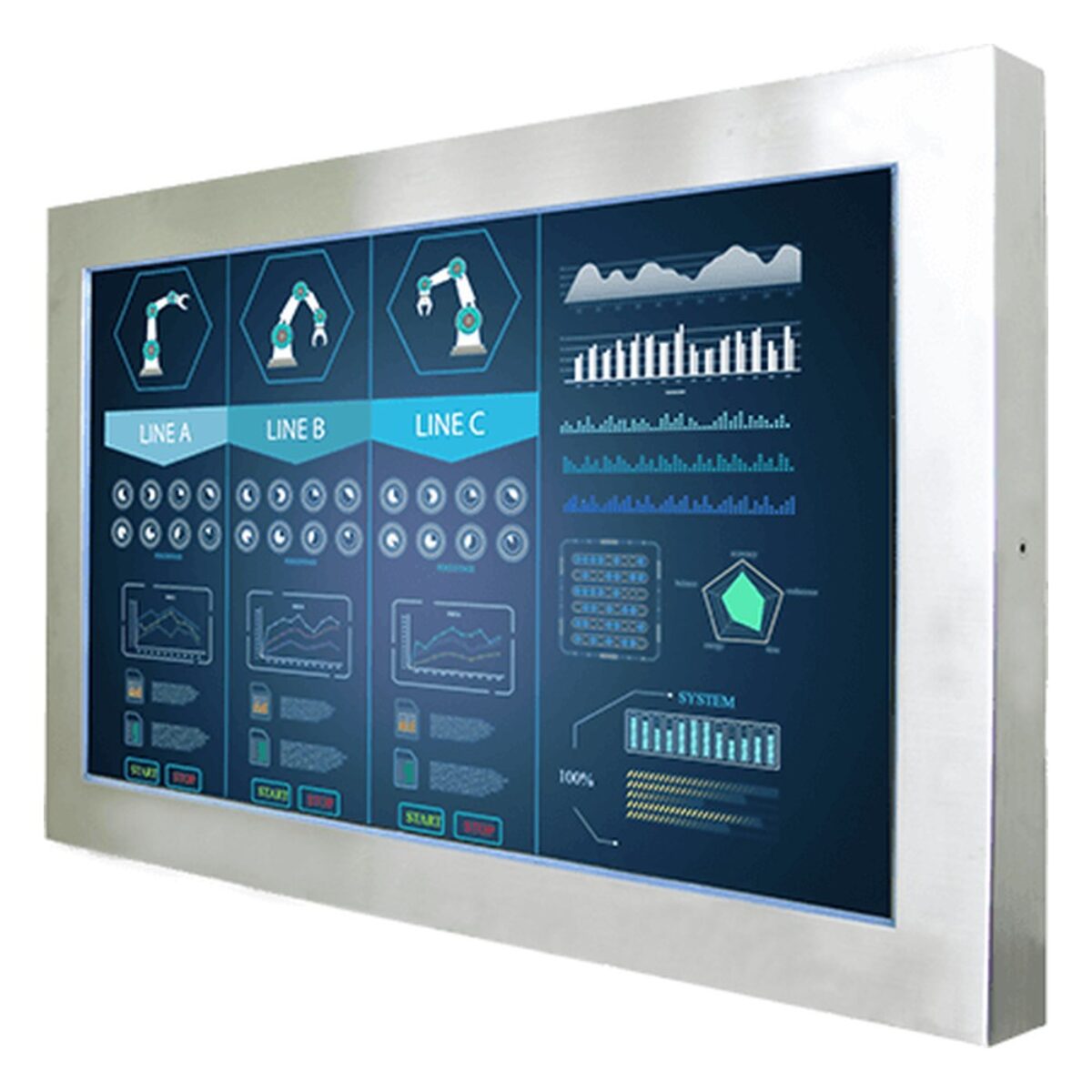

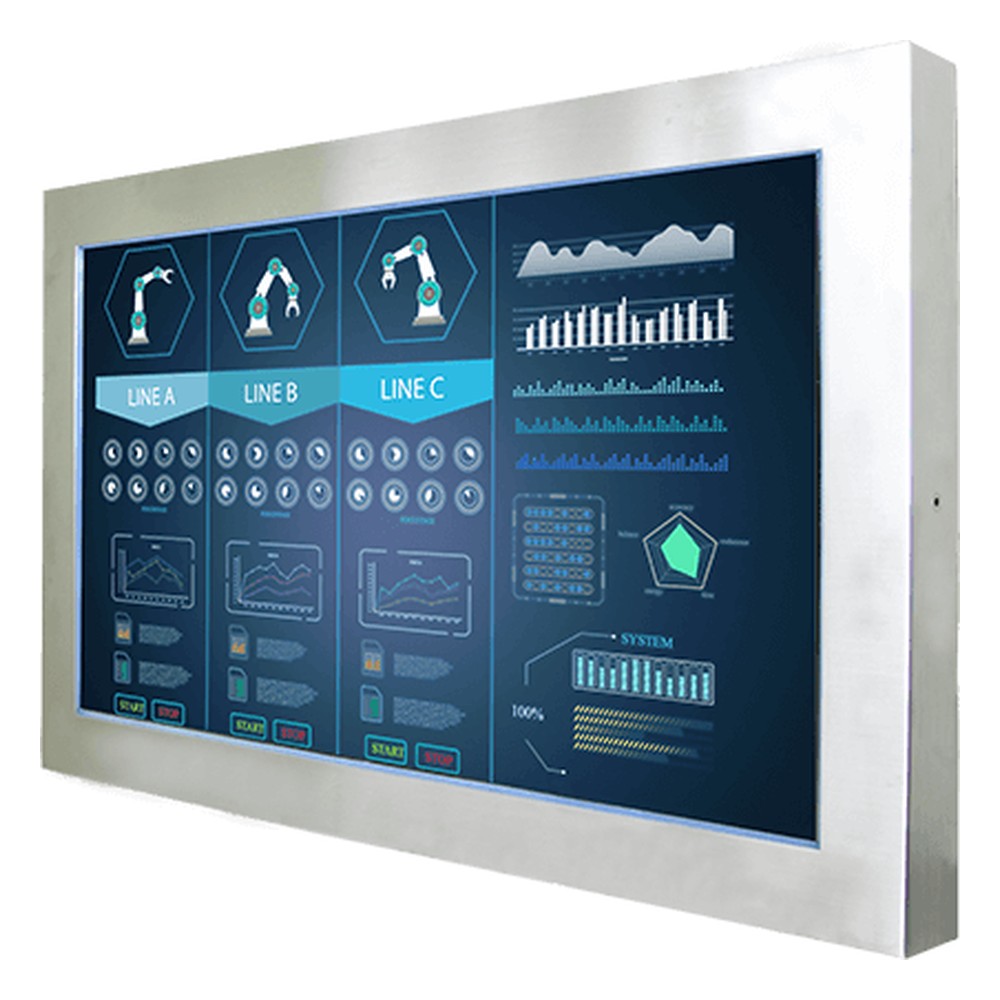

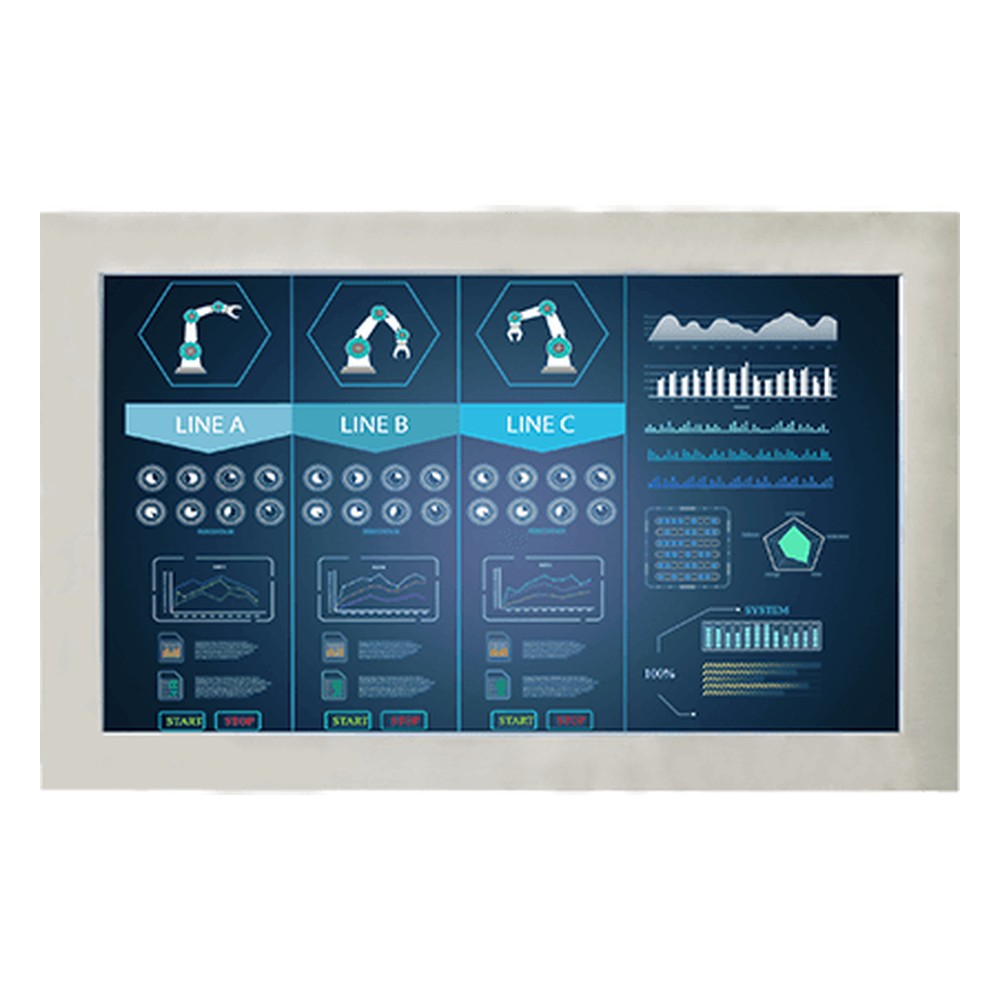

Winmate W32L300-65A3 32″ IP65 Stainless Steel Monitor with M12 Connectors and FHD LCD

Large screens in wet or dusty areas, such as line overviews in food processing halls, need a housing that can be cleaned on every side and connectors that stay sealed. The W32L300-65A3 is Winmate’s 32″ stainless steel chassis display for that job: a 32 inch Full HD panel in a SUS 316 (AISI 316) housing, sealed to full IP65 and cooled without a fan.

The panel is 1920 x 1080 at 400 nits, with 4000:1 contrast, 16.7 million colors and 178 degree viewing angles, so staff standing off to one side can still read it. Protection glass covers the screen, and optical bonding is listed as an option where glare or condensation are a concern. A power button, menu and adjustment buttons and two LEDs for power and status sit on the unit.

The monitor connects to a separate computer over VGA on an M12 waterproof connector as standard, with a waterproof DVI input and a waterproof HDMI input as options. Power comes in on a second M12 connector at 24 V DC. The W42L300-65A3 is the same IP65 stainless design at 42 inch with a 500 nit panel, and the W32L300-CHA3 is a 32 inch chassis monitor that adds PCAP touch.

Winmate supplies a 100 to 240 V AC to DC adapter with a waterproof connector, a power cord, an external VGA cable with a waterproof connector, waterproof caps and VESA screws. The W32L300-65A3 operates from 0 °C to 45 °C at 10 to 90% humidity, non-condensing, stores from -20 °C to 60 °C, mounts on VESA and carries CE and FCC marks. We supply it configured and tested before dispatch, and can advise on the input that suits your host computer.
