Winmate W32L300-CHA3 32″ Chassis Monitor with PCAP Touch and FHD LCD
PCAP
Fanless
Front IP65
CE
FCCW32L300-CHA3 Overview

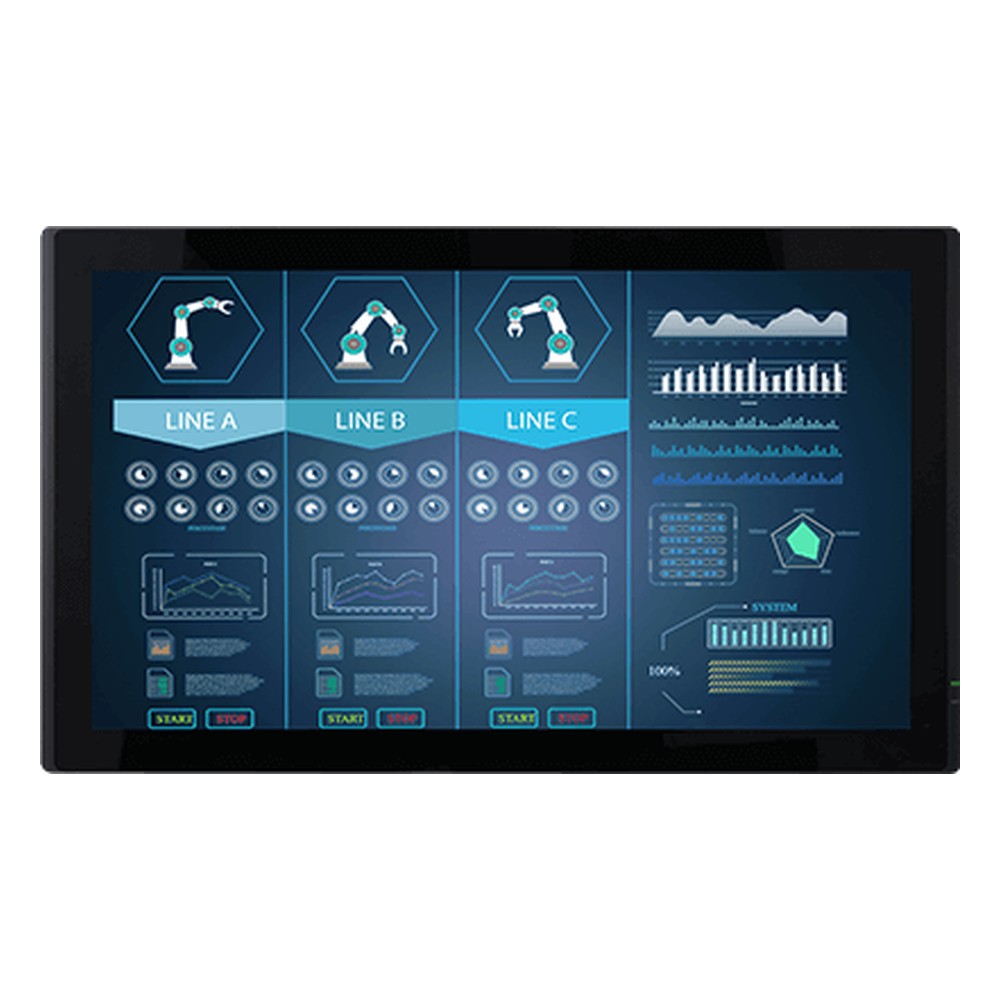

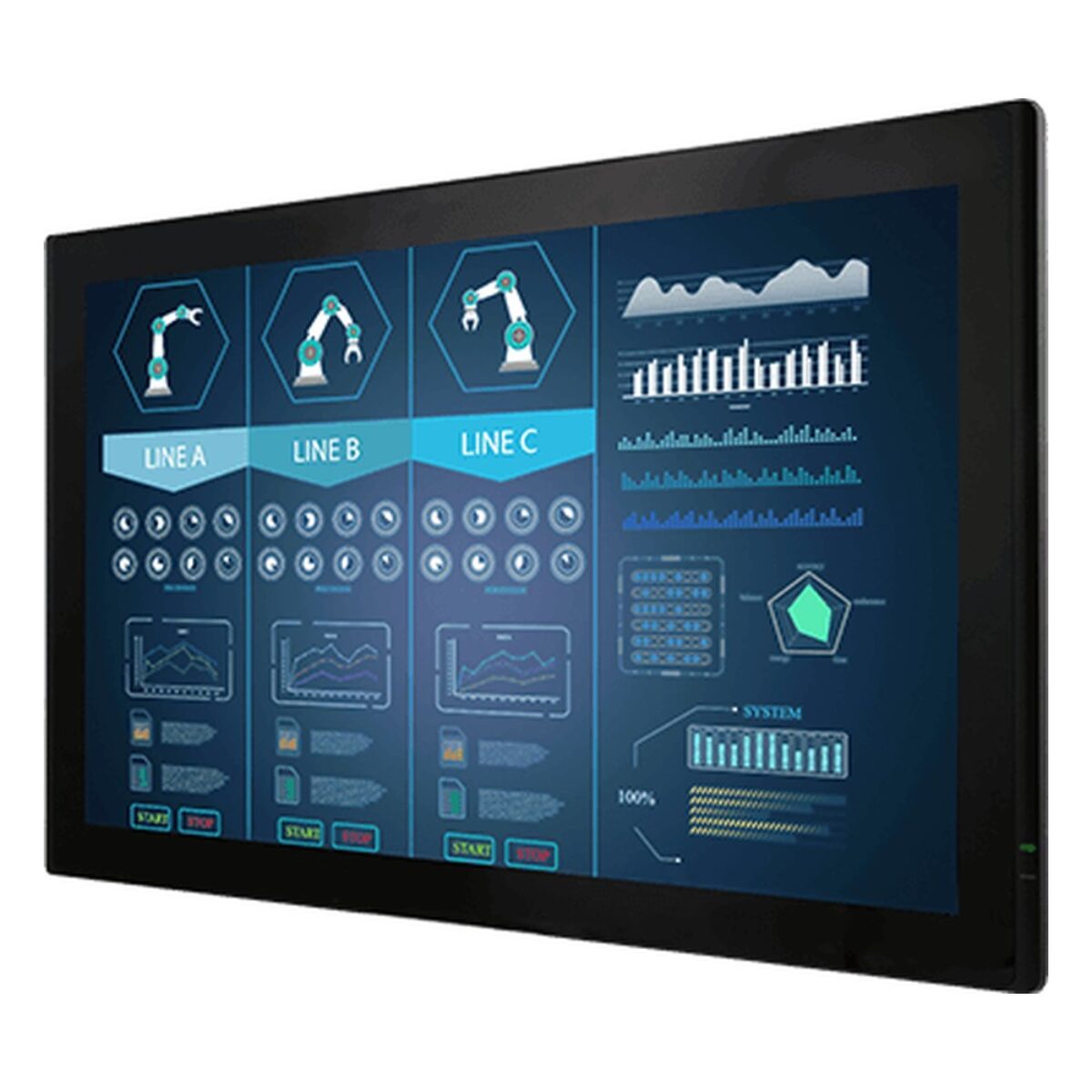

Large touchscreens in control rooms and kiosks get touched all day and wiped down often. The W32L300-CHA3 is Winmate’s 32 inch chassis monitor with projected capacitive multi-touch, a fanless and ventless plastic housing and IP65 sealing at the front, which Winmate lists in the key features.
The 32″ 16:9 panel runs at 1920 x 1080 (FHD) with 400 nits and a 4000:1 contrast ratio, and Winmate quotes viewing angles of 178° in both directions. Touch is projected capacitive multi-touch, connected over USB, behind a front Winmate describes as easy to clean.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options, and touch data runs over a single USB port. Two speakers are built in, and five bottom-side keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the W32L300-CHA3HB is a display-only 32″ version at 1500 nits, and the W32L300-CHA3TR is a display-only 32″ version with a transflective panel.

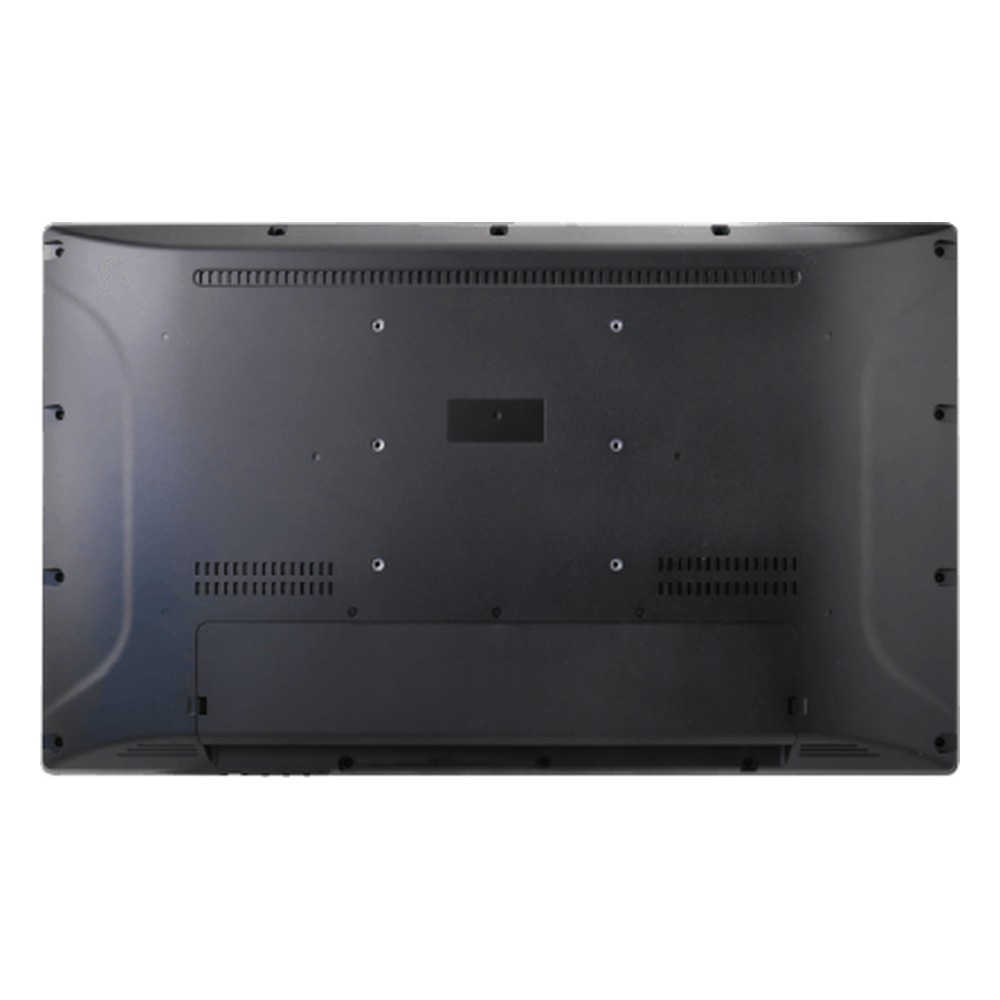

The W32L300-CHA3 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 32 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
W32L300-CHA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L300-CHA3 |
| Features | Fanless Industrial Waterproof |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 799mm x 478mm x 64mm (31.46" x 18.82" x 2.51") |
| Mounting Options | VESA Mount |
- W32L300-CHA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L300-CHA3 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the W27L100-CHA1 is the 27 inch FHD display-only version.
The W32L300-CHA3 sits among our PCAP touch monitors, our 32 inch industrial monitors and our front IP65 monitors. Where a project needs a 32 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
