Winmate W27L100-CHA1 27″ Chassis Monitor with FHD LCD and 300 Nits
Fanless
CE
FCCW27L100-CHA1 Overview

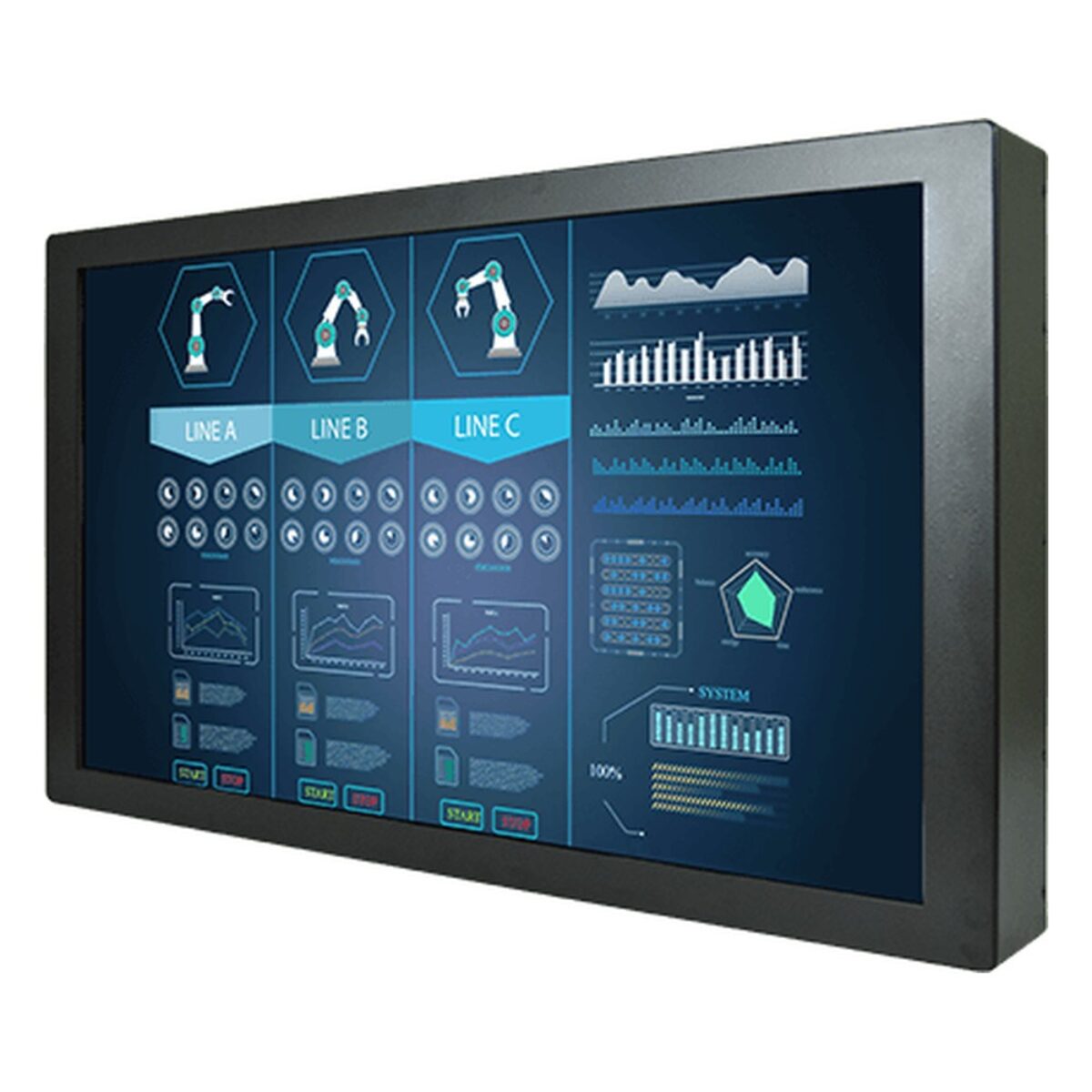

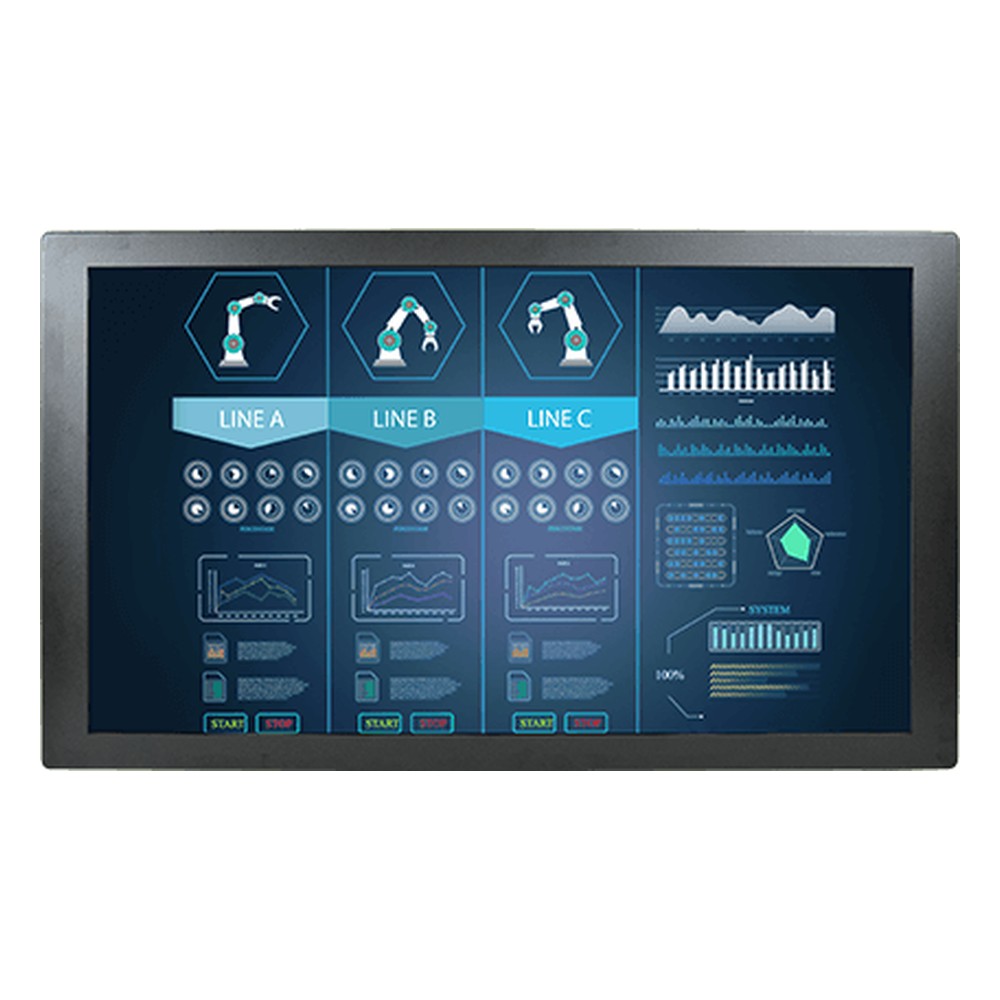

Not every screen needs touch: overview displays in control rooms and manufacturing areas are watched rather than tapped. The W27L100-CHA1 is Winmate’s 27 inch display-only chassis monitor, in a fanless metal housing that mounts on VESA and connects to a separate computer.
The 27″ 16:9 panel runs at 1920 x 1080 (FHD) with 300 nits and a 3000:1 contrast ratio, and Winmate quotes viewing angles of 178° in both directions. This build has protection glass without a touch layer, so it suits screens that only display, such as status boards and process views. The 16:9 widescreen format also suits dashboards viewed across a room.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the W24L100-CHA2 is a 23.8″ chassis monitor with resistive touch as standard, and the W32L300-CHA3 moves to a 32″ FHD panel with projected capacitive touch.
The W27L100-CHA1 runs from 12 V DC, with a 24 V DC input as an option, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 27 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
W27L100-CHA1 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W27L100-CHA1 |
| Features | Fanless Industrial |
| Display | |
| Display | 27"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 660mm x 397mm x 63mm (25.98" x 15.63" x 2.48") |
| Mounting Options | VESA Mount |
- W27L100-CHA1 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W27L100-CHA1 configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the W32L300-CHA3HB is the 32 inch display-only version at 1500 nits.
The W27L100-CHA1 sits among our 27 inch industrial monitors and our chassis monitors. Where a project needs a 27 inch chassis monitor that connects to an existing computer, this is a sensible model to shortlist.
