Winmate W32L300-CHA3HB 32″ Chassis Monitor with 1500 Nit FHD Display and 4000:1 Contrast
High Bright
Fanless
CE
FCCW32L300-CHA3HB Overview

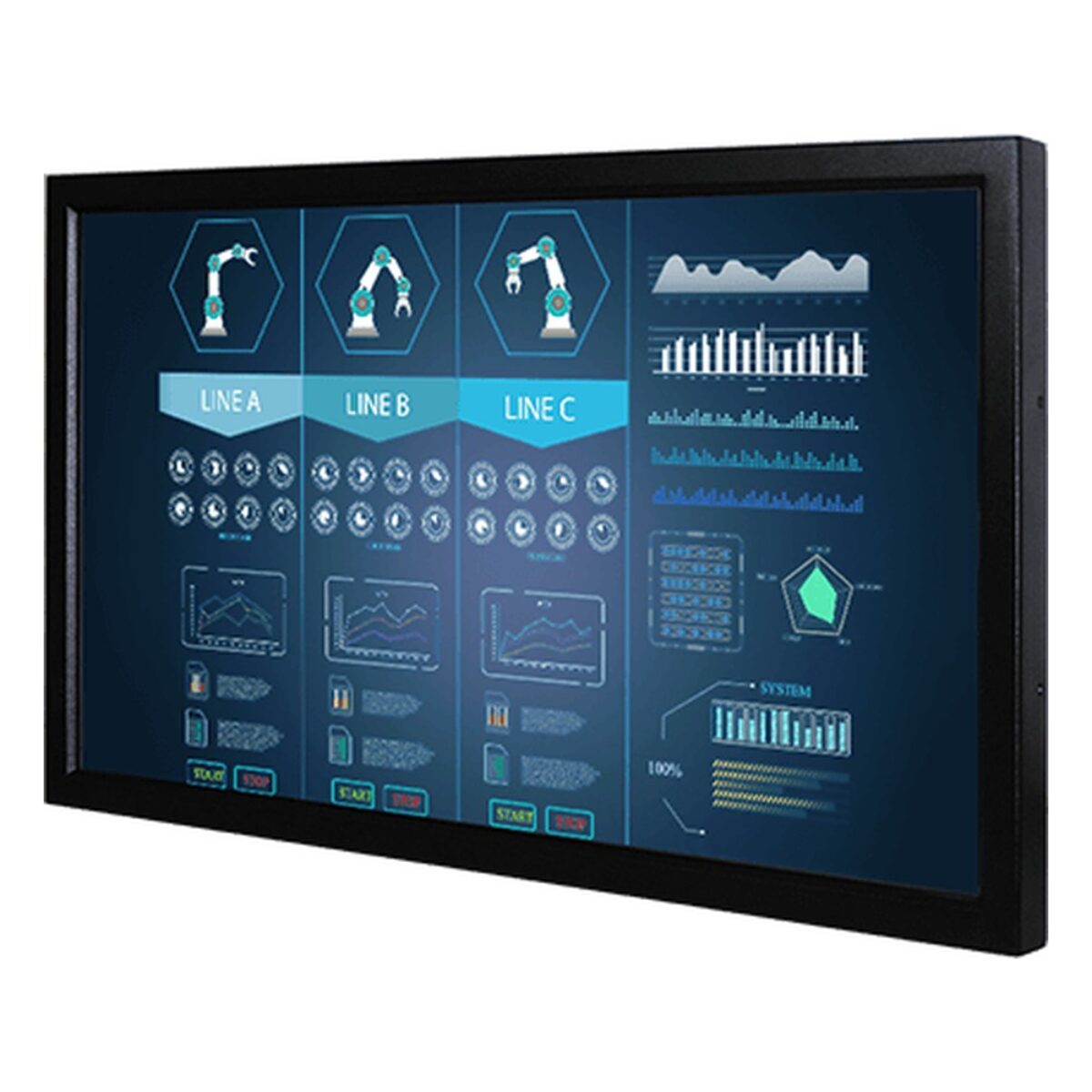

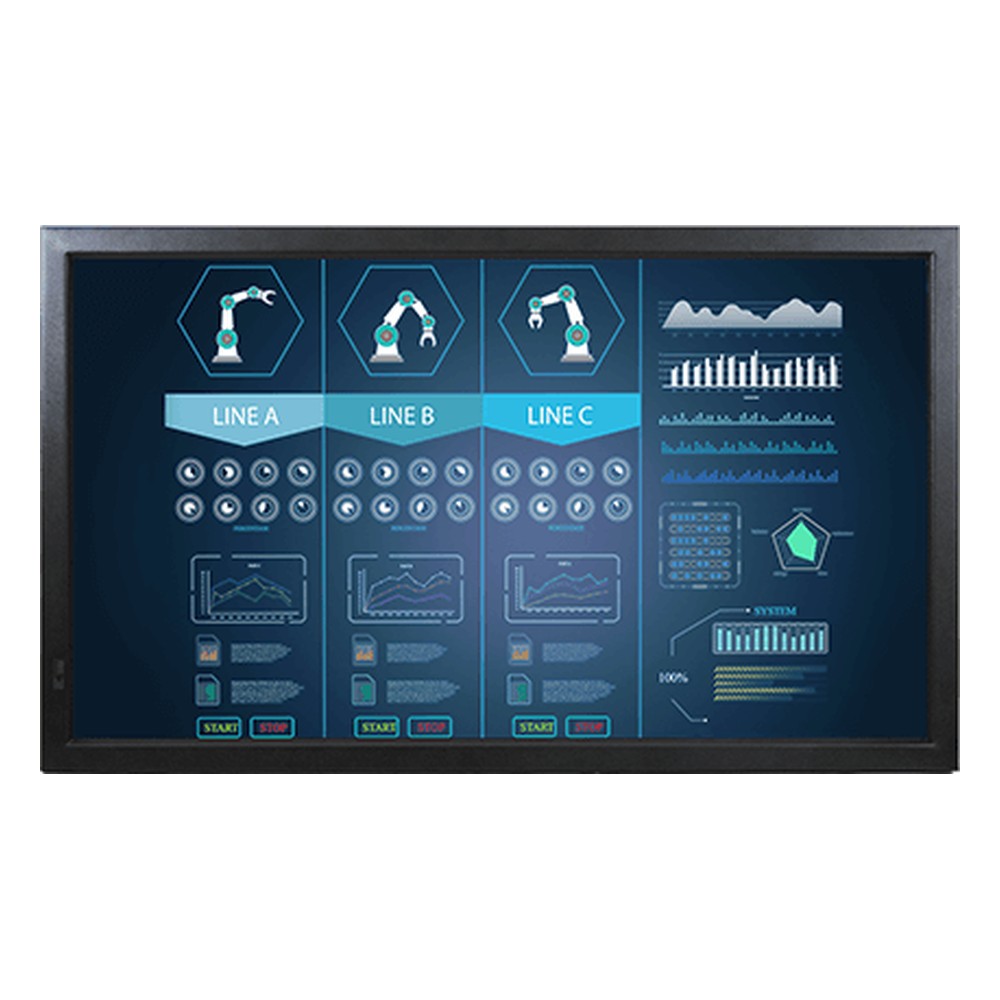

In bright control rooms, kiosks and manufacturing areas, a standard panel can wash out. The W32L300-CHA3HB is Winmate’s 32 inch high brightness chassis monitor, with a 1500 nit panel that suits sunlight-readable installations, in a fanless metal housing that mounts on VESA.
The 32″ 16:9 panel runs at 1920 x 1080 (FHD) with 1500 nits and a 4000:1 contrast ratio, and Winmate quotes viewing angles of 178° in both directions. That brightness helps where windows or strong overhead lighting fall on the screen. This build has protection glass without a touch layer, so it suits screens that only display, such as status boards and process views. The 16:9 widescreen format also suits dashboards viewed across a room.
Video comes in over VGA as standard, with HDMI or DVI inputs available as options. An audio line-in and two speakers are optional, and five keys handle the on-screen menu, with a remote control as an optional accessory. Within the Winmate range, the W32L300-CHA3 adds projected capacitive multi-touch at 400 nits, and the W32L300-CHA3TR uses a 400 nit transflective panel instead.
The W32L300-CHA3HB runs from 24 V DC, and an AC adapter comes with it, along with a power cord, VGA and HDMI cables and VESA screws. It operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. The 32 inch monitor cools without a fan, mounts on VESA and carries CE and FCC marks. It pairs with the industrial PC of your choice, and we supply it configured and tested before dispatch.
W32L300-CHA3HB Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W32L300-CHA3HB |
| Features | Fanless Industrial |
| Display | |
| Display | 32"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Brightness | 1,500 nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 4000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 24V DC AC Power Supply Included |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 791mm x 471mm x 71mm (31.13" x 18.54" x 2.80") |
| Mounting Options | VESA Mount |
- W32L300-CHA3HB Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W32L300-CHA3HB configured and tested for USA control room, kiosk and industrial projects. Within the Winmate range the W22L100-CHA3HB is the 21.5 inch 1000 nit version with resistive touch.
The W32L300-CHA3HB sits among our sunlight readable monitors, our 32 inch industrial monitors and our chassis monitors. Where a 32 inch screen has to stay readable in bright light, this is a sensible model to shortlist.
