Winmate W43IAD7T-PCA3 43″ PCAP Touch Panel PC with Intel Alder Lake-S/Raptor Lake Core and PCAP Touch
PCAP
Intel
Linux
Windows
USB3
2x M.2
Wi-Fi
NVMe SSD
Front IP65
CE
FCCW43IAD7T-PCA3 Overview

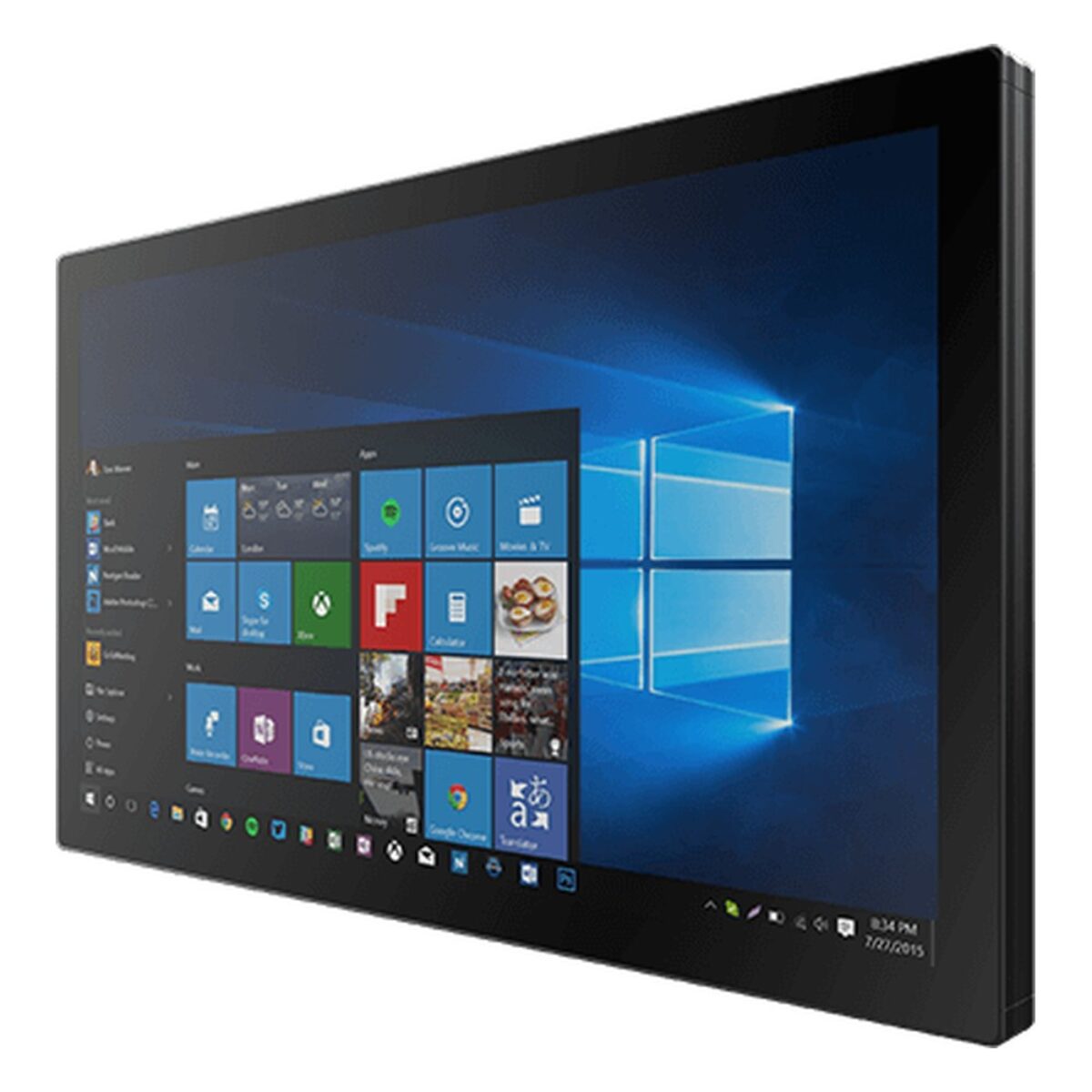

Some screens are viewed by a whole team from across a floor rather than by one operator at arm’s length, and a 43 inch touchscreen with a computer built in keeps that installation to one unit. The W43IAD7T-PCA3 is Winmate’s 43 inch PCAP touch panel PC, with a 43″ 1920 x 1080 display at 400 nits with 3000:1 contrast, projected capacitive multi-touch and a front IP65 rating on a true-flat face.
It is built on LGA1700 with an Intel R680E chipset and a choice of processors: 12th Gen Intel Core TE (Alder Lake-S) from the i3-12100TE fitted as standard to the i9-12900TE, or 14th Gen Intel Core T (Raptor Lake Refresh) from the i3-14100T to the i9-14900T. Two non-ECC SO-DIMM sockets take up to 64 GB, and storage runs from a 128 GB NVMe SSD in an M.2 2280 M-key slot to 4 TB. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04.
I/O covers four USB 3.2 Gen 1 Type-A ports, two Gigabit LAN ports on Intel controllers, one RS-232/422/485 port, an HDMI 2.0b output up to 4096 x 2160 at 60 Hz with DisplayPort 1.4a as an option, mic-in, line-out and two speakers. An M.2 2230 E-key slot takes an optional Wi-Fi module. The W32IAD7T-PCA3 is the 32 inch version of this design with a 4000:1 panel, and the W27IAD7T-PCA1 is the 27 inch model on 12th Gen Intel Core TE processors and 12 V DC.
Power is 24 V DC on a lockable DIN 4-pin connector, and a 100 to 240 V AC adapter rated 200 W is supplied. The metal housing is fan cooled and VESA mounted, and runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W43IAD7T-PCA3 configured, with the OS installed, and tested before dispatch.
W43IAD7T-PCA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W43IAD7T-PCA3 |
| Features | Industrial |
| Display | |
| Display | 43"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Chipset | Intel R680E |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Ubuntu 24.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Outputs | 1x HDMI |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 4x USB 3.2 Gen 1 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [2230] 1x M.2 M-Key [PCIe] [2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 24V DC |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 27.3 Kg (60.2 Lbs) |
| Dimensions | 1029mm x 617mm x 65mm (40.50" x 24.29" x 2.54") |
| Mounting Options | VESA Mount |
- W43IAD7T-PCA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W43IAD7T-PCA3 configured, with the OS installed, and tested for USA control room, factory and signage projects. Within the Winmate range the W32IAD7T-PCA3 gives the same design a 32 inch screen, and the W27IAD7T-PCA1 is the 27 inch model with four USB 3.2 Gen 2 ports and 2.5GbE.
As a large VESA-mounted touchscreen the W43IAD7T-PCA3 sits among our PCAP touch panel PCs, our front IP65 panel PCs and our IP65 computers. If you are planning a large shared display, our team can help with the processor and mounting choices.
