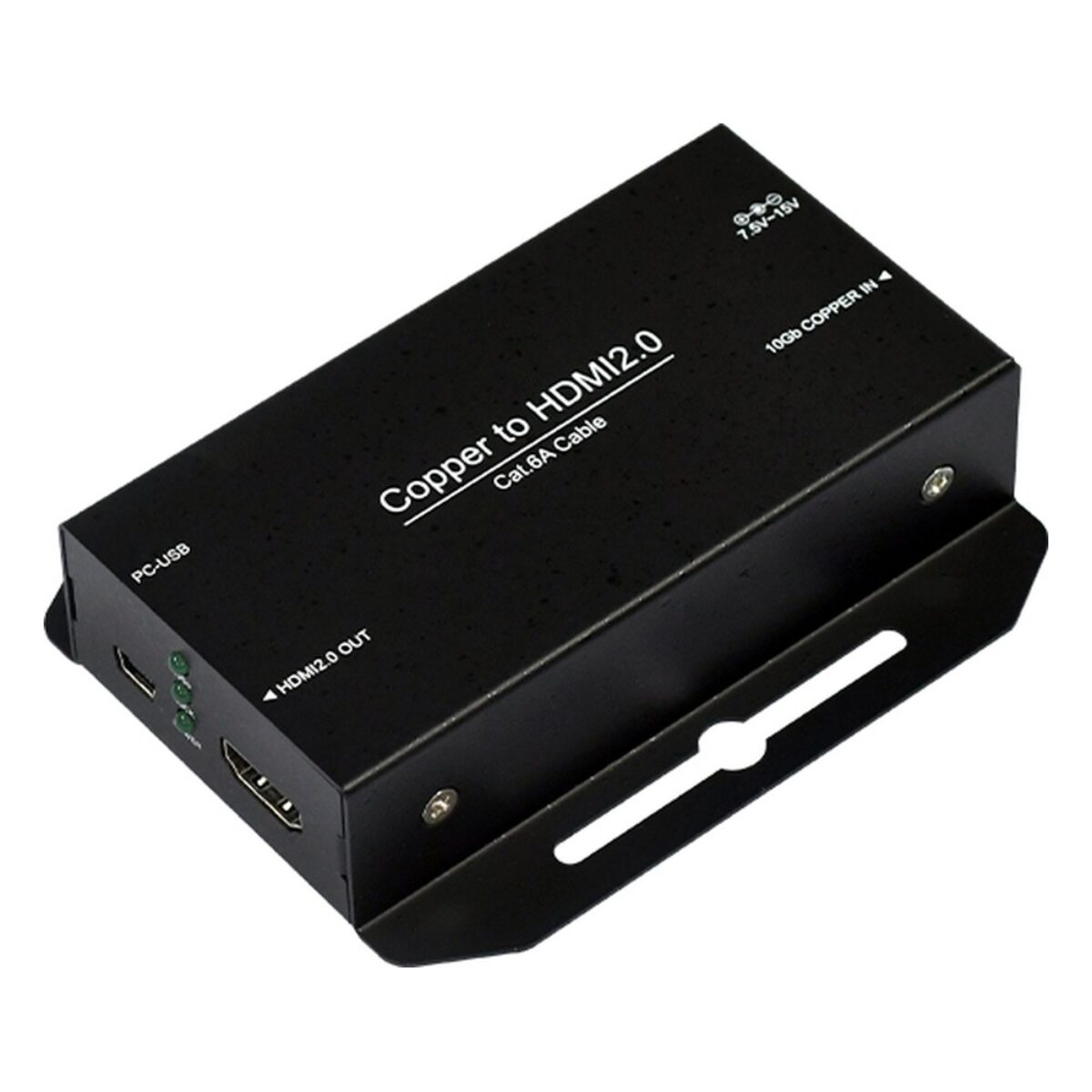

Yuan Copper to HDMI2.0 HDMI Extender over Copper with 10G Cat6A Input and HDMI 2.0 Output

The Copper to HDMI2.0 is Yuan's HDMI extender over copper, the receiver that takes YUAN AVXT video from a 10G copper Cat.6A link and outputs it as HDMI 2.0 in the format sent by the transmitter. It suits displays, projectors and video walls mounted away from the source they show.

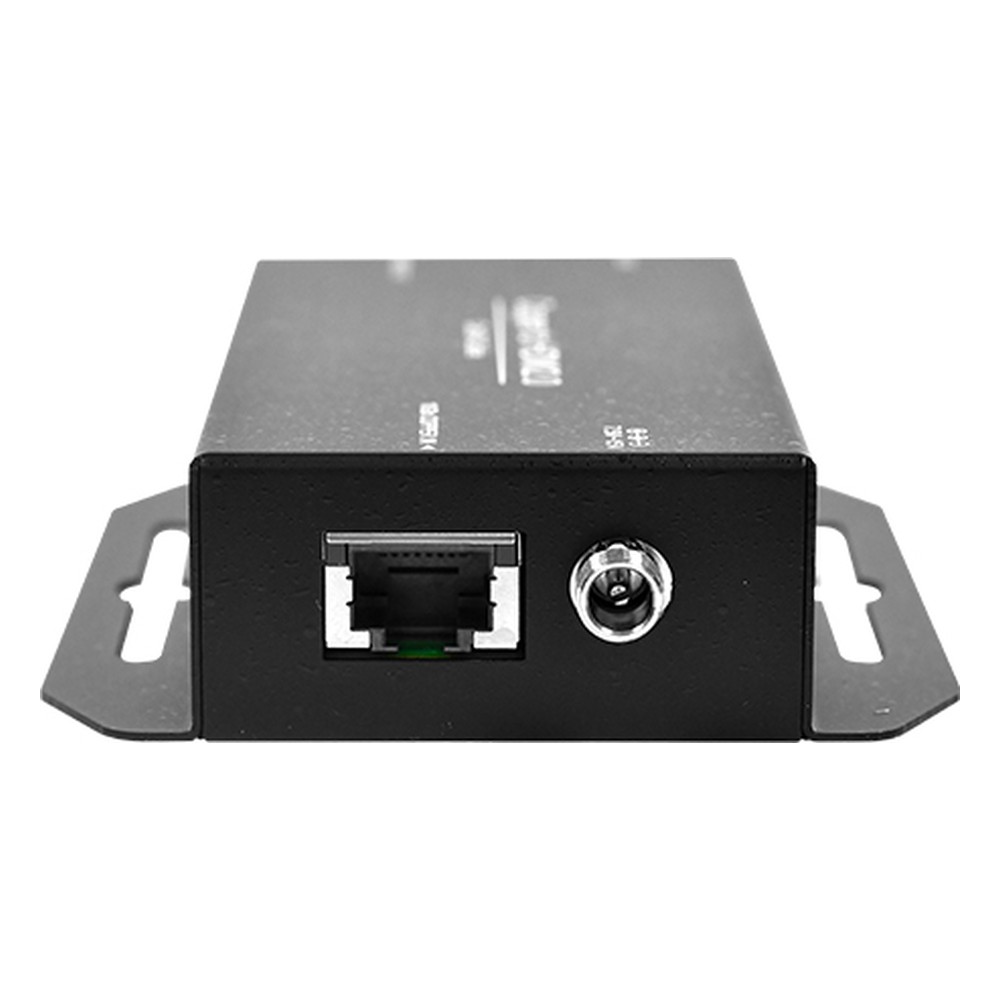

  • 10G Copper Input: Receives YUAN AVXT video packets over 10G copper on a single RJ45 port using Cat.6A cable.

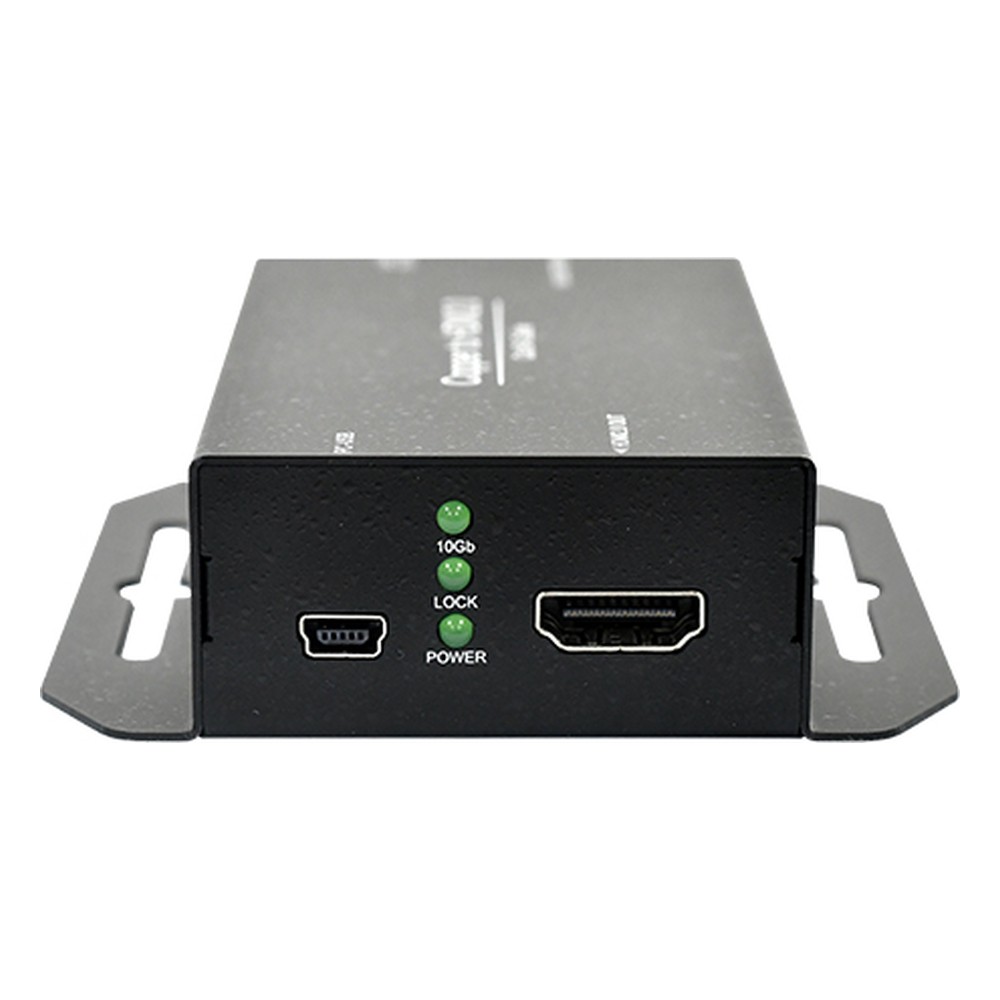

  • HDMI 2.0 Output: Outputs one HDMI 2.0 signal in the same format that the transmitter received at the source end.
  • 192 kHz Audio: Delivers up to eight channels of 24-bit audio at up to 192 kHz on the HDMI output.
  • Auto Format Detection: Detects the incoming stream format automatically, so the display end needs no set-up when the source changes.
  • Compact and Plug and Play: A compact standalone receiver powered from a 7.5V to 15V DC input that works once cabled.
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications

Copper to HDMI2.0 Overview

When a display, projector or monitor sits far from the PC or player feeding it, the signal has to be carried across the building and turned back into HDMI at the screen. The Copper to HDMI2.0 from Yuan is the receiver for that job in pro AV and display installations. It is the display-end half of a copper extender pair, converting a 10G copper link back into HDMI 2.0.

The input is one RJ45 port receiving YUAN AVXT network packets over 10G copper on Cat.6A cable. The output is one HDMI 2.0 connector carrying the video in the same format as the source, so resolution and frame rate follow whatever the transmitter receives. Up to eight channels of 24-bit audio at up to 192 kHz are delivered on the HDMI output. The stream format is detected automatically.

The Copper to HDMI2.0 is plug and play and runs from a 7.5V to 15V DC input in a compact housing. At the source end it pairs with the HDMI2.0 to Copper transmitter, which accepts HDMI 2.0 at up to 4096 x 2160p60. When one remote location has several screens, the HDMI2.0 Splitter can copy the received signal to four HDMI 2.0 displays. For SDVoE networks, the SDVoE to HDMI2.0 V2 receiver plays the same role.

In practice the receiver sits behind the display or in a floor box, powered locally. We supply the Copper to HDMI2.0 configured and tested with the source, display and Cat.6A cabling it will connect to, normally as a matched pair with its transmitter.

Copper to HDMI2.0 Specifications

Overview
Brand & ModelYuan Copper to HDMI2.0
FeaturesCompact
Video Capture
Simultaneous Video Inputs1
Video Input1x RJ45 (10G)
Video Output1x HDMI2.0
Audio Output1x HDMI Embedded Audio Output
Power
Power Input7.5-15V DC
Mechanical Properties
Dimensions104mm x 58mm x 26mm (4.09" x 2.28" x 1.02")

Official Yuan USA Distributor

Things Embedded is an official Yuan USA distributor, and we supply the Copper to HDMI2.0 configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the HDMI2.0 to Copper is the matching transmitter for the source end, and the SDVoE to HDMI2.0 V2 receives HDMI 2.0 from an SDVoE network instead.

Across our range, the Copper to HDMI2.0 sits with our HDMI video extenders, our SDI and HDMI converters and our HDMI 2.0 capture cards.
