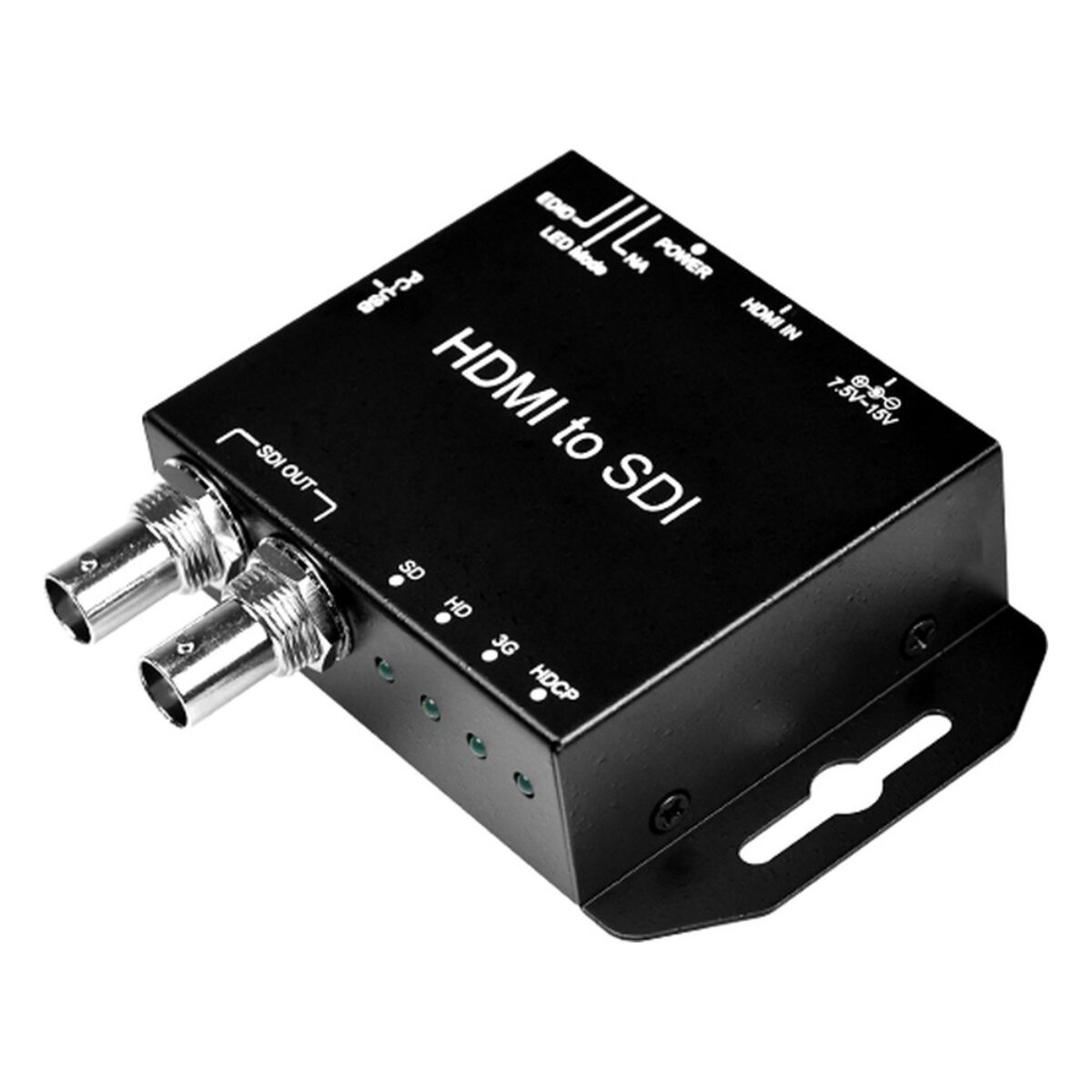

Yuan HDMI to SDI HDMI to SDI Converter with Dual SDI Outputs and EDID Learning at 1080p60
HDMI to SDI Overview
HDMI cables are short and do not lock, so getting a camera, laptop or player into an SDI router or vision mixer across a room or venue usually means converting to SDI at the source. The Yuan HDMI to SDI is a straightforward HDMI to SDI converter with two SDI outputs, which suits live events, broadcast and pro AV.

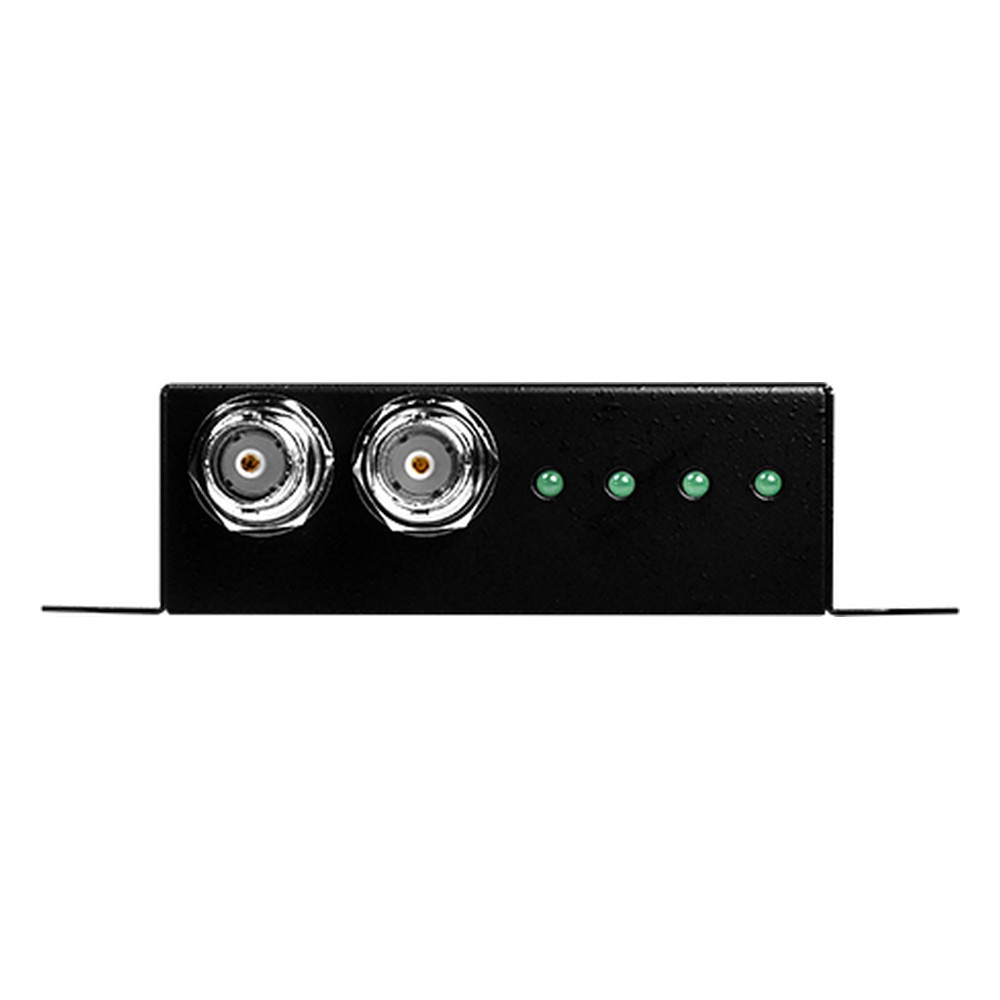

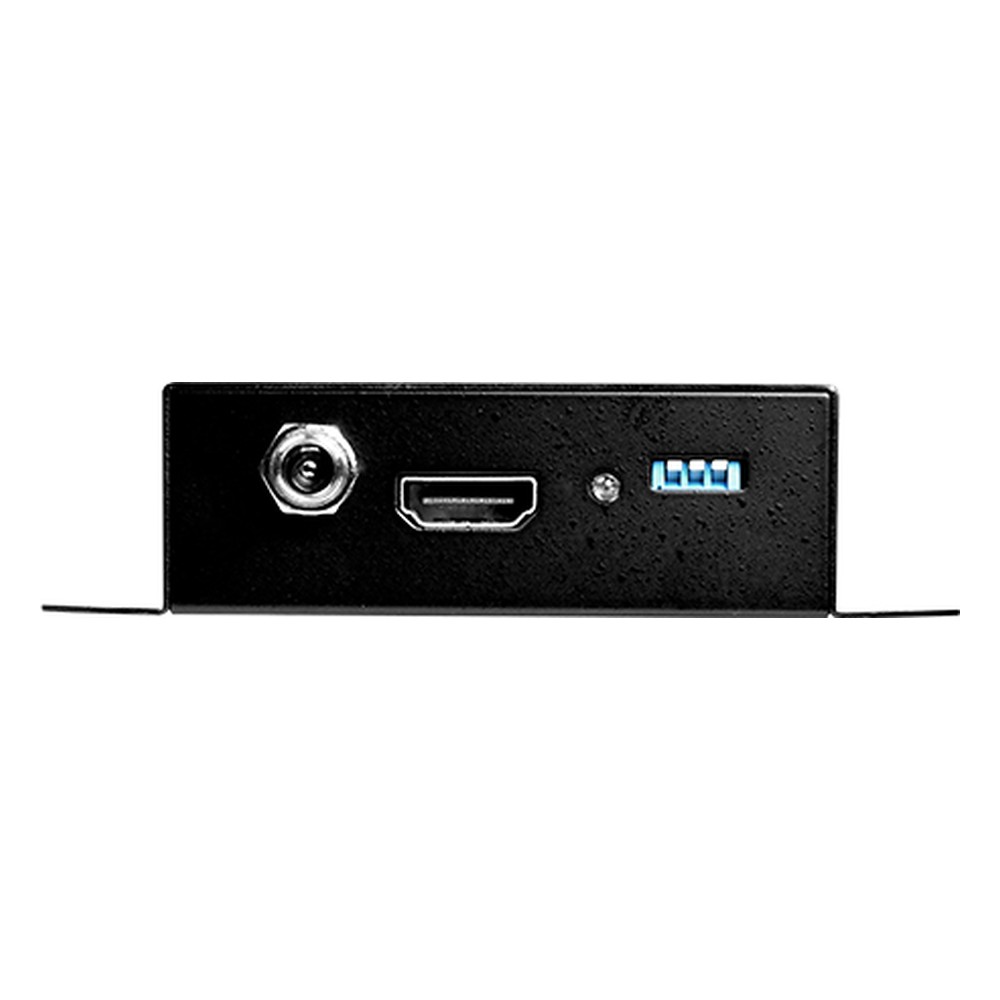

Input is one HDMI connection accepting 1920x1080p at 60/50 and 30/25/24 fps, 1080i, 720p, 480i and 576i. Outputs are two SDI connections in the input format, covering 3G, HD and SD-SDI. Yuan lists high-quality digital direct conversion, auto source format detection and HDMI EDID learning. HDMI audio of two channels, 24-bit, up to 192 kHz is embedded into SDI at two channels, 48 kHz.
The HDMI to SDI is plug and play and runs from a 7.5 to 15 V DC input. If your source runs at PC resolutions or a different frame rate, the HDMI to SDI-S adds up/down scaling and an OSD menu. For external audio, the HDMI to SDI Audio Embedder adds L/R, AES-3 and S/PDIF input.
Yuan publishes no operating temperature or certification for this unit, so plan for indoor use. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. If you are not sure which conversion you need, our team can look at the sources and destinations on your system and recommend the converter, cabling and power arrangement that suits. We supply the HDMI to SDI configured and tested with the sources, displays and SDI routing it will connect to.
HDMI to SDI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan HDMI to SDI |
| Video Capture | |
| Video Input | 1x HDMI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 2x SDI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x HDMI Embedded Audio Input |
| Audio Output | 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 104mm x 64mm x 26mm (4.09" x 2.5" x 1.02") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the HDMI to SDI configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the HDMI to SDI-S adds scaling and frame rate conversion, and the SDI to HDMI converts in the opposite direction.
Across our range, the HDMI to SDI sits with our SDI and HDMI converters, our SDI video capture cards and our HDMI video capture cards.
