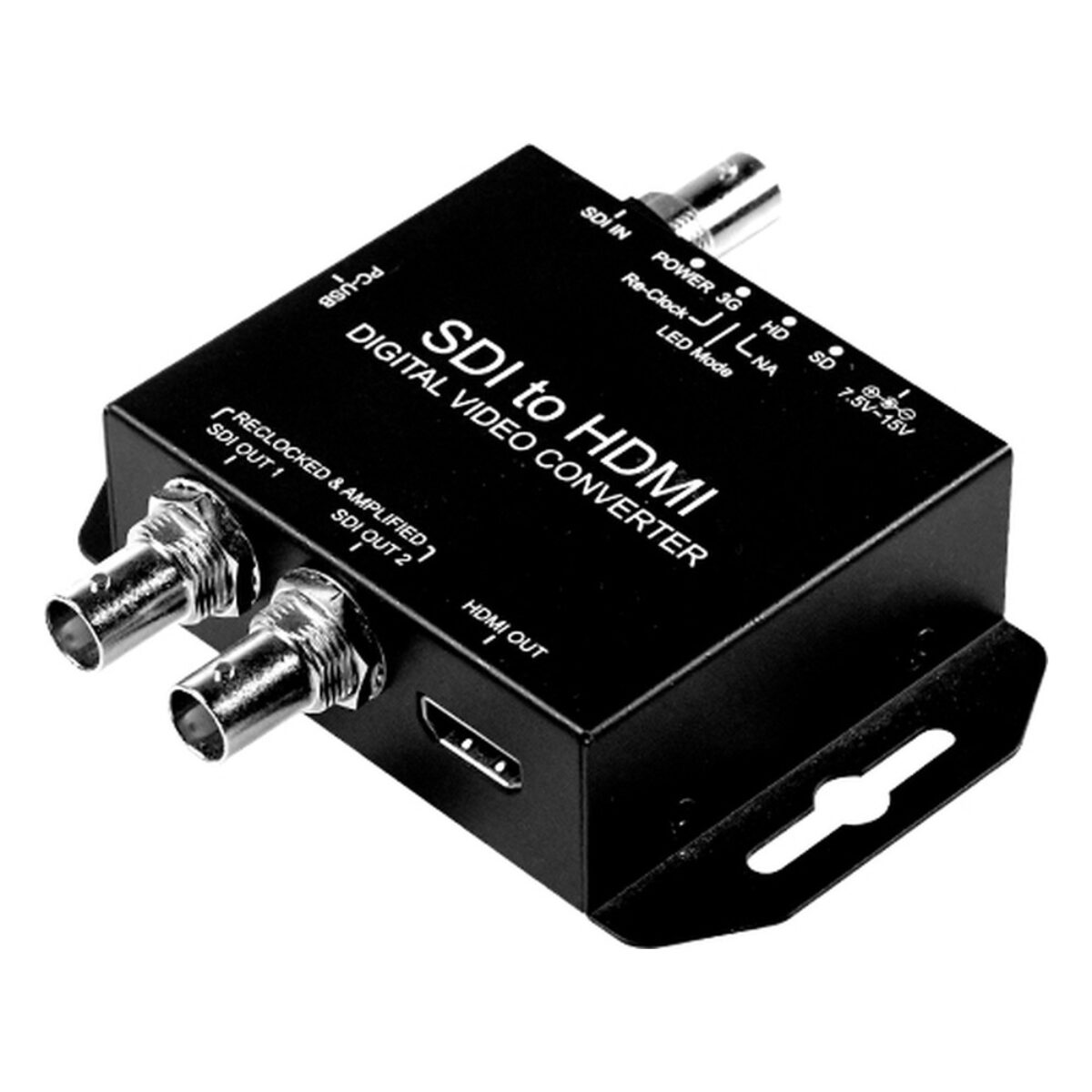

Yuan SDI to HDMI 3G-SDI to HDMI Converter with Dual Loop-Out and Auto Format Detection at 1080p60
SDI to HDMI Overview
Most monitoring points in a studio, outside broadcast or AV room just need an SDI feed on an HDMI screen, with the SDI signal carried on to the next device. The Yuan SDI to HDMI is a straightforward SDI to HDMI converter for that job, with two SDI loop-throughs.

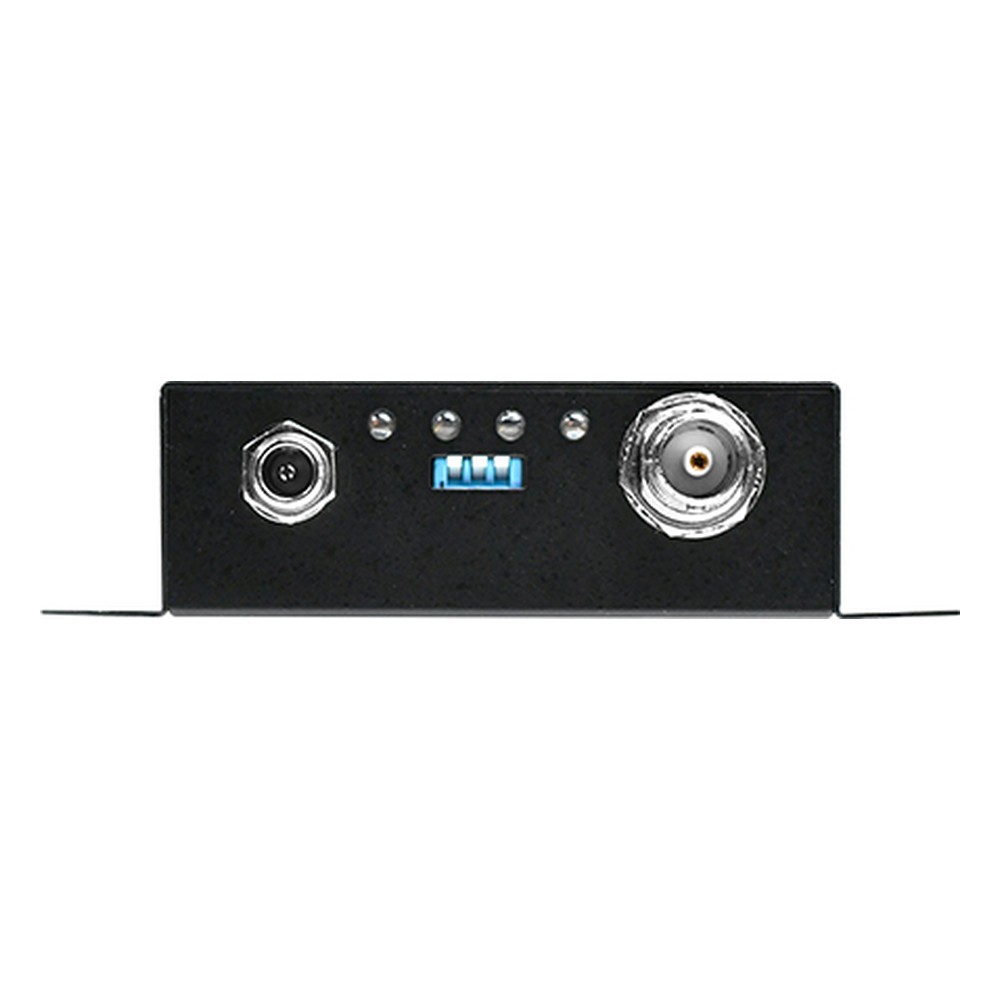

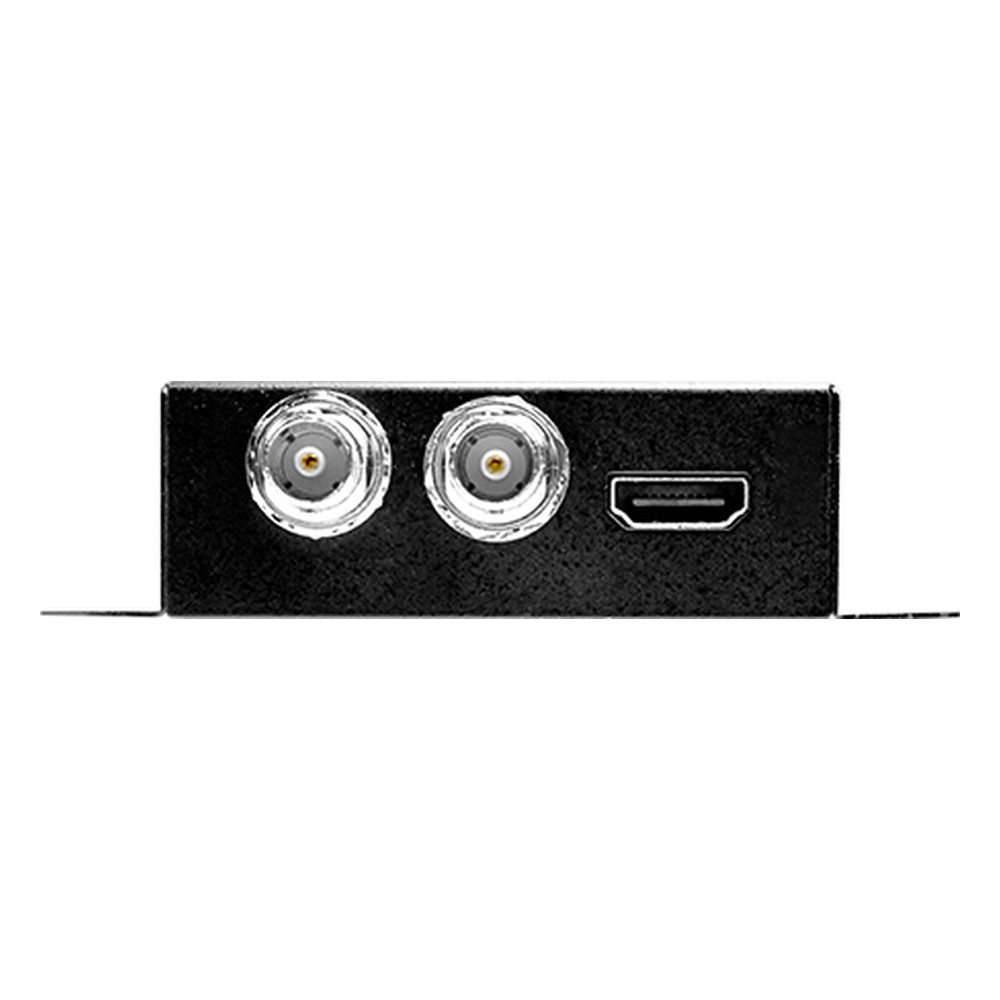

Input is one SDI connection accepting 3G-SDI at 1920x1080p 60/50, HD-SDI at 1080p 30/25/24, 1080i and 720p, and SD-SDI at 480i and 576i. Outputs are one HDMI and two SDI loop-throughs, all in the input format. Yuan lists high-quality digital direct conversion and auto source format detection. Embedded audio is up to two channels, 24-bit, 48 kHz.
The SDI to HDMI is plug and play and runs from a 7.5 to 15 V DC input. If your display needs a different format, the SDI to HDMI-S adds up/down scaling, frame rate conversion and eight-channel audio. For audio out to a mixer or speakers, the SDI to HDMI Audio De-Embedder adds an L/R, AES-3 and S/PDIF output.
No operating temperature or certification is published, so we treat it as an indoor desk or rack unit. We can also supply spare units for critical signal paths and advise on mounting and power in the rack, so the installation is ready before you go live. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. We supply the SDI to HDMI configured and tested with the SDI sources and HDMI displays it will connect to.
SDI to HDMI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SDI to HDMI |
| Video Capture | |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x HDMI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x SDI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 104mm x 64mm x 26mm (4.09" x 2.5" x 1.02") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the SDI to HDMI configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SDI to HDMI-S adds scaling and eight-channel audio, and the HDMI to SDI converts in the opposite direction.
Across our range, the SDI to HDMI sits with our SDI and HDMI converters, our SDI video capture cards and our HDMI video capture cards.
