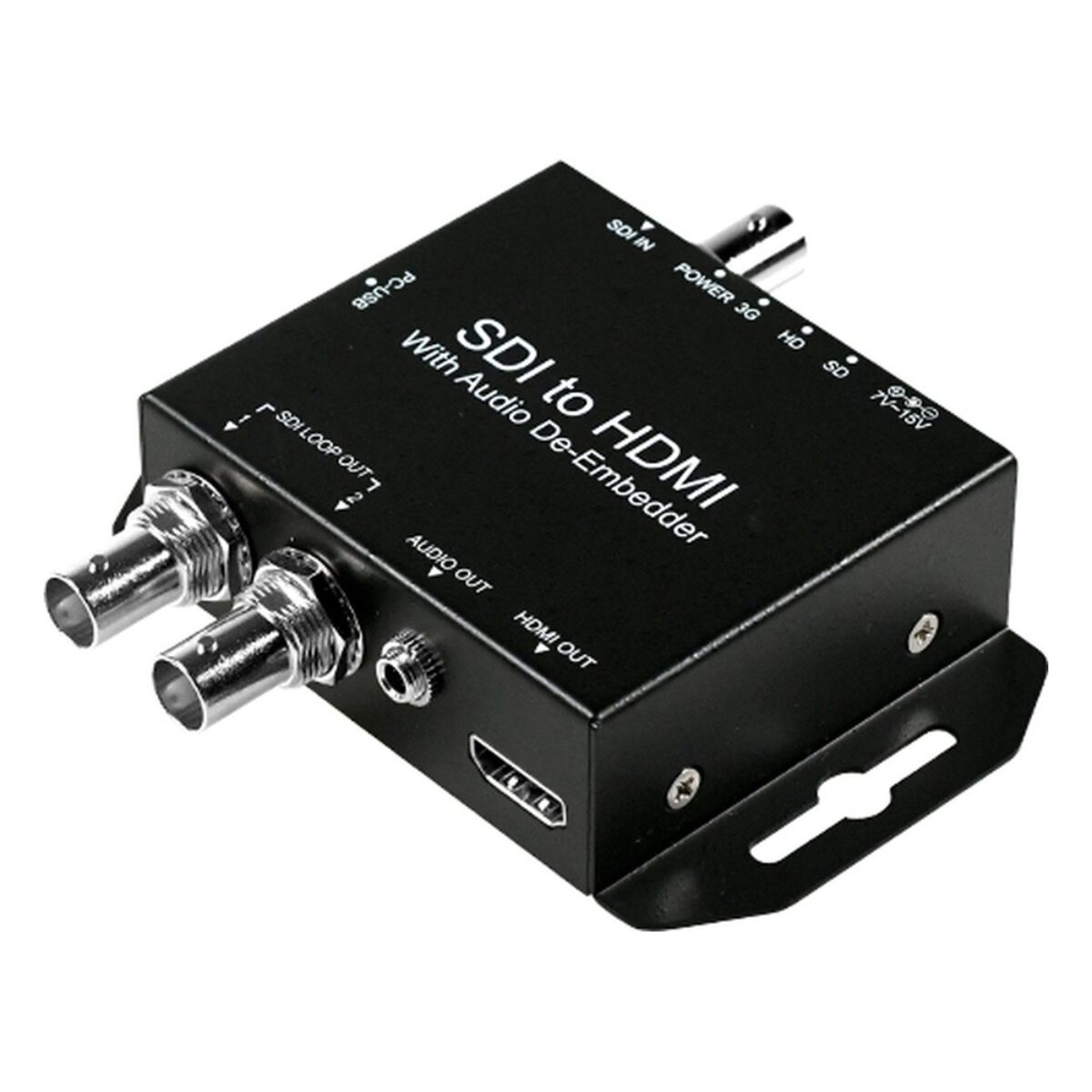

Yuan SDI to HDMI Audio De-Embedder SDI to HDMI Audio De-Embedder with AES-3, S/PDIF and Analog Audio Output
SDI to HDMI Audio De-Embedder Overview
Getting audio out of an SDI feed for a speaker system, mixer or recorder usually means a separate de-embedder next to the monitor converter. The Yuan SDI to HDMI Audio De-Embedder is an audio de-embedder that does both jobs: SDI to HDMI conversion plus an audio output in analog or digital form, which suits broadcast, live events and pro AV.

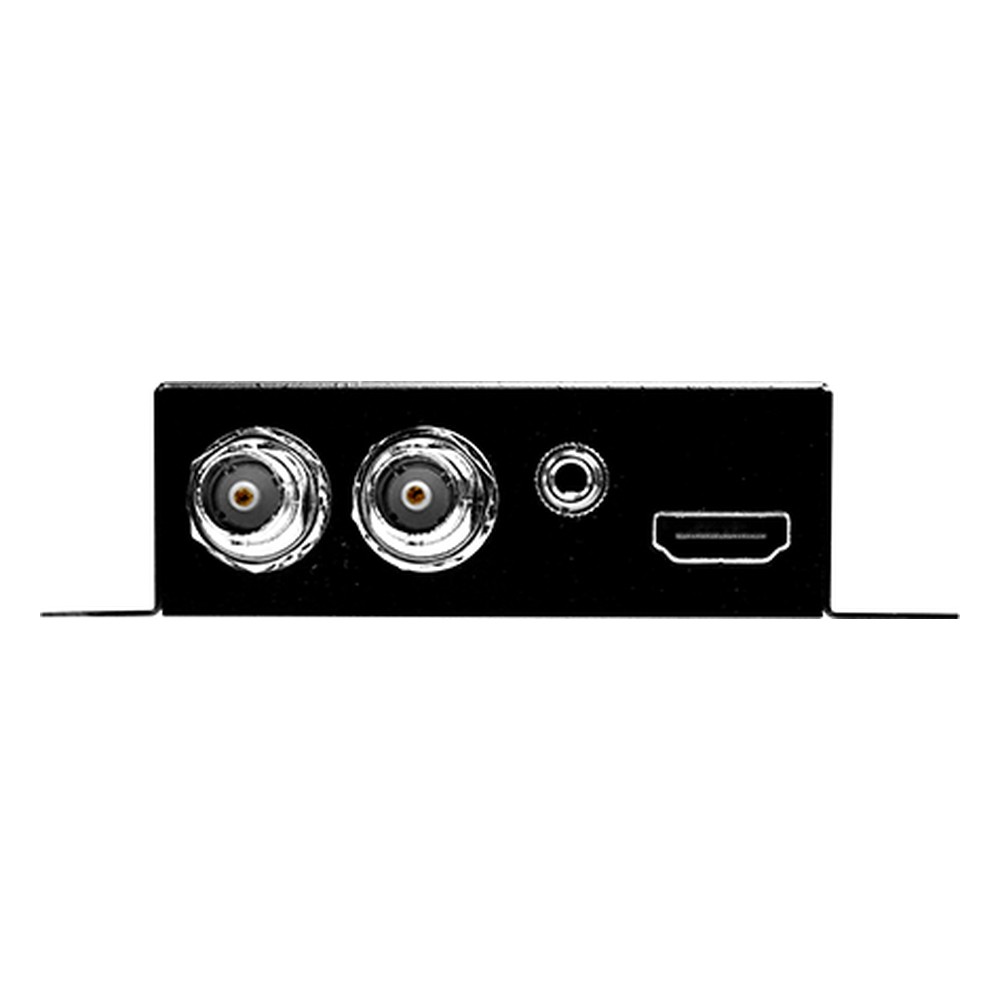

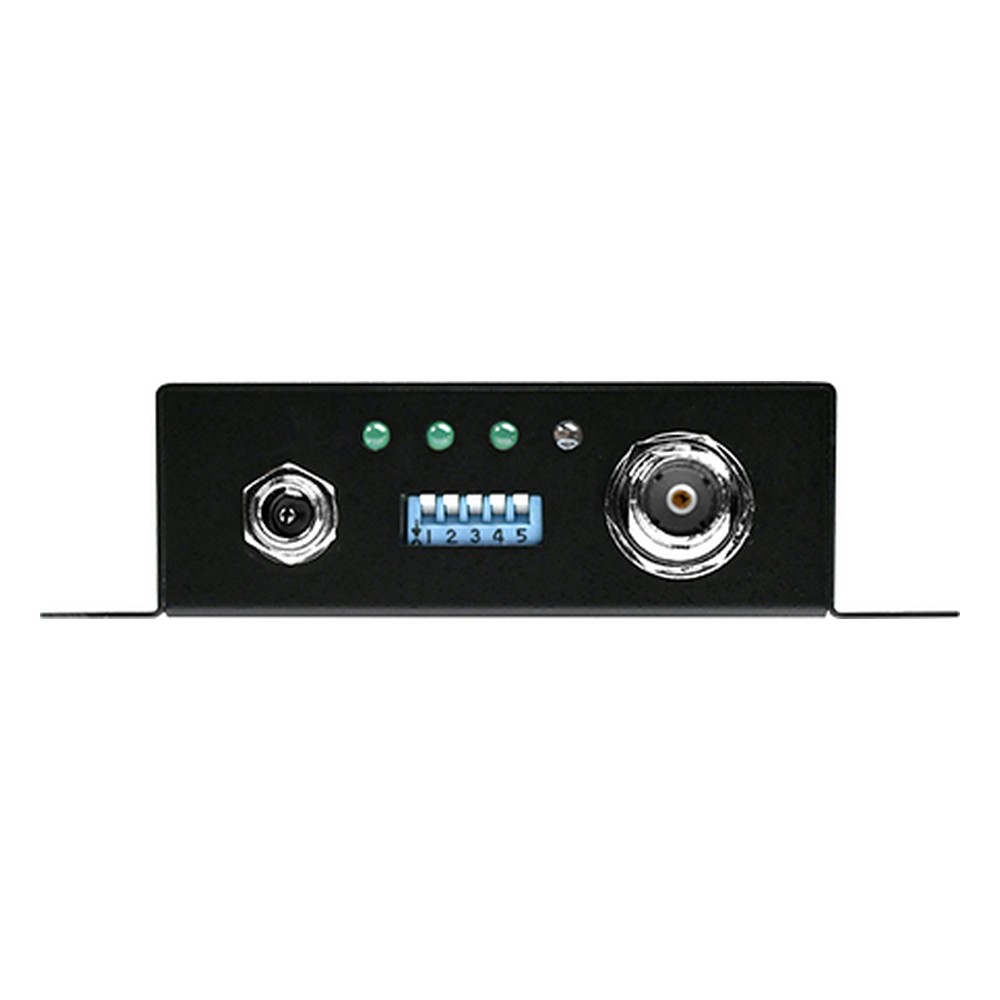

Input is one SDI connection accepting 3G-SDI at 1080p 60/50, HD-SDI at 1080p 30/25/24, 1080i and 720p, and SD-SDI at 480i and 576i. Outputs are one HDMI in the input format, two SDI loop-throughs and a stereo jack that carries L/R analog audio, AES-3 or S/PDIF. HDMI and SDI carry up to eight channels of embedded audio at 24-bit, 48 kHz, and the jack outputs two channels at 24-bit, 48 kHz.
The SDI to HDMI Audio De-Embedder is plug and play, with auto source format detection and a 7.5 to 15 V DC input. If your audio system needs balanced XLR, the SDI to HDMI Audio De-Embedder XLR is the fit. To embed audio at the source end, the HDMI to SDI Audio Embedder takes L/R, AES-3 and S/PDIF in.
Yuan publishes no operating temperature or certification for this unit, so plan for indoor use. If you are not sure which conversion you need, our team can look at the sources and destinations on your system and recommend the converter, cabling and power arrangement that suits. We supply the SDI to HDMI Audio De-Embedder configured and tested with the sources, displays and audio system on your project.
SDI to HDMI Audio De-Embedder Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SDI to HDMI Audio De-Embedder |
| Video Capture | |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x HDMI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x SDI Embedded Audio Input |
| Audio Output | 1x 3.5mm Audio Output 1x HDMI Embedded Audio Output 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 104mm x 64mm x 26mm (4.09" x 2.5" x 1.02") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the SDI to HDMI Audio De-Embedder configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SDI to HDMI Audio De-Embedder XLR outputs balanced XLR with one SDI loop, and the HDMI to SDI Audio Embedder is the matching embedder.
Across our range, the SDI to HDMI Audio De-Embedder sits with our SDI and HDMI converters, our SDI video capture cards and our HDMI video capture cards.
