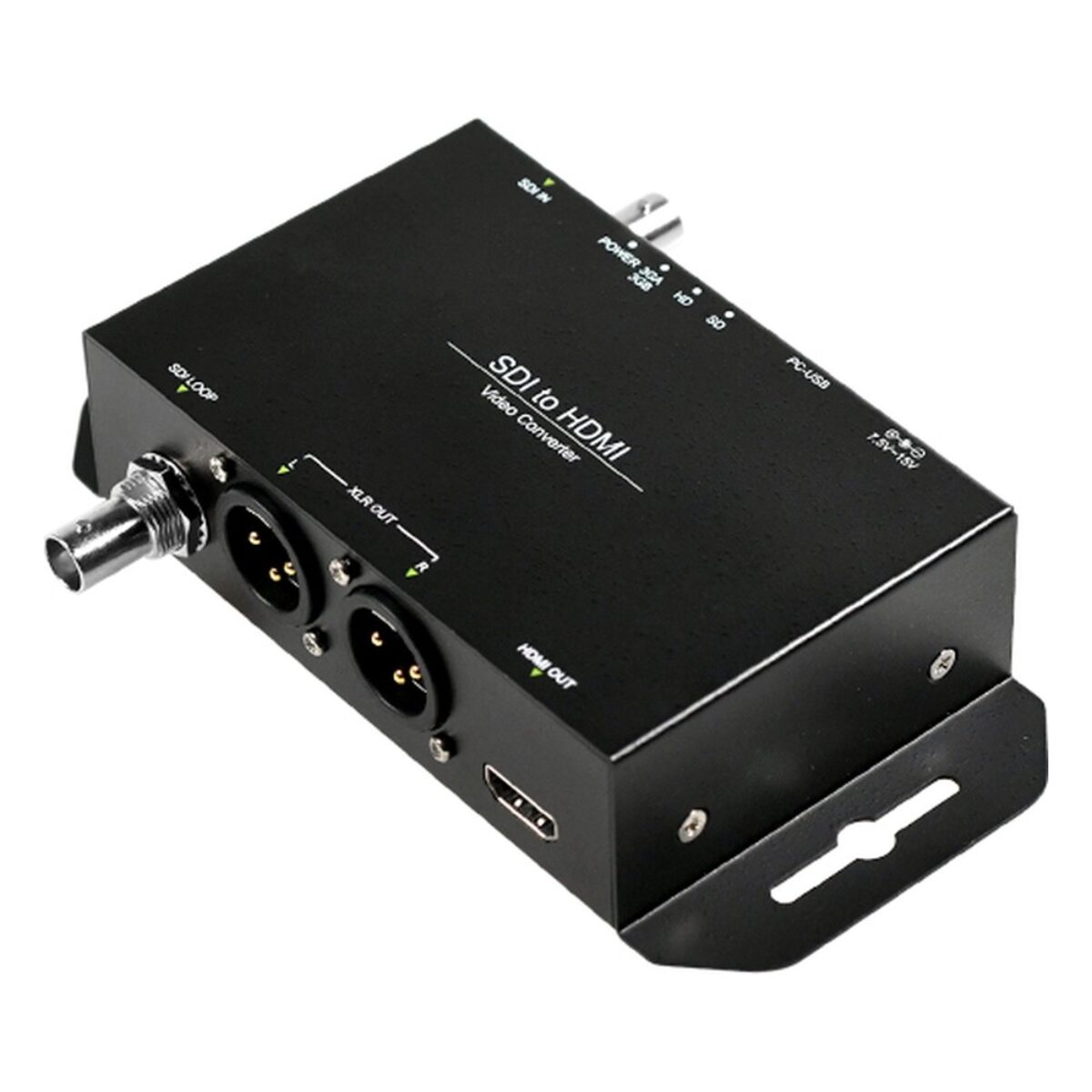

Yuan SDI to HDMI Audio De-Embedder XLR SDI to HDMI Audio De-Embedder with Balanced XLR Output and SDI Loop-Out
SDI to HDMI Audio De-Embedder XLR Overview
Program audio embedded in SDI often needs to reach a PA system, an audio desk or a separate recorder, with the picture going to an HDMI screen. The Yuan SDI to HDMI Audio De-Embedder XLR is an audio de-embedder that splits the audio out on balanced XLR while converting SDI to HDMI, typically for live events, houses of worship and broadcast.

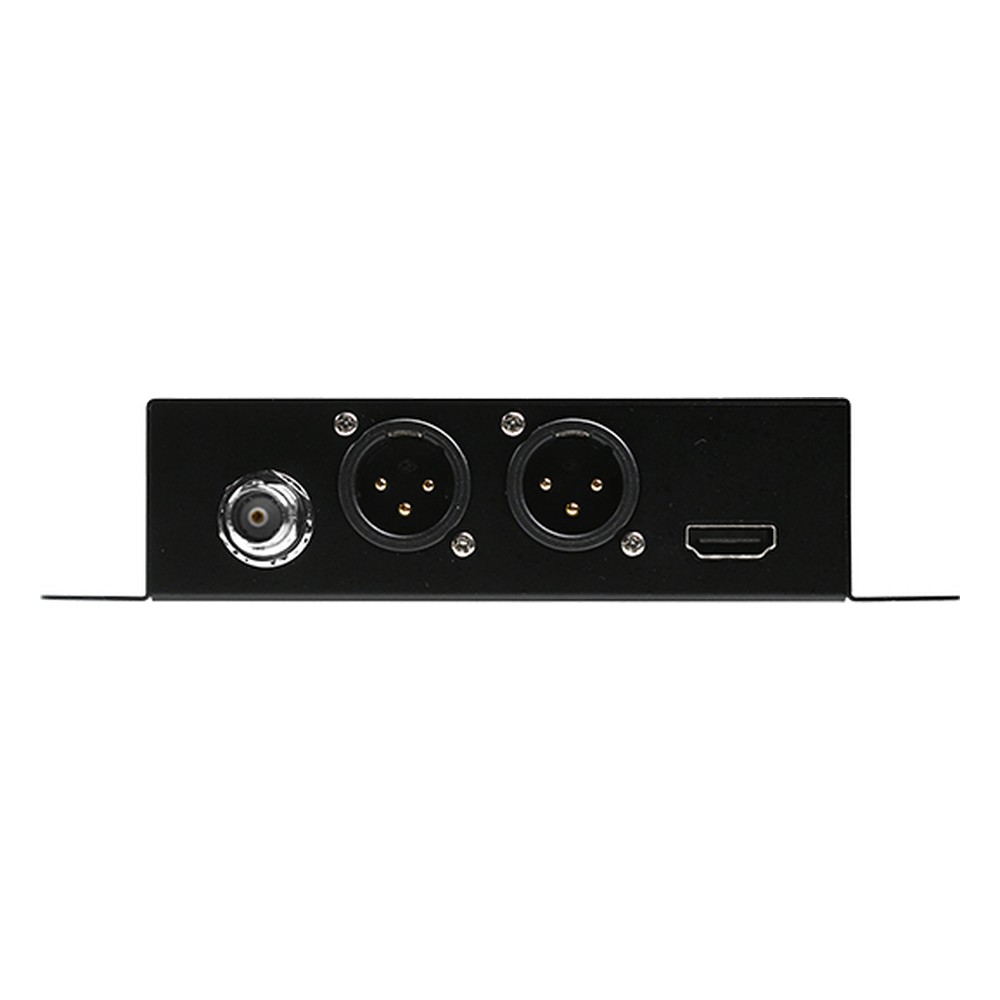

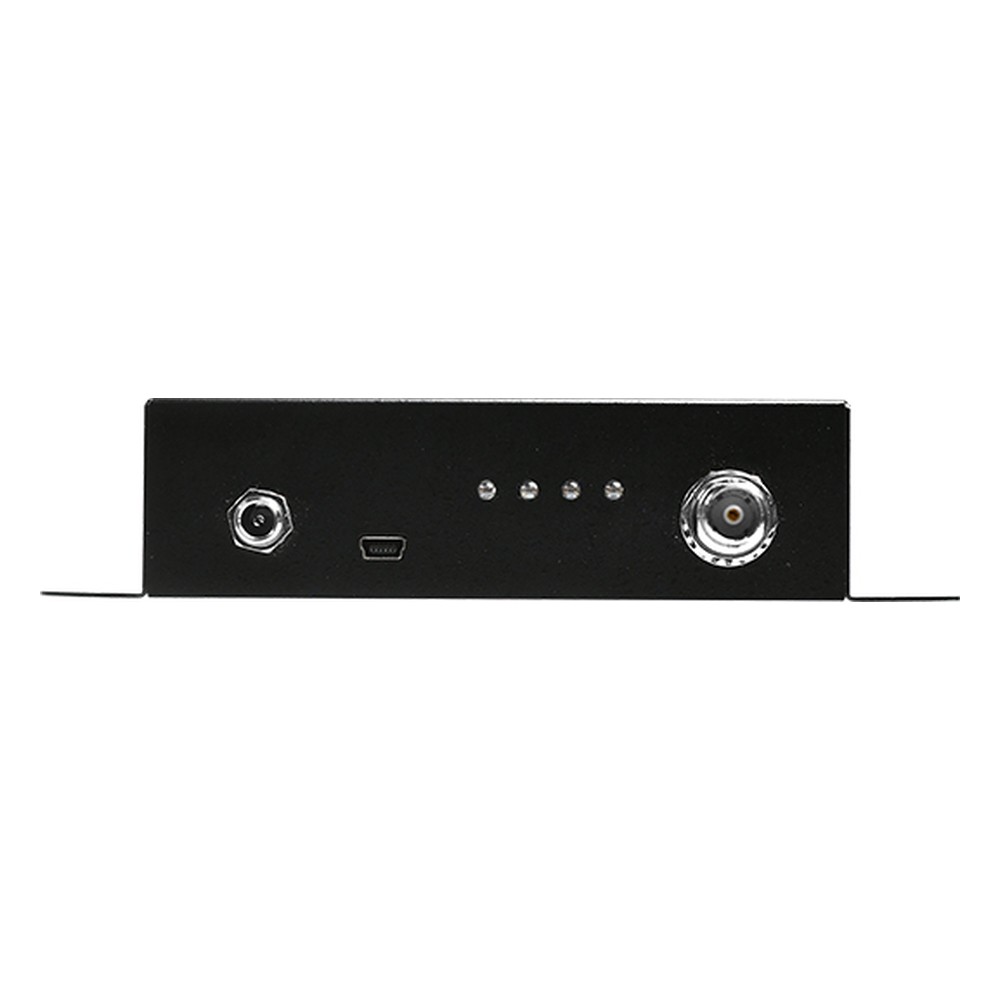

Input is one SDI connection accepting 3G-SDI at 1080p 60/50, HD-SDI at 1080p 30/25/24, 1080i and 720p, and SD-SDI at 480i and 576i. Outputs are one HDMI in the input format, one SDI loop-through and a pair of XLR connectors for balanced L/R audio. HDMI carries up to eight channels of embedded audio at 24-bit, 48 kHz, and the XLR pair outputs up to two channels at 24-bit, 48 kHz.
The SDI to HDMI Audio De-Embedder XLR is plug and play, with auto source format detection and a 7.5 to 15 V DC input. If you need unbalanced L/R, AES-3 or S/PDIF instead, the SDI to HDMI Audio De-Embedder offers those with two SDI loops. To embed balanced audio at the source end, the HDMI to SDI-S Audio Embedder takes XLR input.
No operating temperature or certification is published, so we treat it as an indoor unit. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. We supply the SDI to HDMI Audio De-Embedder XLR configured and tested with the sources, displays and audio system it will connect to.
SDI to HDMI Audio De-Embedder XLR Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SDI to HDMI Audio De-Embedder XLR |
| Video Capture | |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x HDMI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x SDI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output 1x XLR Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 157mm x 74mm x 34mm (6.18" x 2.91" x 1.32") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the SDI to HDMI Audio De-Embedder XLR configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SDI to HDMI Audio De-Embedder outputs L/R, AES-3 and S/PDIF on a stereo jack and adds a second SDI loop.
Across our range, the SDI to HDMI Audio De-Embedder XLR sits with our SDI and HDMI converters, our SDI video capture cards and our HDMI video capture cards.
