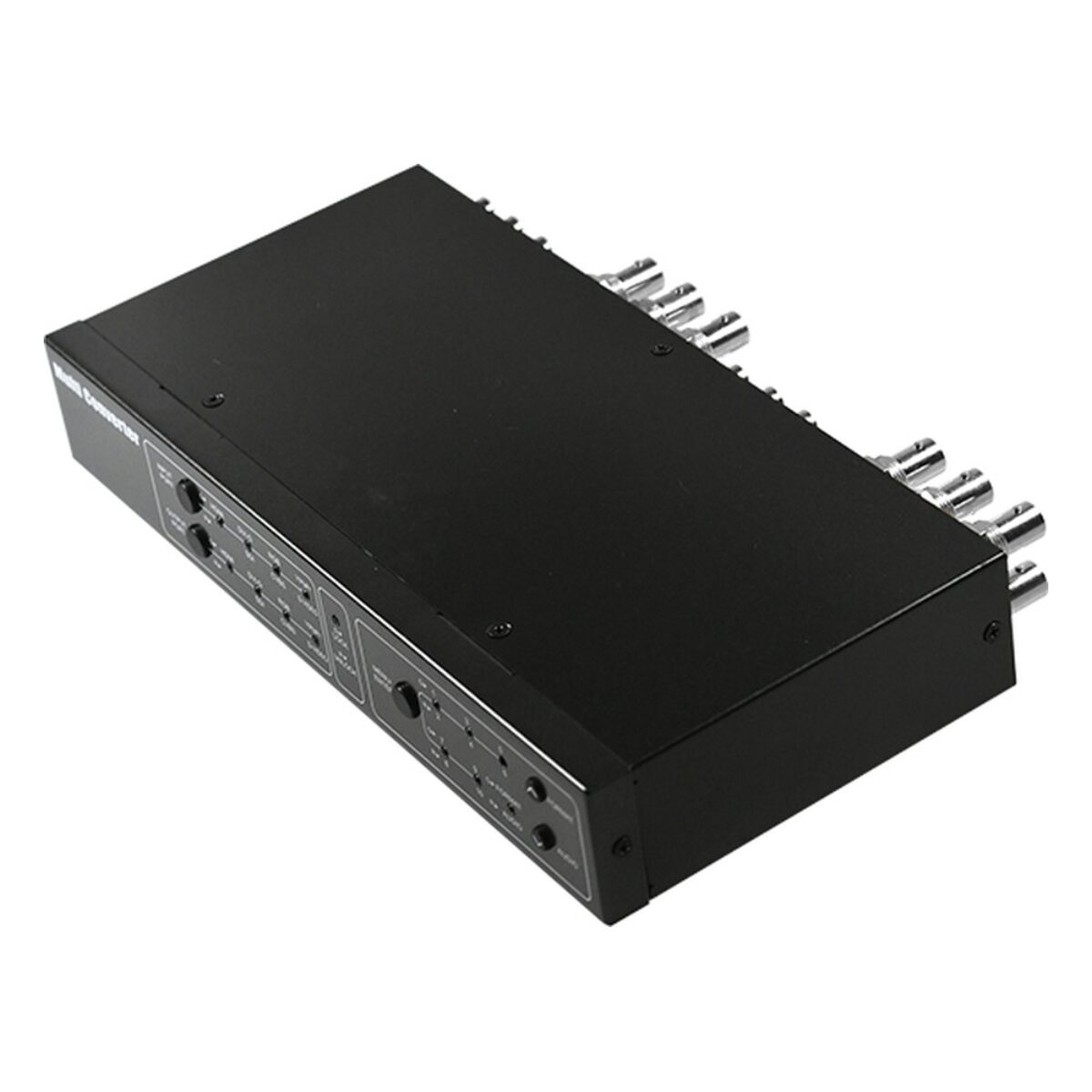

Yuan Multi Converter SDI, HDMI, DVI-I and Analog Broadcast Video Converter with Up/Down/Cross Conversion
Multi Converter Overview
Facilities that still run analog sources alongside SDI and HDMI often end up with a different converter for every pairing. The Yuan Multi Converter is a broadcast video converter that takes one of six video interfaces in and outputs all six at once, which suits broadcast, education, heritage archive and pro AV systems with mixed generations of kit.

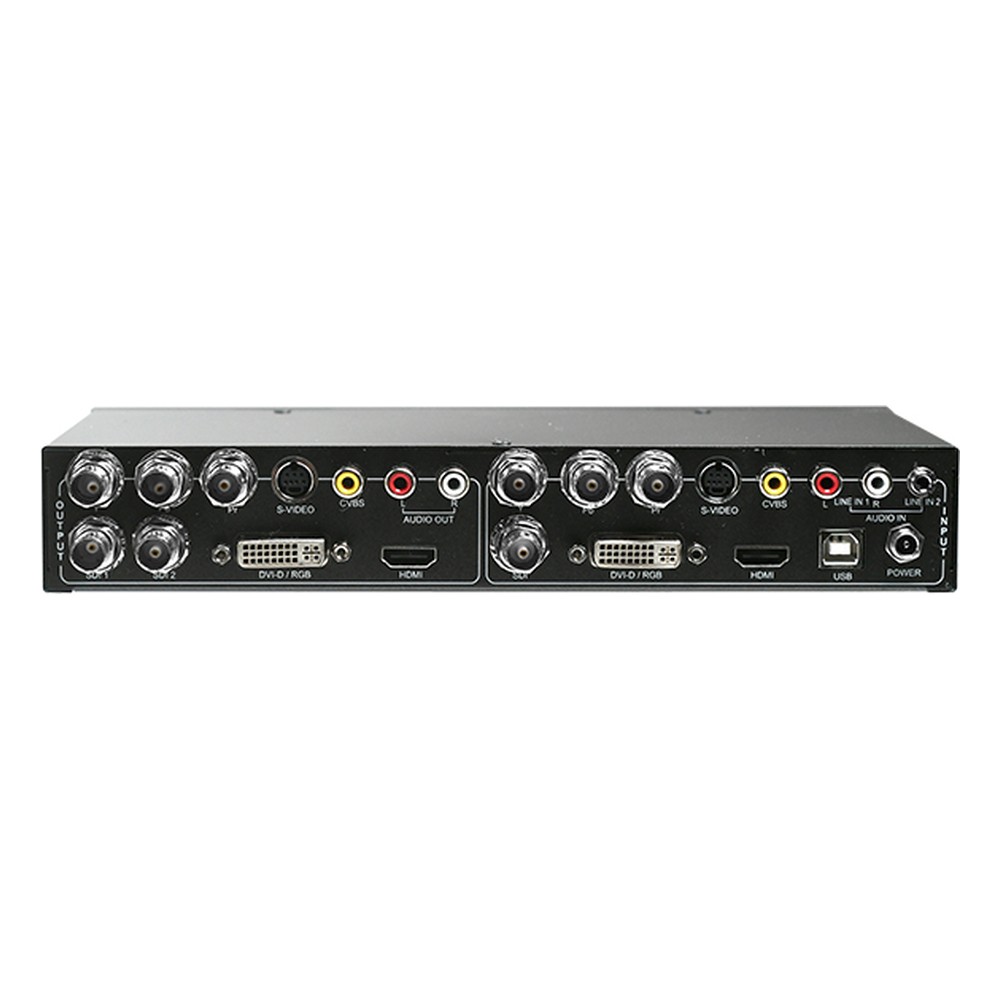

Inputs are HDMI, SDI, DVI-I, component, S-Video and composite, plus a pair of RCA connectors for L/R audio. Outputs are HDMI, two SDI, DVI-I, component, S-Video and composite, plus an RCA pair. HDMI and DVI-I cover 1080p at 60/50 fps down to SD and VESA PC formats from 640×480 to 1280×1024. SDI covers 3G, HD and SD-SDI. Component runs from 480i to 1080p, and composite and S-Video handle NTSC and PAL. HDMI and SDI embedded audio run at up to eight channels, 24-bit, with two channels on the RCA connections.

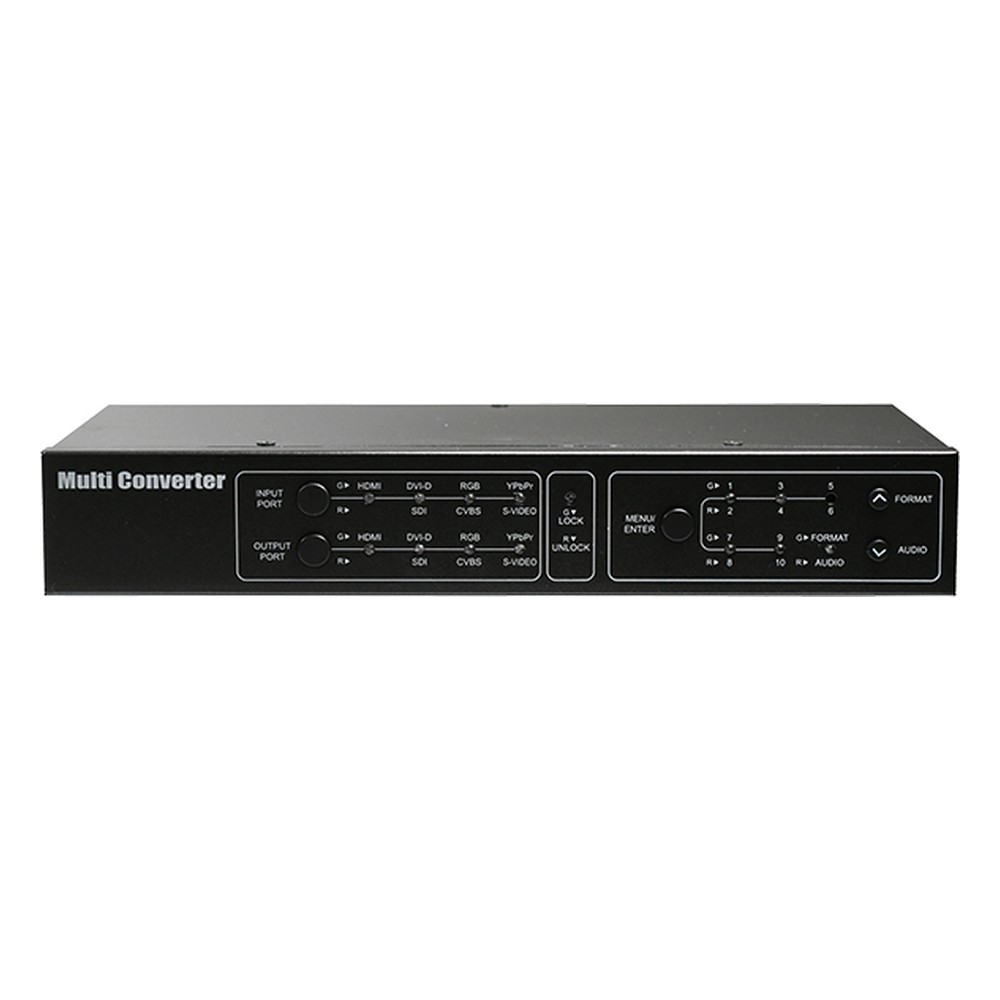

Set-up is through buttons and an OSD menu, with 4:3 and 16:9 aspect ratio conversion and region of interest. It runs from a 7.5 to 15 V DC input. For a 4K source mix, the Multi Converter 4K takes HDMI 2.0, DisplayPort, DVI-DL and SDI to 12G-SDI. If you only need analog and DVI into SDI and HDMI, the Multi to SDI/HDMI is the one-way version.
No operating temperature or certification is published, so we treat the Multi Converter as an indoor rack or desk unit. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. We supply the Multi Converter configured and tested with the sources, displays and network it will connect to.
Multi Converter Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan Multi Converter |
| Video Capture | |
| Video Input | 1x Composite 1x DVI-I 1x HDMI 1x S-Video 1x SDI 1x YPbPr |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x Composite 1x DVI-I 1x HDMI 1x S-Video 1x YPbPr 2x SDI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x HDMI Embedded Audio Input 1x RCA Audio Input 1x SDI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output 1x RCA Audio Output 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 250mm x 120mm x 40mm (9.84" x 4.72" x 1.58") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the Multi Converter configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the Multi to SDI/HDMI converts analog and DVI to SDI and HDMI only, and the SDI/HDMI to Multi does the reverse.
Across our range, the Multi Converter sits with our SDI and HDMI converters, our SDI video capture cards and our video capture cards.
