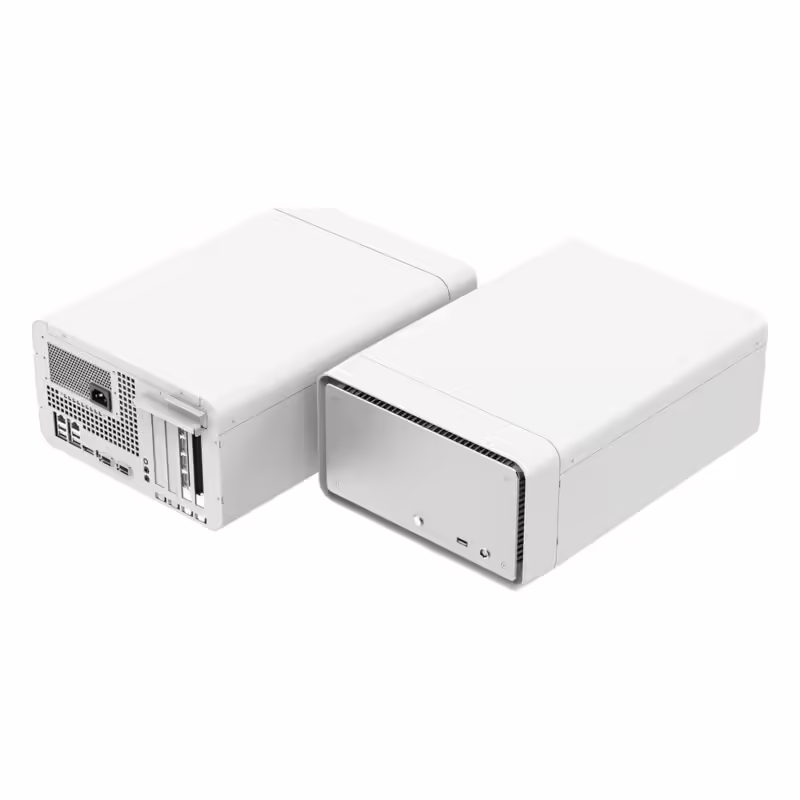

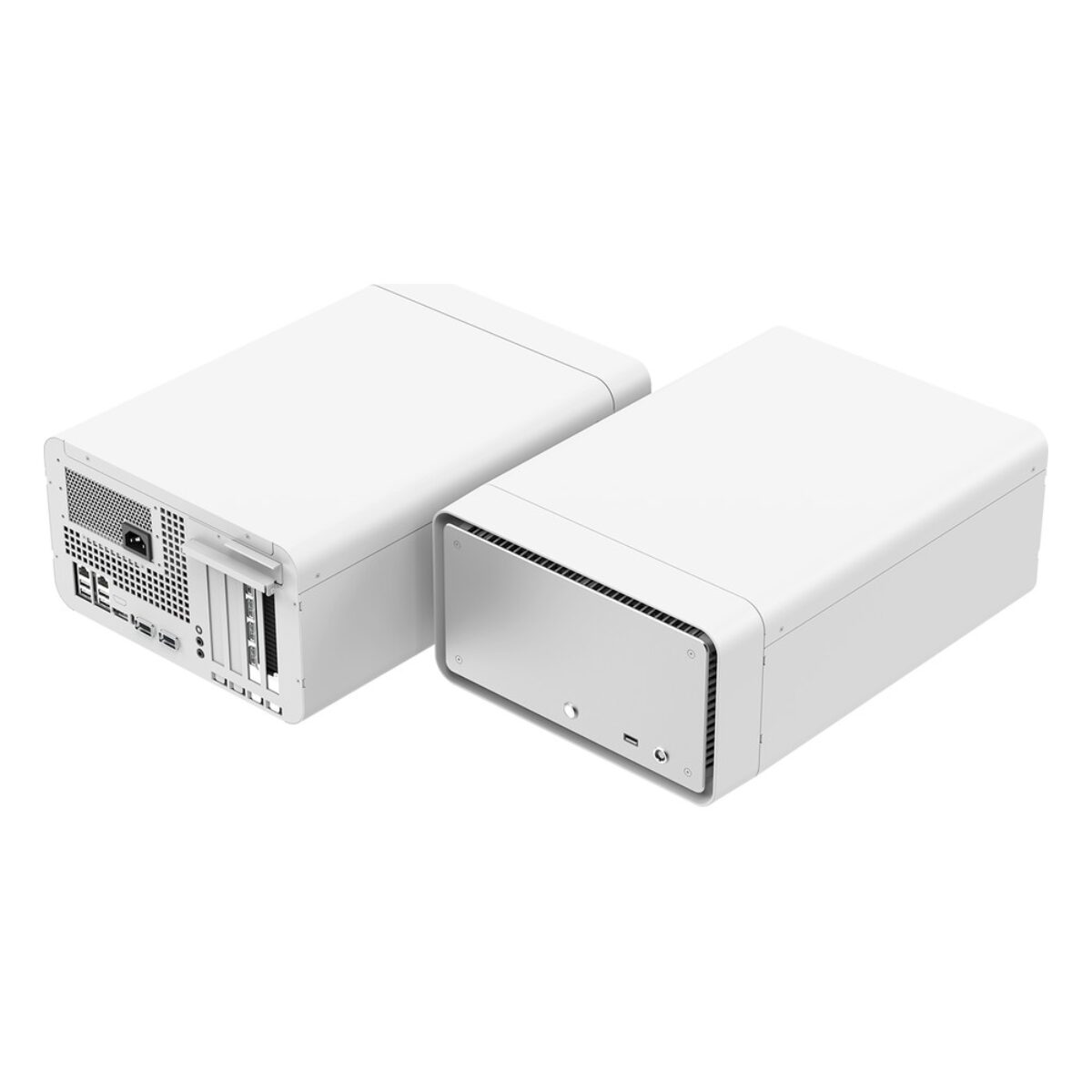

Yuan NEAR T7X NVIDIA IGX Thor T7000 Edge AI Computer with Optional RTX PRO 6000 Blackwell GPU

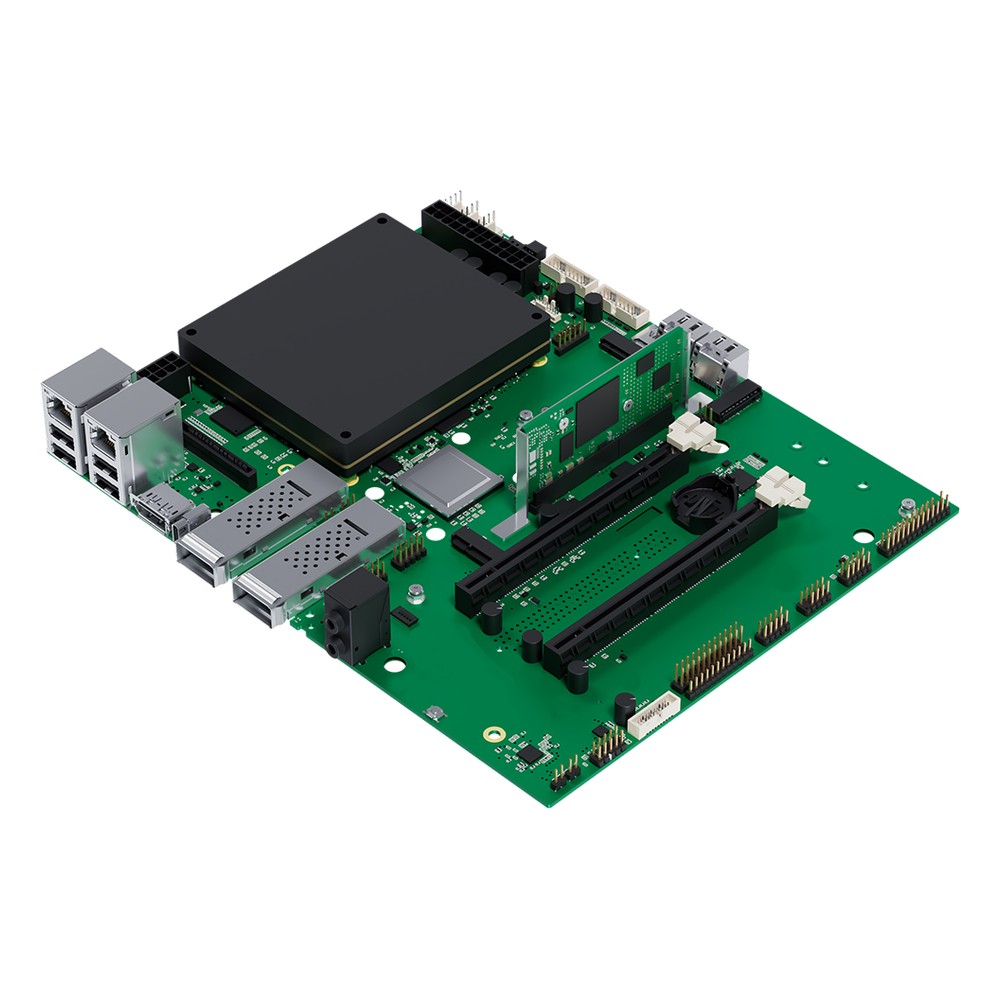

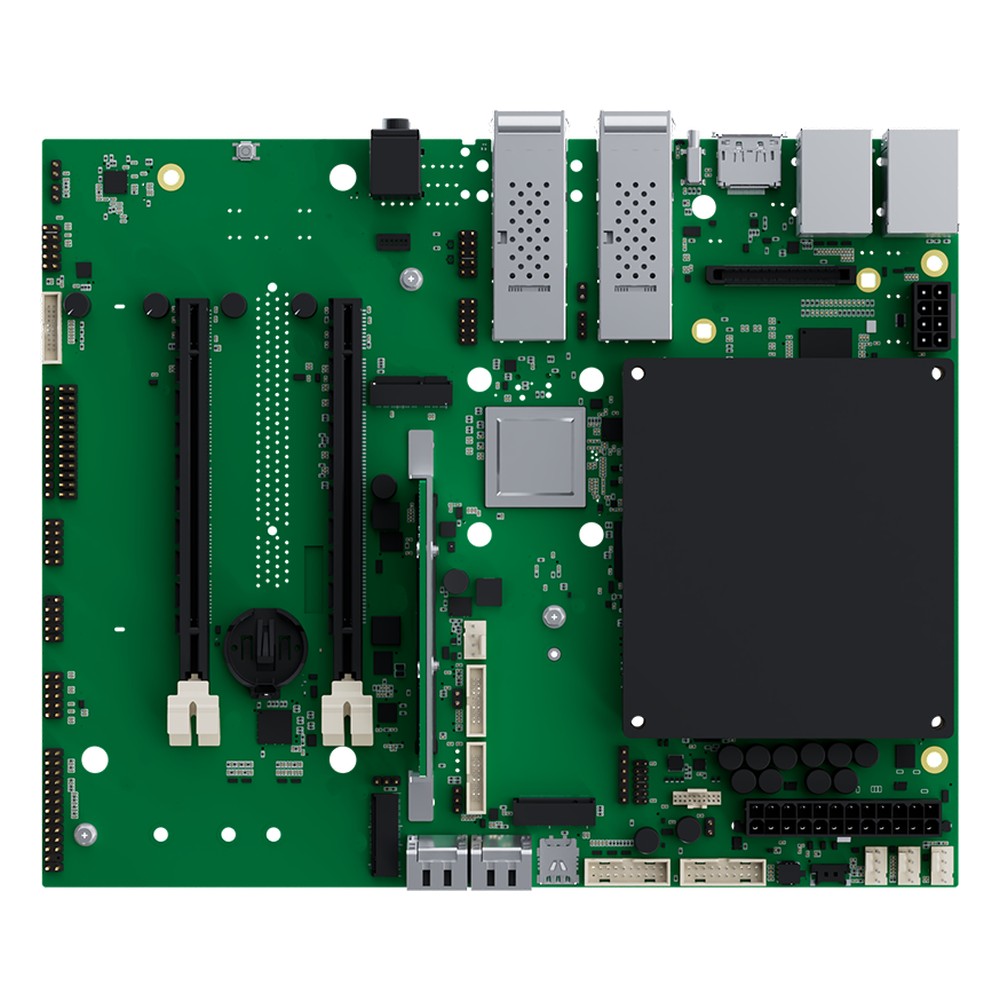

Some edge AI work moves more sensor and video data than a module-level computer can take in, and the NEAR T7X from Yuan is built for that scale. It is an edge AI computer based on the NVIDIA IGX Thor T7000 module on an IGX Thor motherboard, with Holoscan Sensor Bridge support for bringing sources in over Ethernet, for example through Yuan’s HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge.

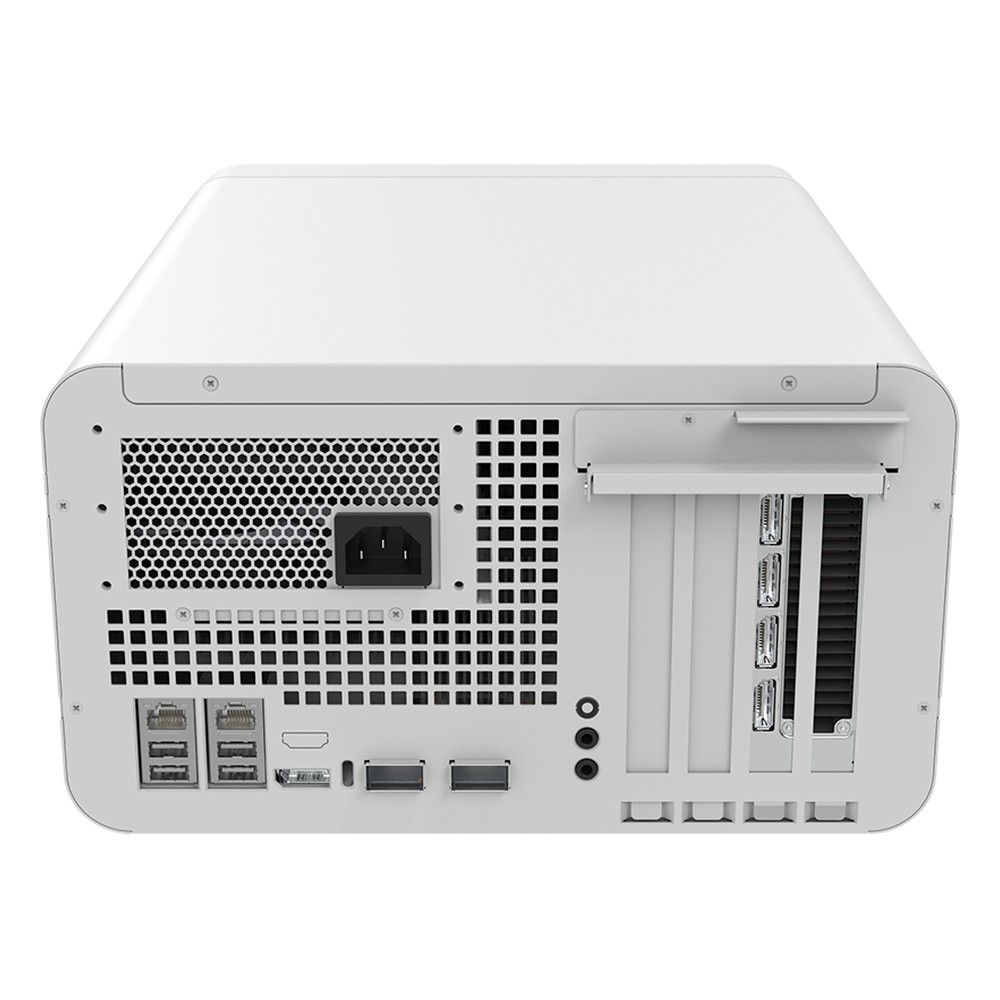

The IGX Thor T7000 pairs a 14-core Neoverse V3AE CPU with a 2560-core Blackwell GPU and 128GB LPDDR5X. The NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition is optional; with it fitted, the GPU adds 24064 cores and 96GB GDDR7 and the system reaches 5581 FP4 TFLOPS. Networking is two 100Gb QSFP112 ports and two GbE ports, and display is four DP 1.4a outputs.

Storage is four SATA ports plus an M.2 M key slot at PCIe Gen5 x2, with an M.2 E key slot for wireless. A PCIe Gen5 x16 slot with eight lanes can take a capture card such as the SC720N4 12G-SDI or SC750N1-L HDMI2.1, both on Yuan’s suggested list. USB is four USB 3.2 Gen2 Type-A and one Type-C, and 16 MIPI lanes, four COM headers, GPIO, CAN, line out and mic in complete the I/O. Yuan’s QCAP SDK covers RTSP, RTMP, HLS, SRT, TS and WebRTC, with NDI and Dante AV-H separately licensed.

The NEAR T7X runs IGX-SW 2.0, takes 100 to 240V AC and operates from 5 to 45°C with airflow. We supply it configured and tested, with the IGX module, NVMe storage and IGX-SW image fitted, plus the GPU where ordered, before it ships.
