Yuan SC750N1-L HDMI2.1 PCIe HDMI Frame Grabber with HDMI 2.1 Input at 8K60
PCI ExpressSC750N1-L HDMI2.1 Overview
Capturing 8K or 120 fps content needs more host bandwidth than older capture cards offer, and the person at the source usually still needs their own screen. The SC750N1-L HDMI2.1 is Yuan’s single-channel PCIe HDMI frame grabber for HDMI 2.1 sources, built on a low profile PCIe x8 Gen3 board with a loop-through output that keeps the source display live.
The HDMI 2.1 input captures up to 7680 x 4320 at 60, 50, 30, 25 or 24 fps, 4096 x 2160 and 3840 x 2160 at up to 120 fps, 2560 x 1440 at 144 fps and 1920 x 1080 at up to 240 fps, down to SD formats. Color formats cover 4:4:4 8-bit RGB24 and RGB32, 4:2:2 8-bit YUY2, 4:2:0 8-bit YV12 and NV12, and 4:2:0 10-bit P010. One stereo embedded audio channel at 16-bit and 32 to 48 kHz is captured with the video.
The card uses a PCIe x8 Gen3 interface. On-board processing covers cropping and scaling, auto signal detection and a deinterlace engine, and multi-instance and multi-device support lets software open several streams or cards at once. Yuan provides a Windows and Linux SDK and lists vMix, OBS, Zoom, Teams and Cisco Webex among compatible applications, along with DirectShow and V4L2 software. The SC720N1-L DP1.4a is the DisplayPort 1.4a card for 8K30 and 4K120 sources, and the UB575G HDMI2.1 HDR HID+ takes an HDMI 2.1 input over USB 3.0 instead of PCIe.

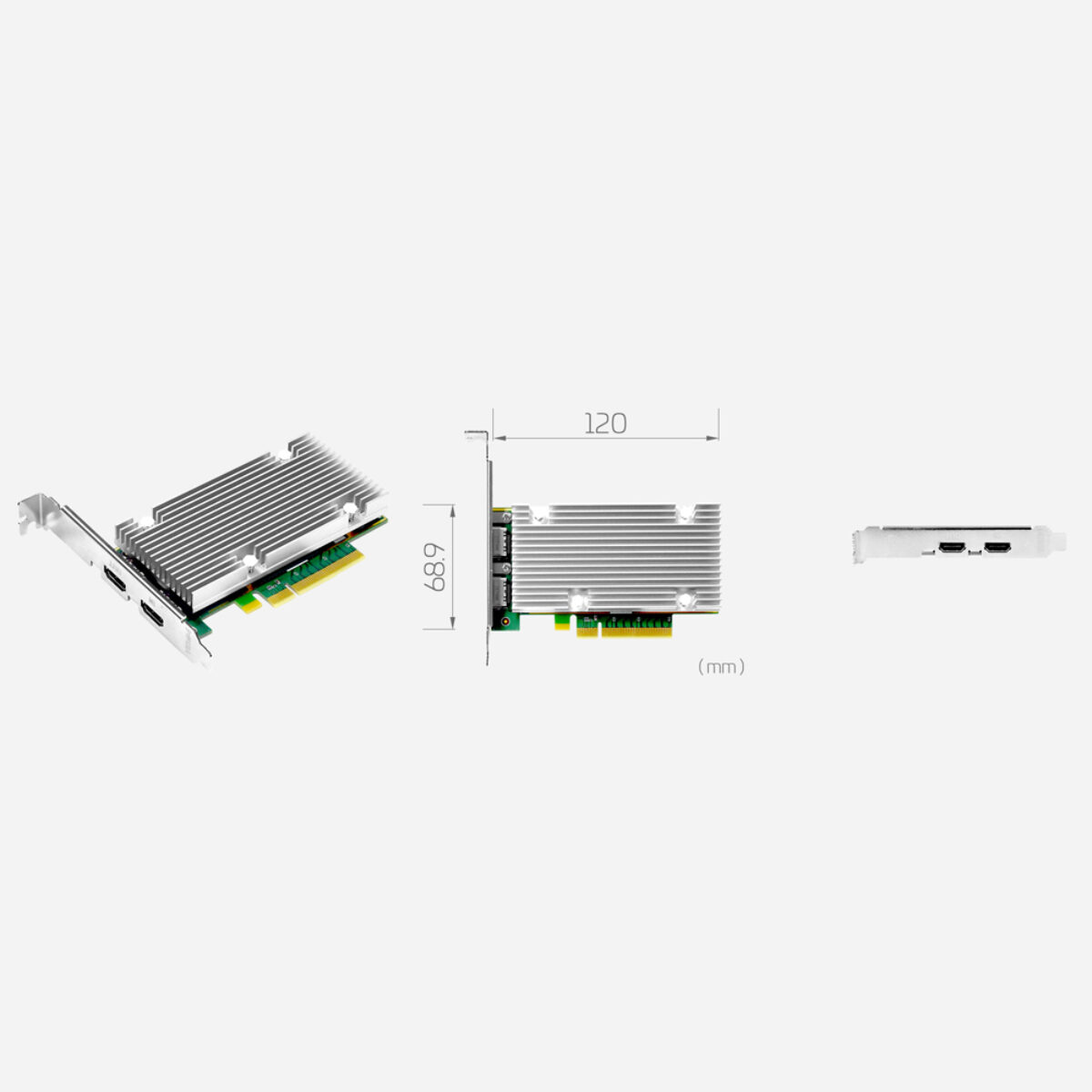

Operating system support covers Windows 7, 8, 8.1 and 10, Linux 4.8 or higher in 32-bit and 64-bit builds, Linux on ARM, and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. The low profile board measures 120 x 68.9 mm, so it fits compact systems as well as full-size desktop hosts with a free x8 slot.
SC750N1-L HDMI2.1 Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC750N1-L HDMI2.1 |
| Video Capture | |
| Host Interface | PCIe [x8, Gen3] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.1 |
| Video Resolution Input | 8K60 [7680×4320p @ 60/50fps] |
| Video Output | 1x HDMI2.1 |
| Video Resolution Output | 8K60 [7680×4320p @ 30/25fps] |
| Color Format | NV12 4:2:0 8Bit P010 4:2:0 10Bit RGB24 4:4:4 8Bit RGB32 4:4:4 8Bit YUY2 4:2:2 8Bit YV12 4:2:0 8Bit |
| Audio Input | 1x Stereo Input |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, supplying the SC750N1-L HDMI2.1 configured for USA 8K production and visualization projects. Within the Yuan range the SC720N1-L DP1.4a is the DisplayPort 1.4a alternative for 8K30 sources, and the UB575G HDMI2.1 HDR HID+ brings an HDMI 2.1 input to a host over USB 3.0.
As the 8K60 HDMI card the SC750N1-L HDMI2.1 sits among our PCIe capture cards and our HDMI capture cards. Where an HDMI 2.1 source at 8K60 or 4K120 has to be captured while its own display stays live, this is the model to specify.
