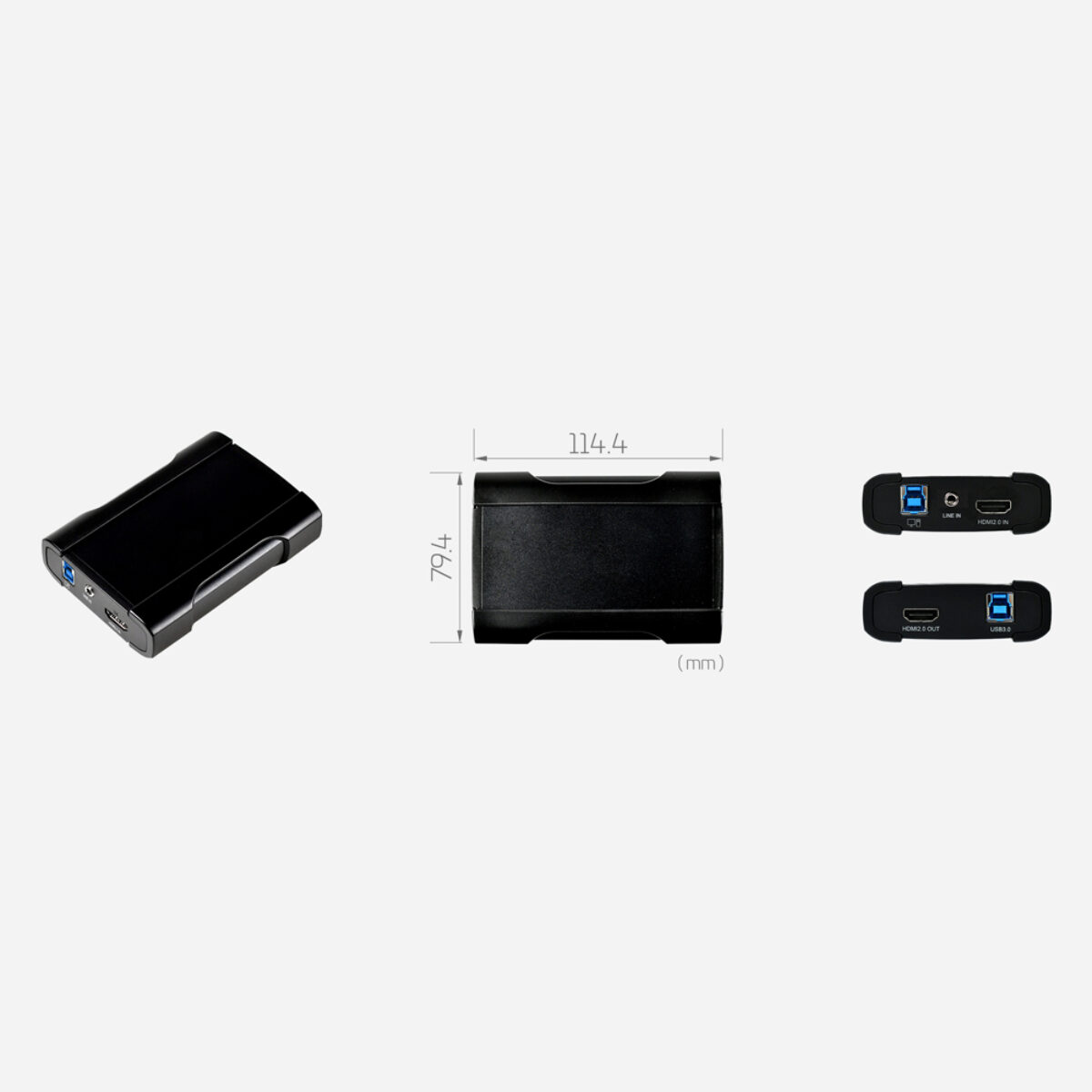

Yuan UB575G HDMI2.1 HDR HID+ USB HDMI Frame Grabber with HDMI 2.1 Input at 8K60
UB575G HDMI2.1 HDR HID+ Overview
Monitoring and operating a computer that drives an 8K or high refresh display is awkward when the capture card cannot accept its signal or the operator needs a separate KVM. The UB575G HDMI2.1 HDR HID+ is Yuan’s USB HDMI frame grabber for HDMI 2.1 sources, a USB 3.0 unit with a USB 2.0 link that sends keyboard and mouse signals to the target PC.
The HDMI 2.1 input takes up to 7680 x 4320 at 60 or 50 fps, 3840 x 2160 at 120 or 100 fps and 1920 x 1080 at 240 fps, with 4:2:2 10-bit and 4:4:4 8-bit HDR sources supported. Over USB 3.0 the card delivers 3840 x 2160 at 30 fps, 2560 x 1440 at 60 fps and 1920 x 1080 at 120 fps in NV12, and 1920 x 1080 at 60 fps in NV12, YUY2 or 10-bit P010. Audio comes from HDMI embedded audio or a 3.5 mm analog stereo input at 16-bit 48 kHz.

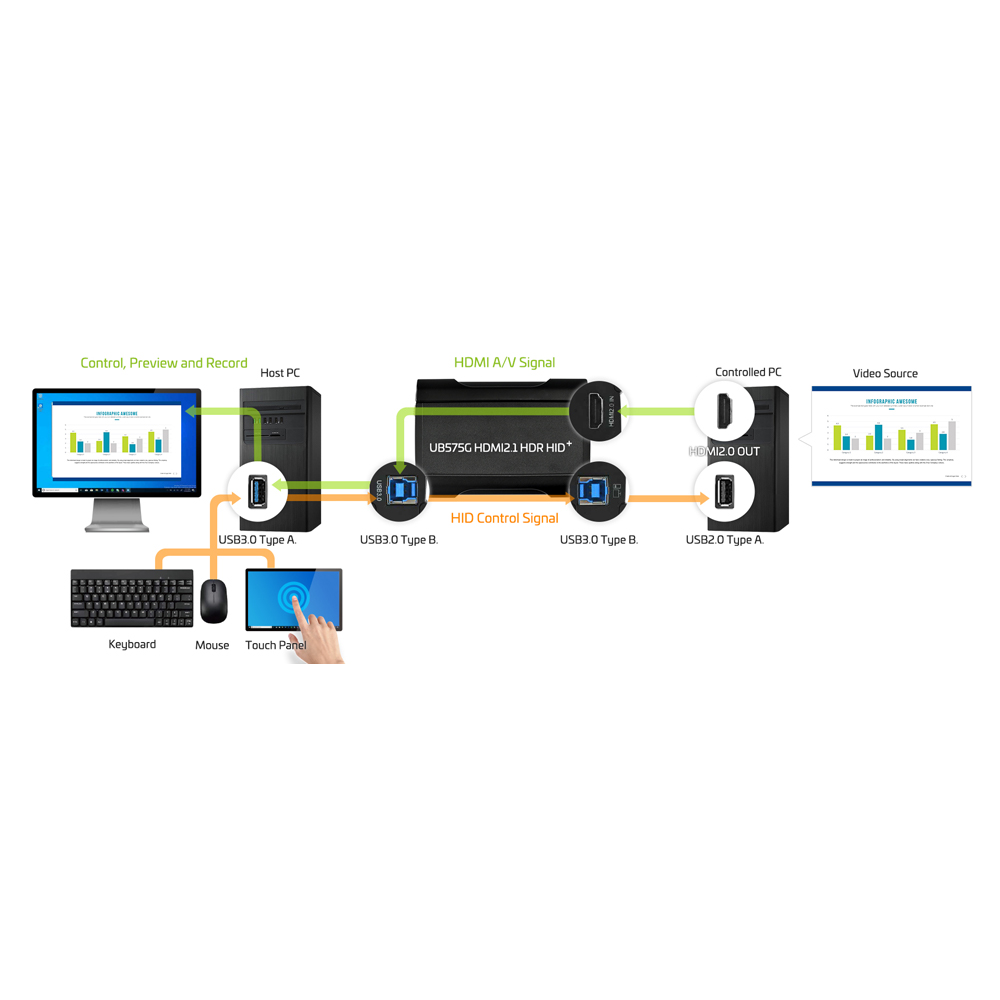

Video reaches the host through a USB 3.0 Type B port as a UVC device, so software that supports UVC capture can open it, while the USB 2.0 port carries keyboard and mouse control. On a USB 2.0 host, capture drops to 1280 x 720 at 30 fps and SD formats. The SC750N1-L HDMI2.1 captures HDMI 2.1 at full 8K60 on a PCIe card, and the UB575G HDMI is the HDMI capture card for 4K30 and 1080p120 sources.
An HDMI 2.1 loop-through output keeps the source display live. Operating system support covers Windows 7, 8, 8.1 and 10 in 32-bit and 64-bit, Linux and macOS, which suits test benches, simulator stations and support desks where one operator views and controls another computer.
UB575G HDMI2.1 HDR HID+ Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan UB575G HDMI2.1 HDR HID+ |
| Video Capture | |
| Host Interface | USB3.0 |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.1 |
| Video Resolution Input | 4K120 [4096×2160p @ 120/100fps] 8K60 [7680×4320p @ 60/50fps] |
| Video Output | 1x HDMI2.1 |
| Video Resolution Output | 4K30 [3840×2160p @ 30/25fps] |
| Color Format | I420 NV12 P010 YUY2 |
| Audio Input | 1x 3.5mm Audio Input 1x HDMI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, supplying the UB575G HDMI2.1 HDR HID+ configured for USA test and simulation projects. Within the Yuan range the SC750N1-L HDMI2.1 captures HDMI 2.1 at full 8K60 through a PCIe slot, and the UB575G HDMI suits HDMI sources up to 4K30 and 1080p120.
With 8K input and HID control the UB575G HDMI2.1 HDR HID+ sits among our USB capture cards and our HDMI capture cards. Where an 8K or 4K120 HDMI source must be captured and its computer controlled from one desk, this is the model to specify.
