Yuan UB575G HDMI USB HDMI Capture Card with 4K30 Input
UB575G HDMI Overview

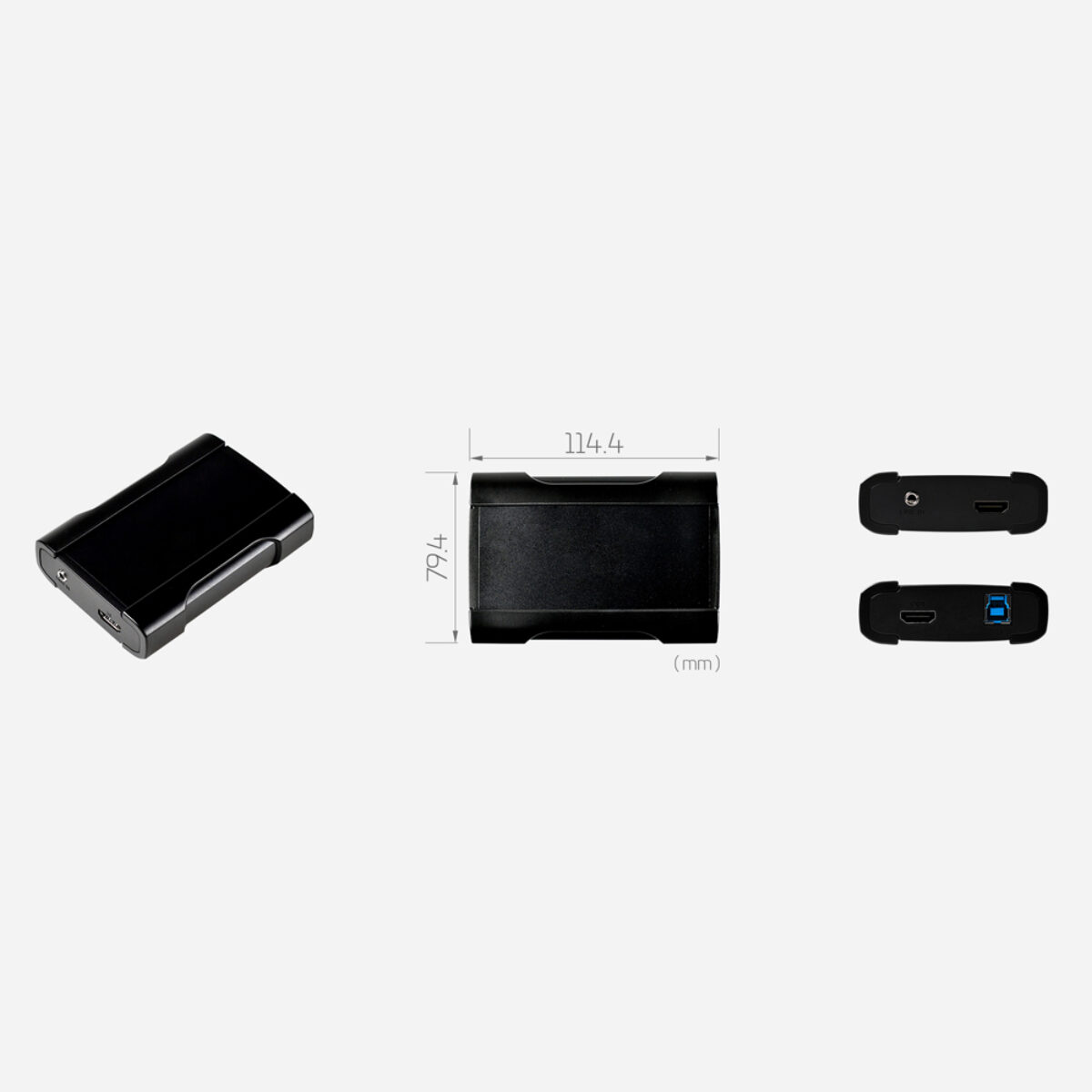

Recording a fast-moving HDMI source, or a 4K screen, from a laptop is easier when the capture card keeps the source display live and needs no internal slot. The UB575G HDMI is Yuan’s USB HDMI capture card, a USB 3.0 unit with an HDMI loop-through output and HDR input.
The HDMI input takes up to 3840 x 2160 at 30 or 25 fps and 1920 x 1080 at 120 or 100 fps, with 4:2:2 10-bit and 4:4:4 8-bit HDR sources supported. Over USB 3.0 the card delivers 3840 x 2160 at 30 fps, 2560 x 1440 at 60 fps and 1920 x 1080 at 120 fps in NV12, and 1920 x 1080 at 60 fps in NV12, YUY2 or 10-bit P010. Audio comes from HDMI embedded audio or a 3.5 mm analog stereo input at 16-bit 48 kHz.
The card connects through a USB 3.0 Type B port as a UVC device, so software that supports UVC capture can open it. On a USB 2.0 host it captures 1280 x 720 at 30 fps in NV12 and SD formats. The UB575G HDMI2.1 HDR HID+ moves to HDMI 2.1 with 8K60 input and HID control, and the UB570G PRO HDMI adds the ProAV Scaler with 1920 x 1200 input.
An HDMI loop-through output keeps the source display running during capture. Operating system support covers Windows 7, 8, 8.1 and 10 in 32-bit and 64-bit, Linux and macOS, which suits streaming, product demonstrations and training capture on whichever machine is to hand. Capturing 1080p at 120 fps keeps fast motion smooth in the recording, which suits work where movement has to be studied frame by frame.
UB575G HDMI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan UB575G HDMI |
| Video Capture | |
| Host Interface | USB3.0 |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x HDMI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Color Format | NV12 YUY2 |
| Audio Input | 1x 3.5mm Audio Input 1x HDMI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, supplying the UB575G HDMI configured for USA streaming and demonstration projects. Within the Yuan range the UB575G HDMI2.1 HDR HID+ steps up to HDMI 2.1 with HID control, and the UB570G PRO HDMI adds the ProAV Scaler for 1920 x 1200 sources.
As a compact HDR HDMI unit on USB 3.0 the UB575G HDMI sits among our USB capture cards and our HDMI video capture cards. Where a laptop must record a 1080p120 or 4K30 HDMI source with the display kept live, this is the model to specify.
