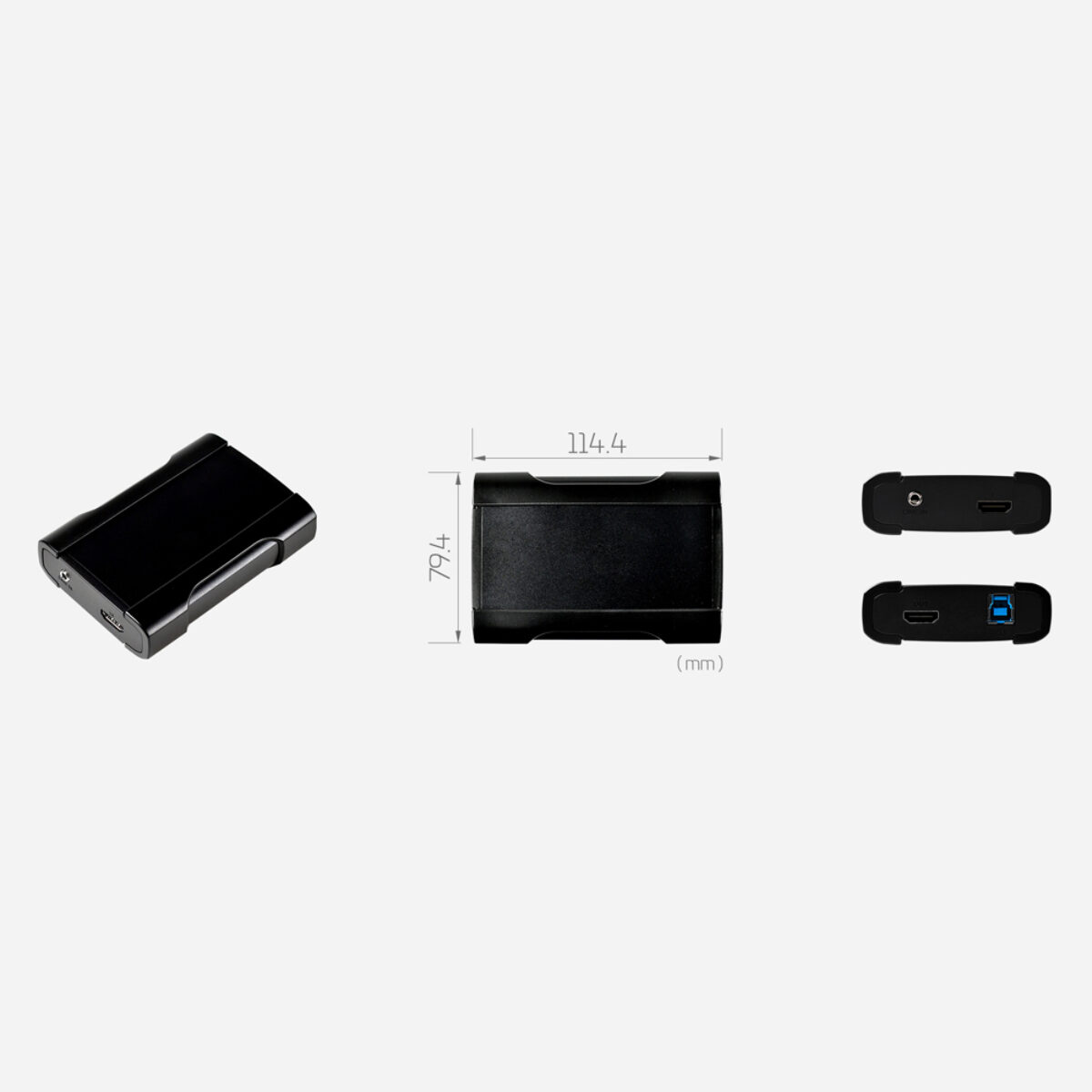

Yuan UB570G PRO HDMI USB HDMI Capture Card with 1920 x 1200p60 Input
UB570G PRO HDMI Overview
Recording a presenter, a camera or a computer screen usually has to happen without taking the display away from the person using it. The UB570G PRO HDMI is Yuan’s USB HDMI capture card, a USB 3.0 unit with its ProAV Scaler and an HDMI loop-through output, so the source stays on its own screen while a laptop or PC captures it.
The HDMI input captures up to 1920 x 1200 at 60 or 50 fps. Over USB 3.0 the card delivers YUY2 video at 1920 x 1200, 1920 x 1080, 1280 x 1024, 1280 x 720 and lower resolutions at up to 60 fps. Audio comes from HDMI embedded audio or a 3.5 mm analog stereo input at 16-bit 48 kHz, so the recording can take the source sound or a separate microphone feed. The 1920 x 1200 input suits computers running at WUXGA as well as 1080p cameras.
The card connects through a USB 3.0 Type B port as a UVC device, so software that supports UVC capture can open it. On a USB 2.0 host it falls back to 640 x 480 at 30 fps and 720 x 576 or 720 x 480 at 25 fps. The UB575G HDMI adds 1080p120 and 4K30 input, and the UB570G PRO HDMI2.0 HDR HID+ moves to HDMI 2.0 with 4K60 input.
Operating system support covers Windows 7, 8, 8.1 and 10 in 32-bit and 64-bit, Linux and macOS. That suits lecture capture, training rooms and product demonstrations where the host machine varies and the presenter must keep their screen. A single USB cable to the host keeps the setup quick to move between rooms, and the loop-through means the presenter’s display needs no separate splitter.
UB570G PRO HDMI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan UB570G PRO HDMI |
| Video Capture | |
| Host Interface | USB3.0 |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] UXGA60 [1920x1200 @ 60/50fps] |
| Video Output | 1x HDMI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] UXGA60 [1920x1200 @ 60/50/30/25/24fps] |
| Color Format | YUY2 |
| Audio Input | 1x 3.5mm Audio Input 1x HDMI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, supplying the UB570G PRO HDMI configured for USA lecture and presentation capture projects. Within the Yuan range the UB575G HDMI adds 4K30 and 1080p120 input with loop-through, and the UB570G PRO HDMI2.0 HDR HID+ steps up to HDMI 2.0 with 4K60 input.
As a full HD USB HDMI unit with loop-through the UB570G PRO HDMI sits among our USB capture cards and our HDMI video capture cards. Where a laptop must record a full HD HDMI source while the presenter keeps their screen, this is the model to specify.
