Yuan SC550N1-L SDI PCIe SDI Frame Grabber with 1080p60 Input
PCI ExpressSC550N1-L SDI Overview
In a production or AV chain, a capture PC has to take the SDI feed without breaking the path to the next monitor or recorder. The SC550N1-L SDI is Yuan’s single-channel PCIe SDI frame grabber with a 3G-SDI input and a loop-through output, so the signal carries on while the PC records or streams it.
The card has one SDI input and one SDI loop-through output. It accepts 3G-SDI at up to 1920 x 1080p at 60/50 fps, HD-SDI at 1080p 30/25/24 fps, 1080i 60/50 fps and 720p 60/50 fps, and SD-SDI at 480i and 576i. Frames reach the host as 8-bit RGB24, RGB32, YUY2, YV12 or NV12, which lets display, analysis and encoding software pick the color format that suits it. Built-in cropping and scaling, a deinterlace engine and auto signal detection take routine work off the host. Audio is one stereo embedded input at 16-bit and 32 to 48 kHz, taken from the SDI stream.
It is a PCIe x1 Gen1 card, with no on-board encoder. Yuan supplies Windows and Linux SDKs, and as a DirectShow and V4L2 device it works with vMix, OBS and conferencing tools such as Zoom, Teams and Webex. The SC550N2-L SDI doubles the channels with two loop-through outputs, and the SC550N1-L AIO pairs SDI with a DVI-I connector.

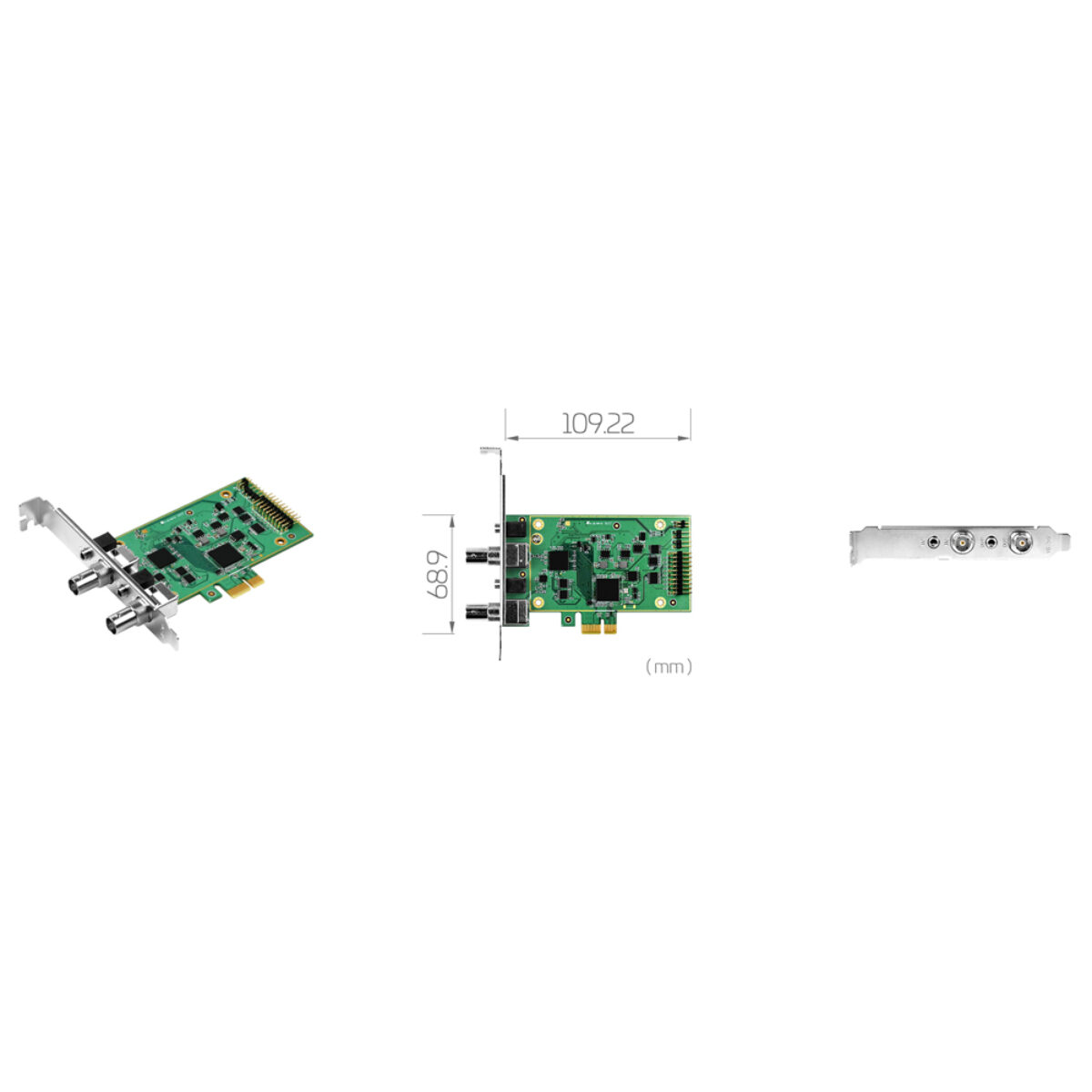

Operating system support covers Windows 7 to Windows 10, Linux from kernel 2.6.14 in 32-bit and 64-bit form, Linux on ARM and the NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX modules. The board measures 109.22 x 68.9 mm, with two BNC connectors on the bracket for input and loop-through. It has 16 GPIO lines and a watchdog, and Yuan lists multi-device support.
SC550N1-L SDI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC550N1-L SDI |
| Video Capture | |
| Host Interface | PCIe [x1, Gen1] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x SDI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Color Format | NV12 RGB24 RGB32 YUY2 YV12 |
| Audio Input | 1x 3.5mm Audio Input 1x SDI Embedded Audio Input |
| Audio Output | 1x 3.5mm Audio Output 1x SDI Embedded Audio Output |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, supplying the SC550N1-L SDI for USA broadcast and AV projects. Within the Yuan range the SC550N2-L SDI adds a second SDI channel with its own loop-through, and the SC550N1-L AIO adds DVI-I sources.
With loop-through the SC550N1-L SDI sits among our PCIe capture cards and our SDI video capture cards. Where a PC must capture one 3G-SDI feed and pass it on down the chain, this is the model to specify.
