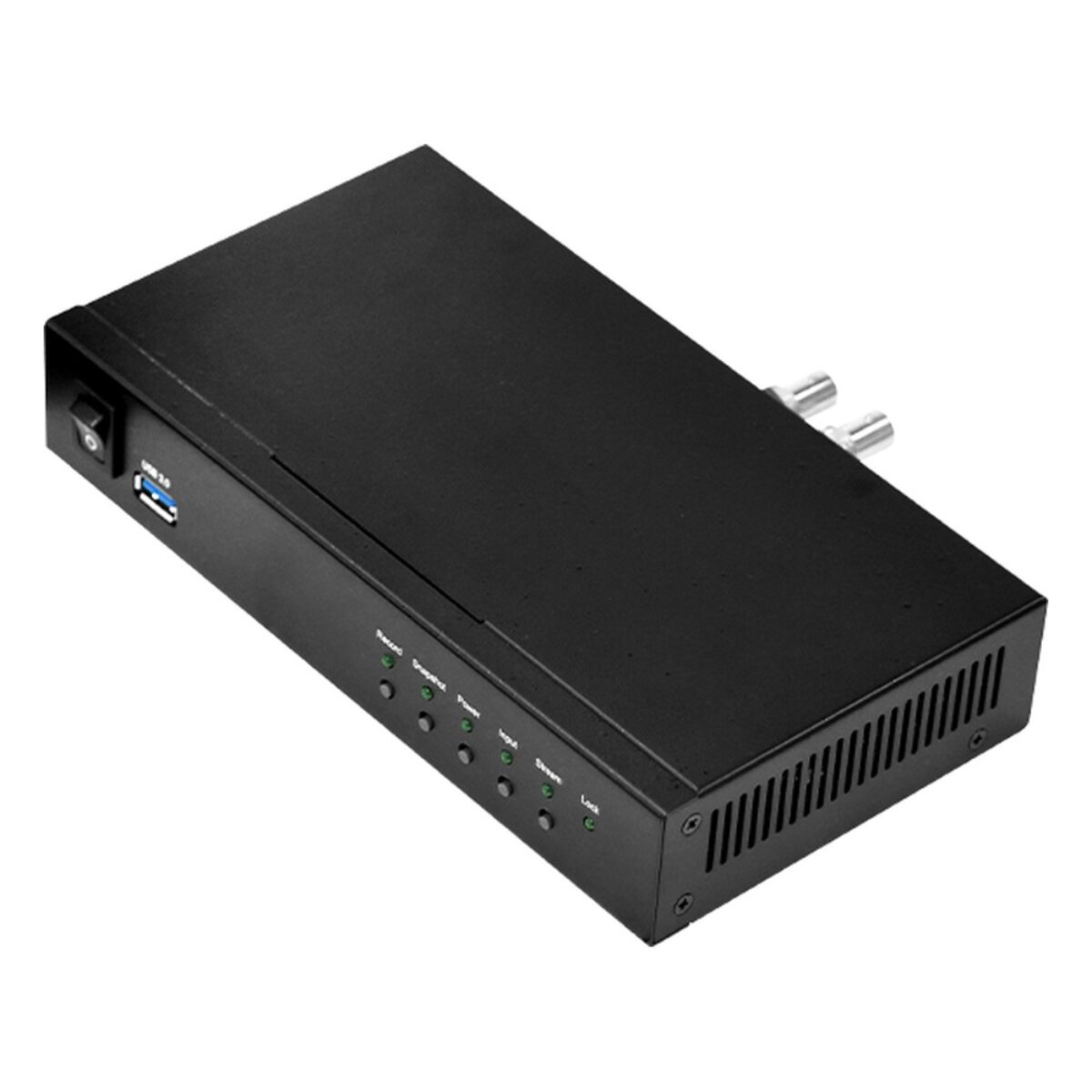

Yuan SC6F0N1 HDMI2.0 PRO HDMI 2.0 NDI Converter with Loop-Out, Optional Genlock and Recording at 4K60

Live events and pro AV rooms often need the same HDMI picture on a local screen, on the network and sometimes in a recording. The Yuan SC6F0N1 HDMI2.0 PRO is an HDMI 2.0 NDI converter that encodes and decodes a single 4K60 channel, with a loop-through output so the operator’s monitor stays on the source while the stream goes out.

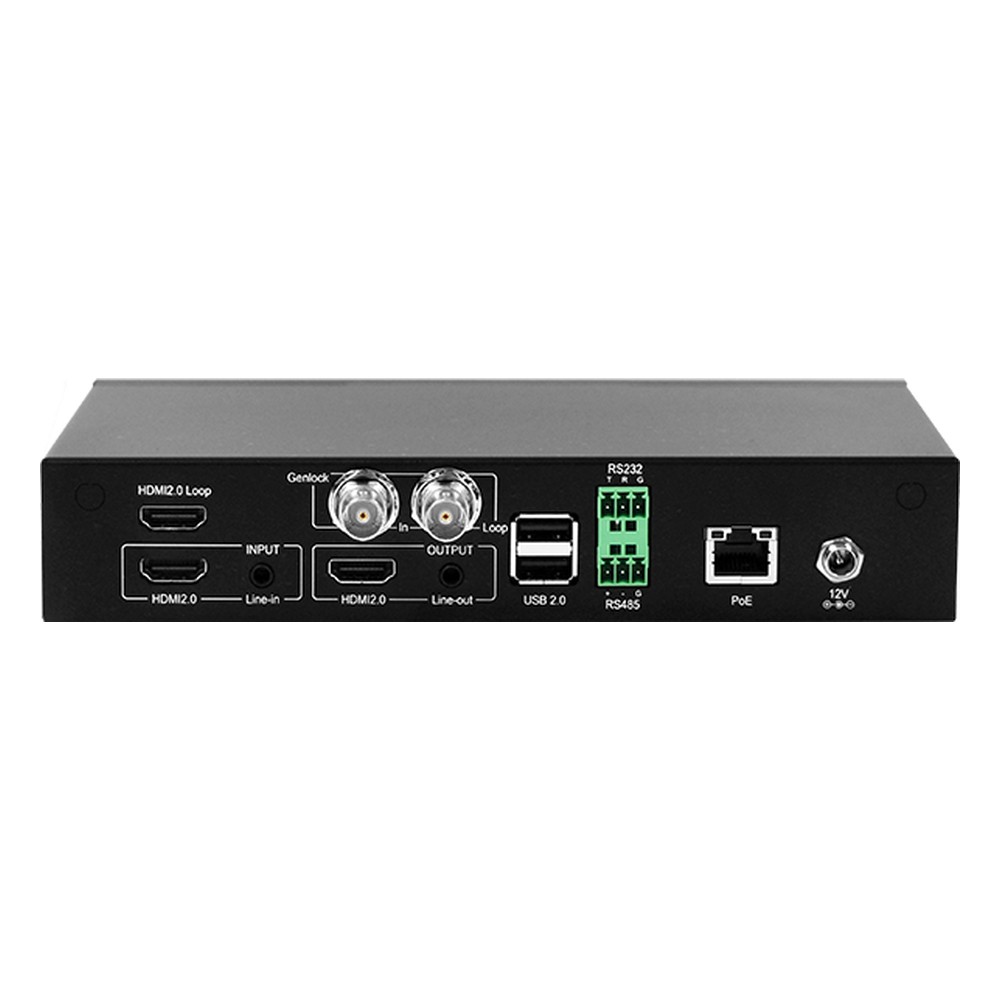

It takes one HDMI 2.0 input with analog stereo audio and gives an HDMI 2.0 output, an HDMI 2.0 loop-through and analog audio out. Resolutions run from 4096×2160 and 3840×2160 at up to 60fps down to 1080p and 720p, with AAC-LC audio at 48kHz. The SC6F0N1 HDMI2.0 PRO lists Full NDI, with NDI HX and Dante AV-H as optional protocols that need a license, plus TS over UDP, RTSP, RTMP, HLS and SRT.

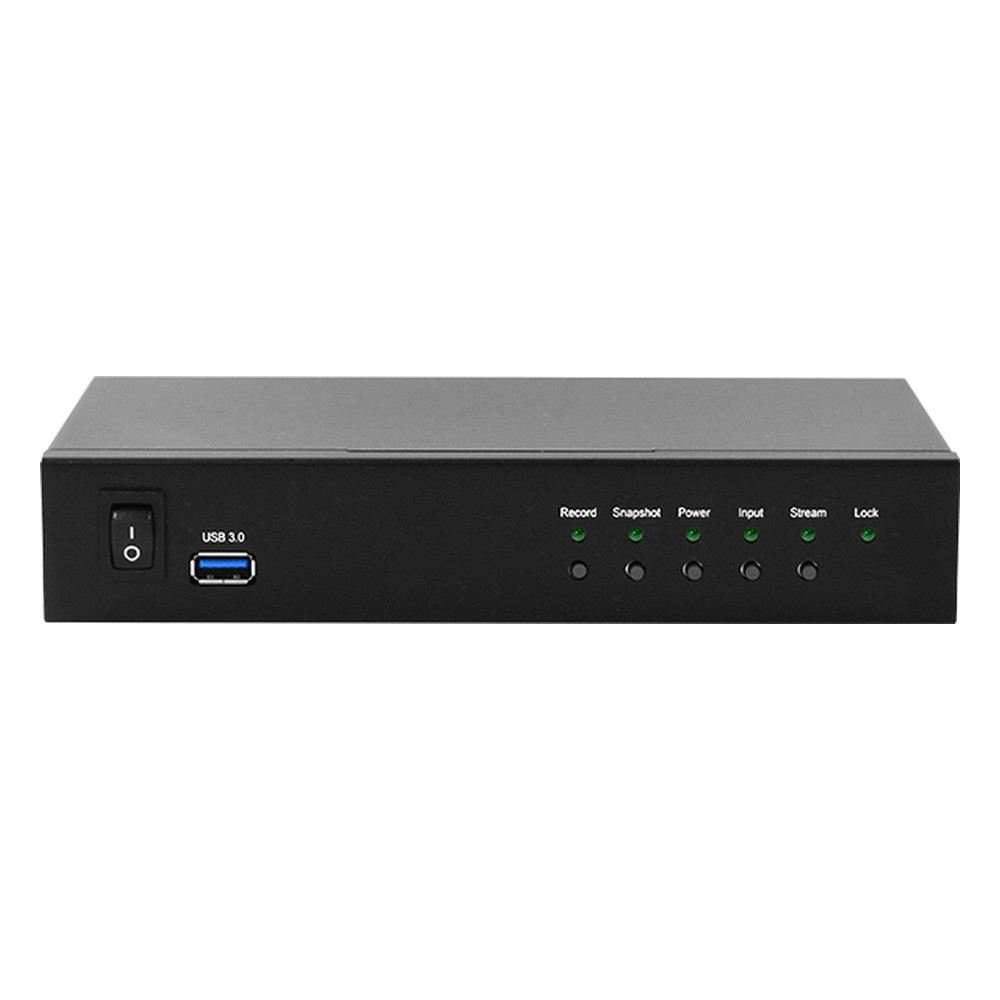

Optional Ref-In and Ref-Loop genlock and an optional 60GHz wireless display link are what separate this model from the SC6F0N1 HDMI2.0+, which shares the same streaming list without them. Control is through a web interface with RS232 and RS485, and the unit records to MP4, TS or MOV over USB 3.0. Power comes from PoE or a 12V DC input. For SDI sources, the SC6F0N1 12G-SDI+ is the 12G-SDI unit in the same family.

Choose the genlock and wireless options when the order is placed, since both are optional parts. We supply the SC6F0N1 HDMI2.0 PRO configured and tested with the sources, displays and network it will run alongside, so licenses and options are set before it reaches site.
