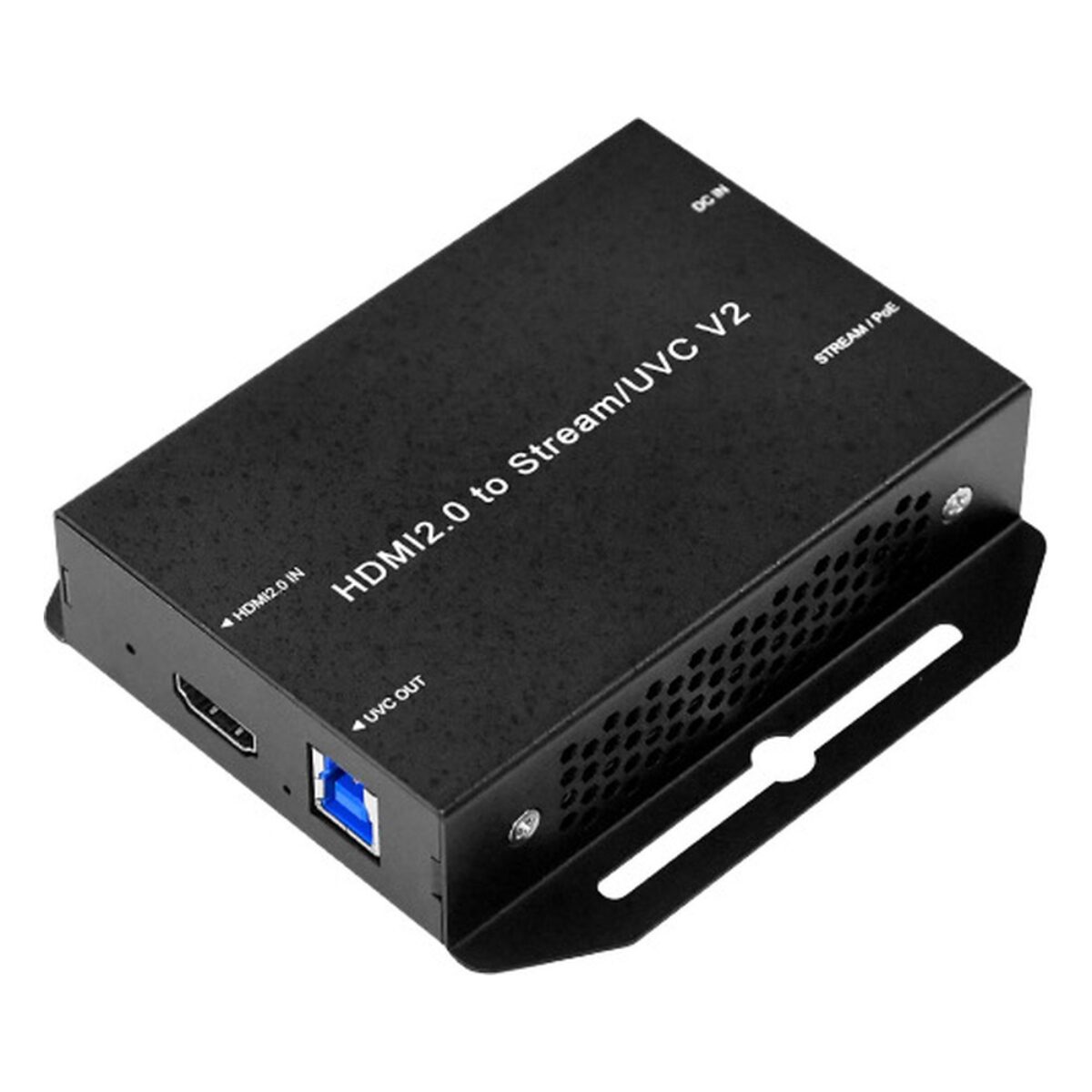

Yuan SC6G0N1 HDMI2.0 to IP/UVC V2 HDMI 2.0 Hardware Video Encoder with UVC Output, SRT and PoE at 4K60
SC6G0N1 HDMI2.0 to IP/UVC V2 Overview
Bringing a 4K HDMI camera or presentation source onto a network often needs an encoder small enough to sit beside it. The Yuan SC6G0N1 HDMI2.0 to IP/UVC V2 is a compact HDMI 2.0 hardware video encoder that publishes the source as a network stream and as a USB UVC device, which can suit lecture capture, conferencing and pro AV feeds where the same picture goes to a PC and to the network.
It takes one HDMI 2.0 input from 3840×2160 at 60fps down to 720p and PC modes to 640×480. Outputs are the gigabit RJ45 port and a USB 3.0 Type-B UVC port, which gives NV12 at 2160p30, YUY2 or NV12 at 1080p60, and MJPEG or H.264 at up to 2160p60. The SC6G0N1 HDMI2.0 to IP/UVC V2 encodes H.264 at Baseline, Main or High profile up to 64Mbps with AAC-LC audio, and lists Dante AV-H, Full NDI, NDI HX, TS over UDP, RTSP, RTMP, HLS and SRT.
A web interface with upgradable firmware and DHCP covers setup, and the unit records MP4, TS or MOV. Power is IEEE 802.3af PoE or 12V DC, in a small flanged enclosure. The SC6G0N1 IP to UVC/HDMI2.0 is the matching decoder, and the SC6E0N1 HDMI to IP/UVC V2 covers 1080p60 sources.
Running the network stream and the UVC output together lets one camera feed a remote audience and a local capture or conferencing PC at the same time. Settle the stream format with whoever runs the receiving end before installation. We supply the SC6G0N1 HDMI2.0 to IP/UVC V2 configured and tested with the sources, displays and network it will connect to.
SC6G0N1 HDMI2.0 to IP/UVC V2 Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC6G0N1 HDMI2.0 to IP/UVC V2 |
| Features | PoE Powered |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] [PoE-PD] | |
| PoE Standard | PoE [IEEE 802.3af] |
| Video Capture | |
| Host Interface | USB3.0 |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.0 |
| Video Resolution Input | 4K60 [3840×2160p @ 60/50fps] |
| Video Output | 1x RJ45 (1G) |
| Video Resolution Output | 4K60 [3840×2160p @ 60/50fps] |
| Recording Mode | Hardware Compression |
| Video Codec | H.264 MJPEG |
| Streaming Protocols | Dante AV-H HLS NDI NDI HX RTMP RTSP SRT TS over IP UVC |
| Color Format | NV12 YUY2 |
| Power | |
| Power Input | 12V DC [Barrel Connector] PoE Powered Device (PD) [RJ45] |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the SC6G0N1 HDMI2.0 to IP/UVC V2 configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SC6G0N1 HDMI2.0 adds an HDMI 2.0 output so it can decode as well, and the SC6E0N1 HDMI to IP/UVC V2 is the same encoder layout for 1080p60 HDMI sources.
Across our range, the SC6G0N1 HDMI2.0 to IP/UVC V2 sits with our video encoders and decoders, our AV over IP and our Dante AV encoders and decoders.
