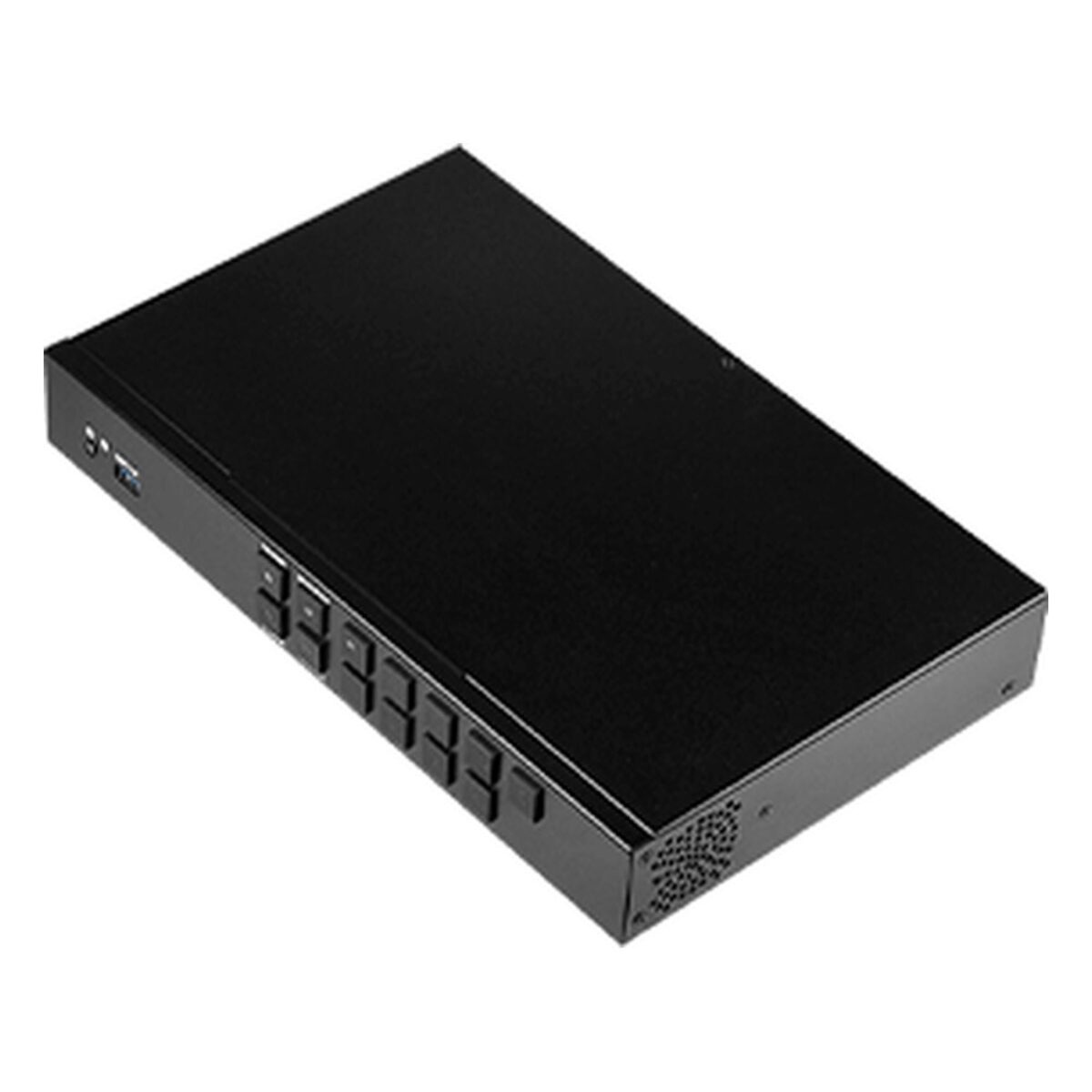

Yuan SC6T0N4 12G-SDI AI+ 4-Channel 12G-SDI AI Streaming Encoder with Intel Core i7 and Multiview at 4K60

Switching and streaming several SDI cameras usually takes a vision mixer, an encoder and a separate PC for graphics or tracking. The Yuan SC6T0N4 12G-SDI AI+ is a four-channel 12G-SDI AI streaming encoder that brings those jobs into one unit, with a built-in multiview switcher and on-device AI. It can suit live production, broadcast contribution and lecture or event capture with several cameras.

Inputs are four 12G-SDI ports, with embedded LPCM audio and an analog line or mic input. Outputs are two HDMI 2.0 ports for multiview or program, at up to 4096×2160 at 60fps, with embedded LPCM audio and an analog line output. Input, output and encoding all run at up to 4096×2160 at 60fps, down to 720p and interlaced SD. The SC6T0N4 12G-SDI AI+ streams Full NDI, TS over UDP, RTSP, RTMP, HLS and SRT, with NDI HX and Dante AV-H as optional protocols that need a license.

An 11th Gen Intel Core i7-1165G7 runs the built-in AI functions: face tracking, background effect, handwriting extraction and ePTZ, with custom functions available on request. Yuan’s QCAP and QDEEP SDKs and the Intel OpenVINO toolkit are supported. Two gigabit ports, two USB 3.0 and two USB 2.0 ports are fitted, while Wi-Fi, Bluetooth, LTE Cat20 and 5G Sub-6 are optional. It runs from a 19V DC input. The SC6T0N4 6G-SDI AI+ is the 6G-SDI version, encoding at up to 4K30, and the SC6F0N1 12G-SDI+ suits a single 12G-SDI channel with PoE.

Recording goes to an external USB 3.0 drive or an internal SATA drive, which is not included, so storage is worth specifying with the order. We supply the SC6T0N4 12G-SDI AI+ configured and tested with the cameras, displays and network it will connect to, with any drive, wireless module and licenses fitted before it ships.
