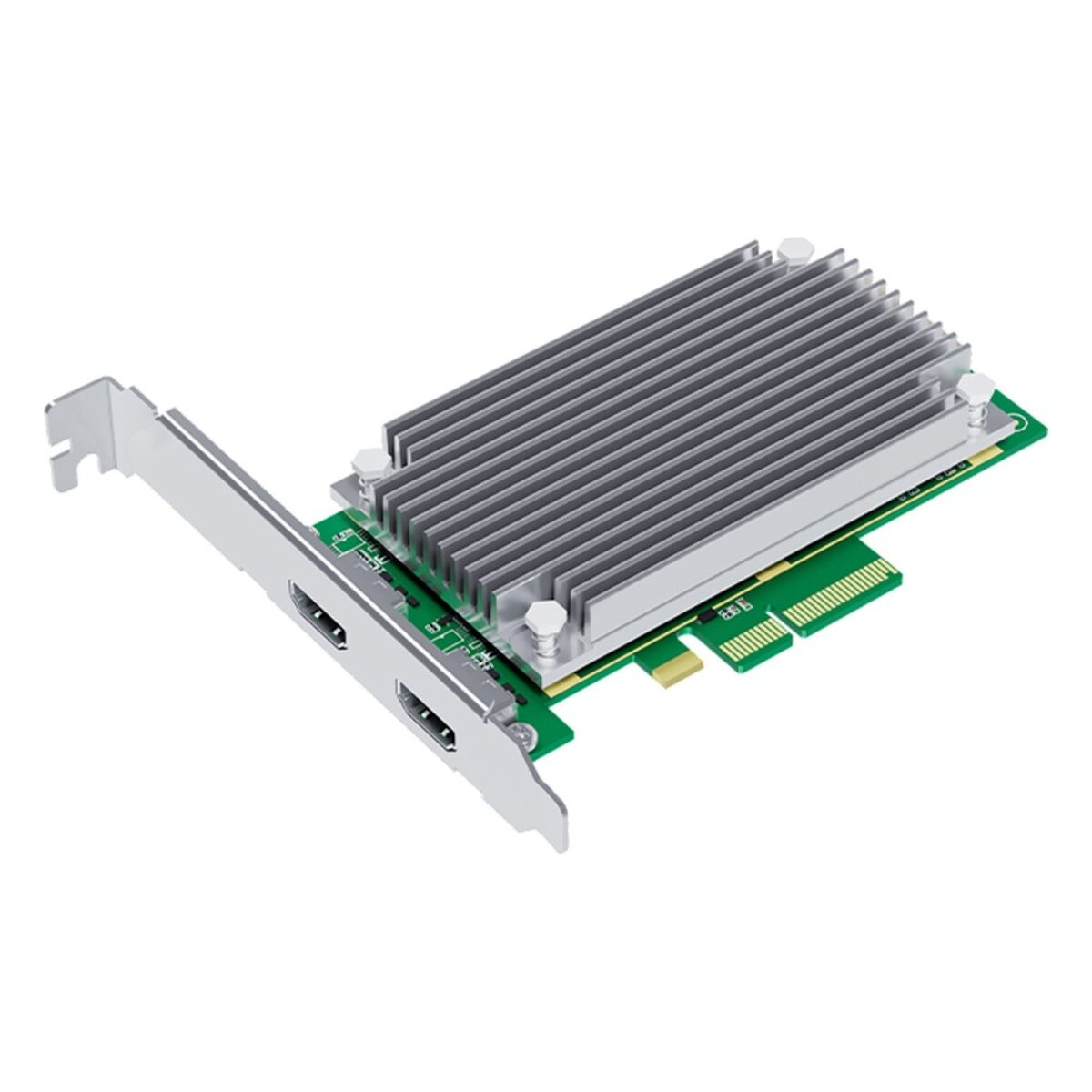

Yuan SC730N2-L HDMI2.0 PCIe HDMI Video Capture Card with 2 x HDMI 2.0 HDR Inputs at 4K60

The SC730N2-L HDMI2.0 is Yuan's low profile PCIe HDMI video capture card with two HDMI 2.0 inputs, each up to 4096 x 2160 at 60/50 fps with HDR10 and HLG support and RGB or YUV 4:2:0, 4:2:2 and 4:4:4 input at 8 or 10-bit. It suits compact computers recording two 4K HDR sources.

  • Two HDMI 2.0 Inputs: Two HDMI 2.0 inputs, each capturing 4096 x 2160 or 3840 x 2160 at up to 60 fps, for two 4K sources on one card.
  • HDR10 and HLG: Accepts HDR10 and HLG signals on both inputs, so HDR cameras, consoles and displays under test can be captured directly.
  • 4:4:4 and 10-bit Input: Takes RGB or YUV 4:2:0, 4:2:2 and 4:4:4 input signals at 8 or 10-bit from each HDMI 2.0 source.
  • SDK and APIs: DirectShow, V4L2, FFmpeg and GStreamer APIs, with C++, C#, .NET, Visual Basic, Qt and Delphi supported for custom applications.
  • Low Profile PCIe x4 Gen3: Low profile PCIe x4 Gen3 card that fits small-form-factor hosts, with drivers for Windows 11 and Linux 2.6.14 or higher.
Form Factor: PCI ExpressPCI Express
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications

SC730N2-L HDMI2.0 Overview

Recording two 4K HDR sources at once from a compact computer means fitting both channels into whatever slot the host has free. The SC730N2-L HDMI2.0 is Yuan’s low profile PCIe HDMI video capture card with two HDMI 2.0 inputs, each capturing up to 4096 x 2160 at 60/50 fps. It is a good fit for small-form-factor recording, streaming and display test systems where a low profile slot is the one available.

Each HDMI 2.0 input accepts 4096 x 2160 and 3840 x 2160 at 60, 50, 30, 25 and 24 fps, down through 1080p, 1080i, 720p and PC resolutions to 640 x 480 and SD 480i and 576i. The input signal can be HDR10 or HLG, in RGB or YUV 4:2:0, 4:2:2 or 4:4:4 at 8 or 10-bit. Audio is embedded on both HDMI inputs and captured as stereo at 16-bit, 32 to 48 kHz.

It connects over PCIe x4 Gen3. YUAN lists no on-board encoding, so compression runs in host software, and the SDK supports DirectShow, V4L2, FFmpeg and GStreamer with C++, C#, .NET, Visual Basic, Qt and Delphi. For the same two inputs in an M.2 socket, the SC730N2 M2 HDMI2.0 takes two HDMI 2.0 inputs at 4K60, and the SC710N1-L HDMI2.0 takes a single HDMI 2.0 input where one channel is enough.

Driver support covers Windows 11 and Linux 2.6.14 or higher, 32-bit and 64-bit. We supply the SC730N2-L HDMI2.0 fitted and tested in the host system it goes into, with drivers installed and both inputs checked before delivery.

SC730N2-L HDMI2.0 Specifications

Overview
Brand & ModelYuan SC730N2-L HDMI2.0
Video Capture
Host InterfacePCIe [x4, Gen3]
Simultaneous Video Inputs2
Video Input2x HDMI2.0
Video Resolution Input4K60 [4096×2160p @ 60/50fps]
Video Resolution Output4K60 [4096x2160p @ 60/50/30/25/24fps]
Audio Input2x HDMI Embedded Audio Input

Official Yuan USA Distributor

Things Embedded is an official Yuan USA distributor, and we supply the SC730N2-L HDMI2.0 tested in the host system it goes into, with drivers installed. Within the Yuan range, the SC730N2 M2 HDMI2.0 takes two HDMI 2.0 inputs at 4K60 from an M.2 socket, and the SC710N4T HDMI2.0 takes four HDMI 2.0 inputs on a full-height card.

Across our range, the SC730N2-L HDMI2.0 sits with our HDMI 2.0 capture cards, our 4K and 8K capture cards and our PCIe video capture cards.
