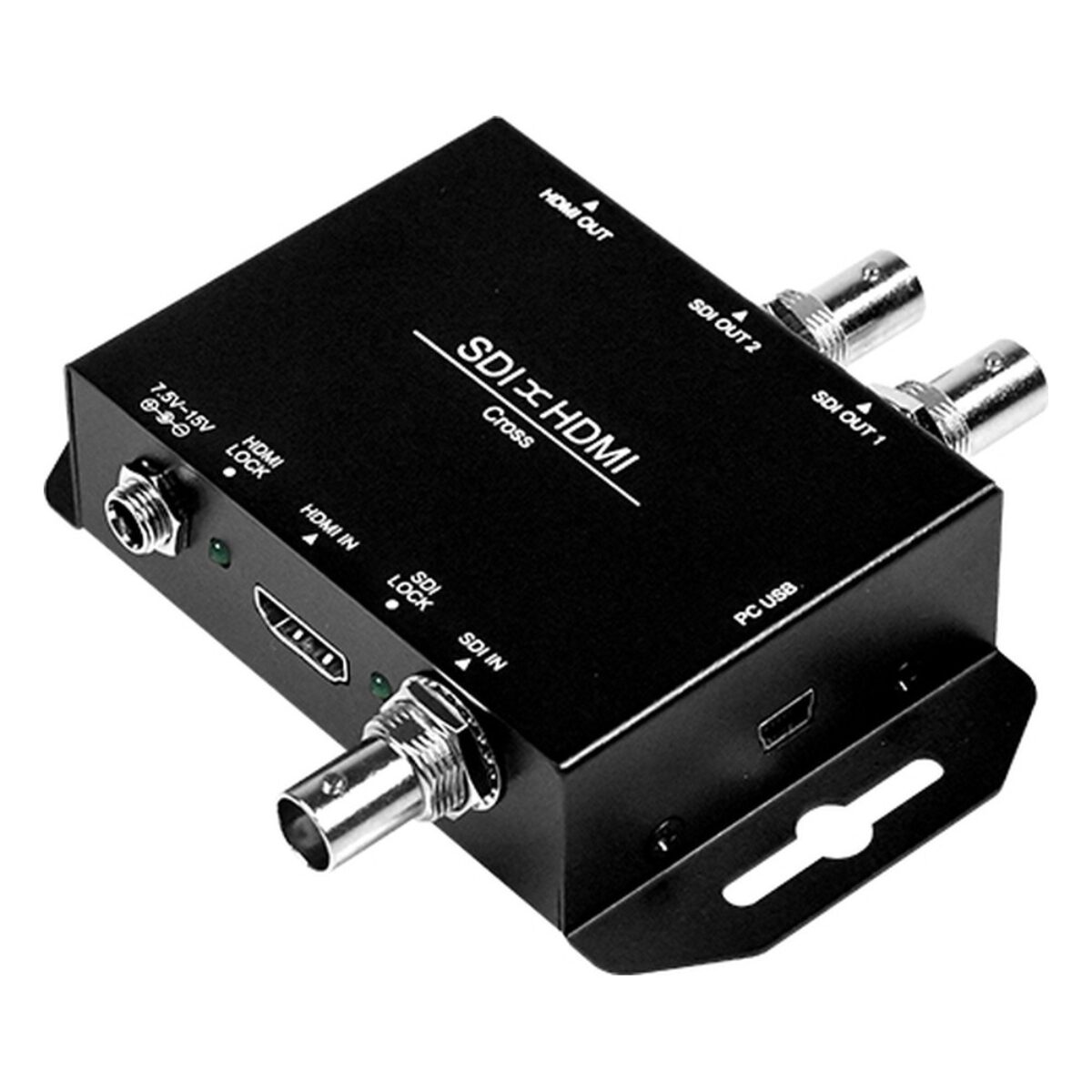

Yuan SDI-HDMI Cross SDI to HDMI Converter with Simultaneous HDMI to SDI Cross Conversion at 1080p60
SDI-HDMI Cross Overview
Studios, outside broadcast trucks and pro AV rooms often carry SDI cameras and routers alongside HDMI monitors, laptops and recorders. Converting in both directions usually means two boxes. The Yuan SDI-HDMI Cross is an SDI to HDMI converter that also converts HDMI to SDI at the same time, so one unit can sit between the SDI and HDMI sides of a system.
Inputs are one HDMI and one SDI connection. The SDI input handles 3G-SDI at 1920x1080p 60/50, HD-SDI at 1080p 30/25/24, 1080i and 720p, and SD-SDI at 480i and 576i, with 3G-SDI Level A and B and Level B dual link or dual stream input. HDMI input covers the same broadcast formats. Outputs are one HDMI and two SDI, each carrying the input format without scaling. Embedded audio runs at up to eight channels, 24-bit: 48 kHz on SDI and up to 192 kHz on the HDMI input.
The SDI-HDMI Cross is plug and play, with auto source format detection and a 7.5 to 15 V DC input. Yuan lists a power-amplified SDI loop out. Where you need genlock, scaling or analog audio input, the SDI-HDMI Genlock Cross adds a reference input and up/down/cross conversion. For a single SDI to HDMI path, the SDI to HDMI is the simpler one-direction converter with two loop outputs.
No operating temperature or certification is published for this converter, so we treat it as an indoor rack or desk unit. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. We supply the SDI-HDMI Cross configured and tested with the sources, displays and network it will connect to.
SDI-HDMI Cross Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SDI-HDMI Cross |
| Video Capture | |

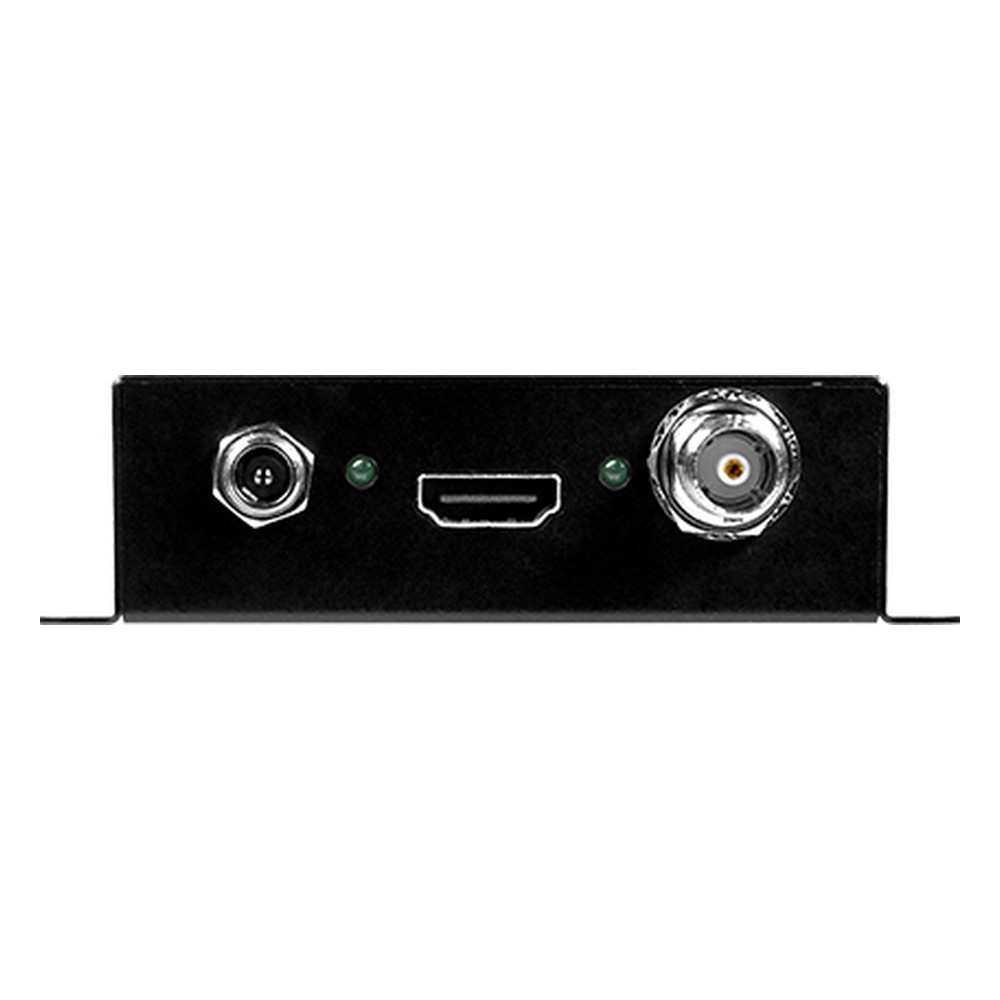

| Video Input | 1x HDMI 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |

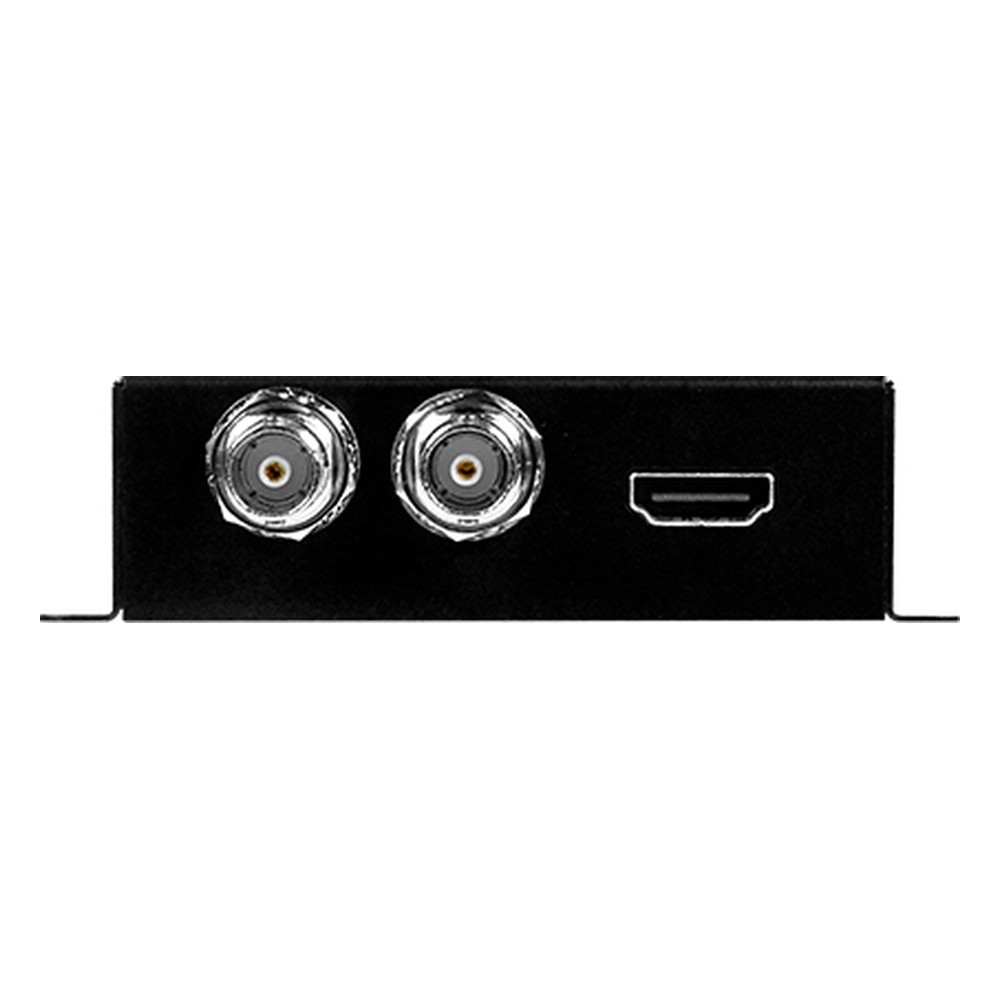

| Video Output | 1x HDMI 2x SDI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x HDMI Embedded Audio Input 1x SDI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 153mm x 71mm x 26mm (6.02" x 2.78" x 1.02") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the SDI-HDMI Cross configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SDI-HDMI Genlock Cross adds a black burst and tri-level reference input with up/down/cross conversion, and the SDI to HDMI handles one direction only.
Across our range, the SDI-HDMI Cross sits with our SDI and HDMI converters, our SDI video capture cards and our HDMI video capture cards.
