Yuan UB575 AIO USB HDMI, SDI and DVI Frame Grabber with 1080p60 Input
UB575 AIO Overview

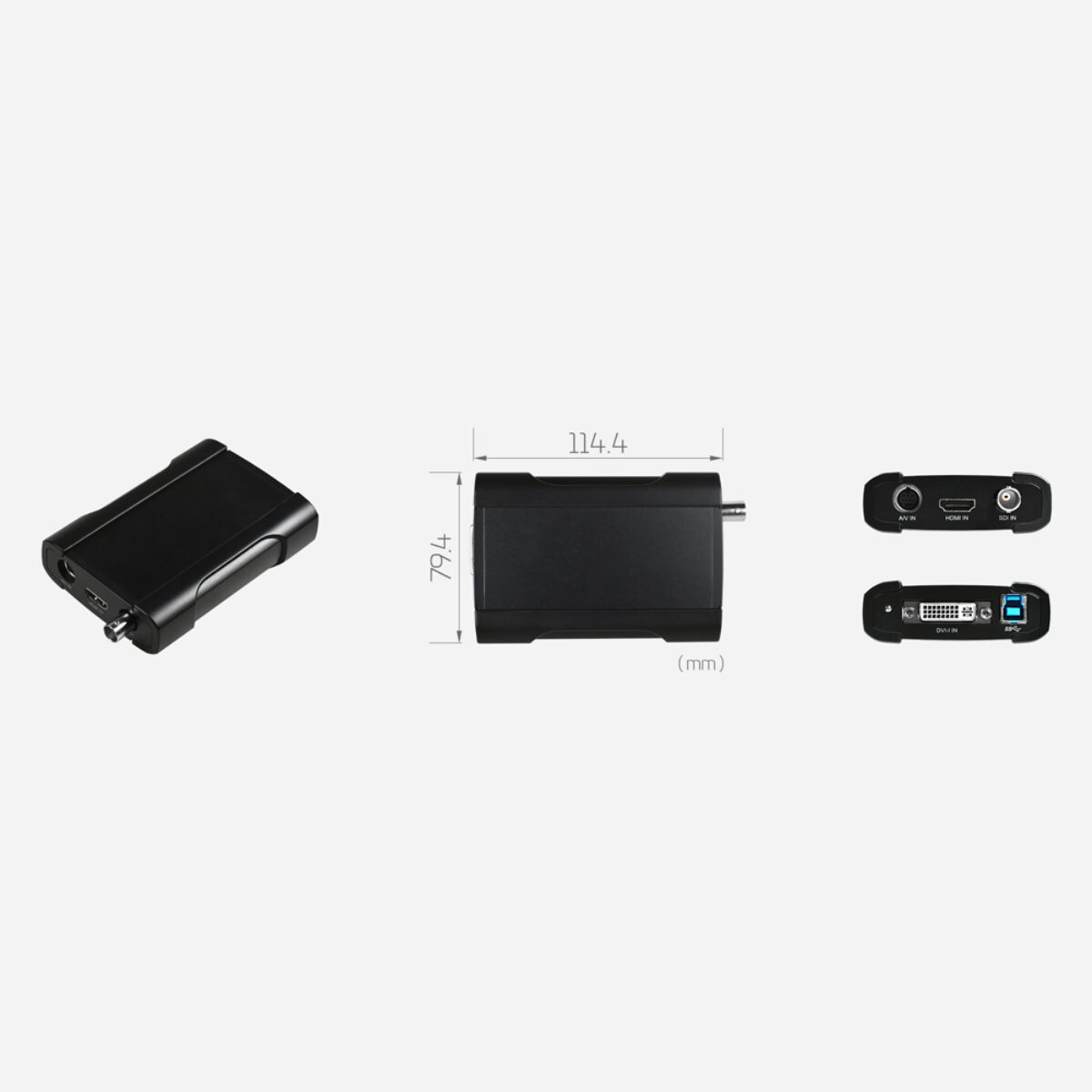

Digitising archive material or capturing from a mix of cameras and computers often means juggling adapters for each connector type. The UB575 AIO is Yuan’s USB HDMI, SDI and DVI frame grabber, an all-in-one USB 3.0 unit that puts SDI, HDMI, DVI-I and three analog inputs in one place so a laptop or small PC can take in whichever source is connected.
One channel is captured at a time at up to 1920 x 1080 at 60 or 50 fps. Over USB 3.0 the card delivers NV12 or YUY2 video at 1920 x 1080, 1280 x 720, 720 x 576, 720 x 480 and 640 x 480 at 60, 50, 30 or 25 fps. Audio comes from SDI or HDMI embedded audio or two RCA inputs through the component cable, at 16-bit 48 kHz stereo.
The card connects through a USB 3.0 Type B port as a UVC device, so software that supports UVC capture can open it. On a USB 2.0 host it still captures 1280 x 720 at 30 fps in NV12, with SD formats at 50 or 60 fps. The UB570 PRO AIO adds the ProAV Scaler and 1920 x 1200 input, and the UB575G HDMI is the HDMI capture card with loop-through. Having SDI, HDMI and analog inputs on one card means a single unit covers broadcast cameras, laptops and older playback equipment.
Operating system support covers Windows 7, 8, 8.1 and 10 in 32-bit and 64-bit, Linux and macOS. The spread of inputs suits archive digitising, training capture and small production setups where the source equipment changes from job to job. A single USB cable to the host keeps it quick to move between a desk, a studio and a site visit.
UB575 AIO Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan UB575 AIO |
| Video Capture | |
| Host Interface | USB3.0 |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x Composite 1x DVI-I 1x HDMI 1x S-Video 1x SDI 1x YPbPr |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] UXGA60 [1920x1200 @ 60/50fps] |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] UXGA60 [1920x1200 @ 60/50/30/25/24fps] |
| Color Format | NV12 YUY2 |
| Audio Input | 1x HDMI Embedded Audio Input 1x SDI Embedded Audio Input 2x RCA Audio Input |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, supplying the UB575 AIO configured for USA archive and training capture projects. Within the Yuan range the UB570 PRO AIO adds the ProAV Scaler and 1920 x 1200 capture on the same inputs, and the UB575G HDMI suits HDMI-only work with loop-through.
With six input types at full HD the UB575 AIO sits among our USB capture cards, our DVI capture cards and our SDI video capture cards. Where one USB capture card must capture SDI, HDMI and analog sources at 1080p60, this is the model to specify.
