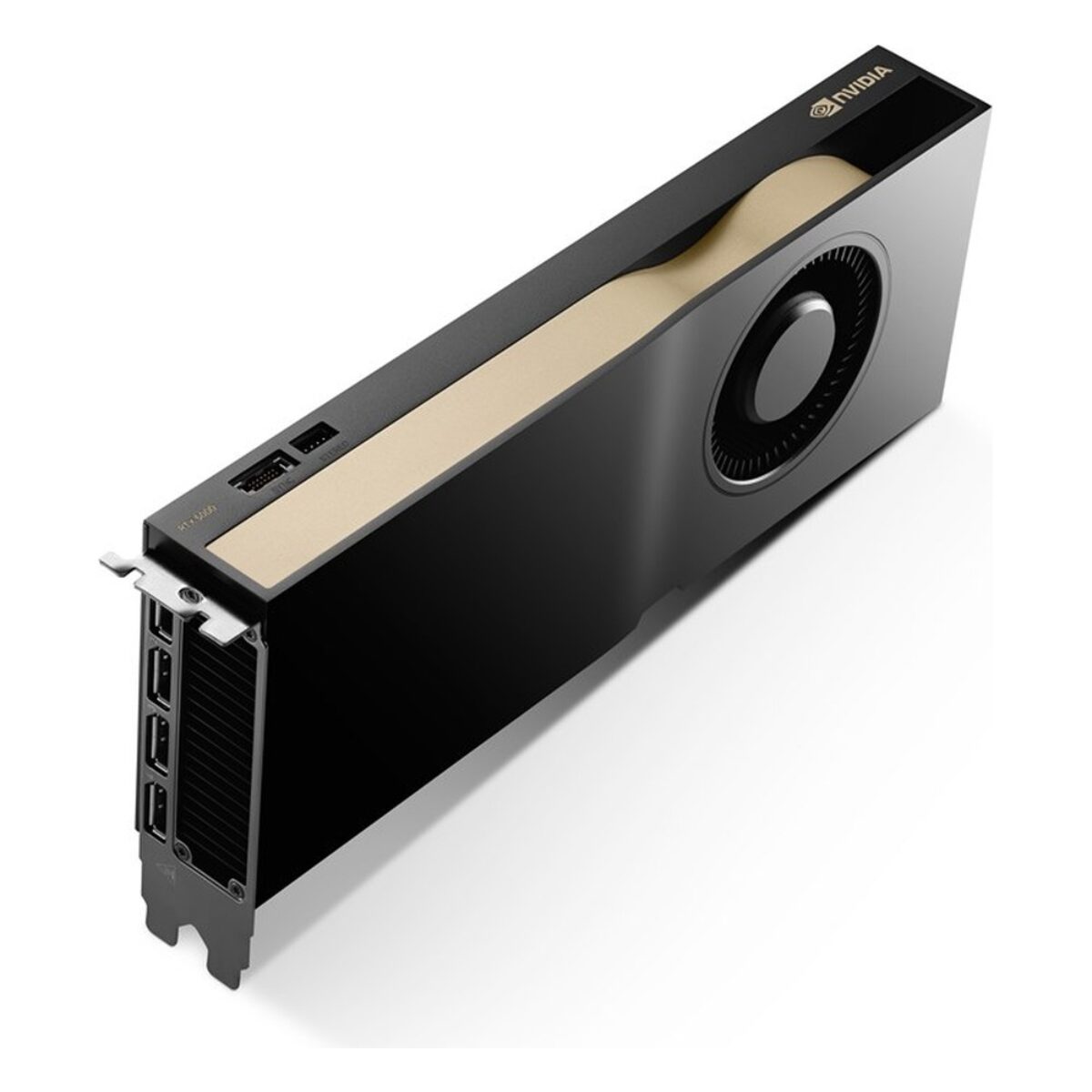

Advantech SKY-QUAD-5000A-32 NVIDIA RTX 5000 Ada 32GB Professional Graphics Card with 250W Active Cooling

Not every rendering or AI build needs a 300 W card, and a lower power draw can make cooling a multi-card chassis easier. The SKY-QUAD-5000A-32 is the NVIDIA RTX 5000 Ada from Advantech, a professional graphics card with 32 GB of GDDR6 and ECC at a 250 W maximum. Advantech lists the RTX Ada family for rendering, AI, graphics and compute, with NVIDIA RTX professional cards certified across a broad range of professional applications.

The Ada Lovelace GPU has 12,800 CUDA cores, 400 fourth-generation Tensor Cores and 100 third-generation RT Cores, with single-precision performance rated at 65.3 TFLOPS. Memory runs on a 384-bit interface at 576 GB/s. Family features include AV1 encode and decode for video pipelines, NVIDIA GPUDirect RDMA support for moving data directly between network adapters and the GPU, and NVIDIA Mosaic for spanning several displays as one desktop.

The SKY-QUAD-5000A-32 connects over PCI Express 4.0 x16 and has four DisplayPort 1.4a outputs, driving four 4096 x 2160 displays at 120 Hz, four at 5120 x 2880 at 60 Hz or two 7680 x 4320 displays at 60 Hz. It supports DirectX 12, Shader Model 6.6, OpenGL and Vulkan 1.3, with CUDA, DirectCompute and OpenCL. Power comes through one PCIe CEM5 16-pin connector, with a 2x PCIe 8-pin adapter cable included. Active cooling sits on a dual-slot, full-height card.

We supply each card tested, and we fit, configure and burn-in test the SKY-QUAD-5000A-32 in the GPU computers and servers we build. The SKY-QUAD-6000A-48 steps up to 48 GB at 300 W, the SKY-QUAD-4500A-24 offers 24 GB at 210 W, and the SKY-QUAD-5000B-48 is the Blackwell generation RTX PRO 5000 on PCIe 5.0.
