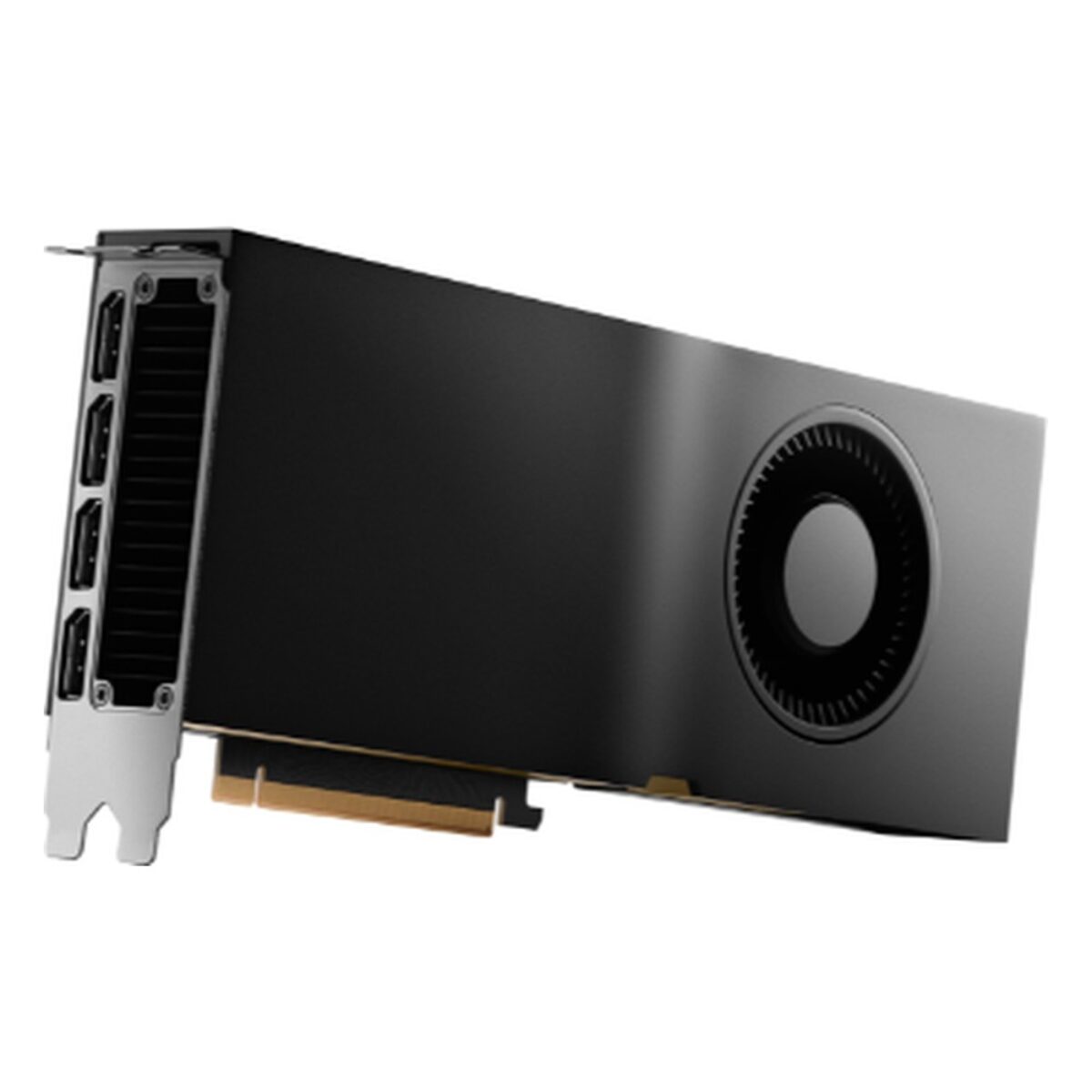

Advantech SKY-QUAD-5000EA-32 NVIDIA RTX 5000E Ada 32GB Workstation GPU with ECC GDDR6 and 4x DisplayPort 1.4a

Not every visualization or inference job needs the largest card, but it still needs ECC memory and a card that will stay available. The SKY-QUAD-5000EA-32 is the NVIDIA RTX 5000E Ada, a dual-slot workstation GPU supplied by Advantech with 32 GB of ECC GDDR6 and a long life cycle to year 2030. It is a good fit for GPU computers running rendering, simulation, video analytics and AI inference where 250 W is a comfortable power budget.

The NVIDIA Ada Lovelace GPU carries 12,800 CUDA cores, 400 fourth-generation Tensor Cores and 100 third-generation RT Cores, for 65.3 TFLOPS of single-precision performance. Its 32 GB of GDDR6 with ECC runs on a 384-bit interface at 576 GB/s. Compute work runs on CUDA, DirectCompute and OpenCL, and graphics on DirectX 12.07, Shader Model 6.6, OpenGL 4.68 and Vulkan 1.3, so most professional applications and AI frameworks have a familiar target.

The SKY-QUAD-5000EA-32 uses PCI Express 4.0 x16 and draws up to 250 W through one PCIe CEM5 16-pin connector, with a 2x PCIe 8-pin adapter cable included. It is a dual-slot, full-height card with active cooling. Four DisplayPort 1.4a outputs drive four 4096 x 2160 displays at 120 Hz, four at 5120 x 2880 at 60 Hz or two at 7680 x 4320 at 60 Hz, with AV1 encode and decode, NVIDIA GPUDirect RDMA and NVIDIA Mosaic technology supported.

We supply the SKY-QUAD-5000EA-32 tested, and we fit, configure and burn-in test it in the GPU computers and servers we build, with power, cooling and drivers checked as part of each build. For more memory, the SKY-QUAD-6000EA-48 carries 48 GB at 300 W, and the SKY-QUAD-4000EA-20 brings the RTX 4000E Ada to a single-slot card. The SKY-QUAD-5000A-32 is the RTX 5000 Ada with 32 GB.
