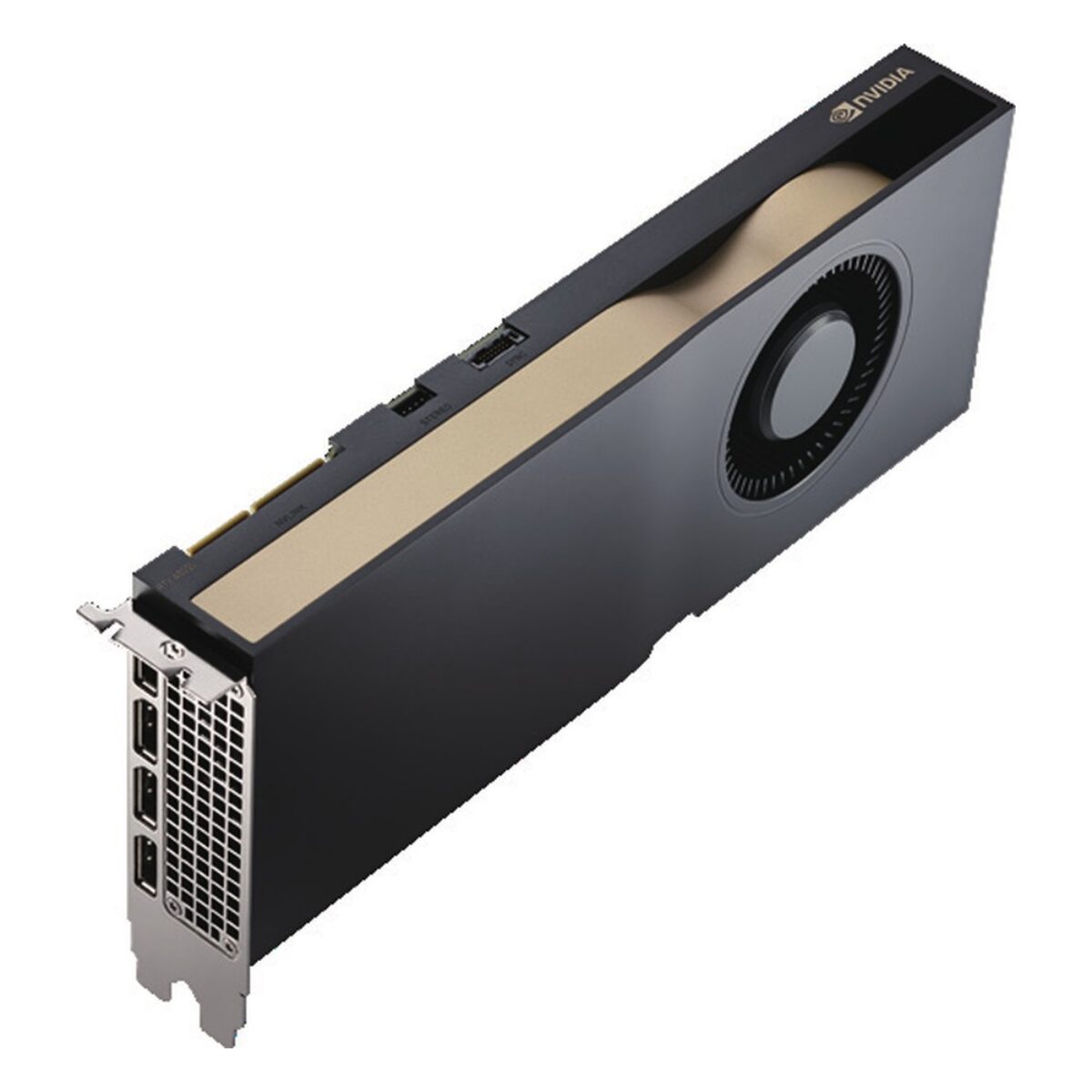

Advantech SKY-QUAD-A5000E24B NVIDIA RTX A5000 24GB GDDR6 Professional Graphics Card with 230W Active Cooling

Rendering, simulation and AI projects often start on one GPU and later need two working as a pair. The SKY-QUAD-A5000E24B is the NVIDIA RTX A5000E, a dual-slot professional graphics card supplied by Advantech, and two of them can be connected with NVIDIA NVLink to scale memory and performance. It is listed as an NVIDIA long-life SKU with product life extended until 2029, which suits OEM and multi-year projects.

The NVIDIA Ampere GPU carries 8,192 CUDA cores, 256 third-generation Tensor Cores and 64 second-generation RT Cores, for 27.8 TFLOPS of single-precision performance. Memory is 24 GB of GDDR6 with ECC on a 384-bit interface at 768 GB/s. Support for NVIDIA virtual GPU software can let one card serve several users or virtual machines. CUDA, DirectCompute and OpenCL cover compute, with DirectX 12.07, Shader Model 5.17, OpenGL 4.68 and Vulkan 1.2 for graphics.

The SKY-QUAD-A5000E24B connects over PCI Express 4.0 x16 and draws up to 230 W, with active cooling in a dual-slot, full-height design. Four DisplayPort 1.4a outputs drive four 4096 x 2160 displays at 120 Hz, four at 5120 x 2880 at 60 Hz or two at 7680 x 4320 at 60 Hz, so a pair of cards can feed a large display wall.

We supply the SKY-QUAD-A5000E24B tested, and we fit, configure and burn-in test it in the GPU computers and servers we build, with power, cooling and drivers checked as part of each build. For more memory, the SKY-QUAD-A6000E48B carries 48 GB at 300 W, the SKY-QUAD-A4000E16B is a single-slot, 16 GB alternative, and the SKY-QUAD-5000EA-32 moves to Ada Lovelace with 32 GB.
