Antaira LMP-1002G-10G-SFP 10-Port Industrial Gigabit PoE+ Managed Switch with 2x 10G SFP+ Uplinks

A factory, depot or traffic site that adds IP cameras, wireless access points and sensors soon needs one switch that powers them over the data cable, keeps the network segmented and carries the combined traffic home at more than a gigabit. The LMP-1002G-10G-SFP is Antaira’s industrial managed PoE switch for that job, with 10G fiber uplinks in a DIN-rail case.

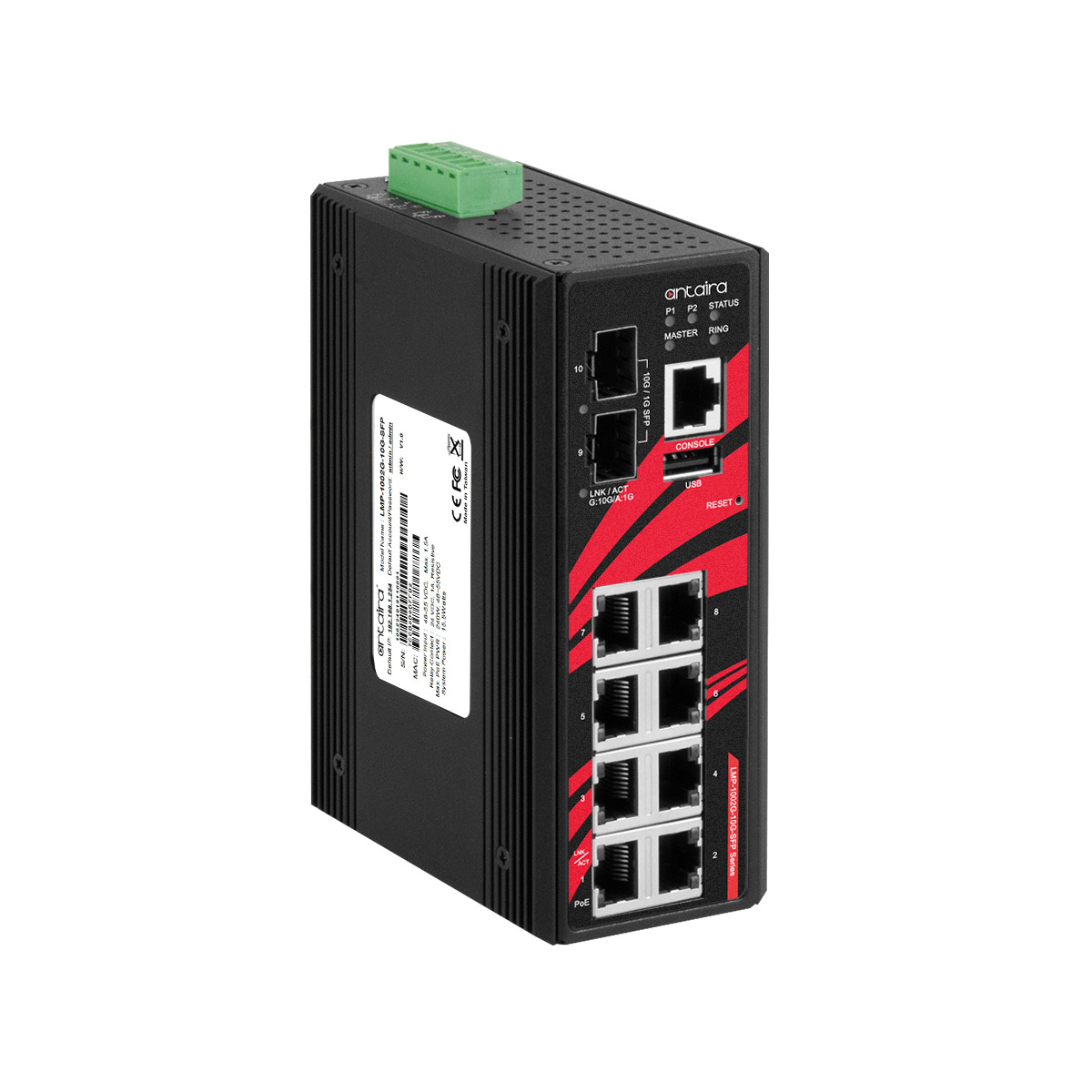

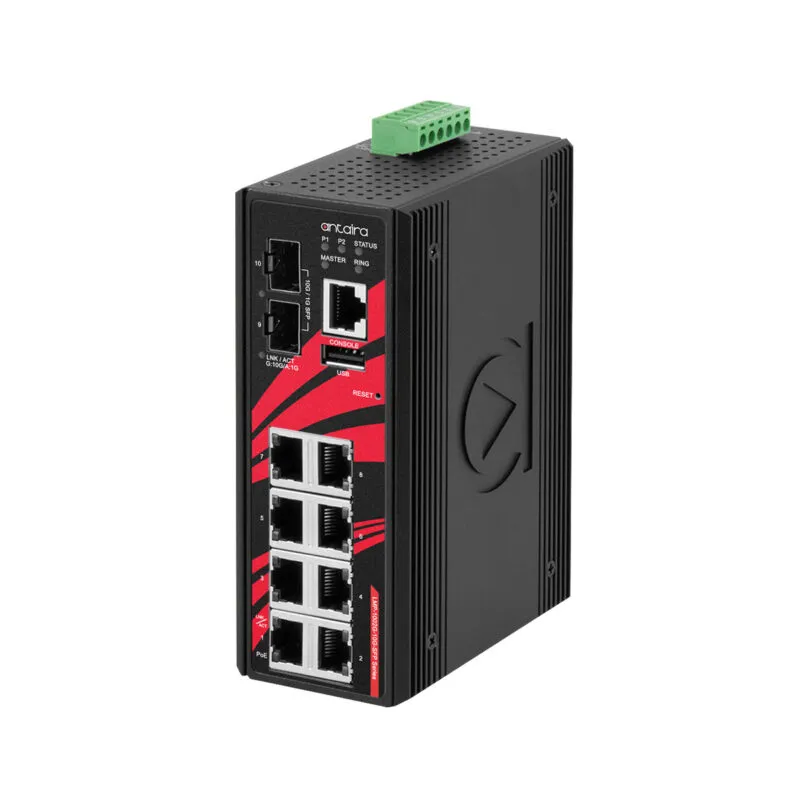

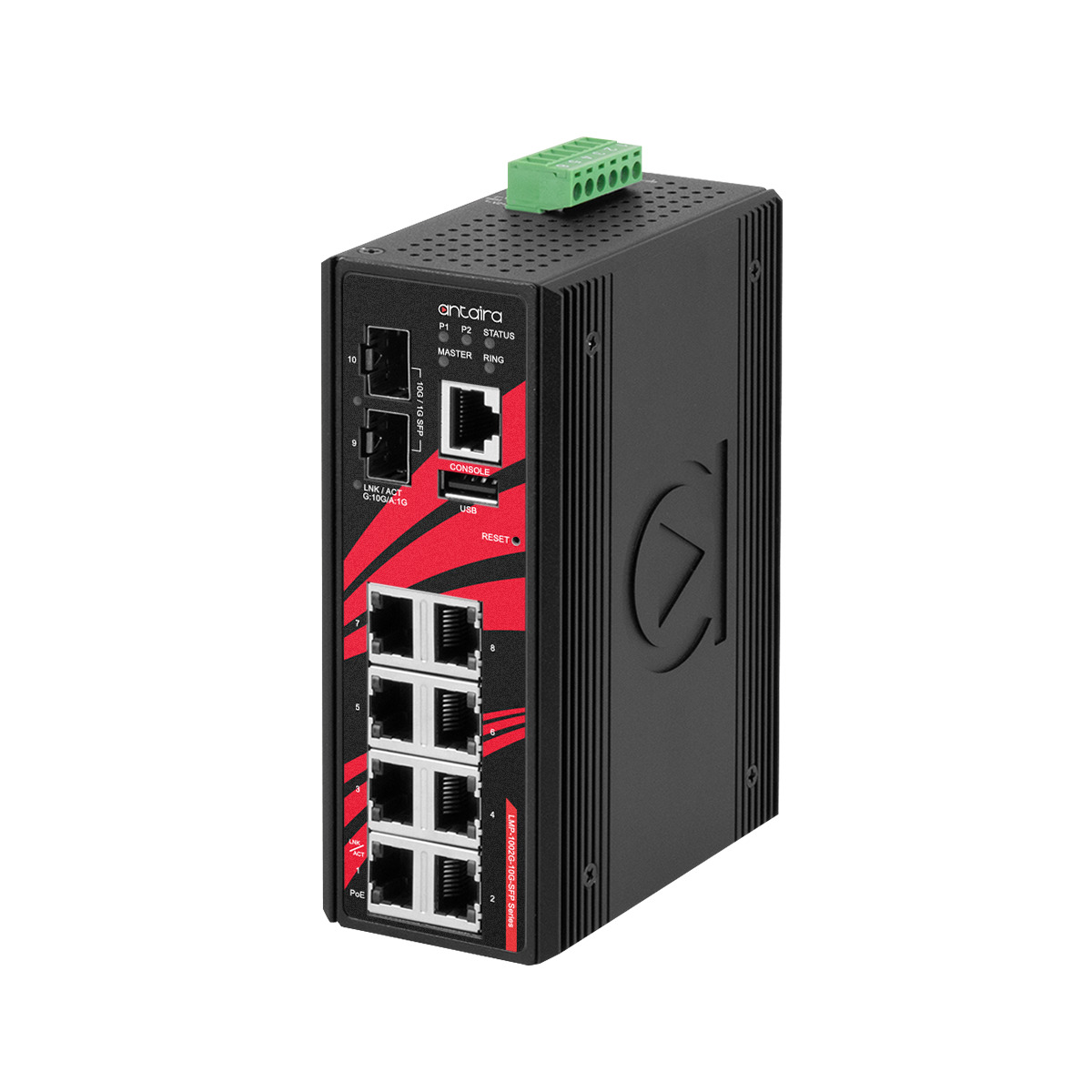

It has eight 10/100/1000Base-TX RJ45 ports with IEEE 802.3af/at PoE+ at 30 W per port and a 240 W power budget, plus two dual-rate 1G/10G SFP+ slots for fiber uplinks. An RS-232 console on RJ45 gives local access. Switching is light Layer 3, with static routes and DHCP option 82 on top of full Layer 2 features, on a 56 Gbps switching fabric with a 16K MAC table and 9.6 KB jumbo frames. It is managed over HTTP, HTTPS, Telnet, SSH, CLI or SNMP v1/v2c/v3, and speaks Modbus/TCP for monitoring from a PLC or SCADA system.

Network features include port, MAC, protocol and subnet-based IEEE 802.1Q VLANs, 802.1p QoS with DSCP, IGMP and MLD snooping, DHCP snooping, storm control and static or LACP link aggregation, over IPv4 and IPv6. For redundancy it supports STP, RSTP and MSTP, and G.8032 ERPS recovers a ring in under 50 ms. Our FAQ on what a VLAN is covers segmenting camera and control traffic. For simpler cabinets, the LNX-0501G-SFP and LNX-500AG are unmanaged Antaira alternatives.

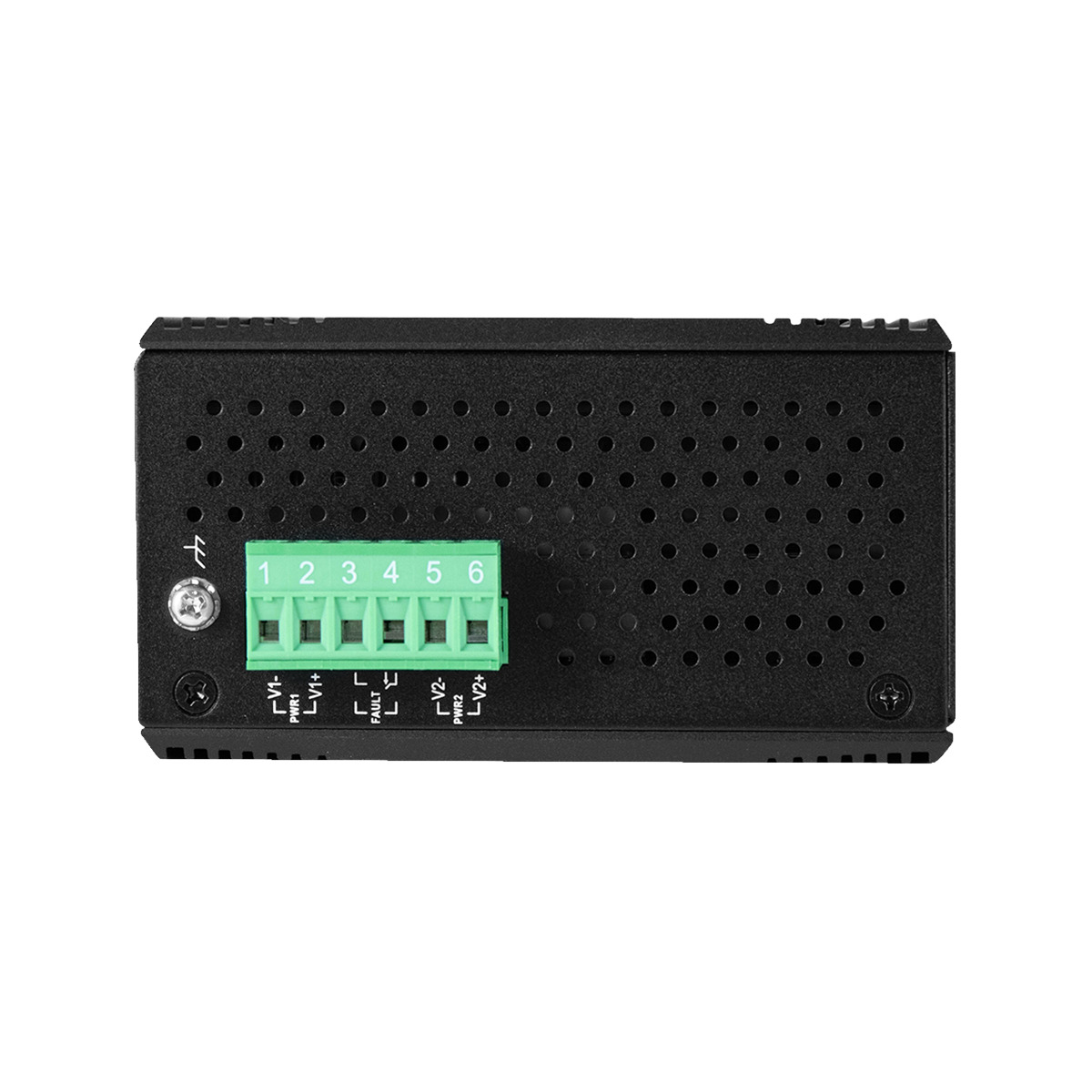

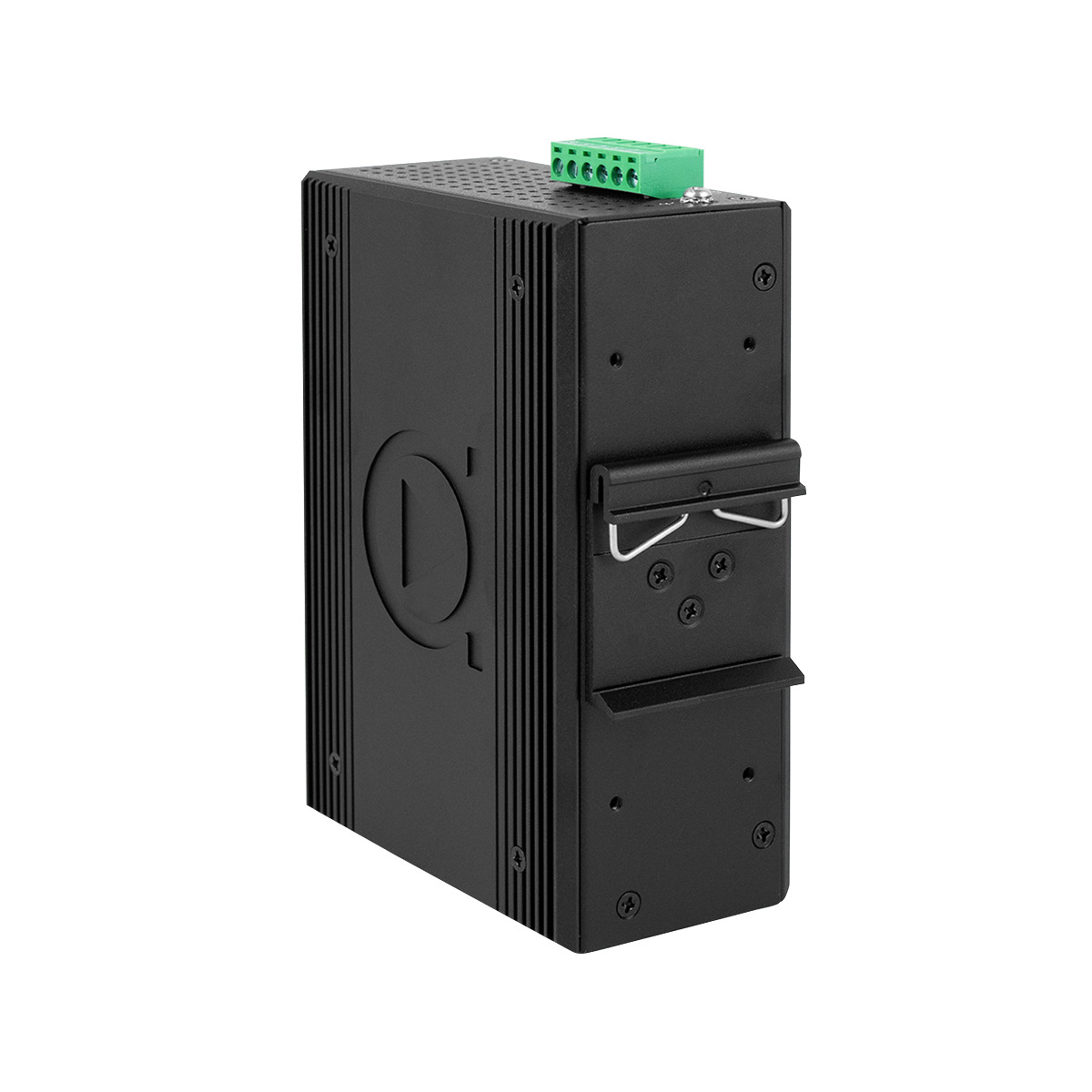

Power arrives on 48 to 55 V DC redundant inputs on a removable 6-contact terminal block, with reverse polarity and overload protection; the system draws 15.5 W before PoE loads. A 24 V DC relay contact and power-lost warning report faults. It operates from -40 to 60 °C, measures 54 x 142 x 99 mm in an IP30 metal case, mounts on a DIN rail or wall, lists shock, vibration and free fall to IEC 60068-2, carries FCC, CE and UL 61010 approvals, and has a 5-year Antaira warranty.
