Antaira LMX-1002G-10G-SFP 10-Port 10G Managed Industrial Switch with 2x 10G SFP+ and Extended Temperature

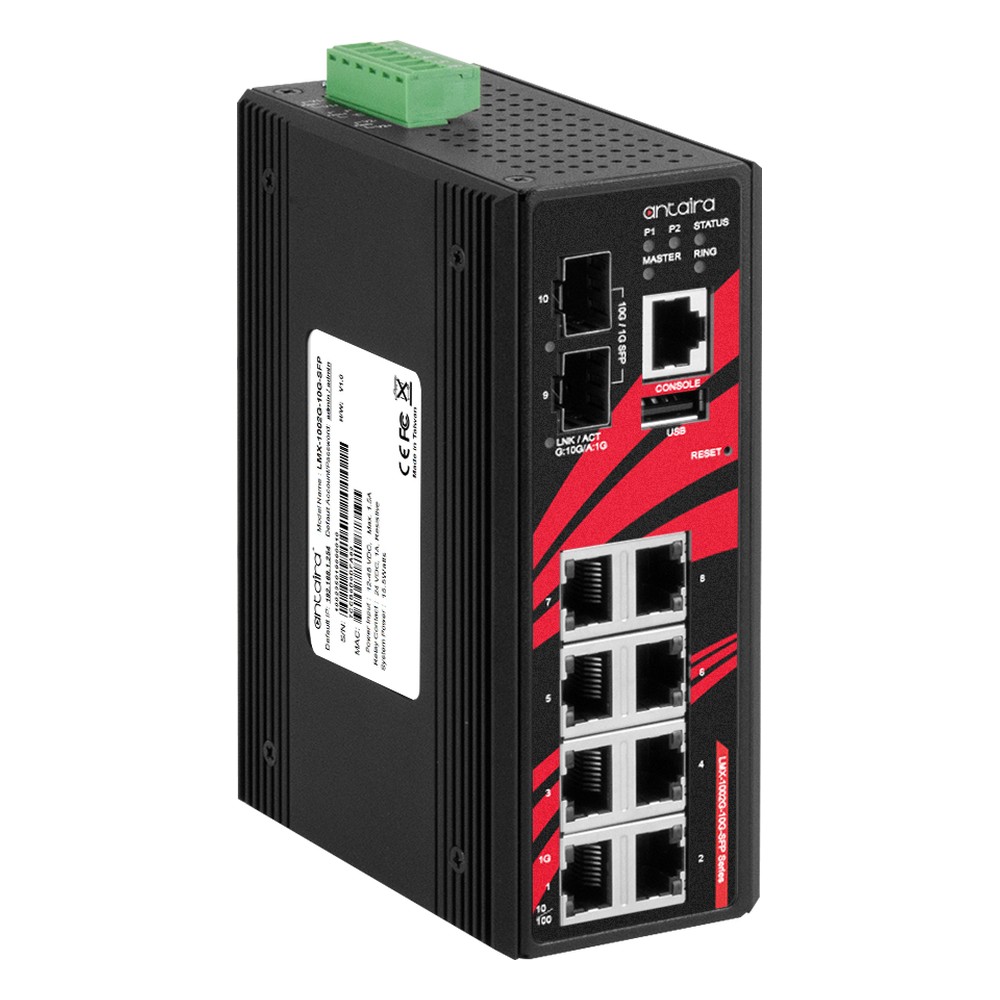

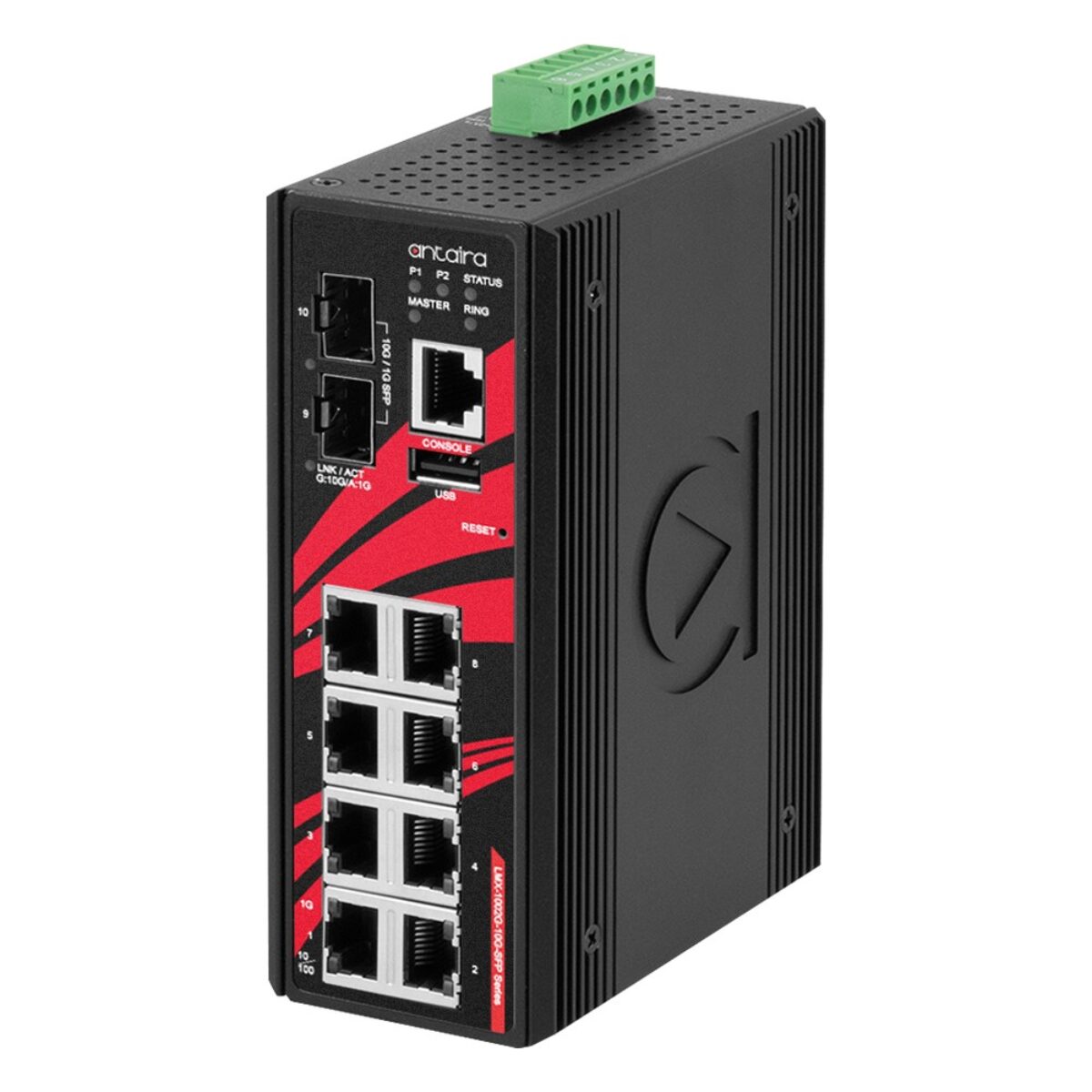

The LMX-1002G-10G-SFP is a 10-port managed industrial switch from Antaira with eight gigabit RJ45 ports and two 1G/10G SFP+ slots on a 56 Gbps fabric, rated -40 °C to 60 °C as standard, with G.8032 ERPS and static routes. It suits edge cabinets that need a 10G fiber uplink to the core.

  • Two 1G/10G SFP+ Slots: Two dual-rate SFP+ slots run fiber uplinks at 1 Gbps or 10 Gbps, with wavelength and reach set by the module chosen.
  • Eight Gigabit RJ45 Ports: Eight 10/100/1000Base-TX ports with auto MDI/MDI-X on a 56 Gbps store-and-forward fabric with a 16K MAC table.
  • -40 to 60 °C as Standard: Rated -40 °C to 60 °C in a single build, for cabinets that see frost as well as indoor plant rooms.
  • G.8032 ERPS Under 50 ms: ITU-T G.8032 ERPS ring recovery in under 50 ms, with STP, RSTP and MSTP, plus static routes and DHCP Option 82.
  • Redundant 12 to 48 V DC: Dual DC inputs on a 6-contact terminal block with reverse polarity protection and UL 61010-1 certification.
Thermal Dissipation: FanlessFanless
Operating Temperature: Extended TemperatureExtended Temp
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

LMX-1002G-10G-SFP Overview

Edge cabinets that aggregate several cameras, vision systems or remote switches can fill a gigabit uplink quickly, so the link back to the core is where extra bandwidth pays off. The LMX-1002G-10G-SFP from Antaira is a 10-port managed industrial switch with eight gigabit copper ports for local devices and two 10G SFP+ slots for the fiber uplink, rated -40 °C to 60 °C as standard.

It has eight 10/100/1000Base-TX RJ45 ports with auto MDI/MDI-X and two 1G/10G dual-rate SFP+ slots, so wavelength and reach follow the module chosen. Switching is store-and-forward on a 56 Gbps fabric with a 16K MAC table, a 4 Mbit buffer and 9.6 KB jumbo frames. The Layer 2+ firmware covers IEEE 802.1Q VLANs, QoS, IGMP snooping for up to 1024 groups, LACP, LLDP, port mirroring, sFlow, RMON, IPv4/IPv6, DHCP Option 66/67/82 and Modbus TCP, and adds static routes. Ring redundancy uses ITU-T G.8032 ERPS with recovery in under 50 ms, alongside STP, RSTP and MSTP, so the two SFP+ slots can carry a 10G fiber ring.

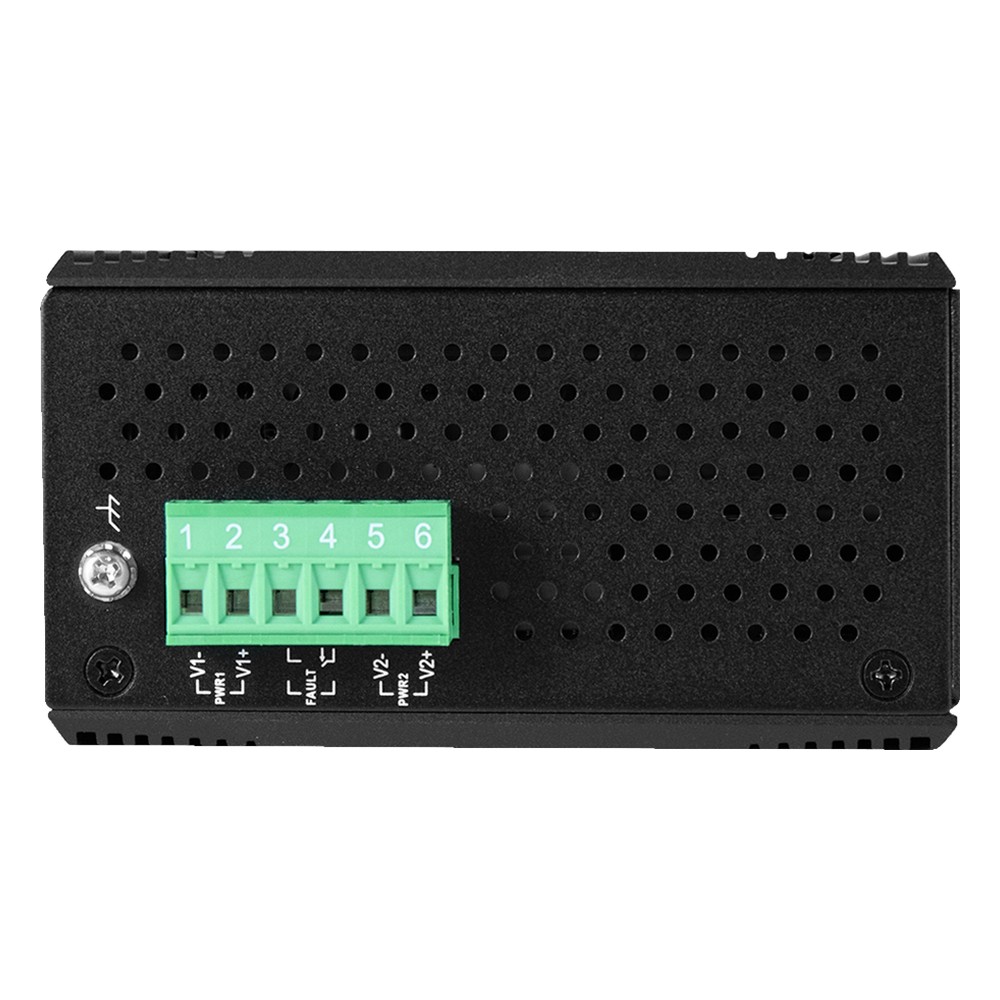

Power arrives on 12 to 48 V DC redundant inputs on a removable 6-contact terminal block, and the switch draws 15.5 W. Overload current and reverse polarity protection are built in, a power lost warning and relay trigger can flag a failed supply, and Antaira gives the switch high EFT and ESD protection with EMS testing to IEC 61000-4-2, 3, 4, 5, 6 and 8. It is managed through the web console, Telnet, SSH or CLI, with an RS232 console port on RJ45.

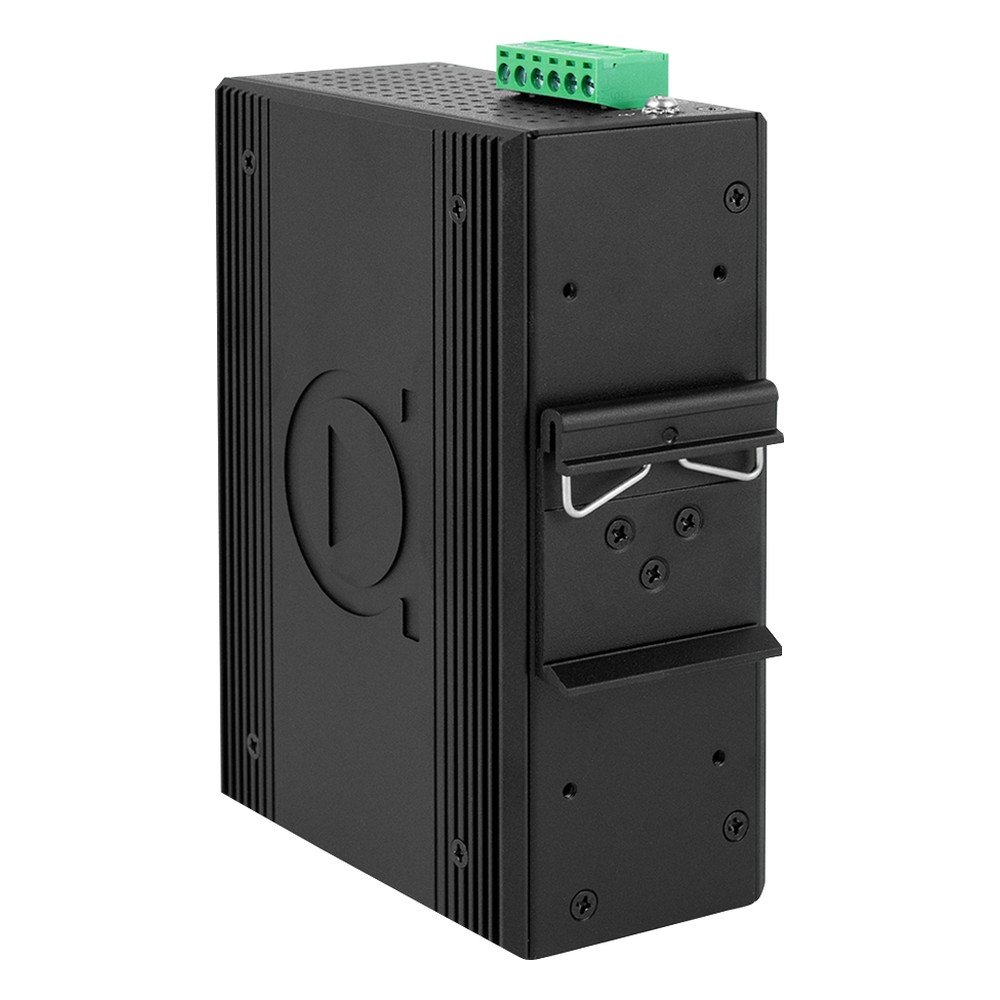

The LMX-1002G-10G-SFP sits in an IP30 metal case for DIN rail or wall mounting, and Antaira names factory automation, ITS, power and utility, and water and wastewater as typical applications. It is UL 61010-1 certified, carries FCC and CE marks, is RoHS compliant and comes with Antaira’s 5-year warranty. The LMX-1002G-SFP has the same port layout with 100/1000 SFP slots and hazardous location approvals, and the LMX-1002G-SFP-T adds a -40 °C to 75 °C rating. We supply and specify the LMX-1002G-10G-SFP and can pre-configure IP addressing, VLANs and ring settings before it ships, where you ask.

LMX-1002G-10G-SFP Specifications

Overview
Brand & ModelAntaira LMX-1002G-10G-SFP
FeaturesCompact
Fanless
Industrial
Managed Ethernet Switch
Networking
Switching LayerLayer 2+
Switch TypeManaged
Ethernet Ports8x 10/100/1000 BASE-TX [RJ45]
Number of Ethernet Ports8x Ethernet Ports
Number of Fiber Ports2x 1G/10G [SFP+]
Networking StandardsIEEE 802.1AB LLDP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.3 10BaseTx Ethernet
IEEE 802.3ab 1000BaseTx Gigabit Ethernet
IEEE 802.3ad Link Aggregation
IEEE 802.3ae 10 Gigabit Fiber
IEEE 802.3u 100BaseTx Fast Ethernet
IEEE 802.3x Back Pressure Flow Control
IEEE 802.3z Gigabit Fiber
ITU-T G.8032 ERPS
Power
Power Input12-48V DC, Terminal Block
Environmental Conditions
Operating Temperature-40°C to 60°C [-40°F to 140°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity5% - 95% (Non-condensing)
Ingress ProtectionIP30
ShockIEC 60068-2-27
VibrationIEC 60068-2-6
CertificationCE
FCC
RoHS
UL 61010-1
Mechanical Properties
Weight1.0 Kg (2.3 Lbs)
Dimensions54mm x 142mm x 99mm (2.13" x 5.59" x 3.9")
Mounting OptionsDIN Mount
Wall Mount

Official Antaira USA Distributor

Things Embedded is an official Antaira USA distributor, and we supply the LMX-1002G-10G-SFP with matching SFP transceivers and a DIN-rail power supply, with IP addressing, VLANs and ring settings pre-configured on request. Within the Antaira range, the LMX-1002G-SFP the same port layout with 100/1000 SFP slots and Class 1 Division 2 approval.

Across our range, the LMX-1002G-10G-SFP sits with our managed switches for industrial networks, industrial network switches and all Ethernet switches.
