Arestech CB-2200/2250 Intel Alder Lake-N N97 or Core i3-N305 Rugged Compact Computers with Ignition Control
The Arestech CB-2200/2250 series is a family of fanless rugged computers on Alder Lake-N, with the Intel Processor N97 or the Core i3-N305. Both have 9 to 48 V DC power ignition control, two 2.5GbE ports, two DisplayPort 1.4a outputs, two COM ports, isolated DIO, a removable 2.5" SSD and TPM 2.0, rated from -40 °C to 70 °C.
- Power Ignition Control: A 9 to 48 V DC input with ignition control, PC/Car mode and delay-time switches for vehicle installs.
- N97 or Core i3-N305: Choose the Intel Processor N97 or the Core i3-N305, both with DDR5 4800 and TPM 2.0.
- -40 °C to 70 °C Operation: Fanless, cable-free operation from -40 °C to 70 °C, tested to 5 Grms vibration and 50 G shock.
- Dual 2.5GbE and Dual DP: Two 2.5GbE ports on Intel I226-IT and two DisplayPort 1.4a outputs, one carried on USB Type-C.
- Isolated DIO and COM: Four isolated DI, four isolated DO and two RS-232/422/485 ports for sensors, relays and controllers.
Intel- Linux
- Windows
Dual Display Support
2.5GbE
Type C
USB3- 1x M.2
- 1x mPCIe
- 2x SIM
- 4G
- Wi-Fi
- Ignition Control
- Fanless
- Extended Temp
- CE
- FCC
CB-2200/2250 Description
Kiosks, access control points, IoT gateways and vehicle installs all ask the same things of a small computer: start in the cold, ride out unstable power and keep running under vibration. The Arestech CB-2200/2250 series answers with a fanless, cable-free design, 9 to 48 V DC power ignition control and a -40 °C to 70 °C operating range. Arestech lists factory automation, access control, self-service kiosks, rugged embedded work and IoT gateways, and the ignition control suits in-vehicle use.
The series offers two processors on the same board. The CB-2200 runs an Intel Processor N97 at up to 3.6 GHz for gateways and kiosks, and the CB-2250 runs an Intel Core i3-N305 at up to 3.8 GHz for heavier multitasking. Both have one DDR5 4800 SO-DIMM socket for up to 16 GB and TPM 2.0. A removable 2.5″ SATA SSD tray with thumbscrews holds the main drive, and an M.2 B-Key 2230/2242/2280 slot with PCIe, SATA and USB 3.0 takes either a SATA M.2 SSD or an optional 4G or 5G module. Windows 11 IoT and Linux are supported.

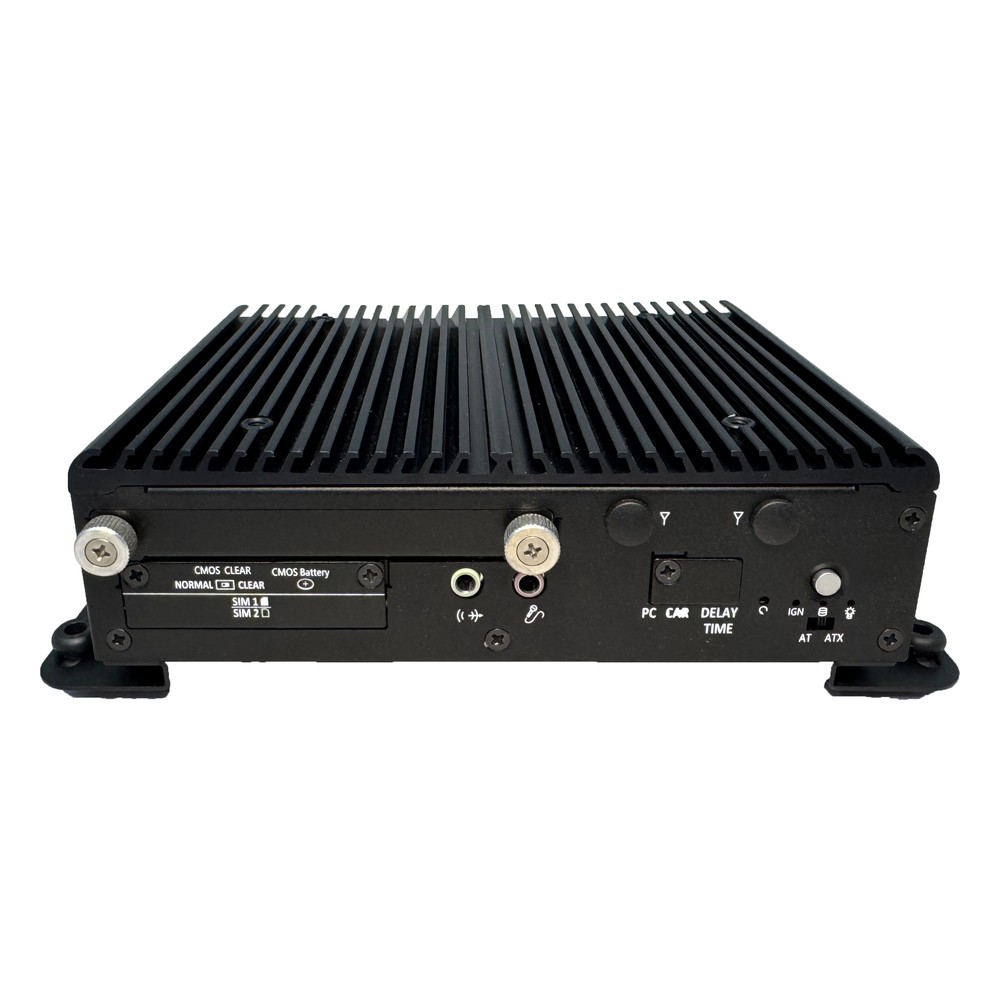

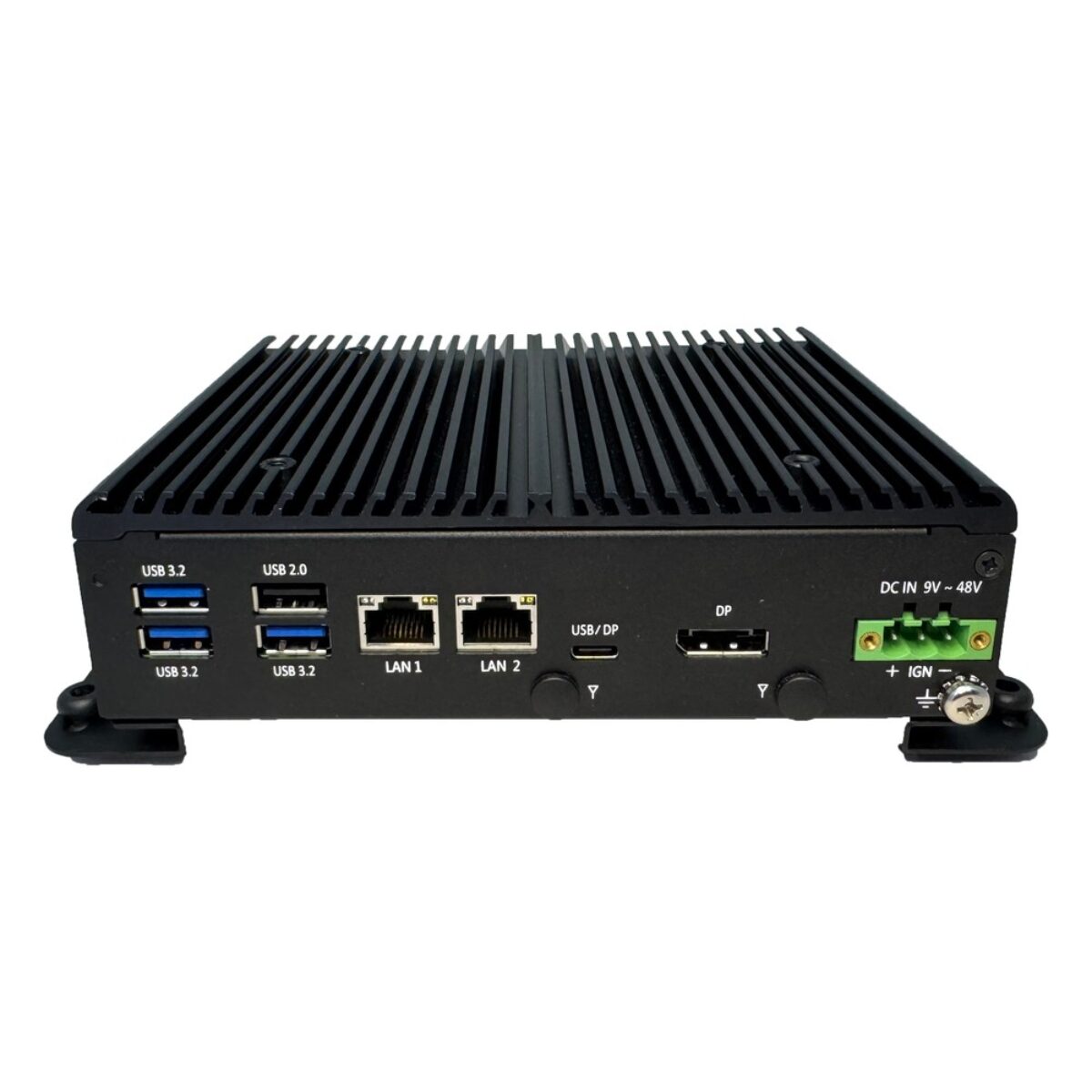

Every CB-2200/2250 has two 2.5GbE ports on Intel I226-IT controllers, two DisplayPort 1.4a outputs at up to 4096 x 2160 (one through USB Type-C), three USB 3.2 Gen 2 Type-A and one USB 2.0 Type-A port. Two RS-232/422/485 ports, four isolated DI and four isolated DO on terminal blocks, line-out and mic-in complete the I/O, and a full-size mini-PCIe slot with two SIM holders supports optional wireless. An external clear-CMOS switch and removable CMOS battery make field servicing simpler.
Power is 9 to 48 V DC through a DC jack or three-pin terminal block with ignition input, with a PC/Car mode switch and a delay-time switch, and protection against over-voltage, over-current and reverse polarity. The extruded aluminum chassis is tested to 5 Grms vibration and 50 G shock and carries CE and FCC Class A marks. A wall kit is included and a DIN-rail kit is optional. For Twin Lake processors and an extra M.2 M-Key SSD slot, see the CB-2210/2260 series series. We supply every CB-2200/2250 configured, with the OS installed, and tested before it ships.
CB-2200/2250 Specifications
| Overview | |
|---|---|
| Brand & Model | Arestech CB-2200/2250 |
| Features | Compact Embedded Fanless Industrial IoT Gateway Rugged USB C Isolated I/O |
| Performance | |
| Processor Series | Intel Processor N Series Alder Lake |
| Processor Models | See Variant Specifications |
| Performance Cores | See Variant Specifications |
| Memory | 1x DDR5 4800MHz SO-DIMM, 16GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a |
| Multi Display Support | Dual Display Support |
| Display Outputs | 1x Display Port 1x USB Type C |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226IT |
| USB | 5x USB Ports |
| 1x USB 2.0 [Type A] 1x USB 3.2 Gen 2 [Type C] 3x USB 3.2 Gen 2 [Type A] | |
| Serial | 2x Serial Ports |
| 2x RS232/422/485 [DB9] | |
| Digital I/O | Isolated DIO [4-in, 4-out] |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB 3.0/SATA/SIM] [2230/2242/2280] | |
| mPCIe | 1x mPCIe Slots |
| 1x mPCIe [PCIe/USB/SIM] | |
| SIM Slots | 2x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x 2.5" HDD/SSD 1x M.2 SSD [SATA] |
| Front Accessible Storage | Front Accessible Storage |
| Power | |
| Power Input | 9-48V DC Input [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -40°C to 70°C [-40°F to 158°F] |
| Storage Temperature | -40°C to 80°C [-40°F to 176°F] |
| Humidity | 10-90% (Non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.2 Kg (2.7 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 168mm x 47mm x 135mm (6.61" x 1.85" x 5.31") |
| Mounting Options | Wall Mount |
No specifications match your search.
See product variants.
CB-2200/2250 Variants
Arestech CB-2250 Intel Core i3-N305 (Alder Lake-N) Rugged Compact Computer with Dual 2.5GbE and Extended Temperature
CB-2250 with Core i3-N305, 2x 2.5GbE, 2x DP, ignition control and -40 to 70 °C
| Overview | |
|---|---|
| Brand & Model | Arestech CB-2250 |
| Performance | |
| Processor Models | i3-N305 |
| Performance Cores | 8 |
Arestech CB-2200 Intel Processor N97 Rugged Compact Computer with Dual 2.5GbE, Ignition Control and -40 to 70 °C
CB-2200 with Processor N97, 2x 2.5GbE, 2x DP, ignition control and -40 to 70 °C
| Overview | |
|---|---|
| Brand & Model | Arestech CB-2200 |
| Performance | |
| Processor Models | N97 |
| Performance Cores | 4 |
- CB-2200/2250 Datasheet Download
No related media available for this product series.
Official Arestech USA Distributor
Things Embedded is an official Arestech USA distributor, supplying the CB-2200/2250 series configured for USA kiosk, gateway and vehicle projects. Within the Arestech range the CB-2210/2260 series series moves to Twin Lake processors and adds an M.2 M-Key SSD slot, and the PM-2200/2250 series series carries the same electronics as a VESA-mount PC module for HMIs and kiosks.
The CB-2200/2250 series sits among our vehicle computers, our small rugged PCs and our Intel Processor N systems. Where a small fanless computer needs ignition control, dual 2.5GbE and a -40 °C start, this is the Arestech series to specify. Our engineers can advise on the processor choice, storage and the optional 4G, 5G and Wi-Fi modules, and each unit ships configured, with the OS installed, and tested.
