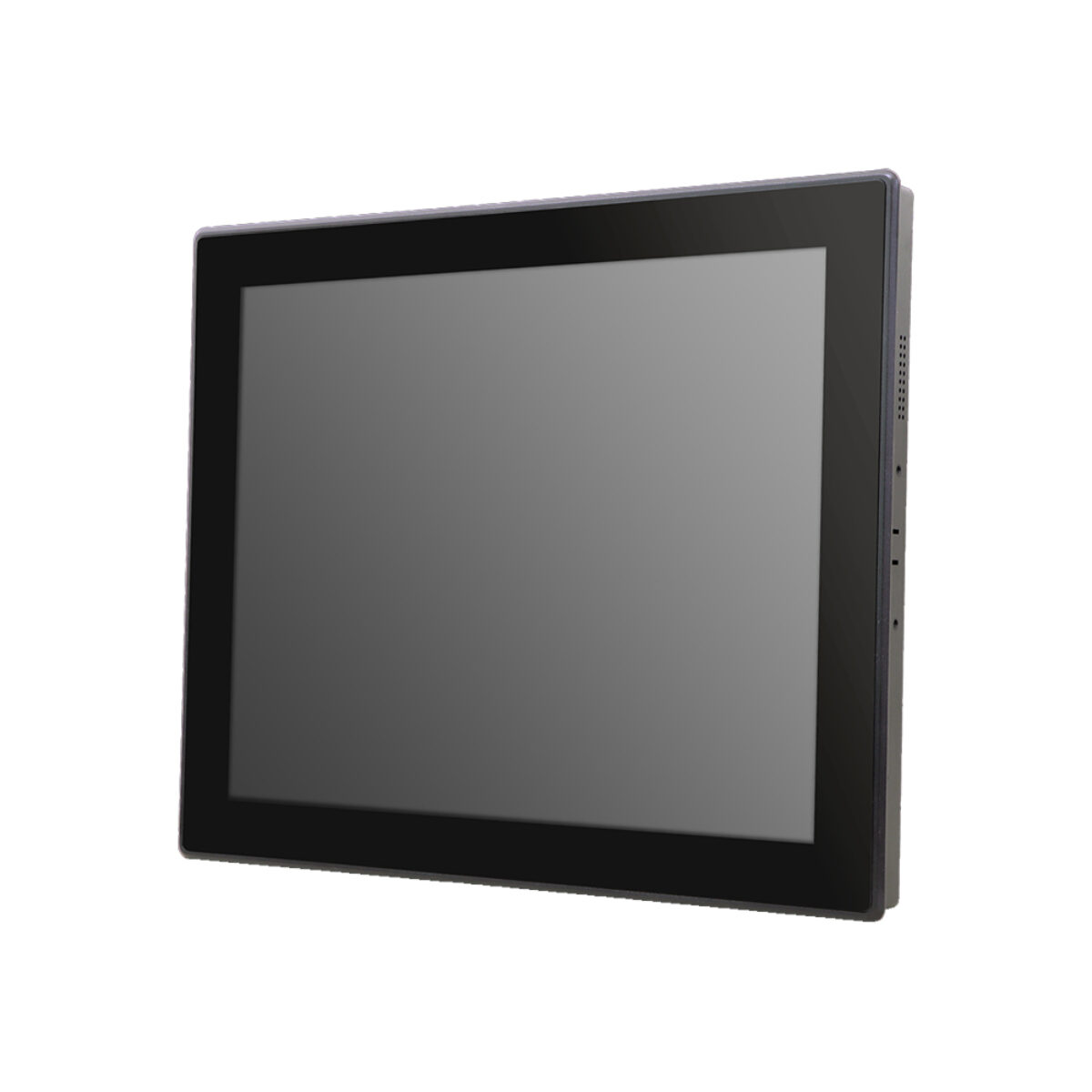

Arestech DM-115P/VM-2100 15″ XGA PCAP Modular Touch Monitor with 350 Nit LCD and Front IP65

The DM-115P/VM-2100 is the 15 inch size in the Arestech DM-1XXP/VM-2100 series of modular touch monitors, pairing a 4:3 XGA projected capacitive display at 350 nits with the VM-2100 video module. It suits operator stations and machine HMIs where one touch monitor family has to cover several sizes.

  • 15″ XGA PCAP Display: 4:3 XGA LCD at 1024 x 768 at 350 nits with 2500:1 contrast and 176° viewing.
  • Projected Capacitive Touch: PCAP touch with a 7 Mohs surface and 90% transparency, connected over USB or COM to the host PC.
  • VGA, DVI and DisplayPort Inputs: Three video inputs on the VM-2100 module, plus audio in, two 2 W speakers and remote power and OSD connectors.
  • 9 to 48 V DC with Ignition Sensing: Terminal-block DC input with ignition sensing and a PC/Car mode switch, protected against over-voltage, reverse voltage and over-current.
  • Front IP65, Panel or VESA: 377 x 66.5 x 301 mm at 4.8 kg (10.58 lb) kg, operating from -10 °C to 60 °C, for panel, 100 x 100 mm VESA or wall mounting.
View DM-1XXP/VM-2100 Series
Touch Technology: PCAPPCAP
Ignition Sensing: Supports Ignition ControlIgnition Control
Operating Temperature: Extended TemperatureExtended Temp
Ingress Protection: Front IP65Front IP65
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

DM-115P/VM-2100 Overview

Arestech’s modular displays separate the screen from the electronics behind it, so one display module can serve as a monitor or as a panel PC. The DM-115P/VM-2100 is the 15 inch size in the Arestech DM-1XXP/VM-2100 series: a DM display module with projected capacitive touch, and the VM-2100 video module on the rear that turns it into a touch monitor for an industrial PC in a cabinet or elsewhere on the machine.

The panel is a 4:3 XGA LCD at 1024 x 768 with 350 nits, a 2500:1 contrast ratio and 176° viewing angles horizontally and vertically, a size that suits operator stations and machine HMIs. The PCAP touch screen has a 7 Mohs surface and 90% transparency and connects to the host over USB or COM, and a multi-language OSD with On/Off, Auto, Menu, Up and Down keys handles set-up, with a remote OSD connector for a keypad elsewhere on the machine.

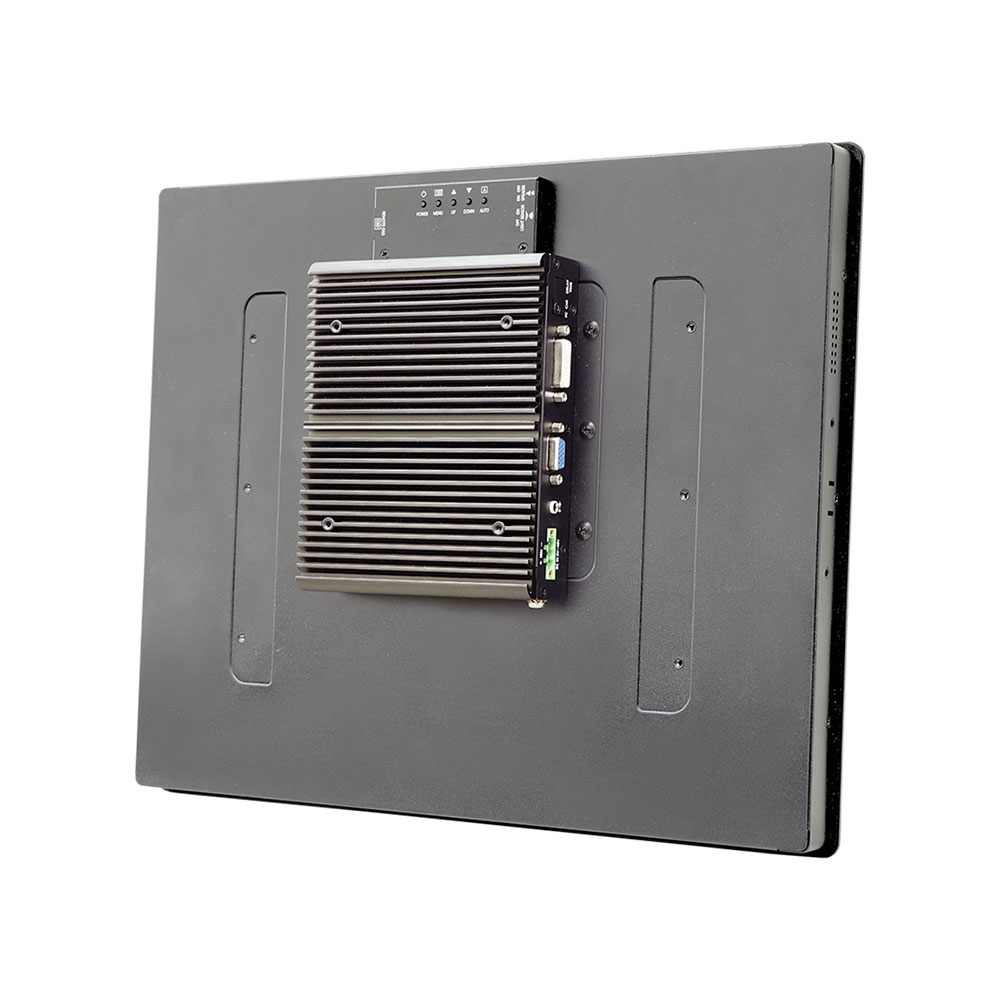

The VM-2100 takes VGA, DVI-D and DisplayPort, with an audio input for two 2 W internal speakers, a two-pin terminal block for remote power on/off and switches for the speakers and PC/Car mode. The same DM-115P display module is also sold with Arestech’s PM-2000 PC module as the DM-115P/PM-2000 panel PC, and the neighboring sizes in the series are the DM-112P/VM-2100 and DM-115PW/VM-2100.

Power is 9 to 48 V DC on a three-pin terminal block with ignition sensing, protected to 52 V over-voltage, -48 V reverse voltage and 20 A over-current, with an optional 12 V, 60 W adapter for mains sites. The DM-115P/VM-2100 operates from -10 °C to 60 °C with 20 Grms shock and 1.5 Grms vibration ratings, measures 377 x 66.5 x 301 mm and weighs 4.8 kg (10.58 lb) kg, and fits a 370 x 294 mm panel cut-out with the supplied kit or mounts on 100 x 100 mm VESA.

DM-115P/VM-2100 Specifications

Overview
Brand & ModelArestech DM-115P/VM-2100
FeaturesFanless
Industrial
Display
Display15"[4:3, 1024 x 768, XGA]
Touch InterfaceSerial
USB
Touch ControllerProjective Capacitive Touch
Brightness350 Nits
Viewing AngleWide Viewing Angle
176° Horizontal, 176° Vertical
Aspect Ratio4:3
FormatStandard
Contrast2500:1
Number of Display Inputs3x Display Ports
Video Inputs1x Display Port Input
1x DVI Input
1x VGA Input
Power
Power Input9-48V DC Input, Terminal Block
Optional AC Power Supply
Ignition SensingSupports Ignition Control
Environmental Conditions
Operating Temperature-10°C to 60°C [14°F to 140°F]
Storage Temperature-20°C to 70°C [-4°F to 158°F]
Ingress ProtectionFront IP65
Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side]
CertificationCE
FCC
Mechanical Properties
Weight3.15 Kg (6.93 Lbs)
Dimensions281mm x 228mm x 75mm (11.06" x 8.98" x 2.95")

Official Arestech USA Distributor

Things Embedded is an official Arestech USA distributor, supplying the DM-115P/VM-2100 configured and tested for USA machine and integration projects. Within the Arestech range the DM-115P/PM-2000 is the panel PC built on the same display module, and the SM-115(P)(R)/VM-2100 puts a sunlight readable 15 inch panel behind the same VM-2100 for daylight installs.

As a 15 inch PCAP monitor the DM-115P/VM-2100 sits among our PCAP touch monitors, our 15 inch industrial displays and our sealed-bezel monitors. Where a machine range needs one touch monitor family across several sizes, with the same wiring, power input and mounting method on every machine, this is the 15 inch model to specify.
