Arestech DM-1XXP/VM-2100 10.4" to 24" Modular PCAP Touch Monitors with Front IP65 Bezel
The Arestech DM-1XXP/VM-2100 series is a family of modular touch monitors from 10.4 to 24 inches, each a DM display module with projected capacitive touch and Arestech's VM-2100 video module on the rear. Every size has an IP65 compliant die-cast front, VGA, DVI and DisplayPort inputs, touch over USB or COM and a 9 to 48 V DC input with ignition sensing. The series suits operator stations, machine HMIs, cabinet doors and vehicle cabs.
- Eight Sizes from 10.4″ to 24″: 4:3 XGA, 5:4 SXGA and 16:9 full HD panels from 300 to 600 nits, with one video module and power design across the range.
- Projected Capacitive Touch: PCAP touch screen with a 7 Mohs surface and 90% transparency, connected over USB or COM to the host.
- VM-2100 Video Module: VGA, DVI-D and DisplayPort inputs with audio in, two 2 W speakers and remote power and OSD connectors.
- 9 to 48 V DC with Ignition Sensing: Terminal-block input with ignition sensing and a PC/Car mode switch, protected to 52 V over-voltage, -48 V reverse voltage and 20 A.
- Front IP65, Panel or VESA: IP65 compliant die-cast flat front for panel mounting, with 100 x 100 mm VESA holes and an optional wall mount.
PCAP
Ignition Control- Extended Temp
Front IP65- CE
- FCC
DM-1XXP/VM-2100 Description
Machine builders and integrators who standardize on one family of touch screens want the same connections, power input and mounting method whether the panel on a given machine is 10 or 24 inches. The Arestech DM-1XXP/VM-2100 series is built that way: a family of modular touch monitors in eight sizes, each pairing a DM display module with projected capacitive touch and the VM-2100 video module on the rear, so the wiring, OSD and power design stay the same across the range.
Every DM-1XXP/VM-2100 shares the VM-2100 connections: VGA, DVI-D and DisplayPort inputs, a touch interface over USB or COM, an audio input feeding two 2 W internal speakers, a two-pin terminal block for remote power on/off and a remote OSD connector, with speaker and PC/Car mode switches. The PCAP touch screen has a 7 Mohs surface and 90% transparency, and the die-cast flat front is IP65 compliant. Power is 9 to 48 V DC on a three-pin terminal block with ignition sensing and protection against over-voltage to 52 V, reverse voltage to -48 V and over-current to 20 A, with an optional 12 V, 60 W adapter.
The series spans 4:3, 5:4 and 16:9 panels: DM-110P/VM-2100 (10.4″ 4:3 XGA, 500 nits), DM-112P/VM-2100 (12.1″ 4:3 XGA, 600 nits), DM-115P/VM-2100 (15″ 4:3 XGA, 350 nits), DM-115PW/VM-2100 (15.6″ 16:9 FHD, 450 nits), DM-117P/VM-2100 (17″ 5:4 SXGA, 350 nits), DM-119P/VM-2100 (19″ 5:4 SXGA, 350 nits), DM-121PW/VM-2100 (21.5″ 16:9 FHD, 300 nits) and DM-124PW/VM-2100 (24″ 16:9 FHD, 300 nits). Brightness is highest on the smaller sizes, which are often mounted closest to windows and doors, and contrast reaches 5000:1 on the full HD 21.5 and 24 inch models.
Each size mounts in a panel with the supplied kit, on 100 x 100 mm VESA or on an optional wall mount, and operates from -10 °C to 60 °C (-10 °C to 50 °C on the 19 inch) with 20 Grms shock and 1.5 Grms vibration ratings. The same DM display modules are also sold with Arestech’s PM-2000 PC module as the DM-1XXP/PM-2000 panel PCs, so a project can mix monitors and panel PCs with one front appearance and cut-out per size.
DM-1XXP/VM-2100 Specifications
| Overview | |
|---|---|
| Brand & Model | Arestech DM-1XXP/VM-2100 |
| Features | Fanless Industrial |
| Display | |
| Display | See Variant Specifications |
| Touch Interface | Serial USB |
| Touch Controller | Projective Capacitive Touch |
| Brightness | See Variant Specifications |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | See Variant Specifications |
| Format | See Variant Specifications |
| Contrast | See Variant Specifications |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Display Port Input 1x DVI Input 1x VGA Input |
| Power | |
| Power Input | 9-48V DC Input, Terminal Block Optional AC Power Supply |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Operating Temperature | -10°C to 60°C [14°F to 140°F] |
| Storage Temperature | -20°C to 70°C [-4°F to 158°F] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 3.15 Kg (6.93 Lbs) |
| Dimensions | 281mm x 228mm x 75mm (11.06" x 8.98" x 2.95") |
No specifications match your search.
See product variants.
DM-1XXP/VM-2100 Variants

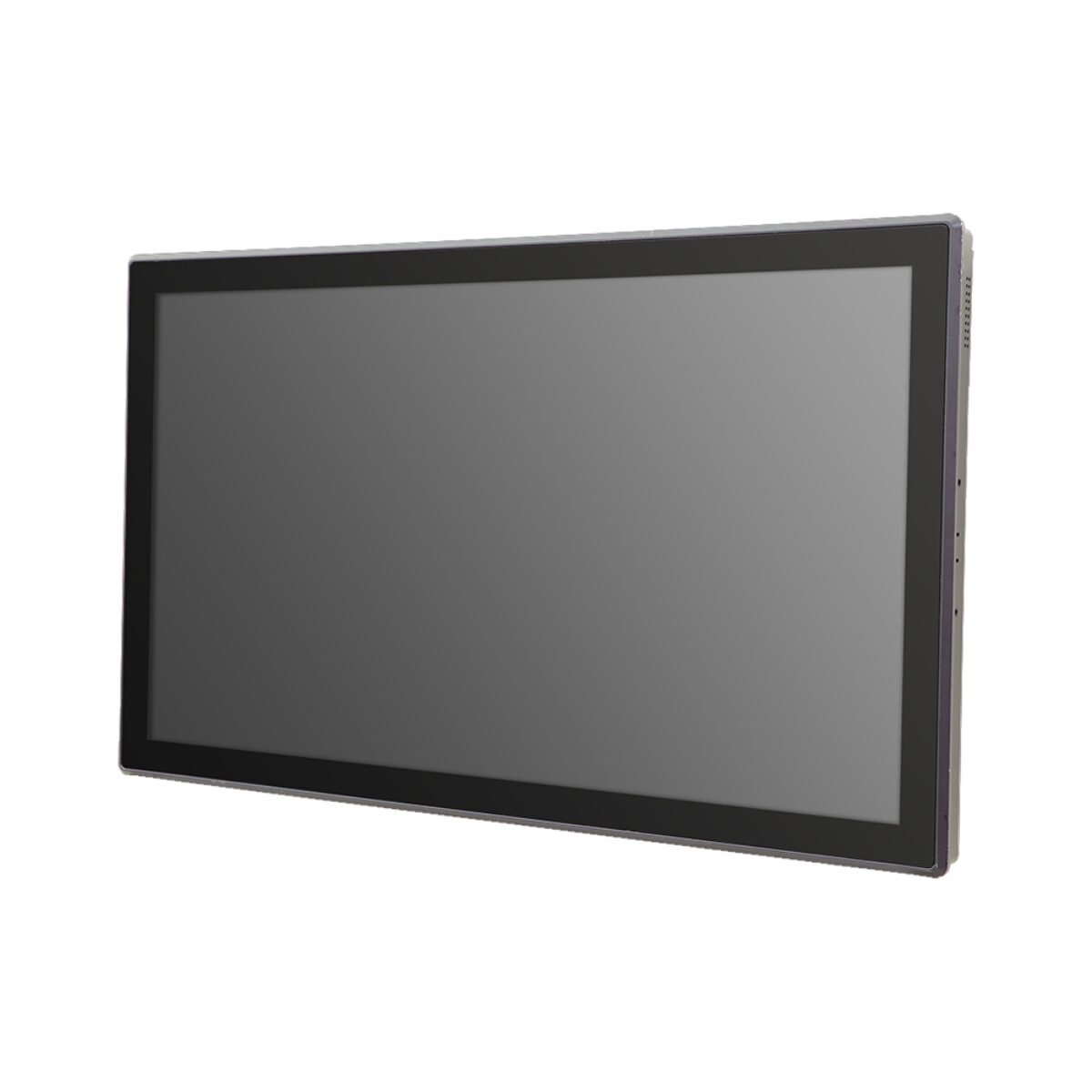

Arestech DM-124PW/VM-2100 24″ Full HD PCAP Modular Touch Monitor with 300 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 24" 16:9 FHD PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-124PW/VM-2100 |
| Display | |
| Display | 24"[16:9, 1920 x 1080, FHD] |
| Brightness | 300 Nits, 300 |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 5000:1 |
| Environmental Conditions | |
| Ingress Protection | Front IP65, Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |

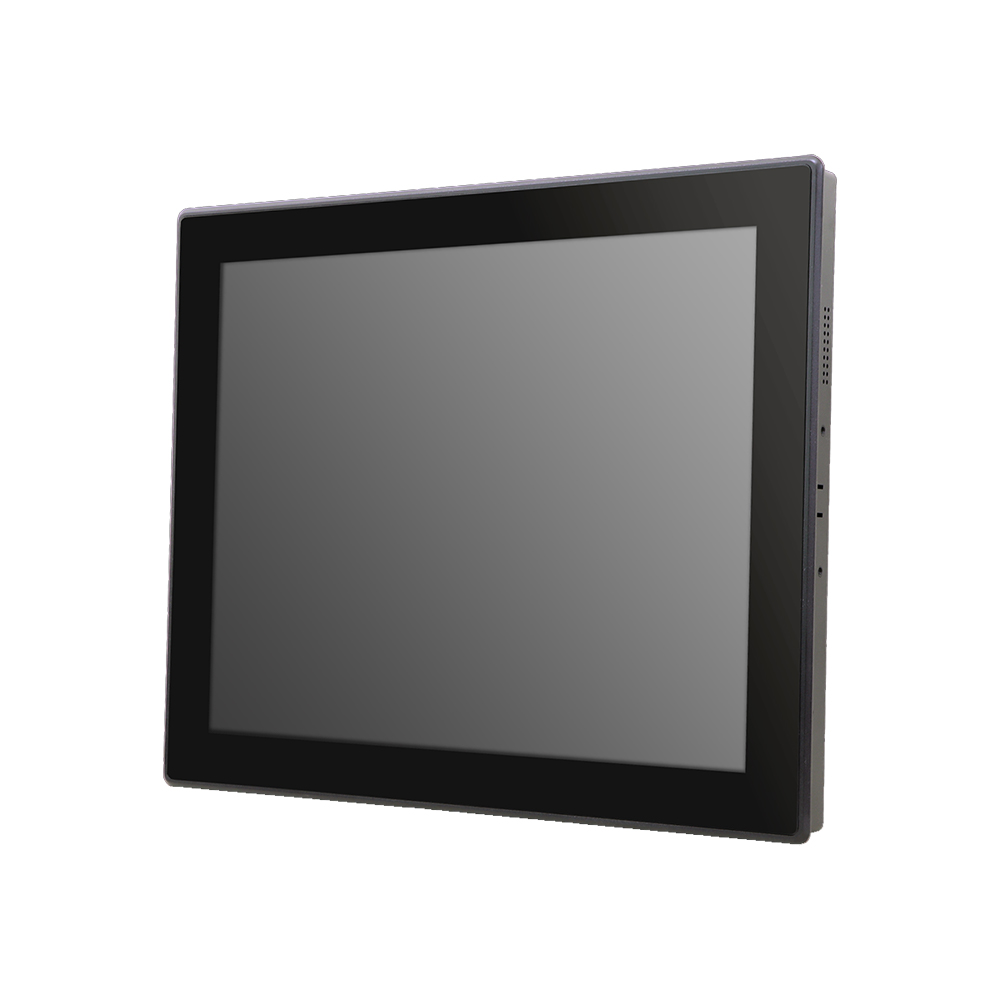

Arestech DM-119P/VM-2100 19″ SXGA PCAP Modular Touch Monitor with 350 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 19" 5:4 SXGA PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-119P/VM-2100 |
| Display | |
| Display | 19"[5:4, 1280 x 1024, SXGA] |
| Brightness | 350 Nits, 350 |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 1000:1 |
| Environmental Conditions | |
| Ingress Protection | Front IP65, Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
Arestech DM-121PW/VM-2100 21.5″ Full HD PCAP Modular Touch Monitor with 300 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 21.5" 16:9 FHD PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-121PW/VM-2100 |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Brightness | 300 Nits, 300 |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 5000:1 |
| Environmental Conditions | |
| Ingress Protection | Front IP65, Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
Arestech DM-117P/VM-2100 17″ SXGA PCAP Modular Touch Monitor with 350 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 17" 5:4 SXGA PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-117P/VM-2100 |
| Display | |
| Display | 17"[5:4, 1280 x 1024, SXGA] |
| Brightness | 350 Nits, 350 |
| Aspect Ratio | 5:4 |
| Format | Standard |
| Contrast | 800:1 |
| Environmental Conditions | |
| Ingress Protection | Front IP65, Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
Arestech DM-115P/VM-2100 15″ XGA PCAP Modular Touch Monitor with 350 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 15" 4:3 XGA PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-115P/VM-2100 |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Brightness | 350 Nits, 350 |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2500:1 |
| Environmental Conditions | |
| Ingress Protection | Front IP65, Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
Arestech DM-115PW/VM-2100 15.6″ Full HD PCAP Modular Touch Monitor with 450 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 15.6" 16:9 FHD PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-115PW/VM-2100 |
| Display | |
| Display | 15.6"[16:9, 1920 x 1080, FHD] |
| Brightness | 450 Nits, 450 |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 800:1 |
| Environmental Conditions | |
| Ingress Protection | Front IP65, Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
Arestech DM-110P/VM-2100 10.4″ XGA PCAP Modular Touch Monitor with 500 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 10.4" 4:3 XGA PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-110P/VM-2100 |
| Display | |
| Display | 10.4"[4:3, 1024 x 768, XGA] |
| Brightness | 500 Nits, 500 |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
Arestech DM-112P/VM-2100 12.1″ XGA PCAP Modular Touch Monitor with 600 Nit LCD and Front IP65
DM-1XXP/VM-2100 with 12.1" 4:3 XGA PCAP display
| Overview | |
|---|---|
| Brand & Model | Arestech DM-112P/VM-2100 |
| Display | |
| Display | 12.1"[4:3, 1024 x 768, XGA] |
| Brightness | 600 Nits, 600 |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 1000:1 |
| Environmental Conditions | |
| Ingress Protection | Front IP65, Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
No related media available for this product series.
Official Arestech USA Distributor
Things Embedded is an official Arestech USA distributor, supplying the DM-1XXP/VM-2100 series configured and tested for USA machine building and integration projects. Within the Arestech range the DM-1XXP/PM-2000 pairs the same display modules with a PC module as panel PCs, and the SM-115(P)(R)/VM-2100 and its SM siblings put the VM-2100 behind 1,500 to 1,600 nit sunlight readable panels.
