Arestech TPM-3521RW 21.5″ Full HD Resistive Industrial Touch Monitor with Front IP65 Aluminum Bezel
Resistive
Front IP65
CE
FCCTPM-3521RW Overview

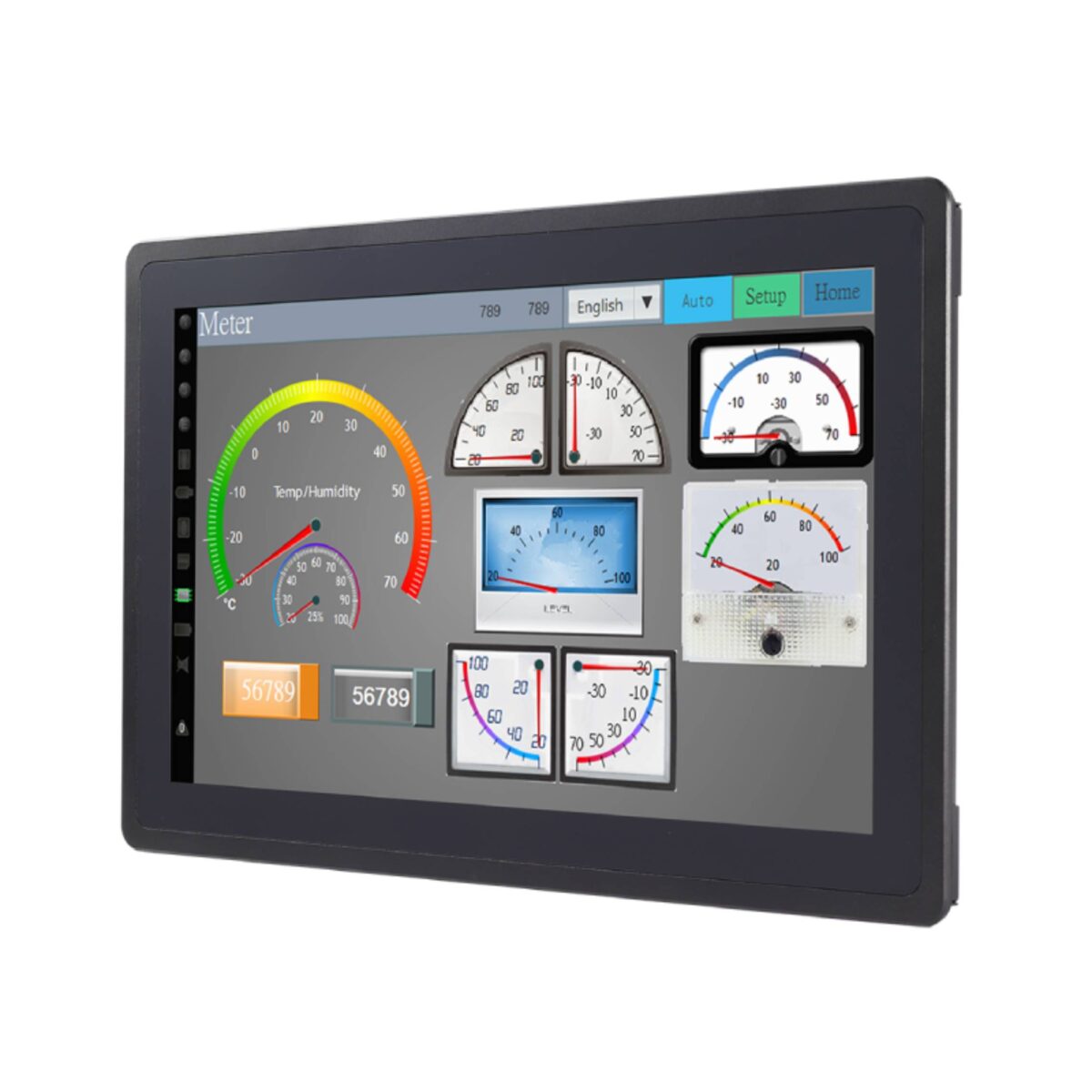

Large HMIs on machines often need the screen area of a desktop monitor with the front of an industrial one: gloved touch, a sealed bezel and a clean face that can be wiped. The TPM-3521RW is Arestech’s 21.5 inch full HD resistive touch monitor for that job, with an aluminum front bezel sealed to IP65 and VGA, DisplayPort and HDMI inputs.
The panel is 1920 x 1080 at 250 nits with a 3000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles, which keeps trend screens and line overviews crisp. The resistive touch screen responds to pressure, so it works with gloved fingers and a stylus, and it has a 3 Mohs surface and 80% transparency, connecting to the host over USB.
Power is 12 to 24 V DC from a single source on a two-pin terminal block, drawing 16 W typical, and a 50 W adapter is specified for mains sites. For smaller stations, the TPM-3515RW series offers the same aluminum bezel build at 15.6 inches, and for bare-finger multi-touch the TPM-3221 offers a 21.5 inch full HD PCAP screen.
The TPM-3521RW measures 561.8 x 352.8 x 53.2 mm, weighs 5.1 kg and fits a 544.4 x 336.3 mm cut-out in panels up to 7 mm thick with twelve supplied screws, or mounts on 75 x 75 or 100 x 100 mm VESA. It operates from 0 °C to 50 °C at up to 95% humidity, is vibration-tested from 5 to 500 Hz at 2.16 Grms and carries CE and FCC Class A marks, which suits indoor machine halls and kiosks.
TPM-3521RW Specifications
| Overview | |
|---|---|
| Brand & Model | Arestech TPM-3521RW |
| Features | Industrial |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Touch Controller | 5-Wire Resistive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Display Port Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12-24V DC [Terminal Block] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 562mm x 353mm x 53mm (22.13" x 13.9" x 2.09") |
- TPM-3521RW Datasheet Download
Official Arestech USA Distributor
Things Embedded is an official Arestech USA distributor, supplying the TPM-3521RW configured and tested for USA machine builders and kiosk integrators. Within the Arestech range the TPM-3515RW series offers the same aluminum bezel build at 15.6 inches, and the SM-121(P)(R)W/VM-2100 puts resistive touch on a 21.5 inch sunlight readable panel.
As a large front-sealed resistive monitor the TPM-3521RW sits among our resistive touch monitors, our front IP65 monitors and our 21.5 inch industrial displays. Where a wide HMI takes gloved touch and a wiped front, on a machine door or an indoor kiosk, this is the Arestech monitor to specify.
