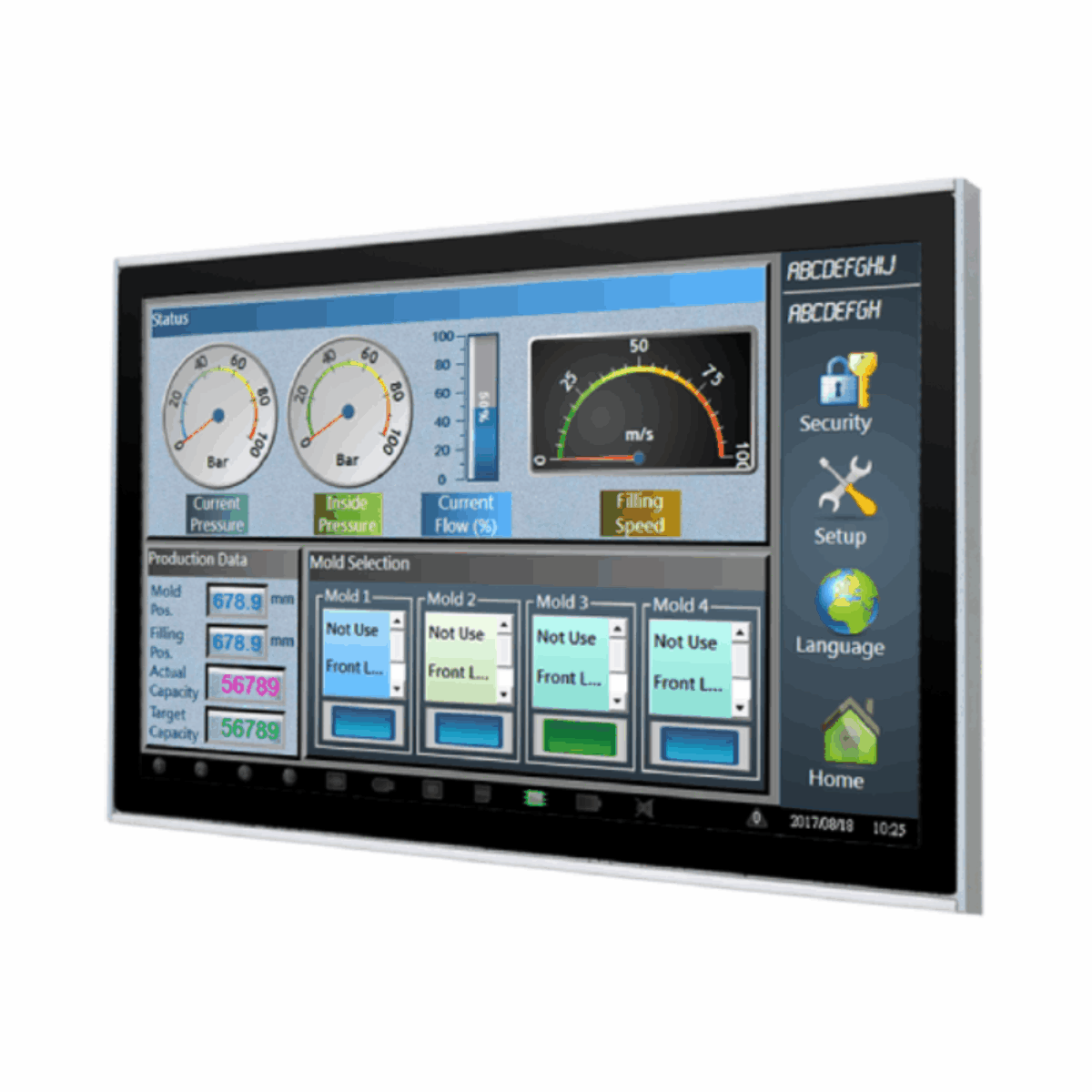

Arestech TPM-3221 21.5″ Full HD PCAP Industrial Touch Monitor with Front IP54 and VGA, HDMI and DisplayPort
PCAP
CE
FCCTPM-3221 Overview
A widescreen HMI gives room for trends, alarms and controls side by side, but a machine door or kiosk front still has limited depth to spare. The TPM-3221 is Arestech’s 21.5 inch answer: a Full HD industrial touch monitor with projected capacitive multi-touch, a front IP54 panel for panel mounting and three common video inputs.
The panel is a 16:9 1920 x 1080 full HD LCD at 250 nits with a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles. The PCAP touch screen has a 7 Mohs surface and 90% transparency and connects to the host over USB for multi-touch gestures.

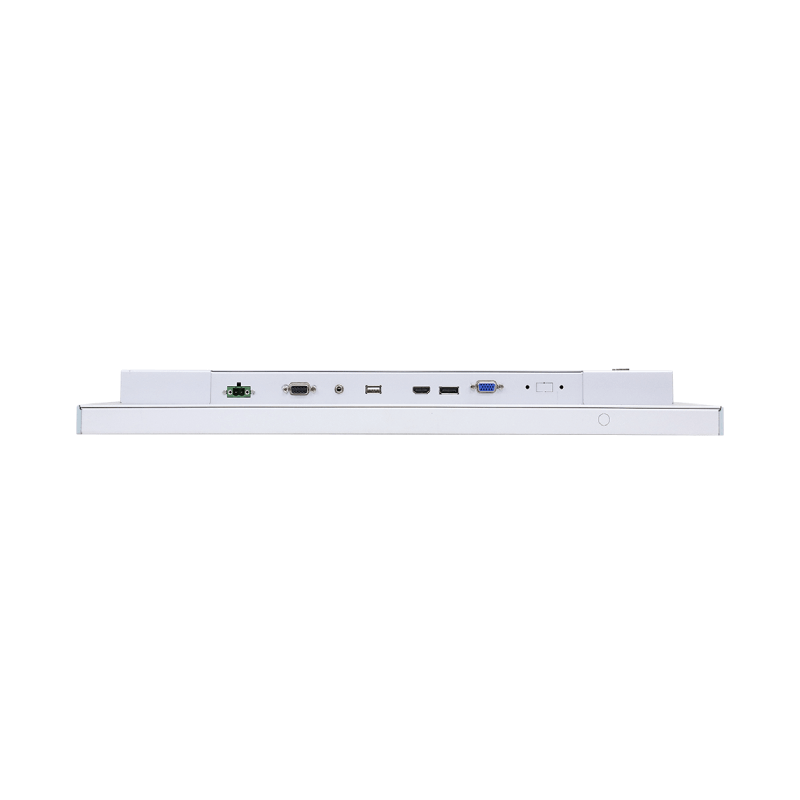

The TPM-3221 takes VGA, DisplayPort and HDMI, so it pairs with controllers and industrial PCs of any age. Power is 12 to 24 V DC from a single source, drawing 16 W typical. For a smaller HD screen in the same build, the TPM-3218 offers 18.5 inches, and for gloved operators the TPM-3521RW pairs a 21.5 inch full HD panel with resistive touch and a front IP65 aluminum bezel.

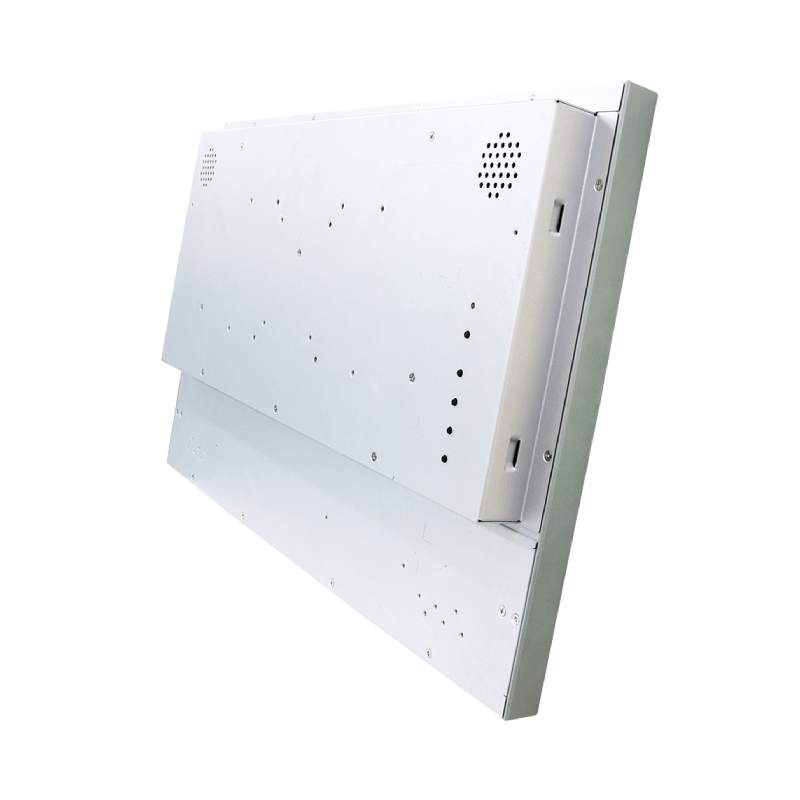

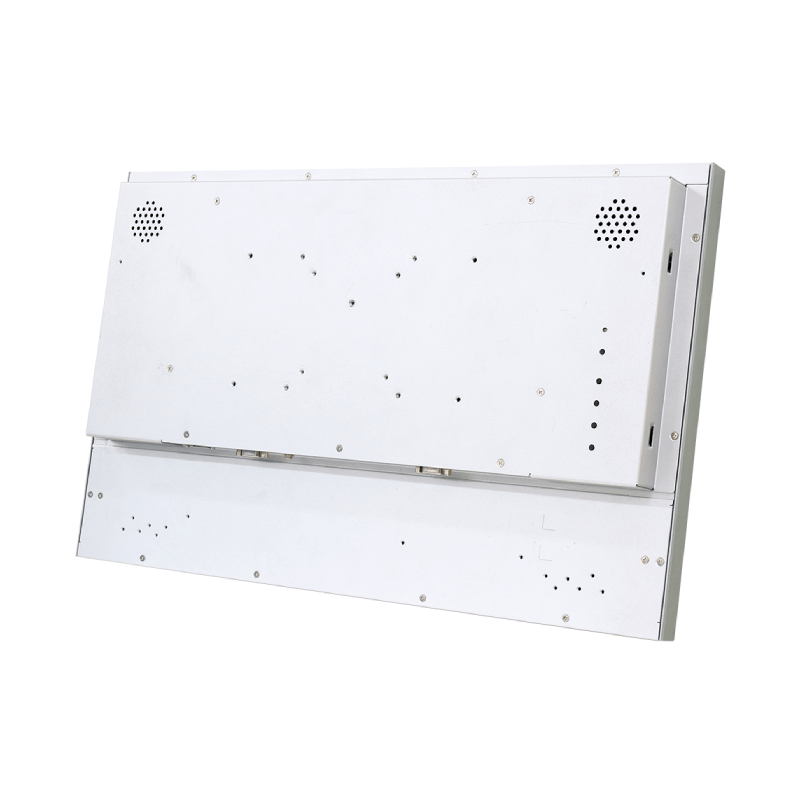

The TPM-3221 weighs 4.45 kg and fits a 490.7 x 293 mm panel cut-out, with 75 x 75 and 100 x 100 mm VESA holes as an alternative. It operates from 0 °C to 50 °C at 5 to 95% humidity and is vibration-tested from 5 to 500 Hz at 2.16 Grms, which suits indoor machine halls, control rooms and self-service areas. Our white paper on choosing the right touch technology compares PCAP and resistive screens.
TPM-3221 Specifications
| Overview | |
|---|---|
| Brand & Model | Arestech TPM-3221 |
| Features | Industrial |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Touch Controller | Projective Capacitive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 160° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Display Port Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12-24V DC [Terminal Block] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP54 IP54 [Limited dust ingress] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 520mm x 324mm x 43mm (20.47" x 12.76" x 1.69") |
- TPM-3221 Datasheet Download
Official Arestech USA Distributor
Things Embedded is an official Arestech USA distributor, supplying the TPM-3221 configured and tested for USA machine builders and kiosk integrators. Within the Arestech range the TPM-3218 is the 18.5 inch HD model in the same build, and the DM-121PW/VM-2100 adds a front IP65 die-cast bezel and a 9 to 48 V DC input.
As a widescreen PCAP monitor the TPM-3221 sits among our projected capacitive monitors, our touchscreen monitors and our 21.5 inch touch screen monitors. Where an indoor HMI or kiosk needs a 21.5 inch multi-touch screen and any common video input, this is the model to specify.
