Arestech TPM-3619PH-B6A1 19″ Wireless HDMI Stainless Steel Touch Monitor with PCAP and IP66 Sealing

In a hygienic area every cable run is another gland to seal and another route for water to follow. The TPM-3619PH-B6A1 removes the video cable: it is a 19 inch stainless steel touch monitor with a built-in wireless HDMI receiver, so the host PC can sit in a dry cabinet up to 20 m away while the screen is hosed down with the line.

The panel is a 1280 x 1024 SXGA LCD at 350 nits with a 1000:1 contrast ratio and 170° horizontal and 160° vertical viewing angles. The projected capacitive touch screen has a 3 Mohs surface and 80% transparency, and Arestech describes two-way touch control and interaction over the wireless link. Video arrives over 2T2R Wi-Fi, a wired VGA input on an M12 connector is available as an alternative, and an IR remote control with up to 5 m range handles set-up.

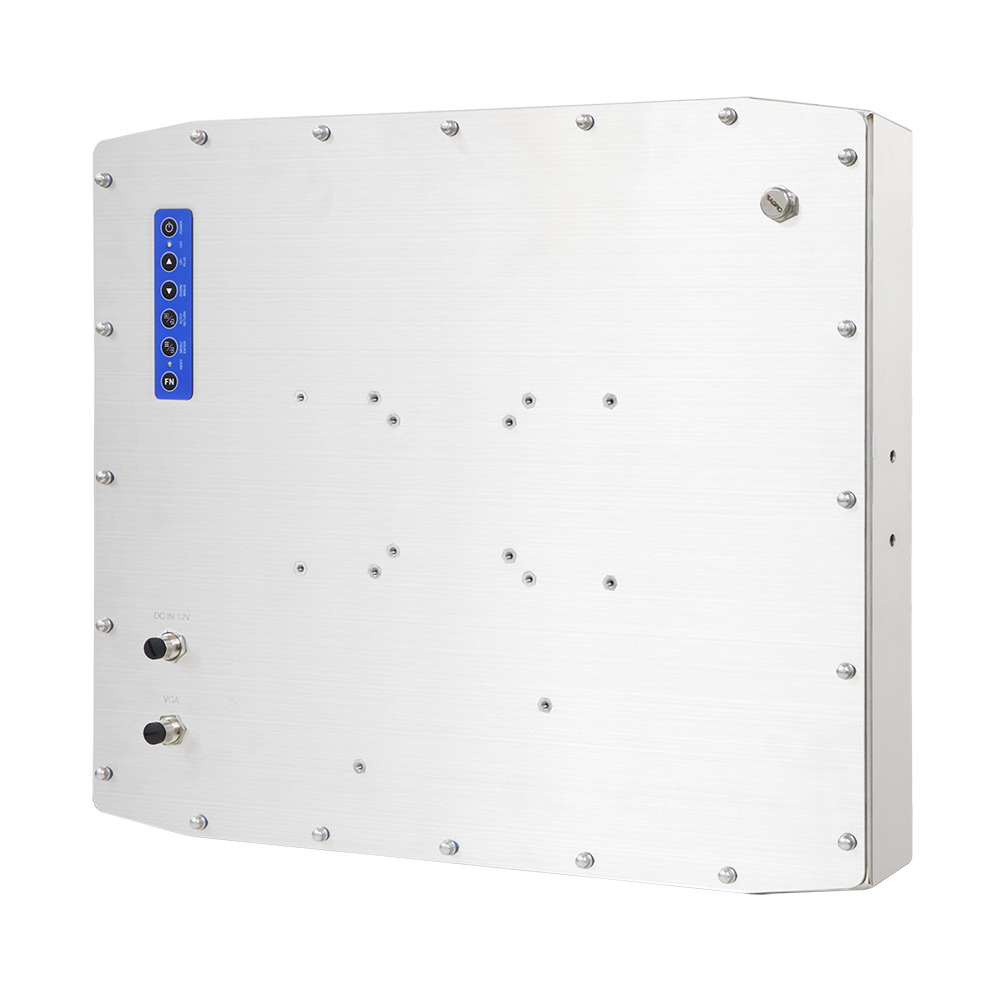

Power is 12 V DC on an M12 connector, drawing up to 18 W. For wired installs in the same stainless family, the TPM-3619 series offers a 19 inch screen with full IP66/IP69K sealing and M12 connections for VGA and USB touch.

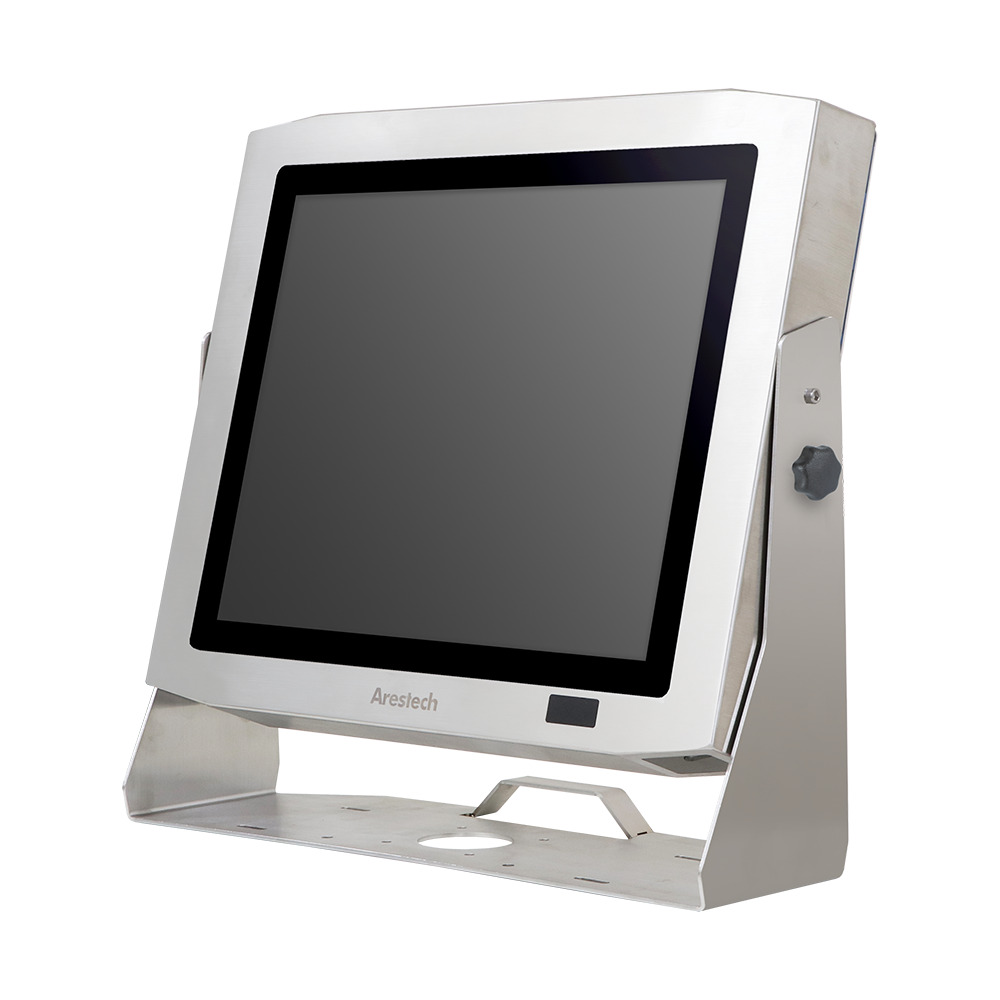

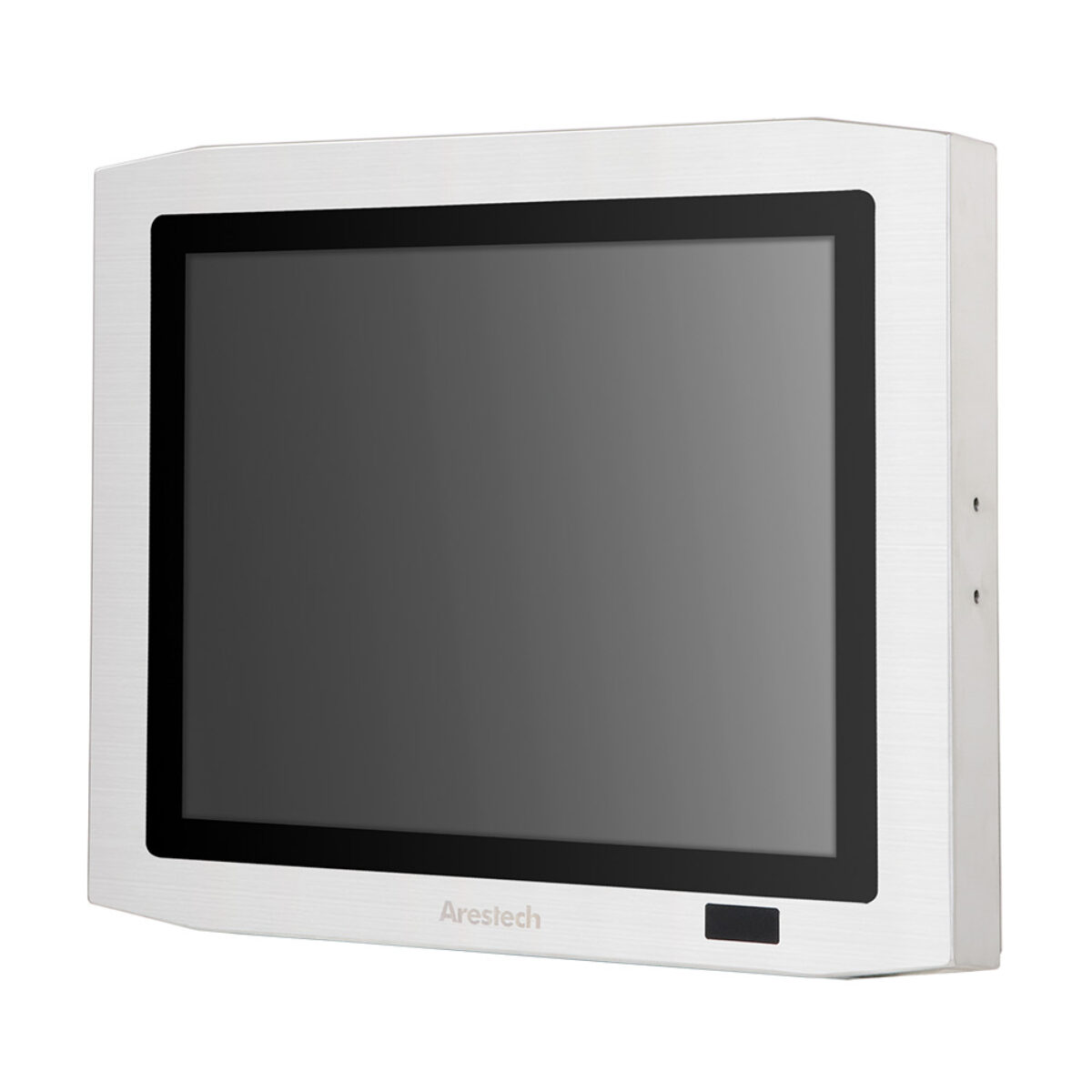

The brushed 316 stainless steel enclosure has a flat front with bevelled edges so water runs off, measures 499 x 430.8 x 66.9 mm and weighs 9.81 kg. It mounts on 75 x 75, 100 x 100 or 200 x 100 mm VESA patterns, on a wall, on a yoke or on an optional pipe mount. The TPM-3619PH-B6A1 operates from -10 °C to 50 °C at up to 95% humidity, is sealed to IP66, is tested to 20 G shock and carries CE and FCC marks. Our guide to IP ratings explained explains what IP66 covers.
