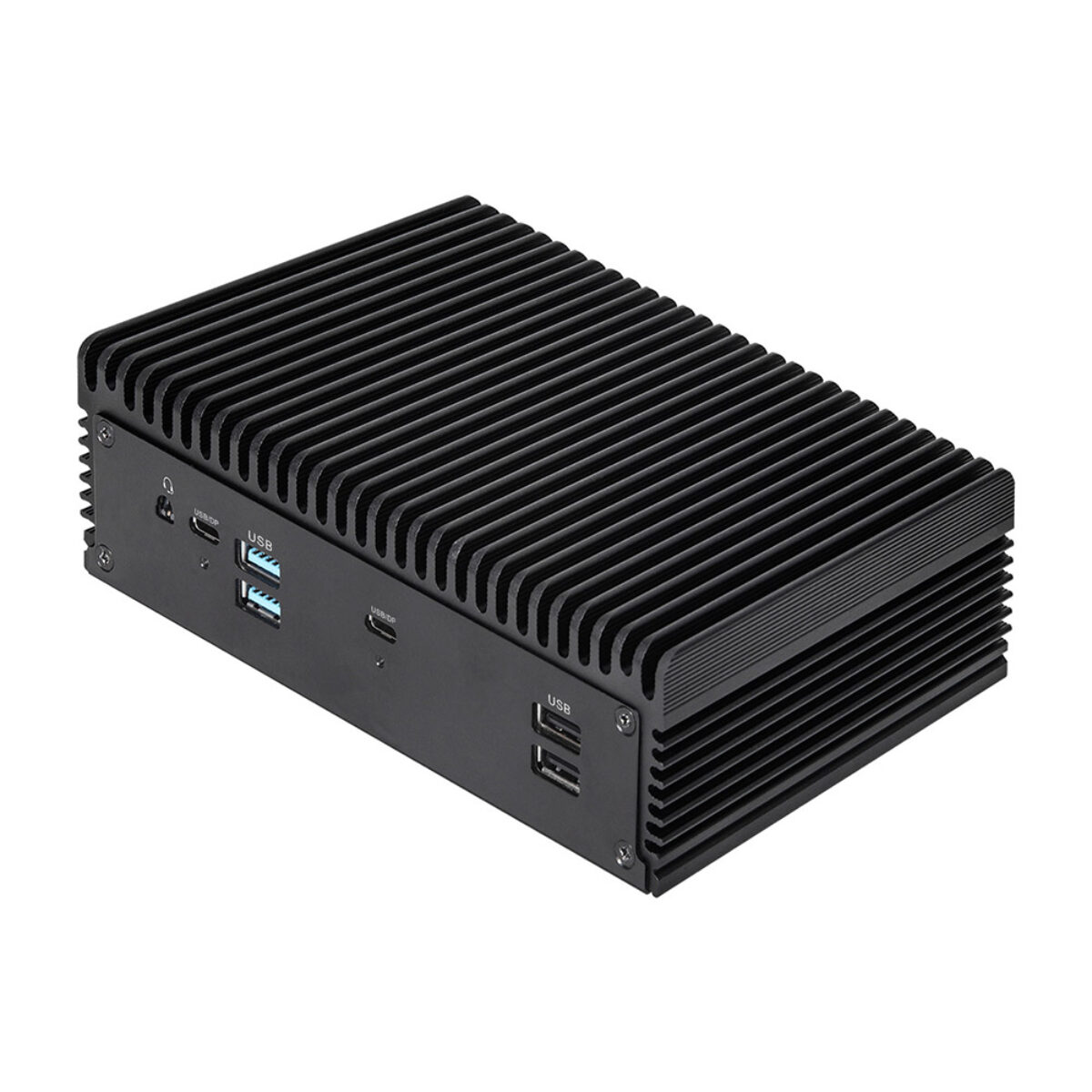

ASRock Industrial iBOX-1115G4E Intel Core i3-1115G4E Tiger Lake Fanless NUC PC with VESA Mount and COM Port
Intel
Linux
Windows
Quad Display Support
2.5GbE
Type C
USB3
2x M.2
Wi-Fi
NVMe SSD
Fanless
CE
FCCiBOX-1115G4E Overview
Signage and kiosk projects often start on a Celeron and then gain a second application, a video wall or a heavier browser page. Rather than redesign the installation, it helps to move up one processor while keeping the same enclosure, I/O and mounting. The ASRock Industrial iBOX-1115G4E is the Core i3 fanless industrial PC in the iBOX 1100 range, aimed at that middle ground.
The Intel Core i3-1115G4E is a dual-core 11th Gen Tiger Lake-UP3 processor with boost up to 3.9 GHz and Intel UHD Graphics. Two DDR4 3200 MHz SO-DIMM sockets accept up to 64 GB in dual channel, which gives room for a signage player alongside a local database, a kiosk with a payment application, or an HMI with trending screens. Software built on the iBOX-6305E moves across unchanged, since the board and I/O are shared.

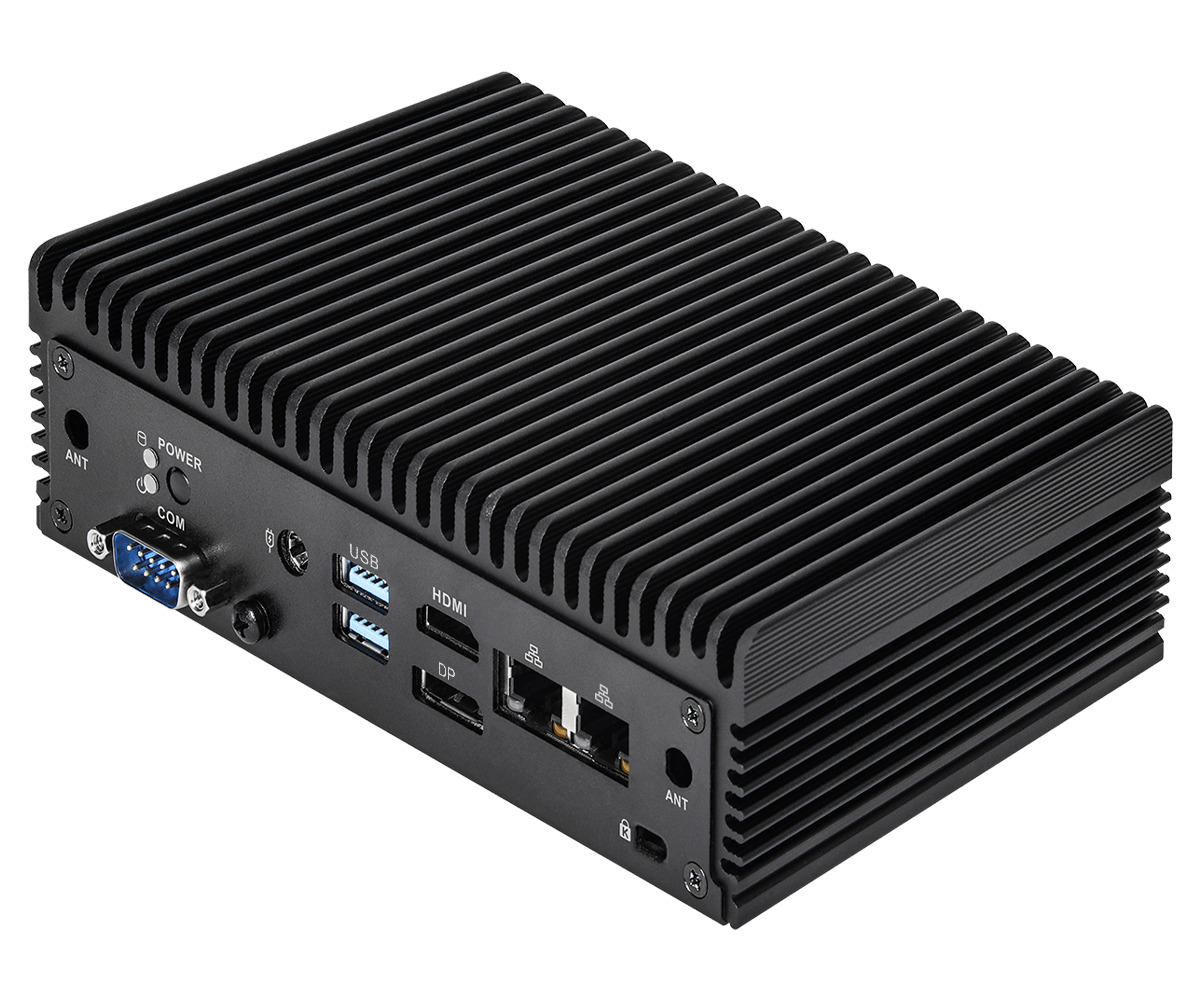

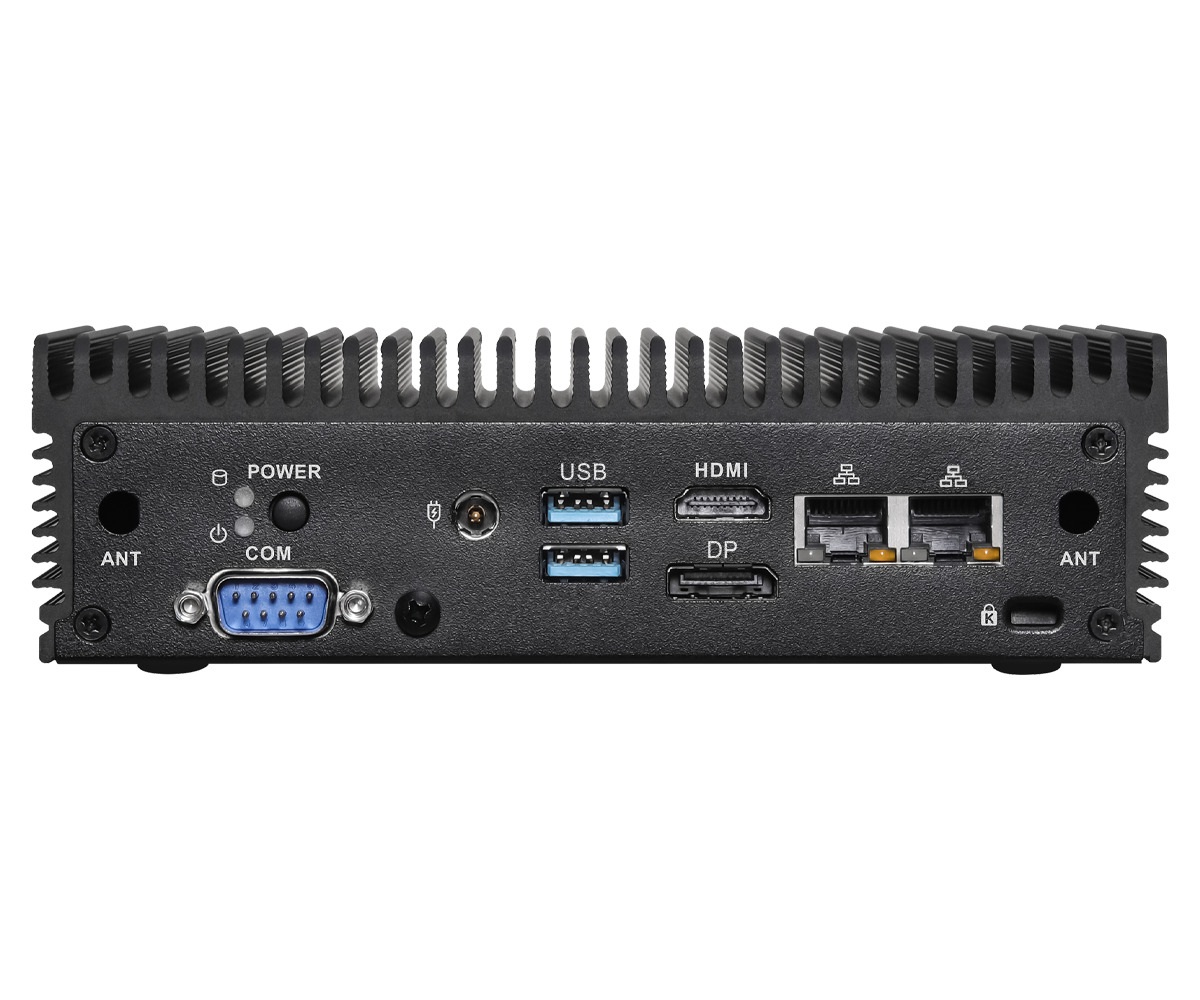

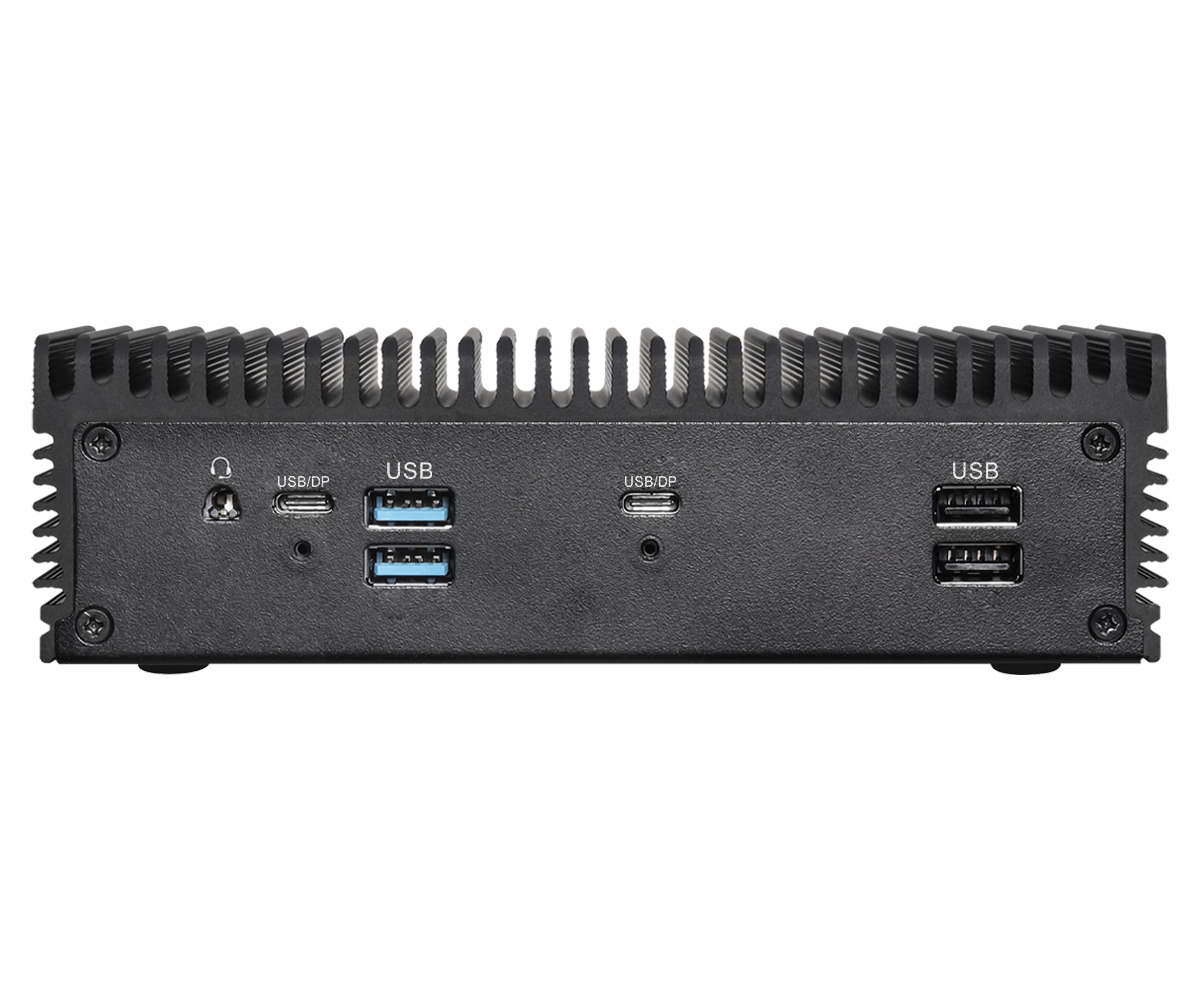

Four display outputs come from HDMI 2.0a, DisplayPort 1.4 and two USB-C ports with DP 1.4, each up to 4096 x 2160 at 60 Hz. Networking is one Intel I225LM 2.5GbE and one Intel I219V GbE port. Four USB 3.2 Gen2 Type-A, two USB 2.0 and a rear RS-232 COM port cover peripherals. An M.2 Key M socket takes a PCIe Gen4 x4 NVMe or SATA SSD, a SATA3 port adds a second drive, and an M.2 Key E slot with CNVi accepts Wi-Fi. Power is a 19 V, 90 W adapter with AT or ATX start.
As a fanless industrial PC, the iBOX-1115G4E has no fan to clog or fail, operates from 0 to 40 °C and is CE and FCC Class A compliant, with TPM 2.0 for secure boot and disk encryption. It mounts on a VESA bracket behind a display or on a wall. The iBOX-1185G7E offers a quad-core Core i7 with vPro when the workload grows again.
iBOX-1115G4E Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial iBOX-1115G4E |
| Features | Compact Embedded Fanless Industrial Low Profile |
| Performance | |
| Processor Series | Intel Core 11th Gen Tiger Lake |
| Processor Models | Intel Core i3-1115G4E: 2.2~3.9GHz, 2 Cores, 4 Threads, 6MB Cache, 15W |
| Performance Cores | 2 Cores |
| Memory | 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a DP++ HDMI 2.0b |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x HDMI 2x USB Type C |
| Audio | |
| Codec | Realtek ALC233, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel i219V Intel I225LM |
| USB | 6x USB Ports |
| 2x USB 3.2 Gen 2 [Type C] 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x SATA Port |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 19V DC [Barrel Connector] AC Power Supply Included |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.6 Kg (3.52 Lbs) |
| Dimensions | 172mm x 51mm x 110mm (6.77" x 2.01" x 4.33") |
| Mounting Options | Desktop DIN Mount VESA Mount Wall Mount |
