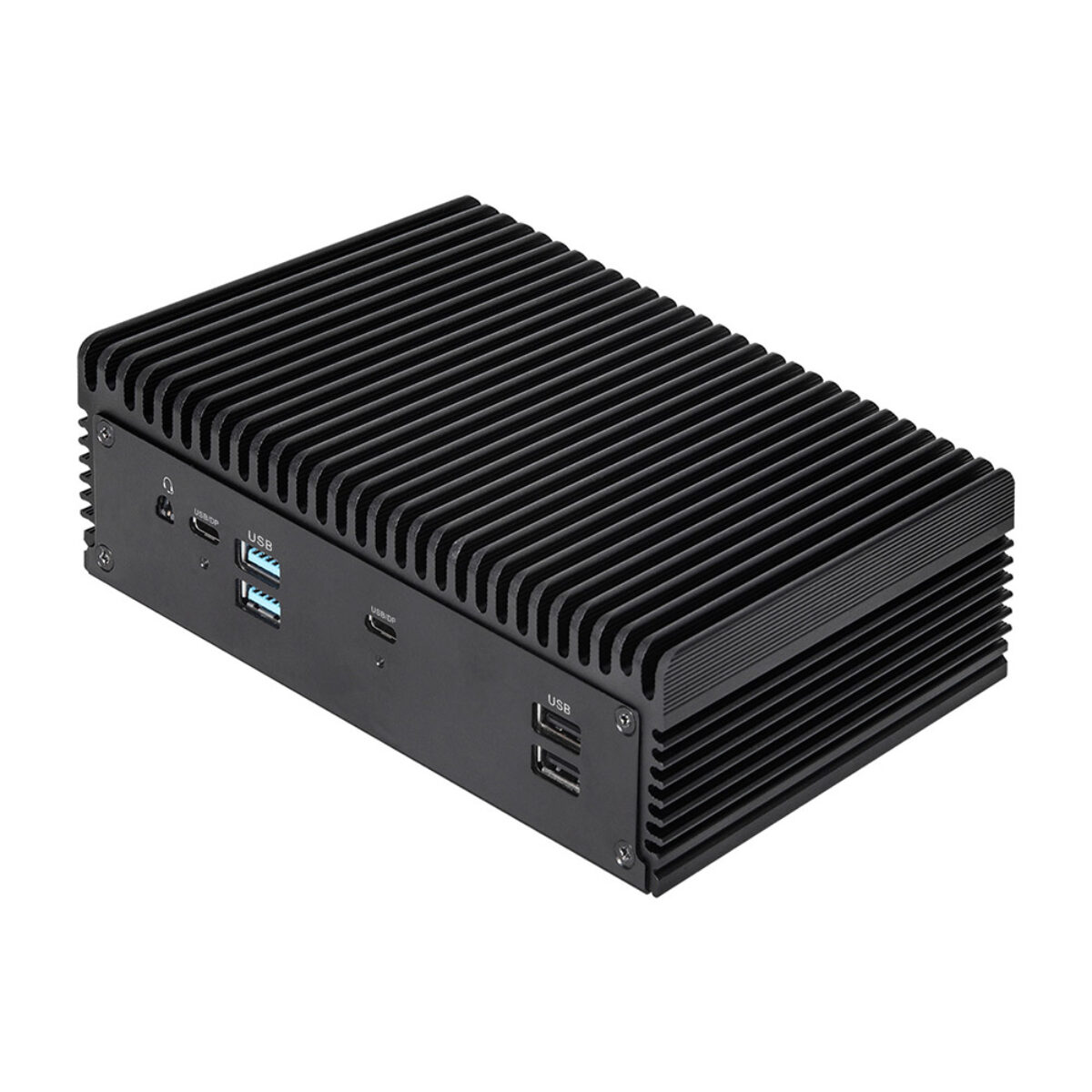

ASRock Industrial iBOX-1245UE Intel Core i5-1245UE Alder Lake Fanless Industrial NUC with DIN Mount and RS232
Intel
Linux
Windows
Quad Display Support
2.5GbE
Type C
USB3
2x M.2
Wi-Fi
NVMe SSD
Fanless
CE
FCCiBOX-1245UE Overview
Large signage and kiosk estates are judged on how rarely someone has to visit them. Remote power control, console access and recovery cut those visits, but only if the hardware supports them. The ASRock Industrial iBOX-1245UE is the Core i5 fanless industrial PC in the iBOX 1200 range, and it brings Intel vPro and AMT to the shared 12th Gen design.
The Intel Core i5-1245UE is a 12th Gen Alder Lake-P processor with two Performance cores and eight Efficient cores, paired with Intel Iris Xe graphics. Two DDR4 3200 MHz SO-DIMM sockets take up to 64 GB in dual channel. Ten cores leave room for a signage engine, a local analytics task and remote management agents side by side, and Iris Xe keeps 4K playback smooth across several screens.

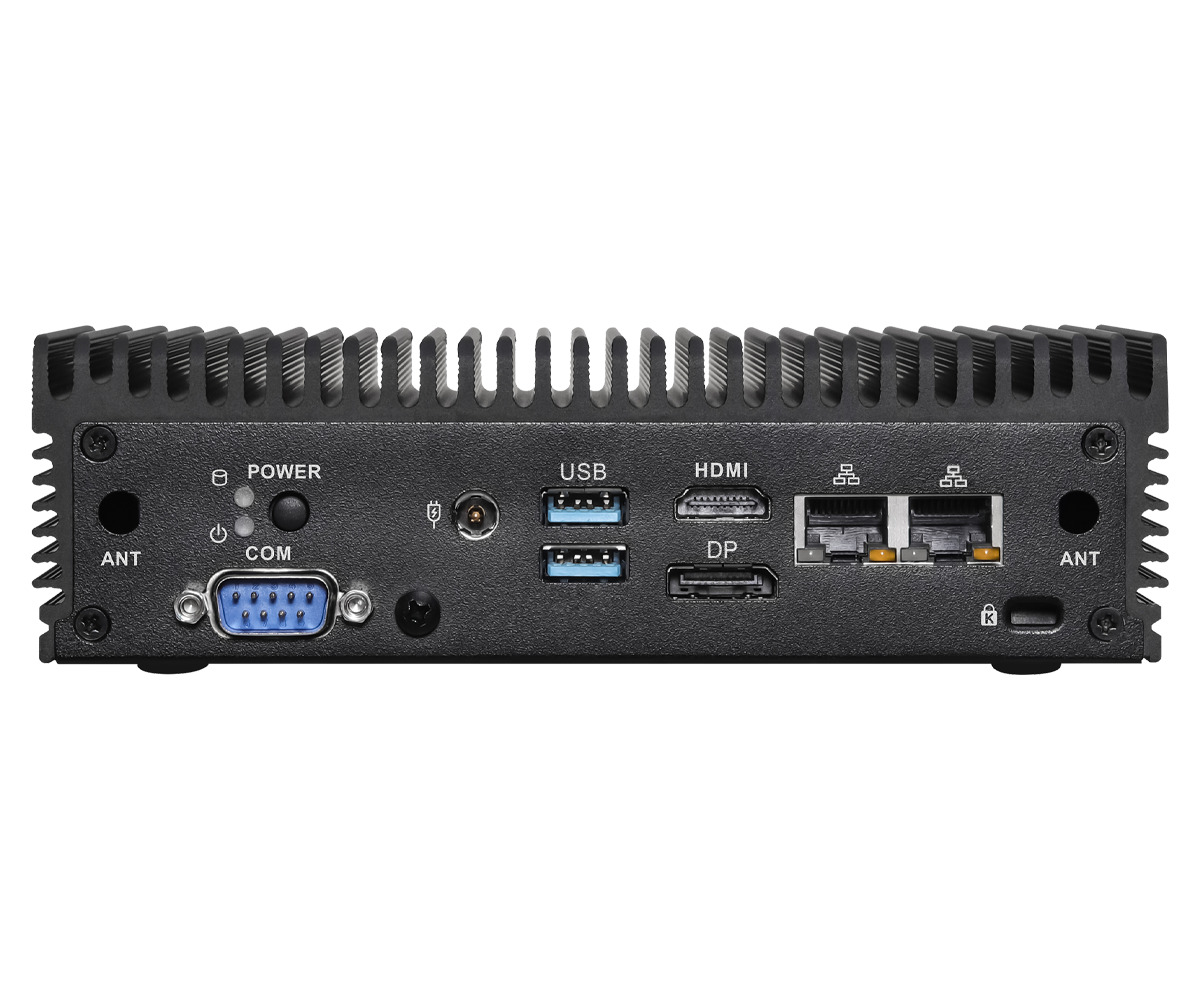

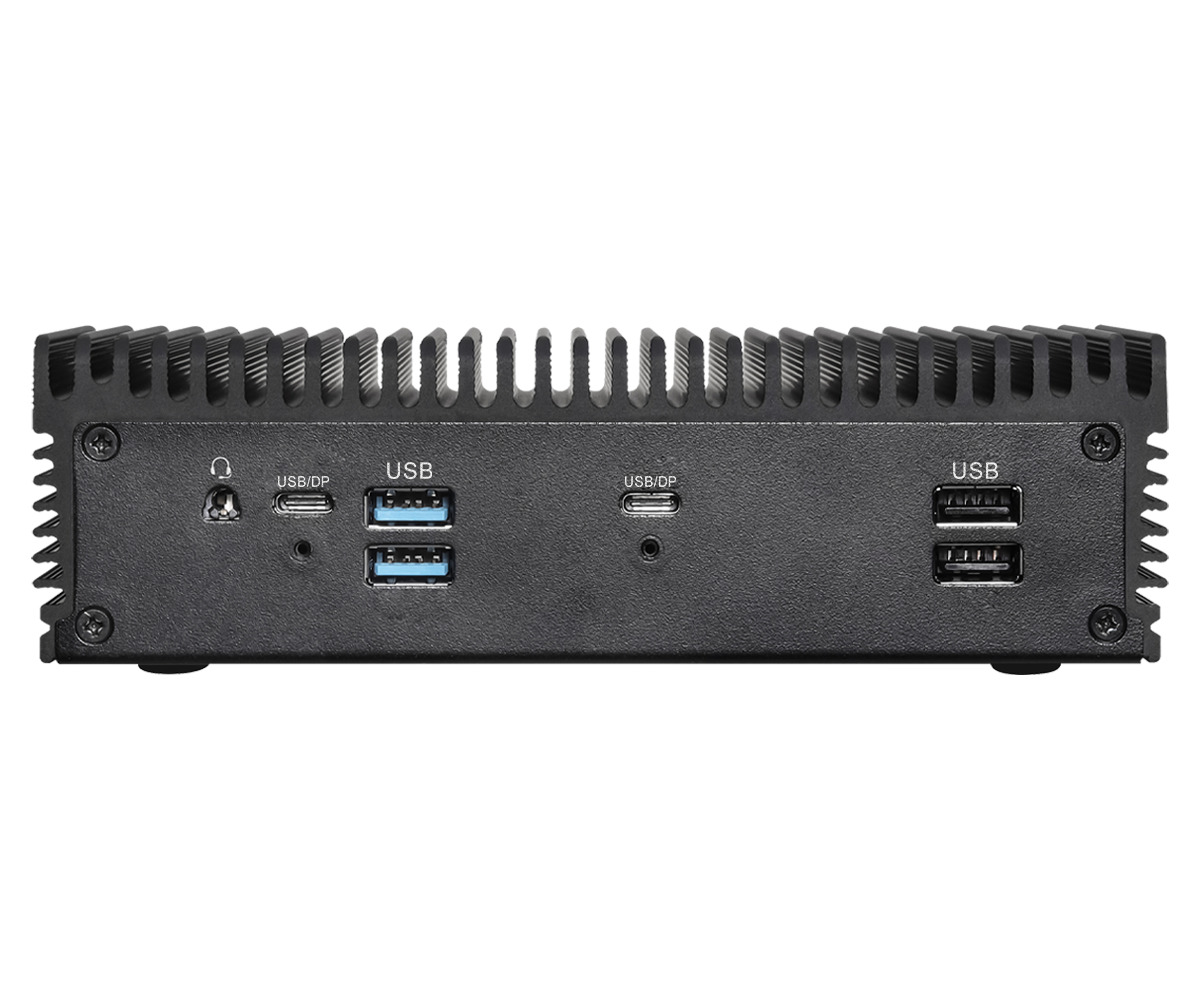

Networking is two Intel I225LM 2.5GbE ports with AMT and vPro support. HDMI 2.0b, DisplayPort 1.4a and two USB-C ports with DP 1.4a drive four screens at up to 4096 x 2160 at 60 Hz. Four USB 3.2 Gen2 Type-A, two USB 2.0 and an RS-232 COM port connect peripherals. Storage is an M.2 Key M socket with PCIe Gen4 x4 for an NVMe SSD plus a SATA3 port, with an M.2 Key E slot and CNVi for wireless. The DC jack accepts 12 to 19 V, and a 19 V, 90 W adapter is included.

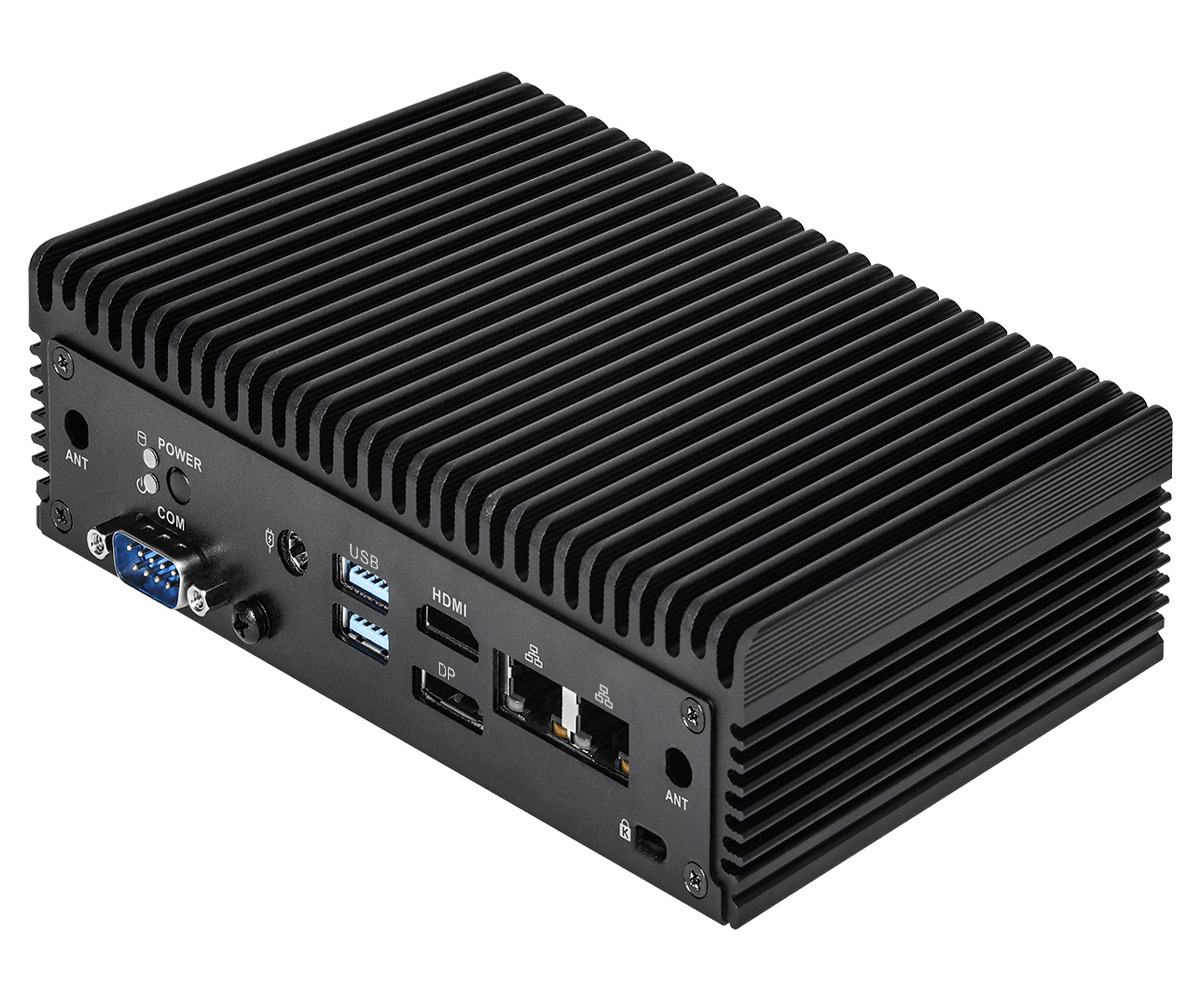

The iBOX-1245UE is a fanless industrial PC with no moving parts, rated from 0 to 40 °C, CE and FCC Class A compliant and fitted with TPM 2.0, with Windows 10 and 11 support. A wall mount kit is supplied, VESA mounting is supported and DIN rail mounting is listed by request. The iBOX-1265UE offers a Core i7 on the same design.
iBOX-1245UE Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial iBOX-1245UE |
| Features | Compact Embedded Fanless Industrial Low Profile |
| Performance | |
| Processor Series | Intel Core 12th Gen Alder Lake |
| Processor Models | Intel Core i5-1245UE: 1.5~4.4GHz, 10 Cores, 12 Threads, 12MB Cache, 15W |
| Performance Cores | 10 Cores |
| Memory | 2x DDR4 3200MHz SO-DIMM Slots, 64GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel Iris X Series |
| Display Standards | Display Port 1.4a DP++ HDMI 2.0b |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x HDMI 2x USB Type C |
| Audio | |
| Codec | Realtek ALC233, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel I225LM |
| USB | 8x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.2 Gen 2 [Type C] 4x USB 3.2 Gen 2 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232 [DB9] | |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x SATA Port |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 19V DC [Barrel Connector] AC Power Supply Included |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 40°C [32°F to 104°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 1.6 Kg (3.52 Lbs) |
| Dimensions | 172mm x 51mm x 110mm (6.77" x 2.01" x 4.33") |
| Mounting Options | Desktop DIN Mount VESA Mount Wall Mount |
