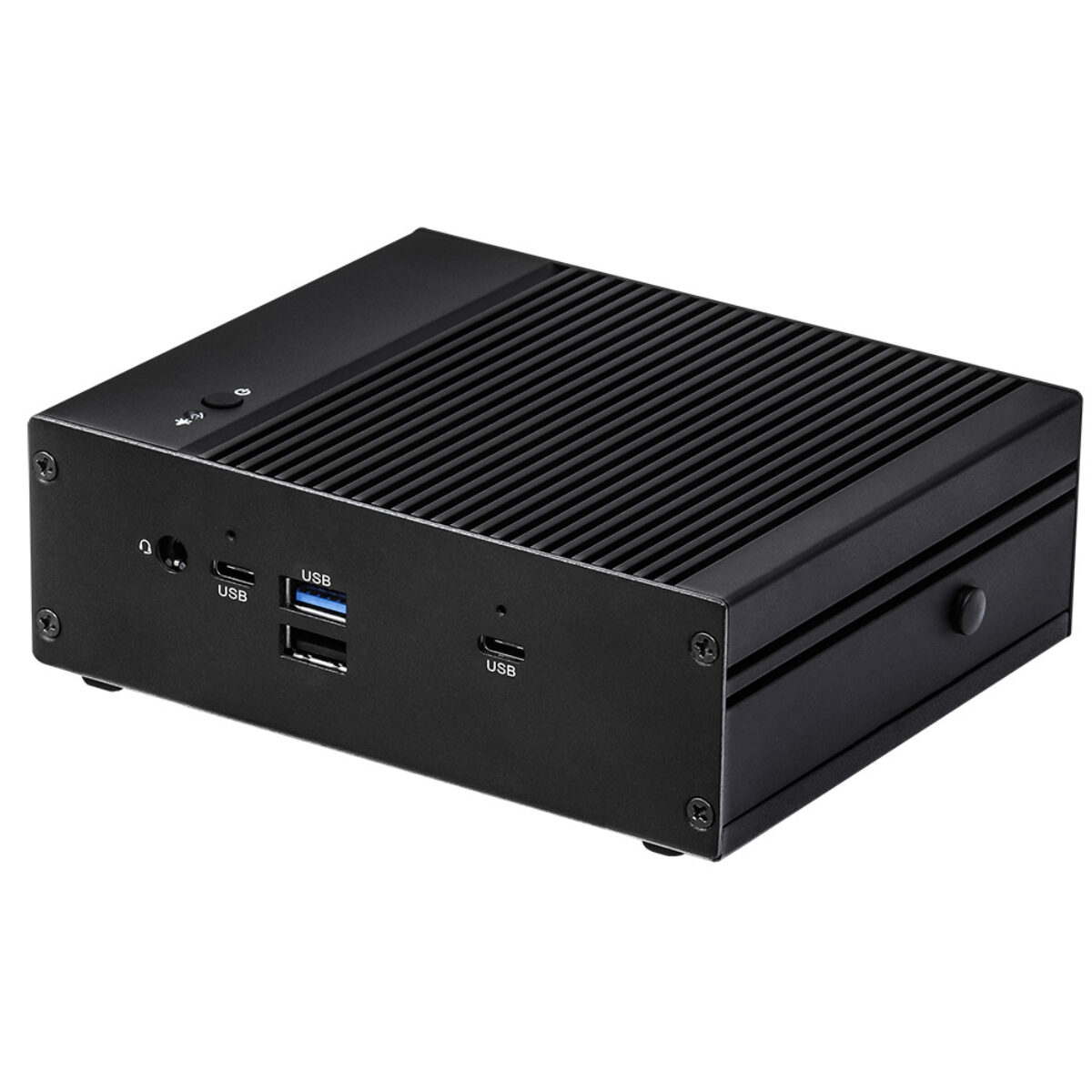

ASRock Industrial iBOX-J6412 Intel Celeron J6412 Elkhart Lake Fanless NUC PC with Dual GbE and DIN Mount

Small edge jobs rarely need much processing, but they often run in warm, dusty places: inside a kiosk, on top of a machine or in a cabinet with no air conditioning. A low-power processor and no fan make sense there. The ASRock Industrial iBOX-J6412 is a compact fanless industrial PC for that kind of duty, and its 0 to 50 °C rating gives more margin than the larger iBOX models.

It runs an Intel Celeron J6412, a quad-core Elkhart Lake processor at up to 2.6 GHz with a 10 W rating, and Intel Gen 11 graphics. Two DDR4 3200 MHz SO-DIMM sockets accept up to 32 GB in dual channel. That suits signage playback, protocol gateways, data logging and simple HMI screens, where steady low power matters more than peak speed.

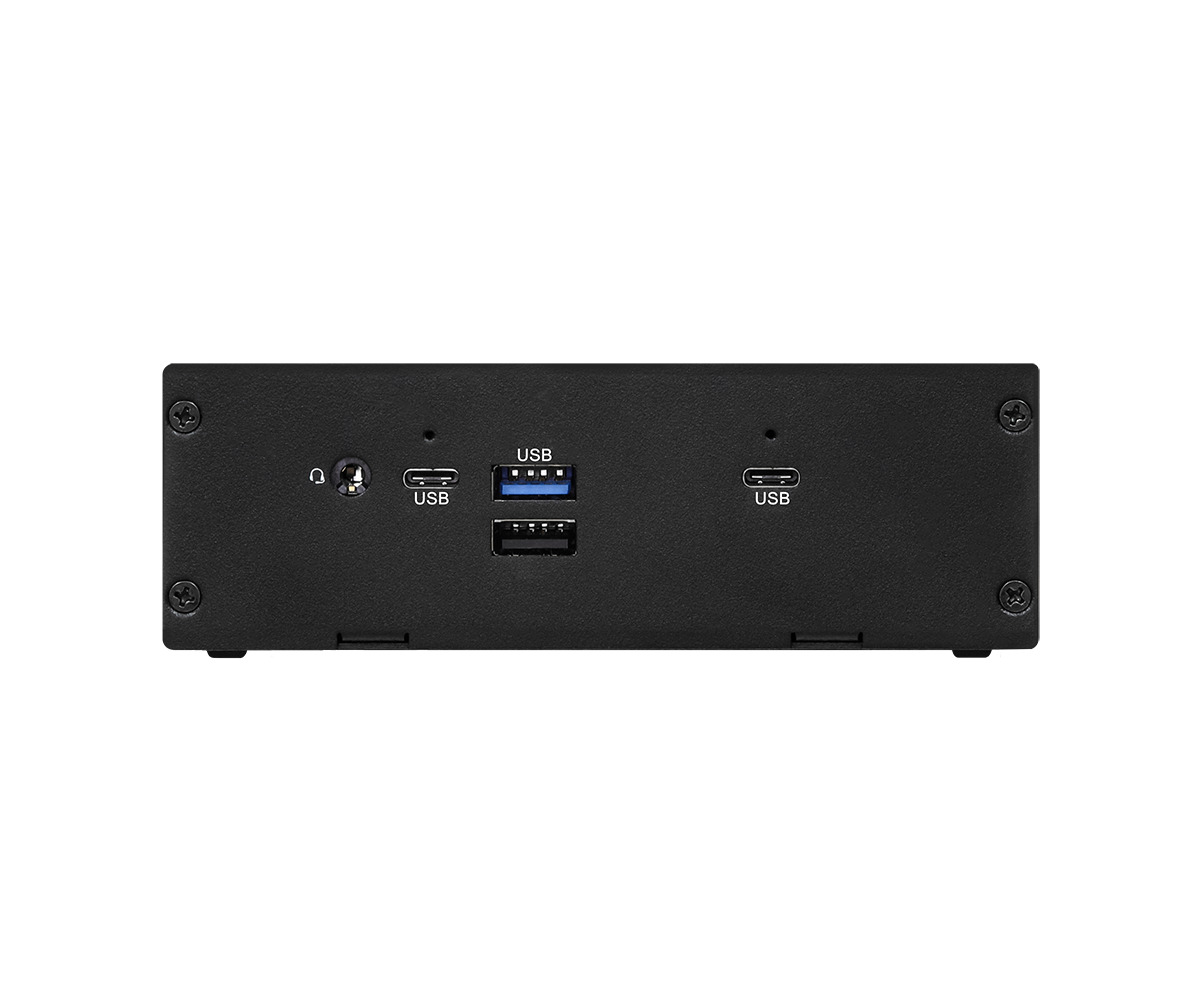

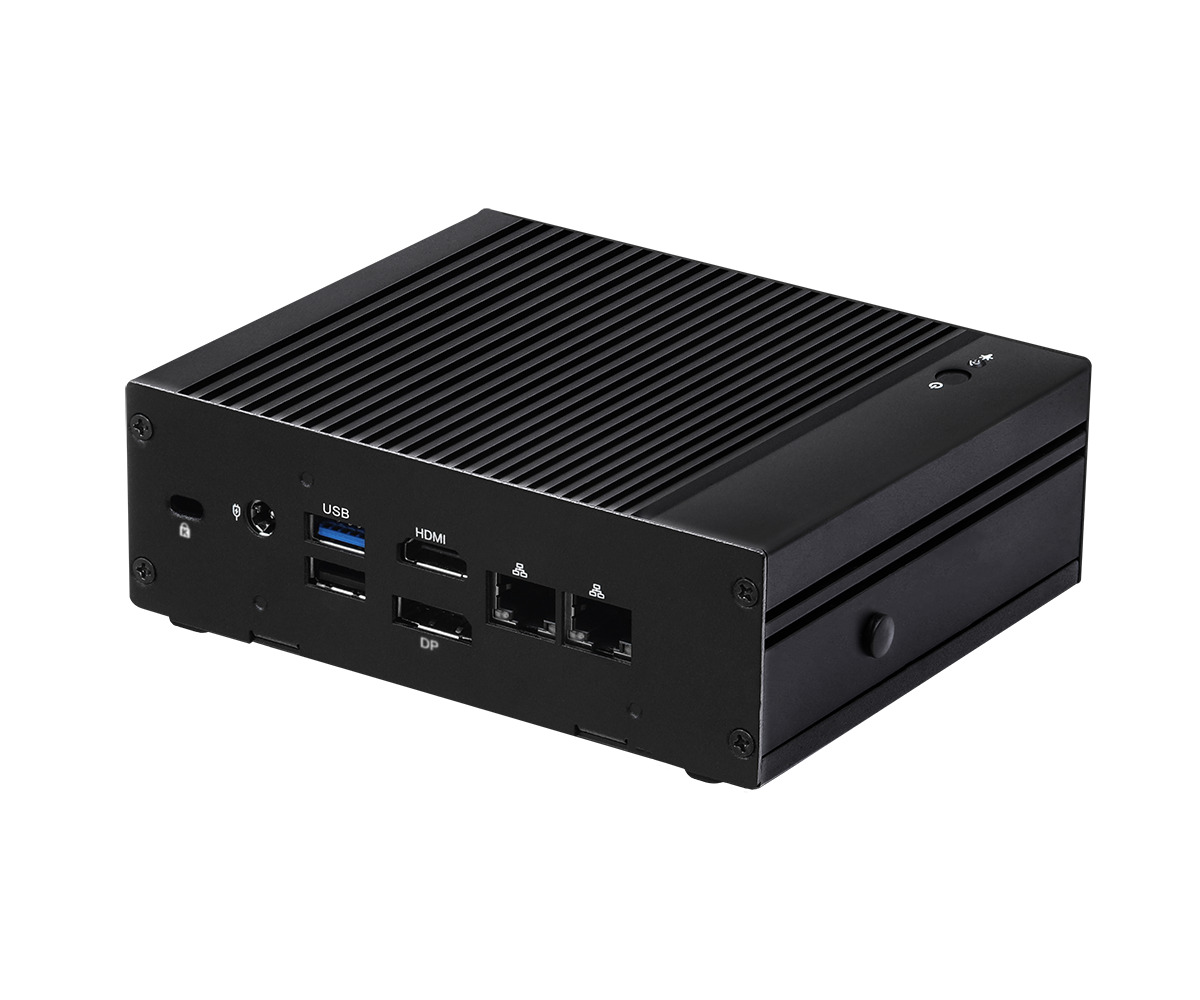

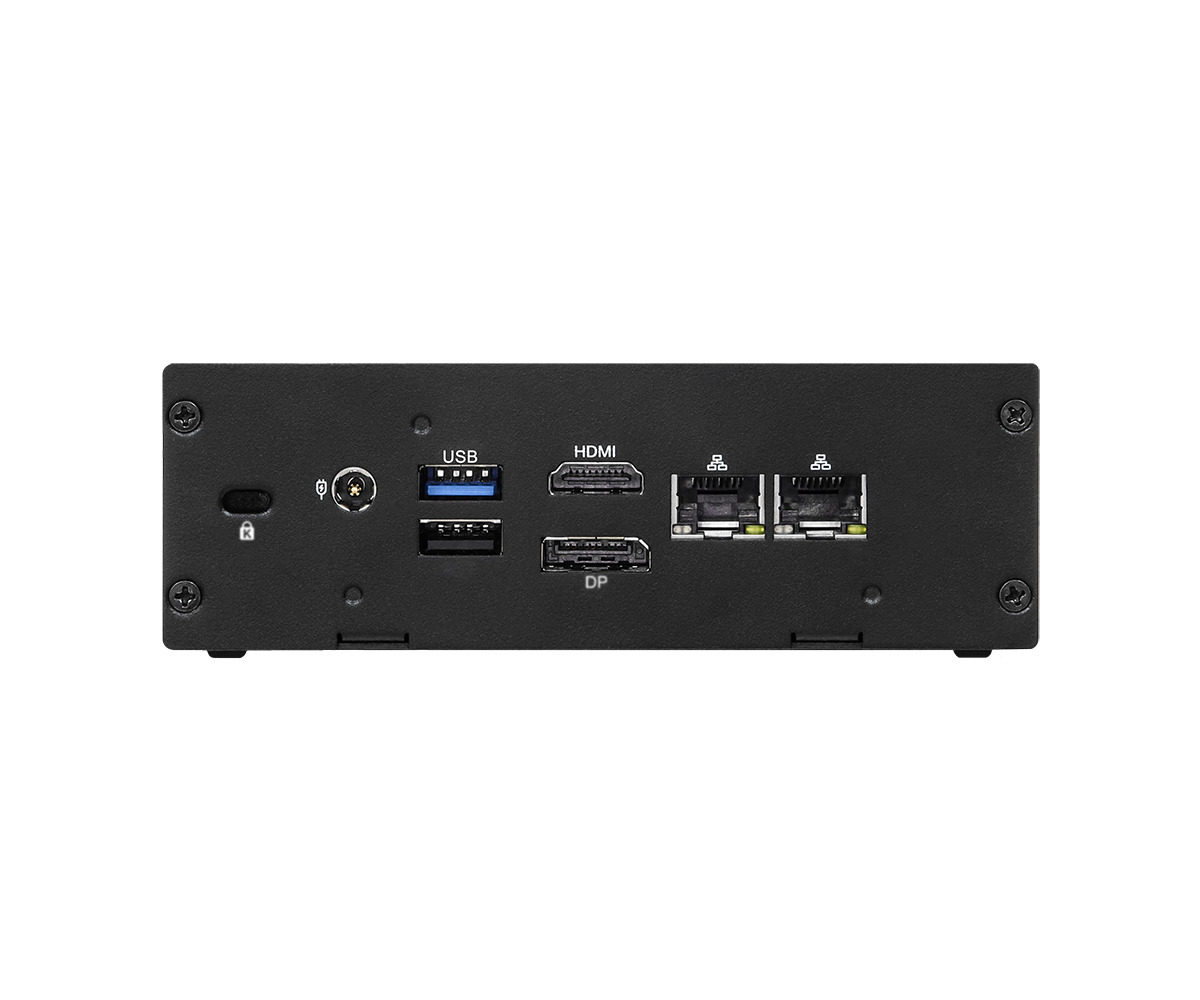

Two Realtek GbE ports separate a device or camera network from the site network. HDMI 2.0b and DisplayPort 1.2 drive two screens at up to 4096 x 2160 at 60 Hz. USB is generous for the size: two USB 3.2 Gen2 Type-A, two USB 3.2 Gen2 Type-C and two USB 2.0 ports. Storage is an M.2 Key M socket with PCIe x1 or SATA3 for an SSD plus a SATA3 port, and an M.2 Key E slot takes a wireless module. Power comes from a 19 V, 65 W adapter with AT or ATX power-on.

The iBOX-J6412 measures 135 x 110 x 44.5 mm and weighs 0.7 kg, so this fanless industrial PC fits where a larger box would not. A wall mounting kit is supplied, with VESA and DIN rail kits available as options. It is CE and FCC Class A compliant and has TPM 2.0 on board. For four screens or more compute, the iBOX-6305E and iBOX-1215UE offer quad display and 2.5GbE.
