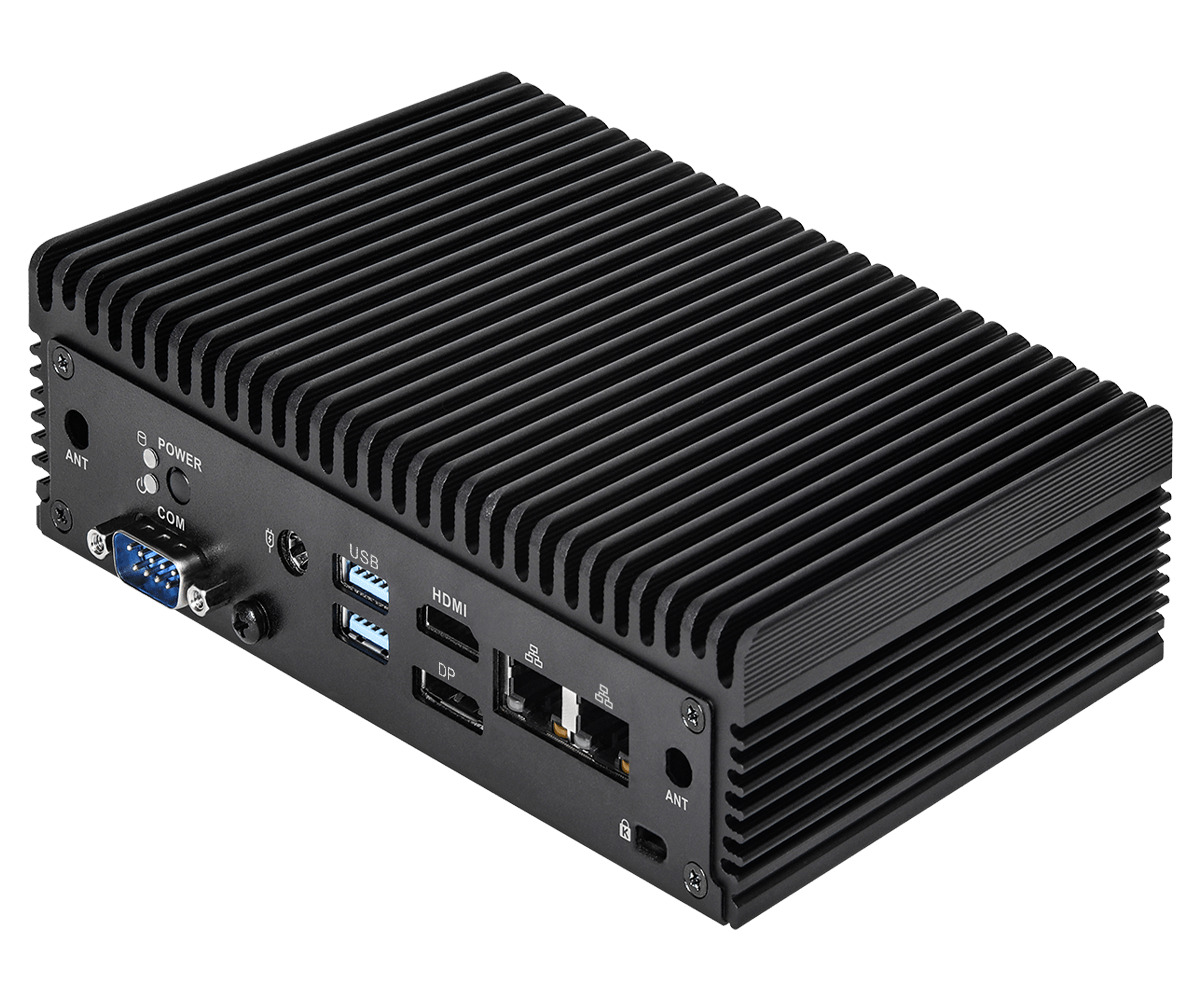

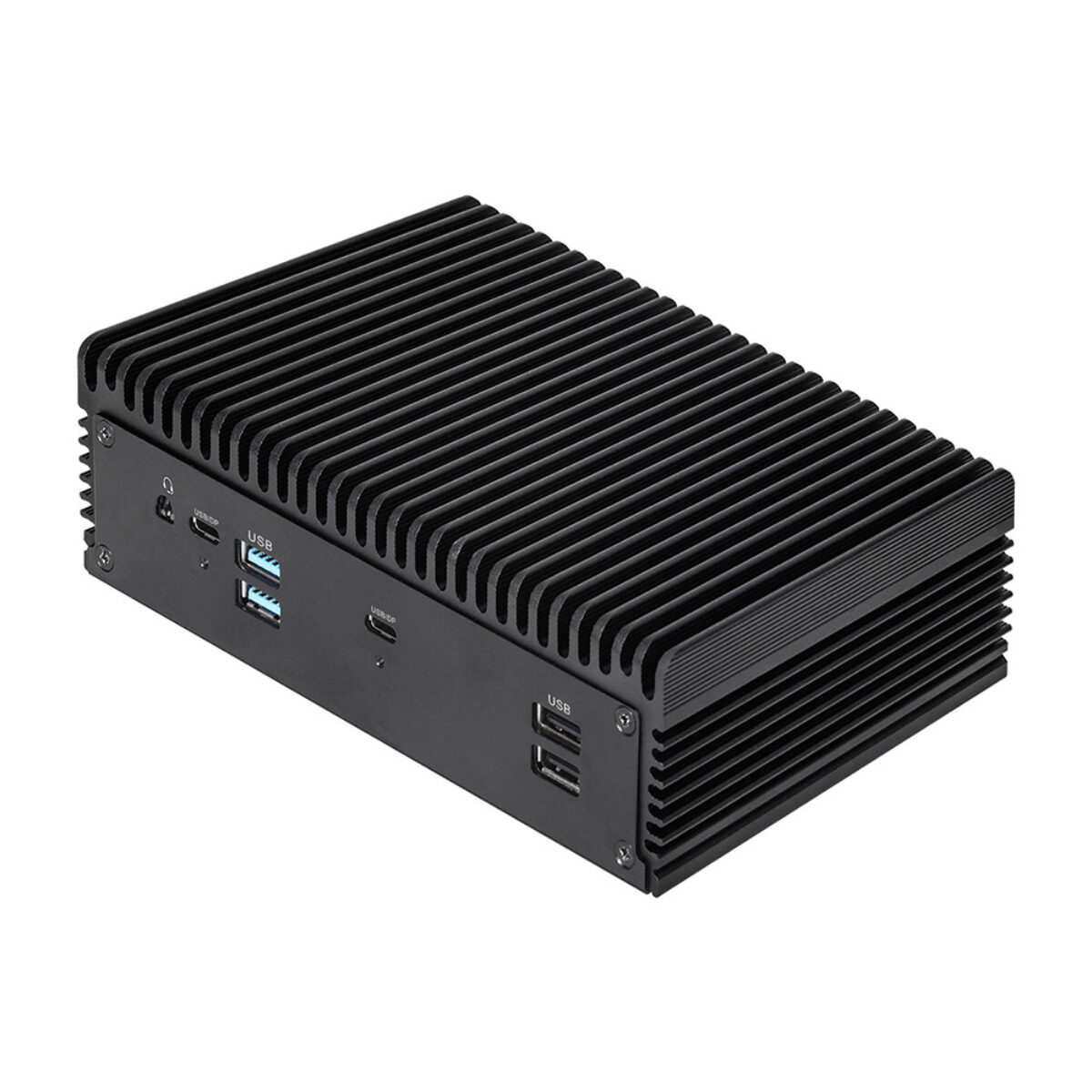

ASRock Industrial iBOX-1145G7E Intel Core i5-1145G7E 11th Gen Fanless NUC PC with 2.5GbE and Quad Display

When dozens of screens or kiosks are spread across sites, the cost is in the visits: a frozen player or a failed update means someone has to drive out. Remote, out-of-band management changes that. The ASRock Industrial iBOX-1145G7E is the Core i5 fanless industrial PC in the iBOX 1100 range, and it adds Intel vPro and AMT to the shared quad-display design.

Its Intel Core i5-1145G7E is a quad-core 11th Gen Tiger Lake-UP3 processor with boost up to 4.1 GHz, paired with Intel Iris Xe graphics. Two DDR4 3200 MHz SO-DIMM sockets take up to 64 GB in dual channel. Iris Xe handles smooth 4K playback across several screens, and the four cores leave room for a signage engine, analytics or a lightweight vision task on the same box.

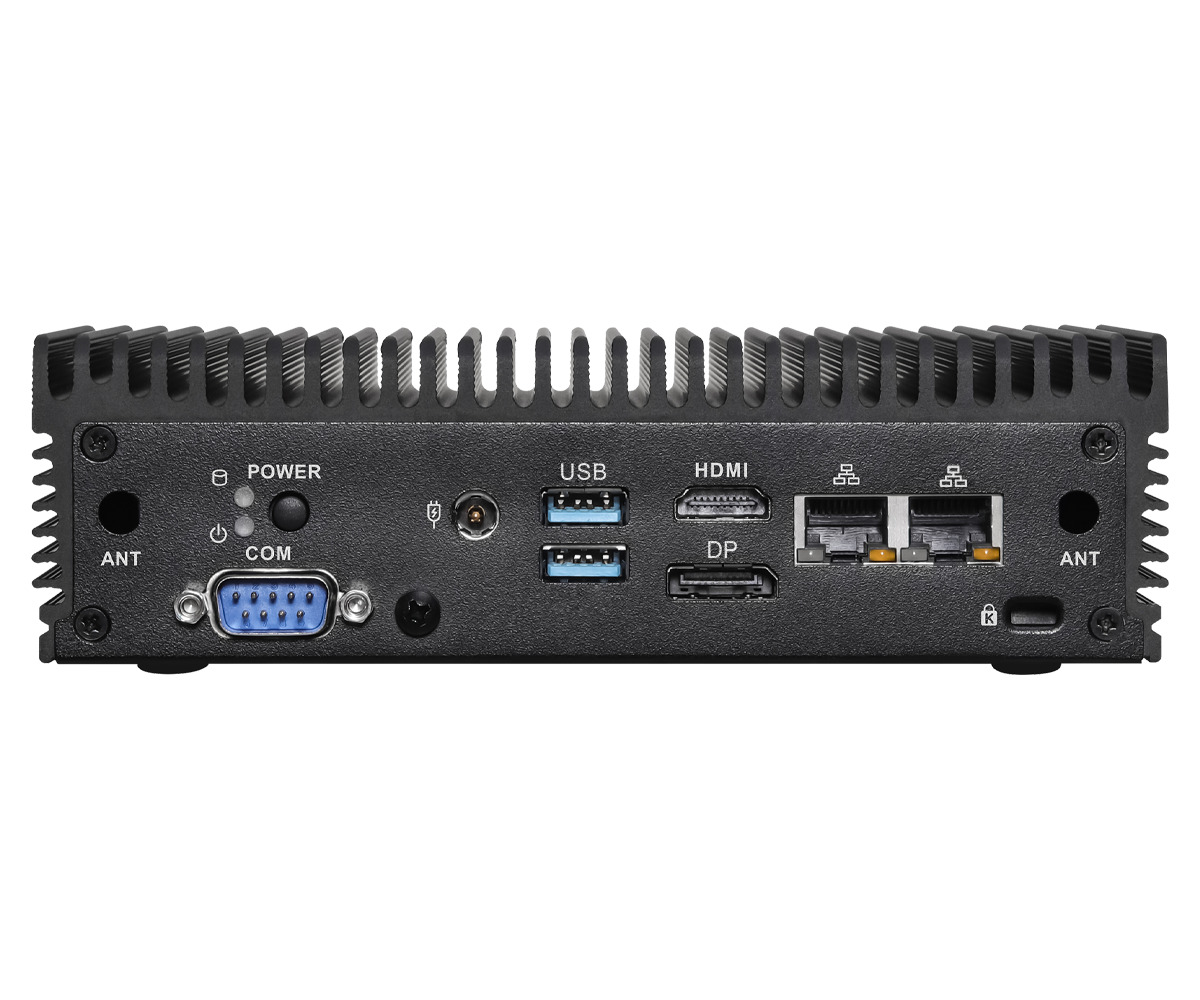

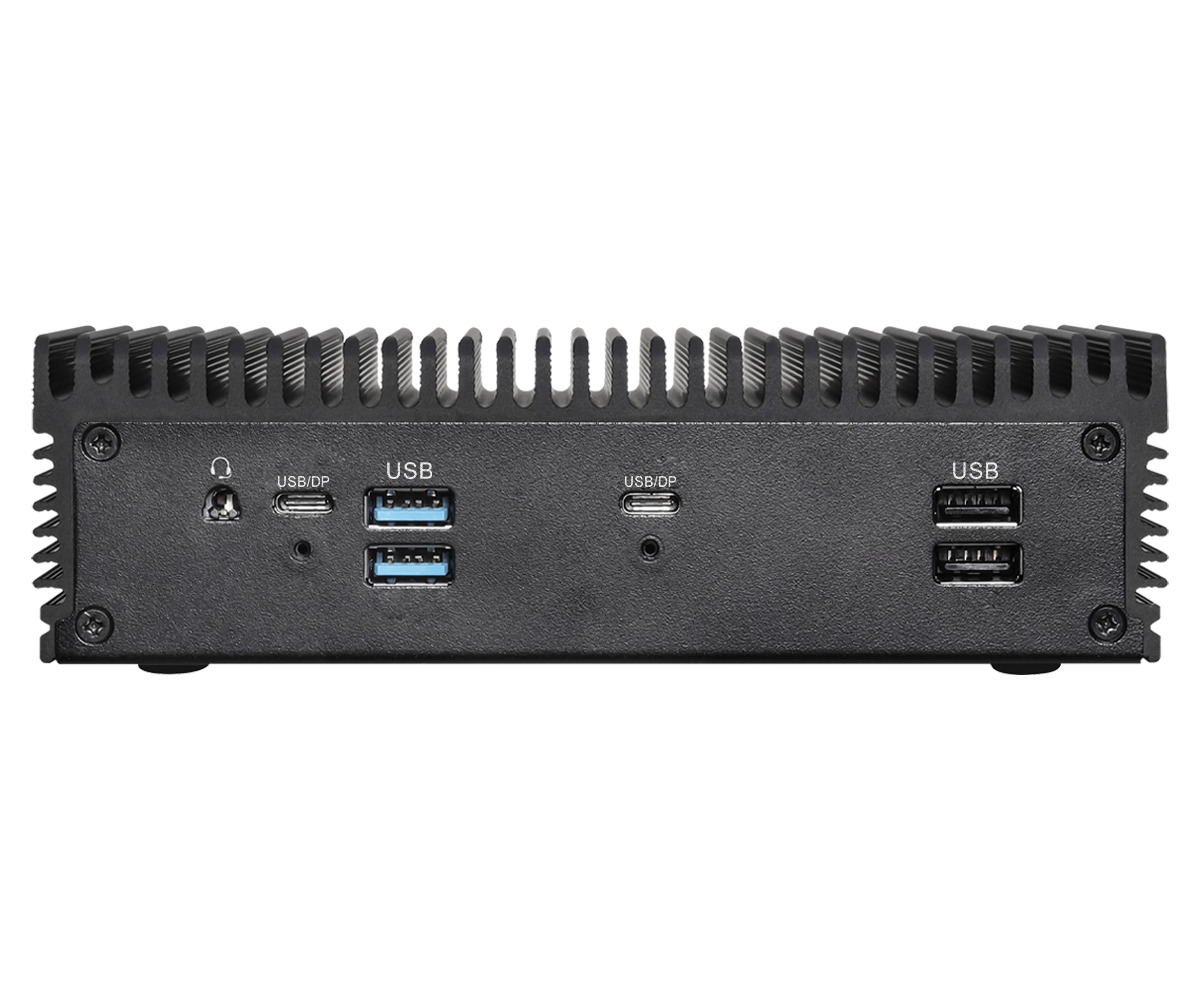

The Intel I219LM GbE port supports AMT and vPro for out-of-band management, and an Intel I225LM 2.5GbE port carries content or camera traffic separately. Display outputs are HDMI 2.0a, DisplayPort 1.4 and two USB-C with DP 1.4, up to four screens at 4096 x 2160 at 60 Hz. Four USB 3.2 Gen2 Type-A, two USB 2.0 and an RS-232 COM port connect peripherals. Storage is an M.2 Key M socket with PCIe Gen4 x4 or SATA3 plus a SATA3 port, with an M.2 Key E slot for wireless and a 19 V, 90 W adapter for power.

The iBOX-1145G7E is a fanless industrial PC with no moving parts, rated for 0 to 40 °C, CE and FCC Class A compliant and fitted with TPM 2.0. A VESA bracket is included for mounting behind a display, and wall mounting is supported. The iBOX-6305E covers lighter jobs on the same I/O, and the iBOX-1245UE moves to 12th Gen Core i5 with two 2.5GbE ports.
