ASRock Industrial iBOX-6305E Intel Celeron 6305E Fanless NUC PC with 2.5GbE, GbE and RS232

Plenty of edge jobs need a computer that drives several screens, talks to one serial device and stays quiet, without much processing behind it. Menu boards, wayfinding displays, ticketing kiosks and line-side information screens all fall into that group. The ASRock Industrial iBOX-6305E is the entry fanless industrial PC in the iBOX 1100 range, built for exactly that kind of steady, low-load duty.

It runs an Intel Celeron 6305E, a dual-core processor at 1.8 GHz from the 11th Gen Tiger Lake-UP3 family, with Intel UHD Graphics. Two DDR4 3200 MHz SO-DIMM sockets take up to 64 GB in dual channel. That is ample for a browser-based signage player, a kiosk application or a lightweight HMI, and the same memory and storage layout as the Core i3, i5 and i7 models keeps software images portable across the range.

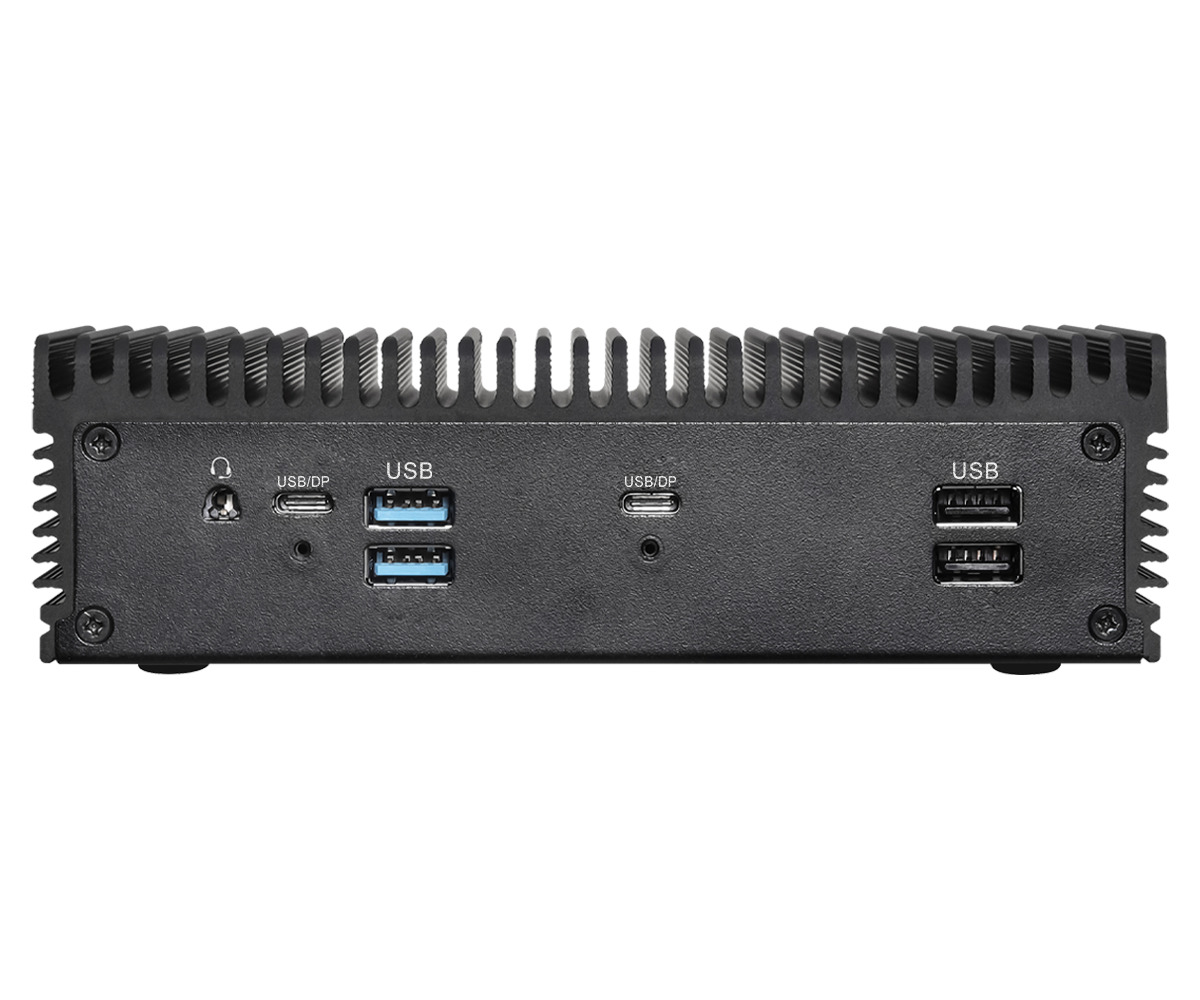

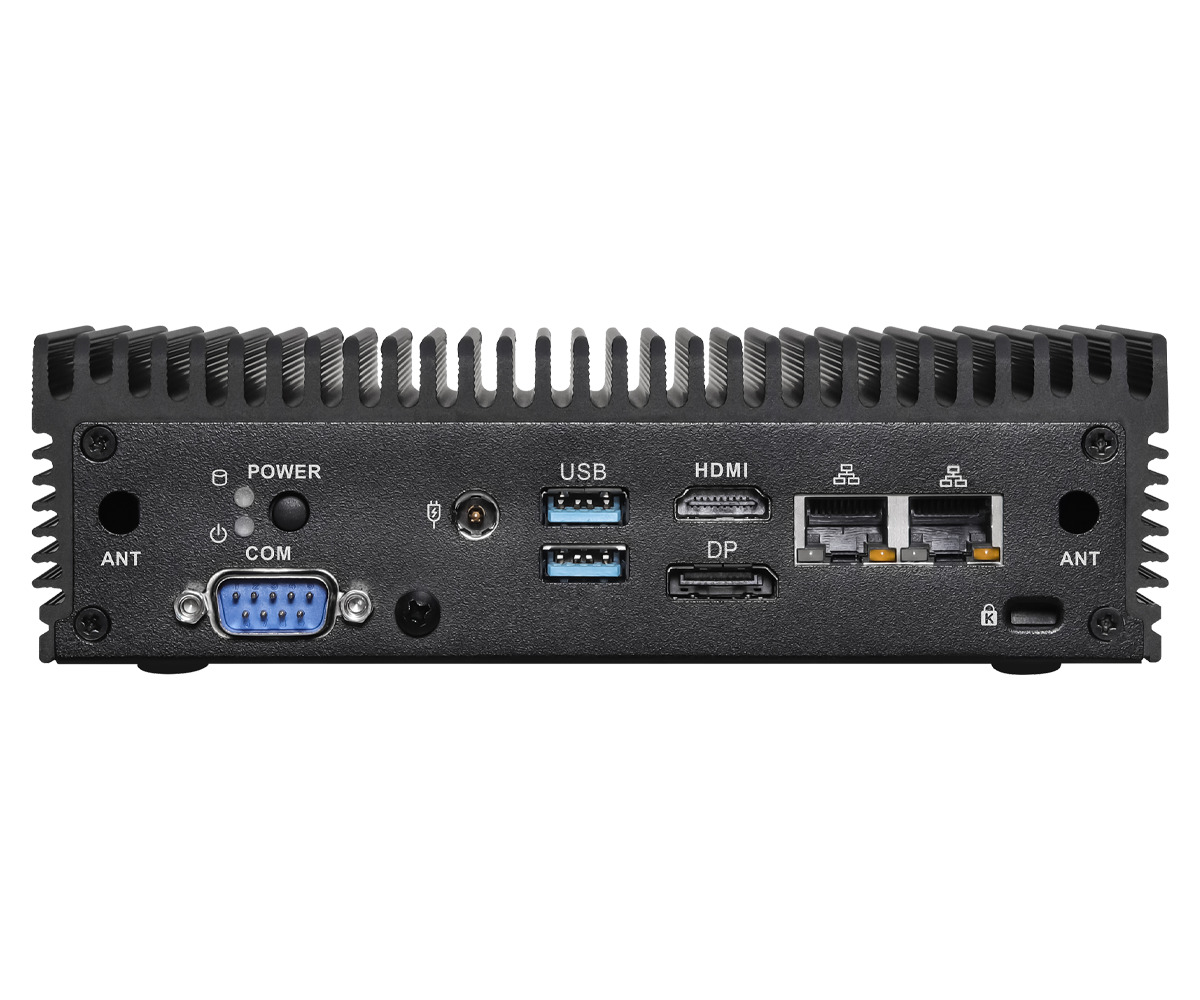

Networking is one Intel I225LM 2.5GbE port and one Intel I219V GbE port. Display output covers HDMI 2.0a, DisplayPort 1.4 and two USB-C ports carrying DP 1.4, for up to four independent screens at 4096 x 2160 at 60 Hz. Four USB 3.2 Gen2 Type-A, two USB 2.0 and an RS-232 COM port handle peripherals, scanners and legacy devices. Storage is an M.2 Key M socket with PCIe Gen4 x4 or SATA3 plus one SATA3 port, and an M.2 Key E slot with CNVi takes a wireless module. Power comes from a 19 V, 90 W adapter, with AT or ATX power-on modes.

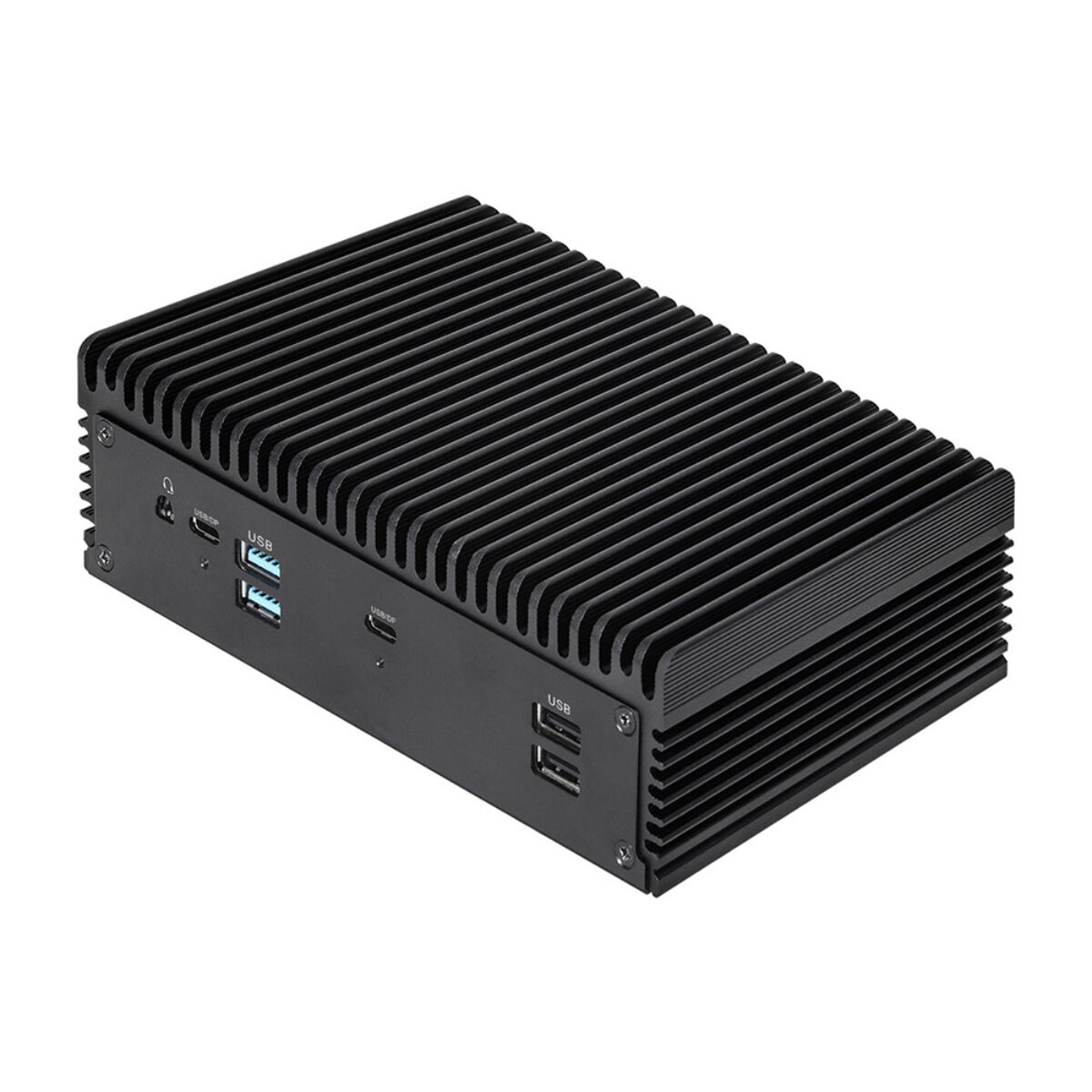

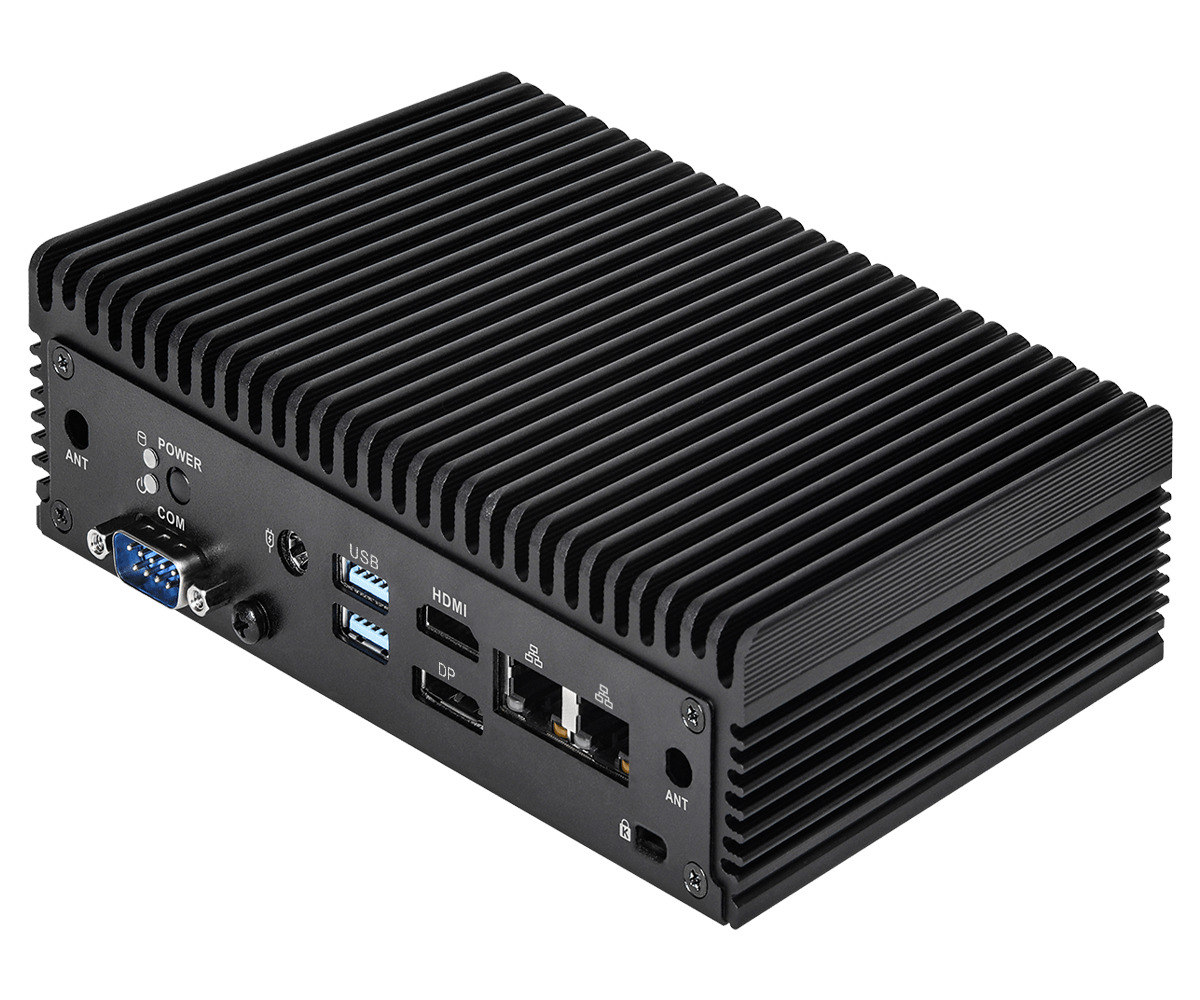

The iBOX-6305E is a fanless industrial PC with no moving parts, rated for 0 to 40 °C operation and CE and FCC Class A compliant, with TPM 2.0 on board. The aluminum enclosure ships with a VESA bracket for mounting behind a display, or it can be wall mounted. Where more compute is needed, the iBOX-1115G4E keeps the same I/O with a Core i3, and the iBOX-1145G7E adds Iris Xe graphics and vPro.
