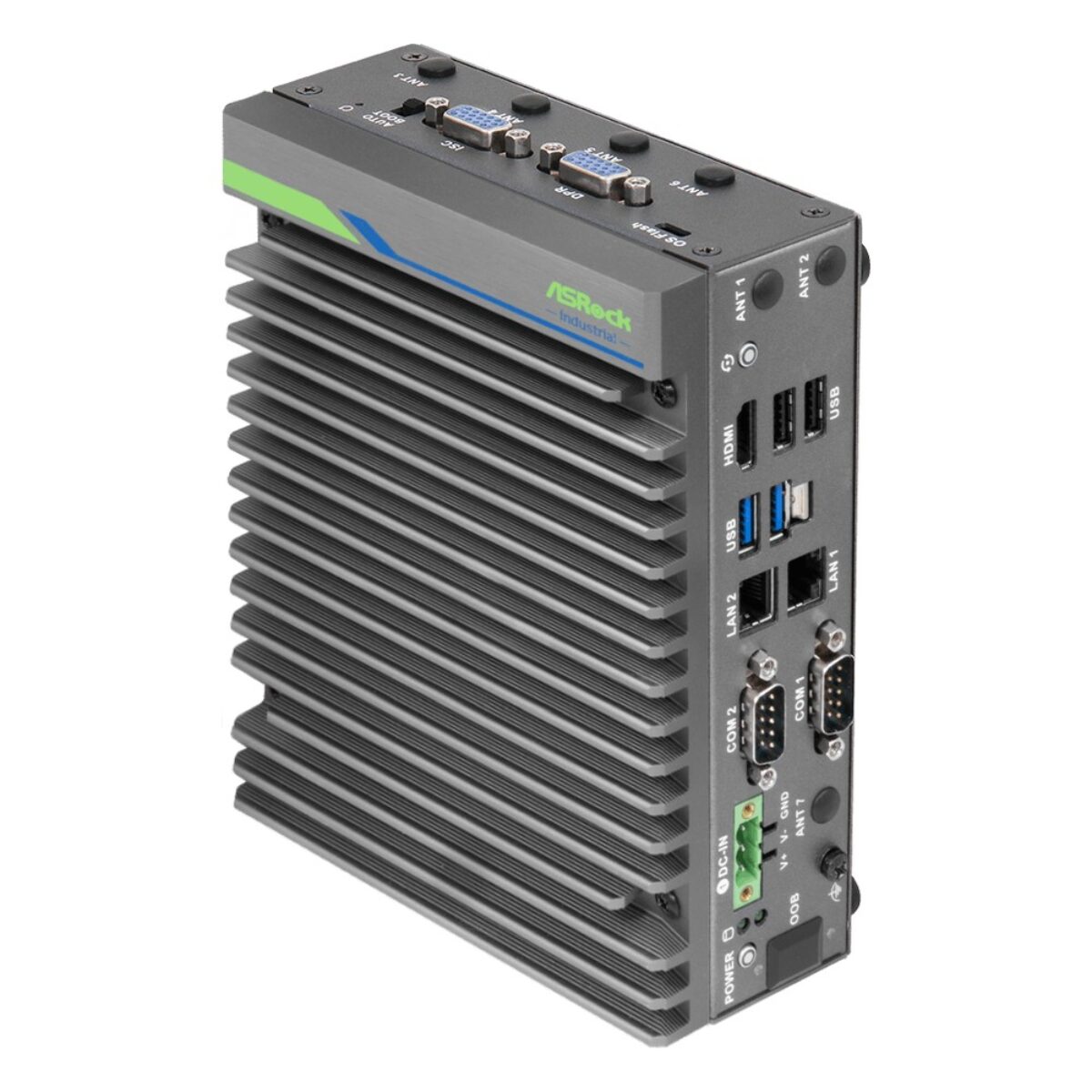

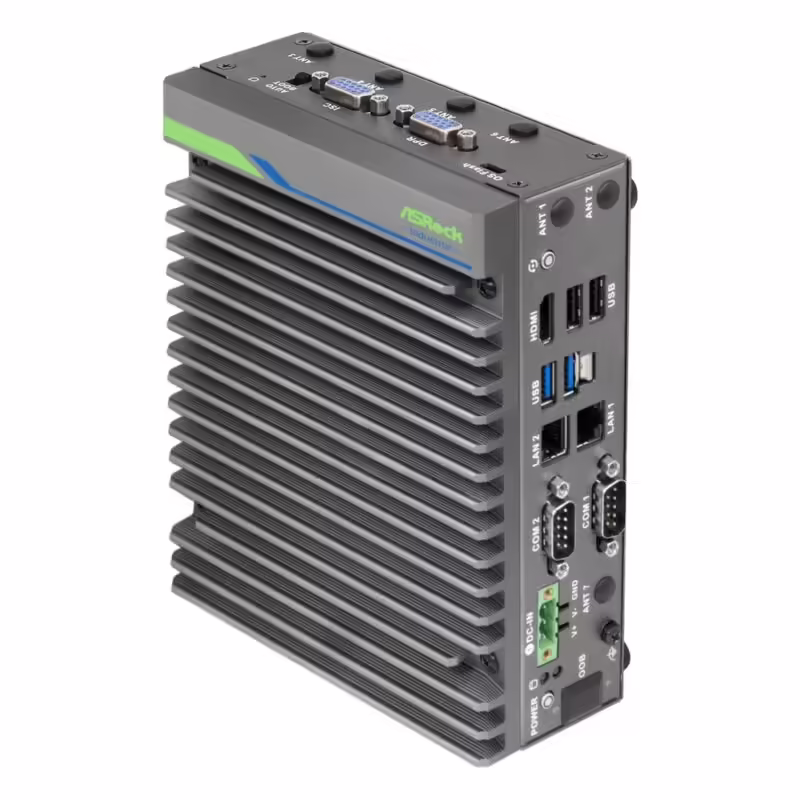

ASRock Industrial iEP-6021E-000 NVIDIA Jetson Orin NX 8GB Industrial AI PC with Dual GbE, CAN and DIN Mount

Many edge AI jobs run one model that needs more than an Orin Nano but not an Orin NX 16GB. The ASRock Industrial iEP-6021E-000 fills that gap: an Industrial IoT Controller with a Jetson Orin NX 8GB module in a fanless DIN-rail industrial AI PC with CAN, DIO and serial links.

The Jetson Orin NX 8GB module pairs 8 GB of 128-bit LPDDR5 with up to 117 sparse (58 dense) INT8 TOPS with Super Mode, so the iEP-6021E-000 can run a single detection or classification model with headroom for pre- and post-processing. It runs NVIDIA JetPack 6.2 on Ubuntu 22.04, with a TPM 2.0 on board. Storage is an M.2 2280 M-Key socket for a wide-temperature PCIe Gen4 or Gen3 NVMe SSD and a microSD slot, and on this Basic build an M.2 B-Key socket takes an optional second 2280 SSD.

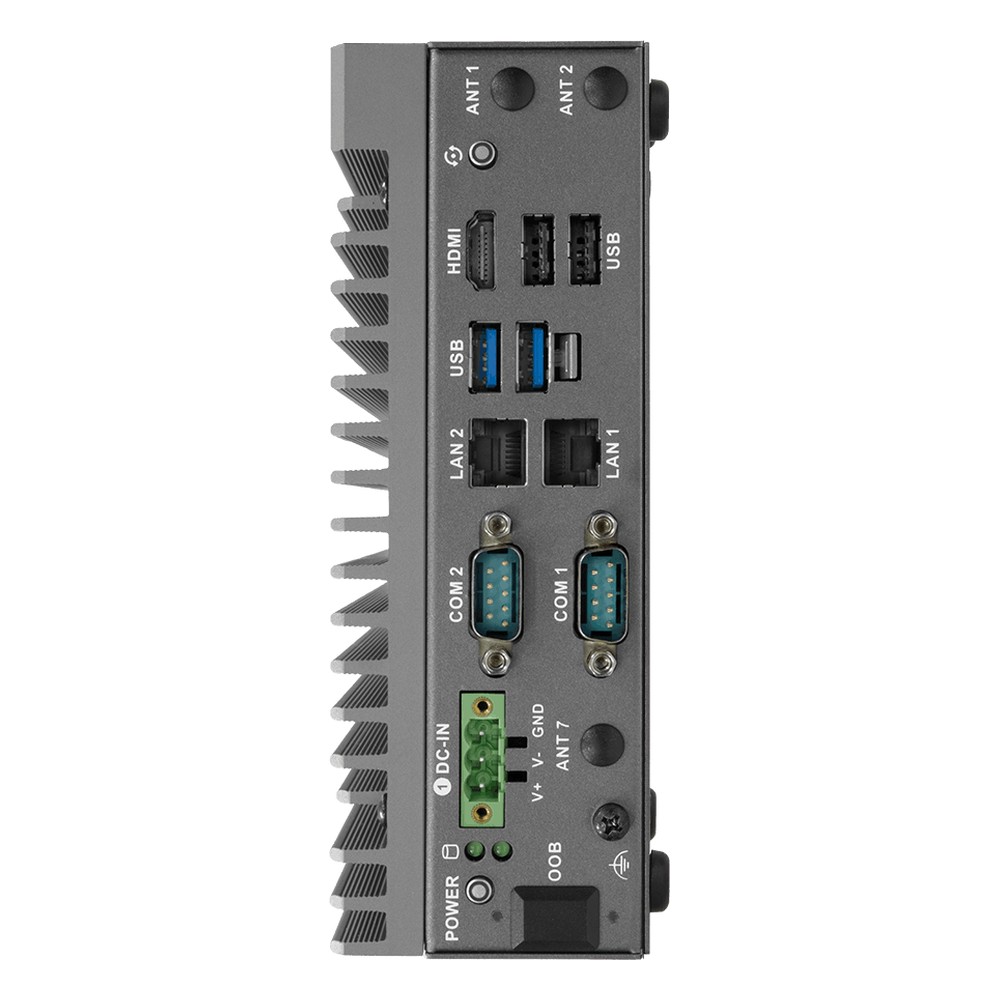

Networking is two Gigabit Ethernet ports, one from the module and one on an Intel I210AT. Two USB 3.2 Gen 2 ports (one locking) and two USB 2.0 ports take peripherals, and HDMI 2.0 drives a local display. One RS-232 and one RS-232/422/485 port connect serial devices, and two DB15 connectors carry four digital inputs, four digital outputs, CAN bus, I2C, SPI and remote power signals. An M.2 E-Key socket takes an optional Wi-Fi and Bluetooth module, and two MIPI CSI-2 camera connectors are reserved as an option.

Power is 12 to 36 V DC on a Phoenix-type connector with 80 V surge, over-voltage, under-voltage, over-current and reverse protection. The fanless iEP-6021E-000 is rated from -25 °C to 50 °C with 0.5 to 0.8 m/s airflow and is tested to IEC 60068-2-27 shock and IEC 60068-2-64 vibration. Mounting is vertical wall or DIN rail, or horizontal wall or VESA on this Basic build. We supply it configured and tested, with the NVMe SSD, the JetPack image and any optional Wi-Fi module or second SSD fitted. The iEP-6020E-000 is the same build with an Orin NX 16GB module, the iEP-6022E-000 moves to an Orin Nano 8GB rated to 60 °C, and the earlier iEP-6011E-000 launched on JetPack 5.
