US NDI Encoders and Decoders
HDMI to NDI and SDI to NDI for Live Production
An NDI encoder puts a camera or computer feed onto the production network as an NDI source, so switchers, recorders and software on the same network can pick it up without extra cabling, and an NDI decoder brings any source back out to a screen. The range covers HDMI to NDI and SDI to NDI converters up to 4K60, two-way units that encode and decode, and IP decoders with HDMI and SDI outputs.
Options include NDI HX and NDI HX3 with Full NDI on license, RTSP, RTMP, SRT and HLS alongside NDI, USB UVC inputs and outputs, and PoE on many units, suited to live production, houses of worship, lecture theatres and corporate studios where cameras and screens share one network.
Speak to an NDI specialist to match the NDI version, inputs and outputs to your production network.
Browse Our NDI Converters and Decoders
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS485 [Terminal Block]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [3840×2160p @ 60/50fps]
- Recording Mode: Hardware Compression
- Power: 12V DC [Barrel Connector], PoE Powered Device (PD) [RJ45]
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS485 [Terminal Block]
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI2.0
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 2x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Recording Mode: Hardware Compression
- Power: 12V DC [Barrel Connector], PoE Powered Device (PD) [RJ45]
- Ethernet: 1x GbE LAN [RJ45] [PoE-PD]
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS485 [Terminal Block]
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Video Output: 1x 12G-SDI
- Max Video Capture Resolution: 4K60 [3840×2160p @ 60/50fps]
- Recording Mode: Hardware Compression
- Power: 12V DC [Barrel Connector], PoE Powered Device (PD) [RJ45]
NDI Encoder Ranges Configured by Things Embedded
We work with a leading manufacturer of NDI converters, so the ranges below are the ones we specify for live production and AV networks. Compare them by NDI version, video interface and power, then browse the models above or ask an NDI specialist which range suits your network.

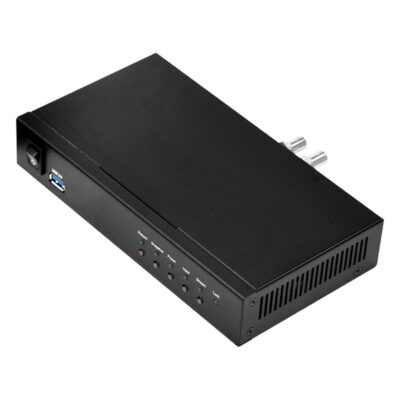

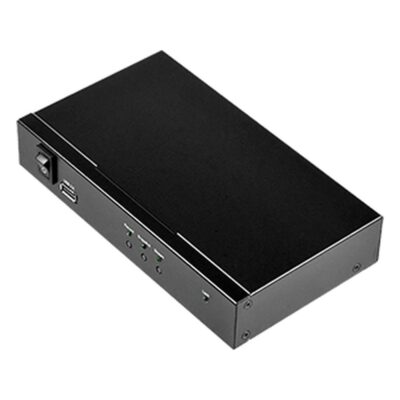

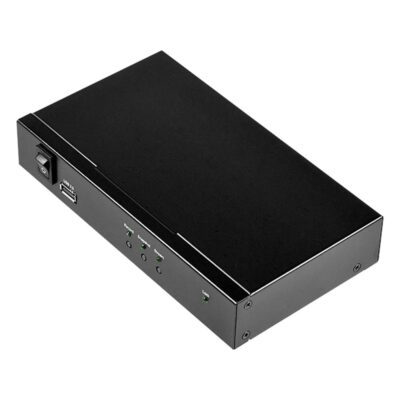

SC6F0N1 Yuan Full NDI Encoders and Decoders
HDMI 2.0 and 12G-SDI units that encode and decode NDI HX at 4K60, with Full NDI on license, optional Wi-Fi and PoE input.
SC6E0N1 Yuan NDI HX Encoders and Decoders
Compact HDMI encoders, IP and UVC decoders and multi-input SDI, HDMI and analog units for NDI HX, SRT and RTSP streaming at up to 4K60.
SC6G0N1 Yuan 4K Encoders, Decoders and UVC Bridges
HDMI 2.0 encoders and decoders that can present a stream as a USB webcam, plus a USB-C and HDMI data bridge with KVM, most of them PoE powered.
SC6T0N4 Yuan Four-Channel AI Streaming Encoders
Four 12G-SDI, 6G-SDI, HDMI 2.0 or HDMI inputs on an 11th Gen Intel Core i7, with multiview, on-device AI features and optional 4G LTE or 5G.
V2 Yuan SDVoE Transmitters and Receivers
12G-SDI, HDMI 2.0, DisplayPort and multi-input units that switch between 10G copper and SFP+ fiber, with PoE and USB, IR, RS232 and audio extension.
Yuan SDVoE Transceivers
Units that switch between transmit and receive with an HDMI 2.0 loop-out, including one that bridges SDVoE to H.26X and NDI streams.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an HDMI to NDI Encoder
Our live production specialists specify every NDI unit against the cameras, the switcher or software and the network between them. These are the choices we work through with you before recommending a unit.
NDI Version
NDI HX and HX3 send compressed streams that suit Gigabit networks; Full NDI carries higher quality at higher bandwidth and needs a license.
Inputs and Outputs
HDMI 2.0 or 12G-SDI in, HDMI and SDI out, with loop-outs on selected units for a local monitor.
Resolution
1080p60 units suit most camera feeds; 4K60 units carry UHD sources through the network.
Other Protocols
RTSP, RTMP, SRT and HLS run alongside NDI, so the same unit can feed a streaming service as well as the production network.
PoE Power
PoE input on many units keeps camera positions to a single network cable.
USB and UVC
UVC inputs and outputs let conferencing and capture software treat an NDI source as a webcam.
Explore AV Over IP, Converters and Capture
Compare the other AV over IP protocols, then the SDI and HDMI converters and capture cards around your NDI network.
NDI Innovation & Live Production Insights
Speak to an NDI Specialist.
Tell us the cameras and sources you need on the network, the NDI version your switcher or software uses and how the units will be powered. We will recommend the right NDI encoder or decoder, then configure and test it before it ships.
