AVerMedia D131S NVIDIA Jetson Orin Super Mode Small Form Factor Embedded PCs and Carrier Boards

Robots and inspection systems usually need more than a GPU: higher-bandwidth cameras, a link to motor controllers and a way to keep keys and credentials secure. The AVerMedia D131S series answers those needs with NVIDIA Jetson Orin NX and Orin Nano embedded PCs and carrier boards built around the D131S carrier, which supports Super Mode on both modules. AVerMedia aims the series at AMRs, smart security and smart inspection.

Every D131S product shares the same carrier design. Two 4-lane MIPI CSI-2 connectors on 22-pin FPC give each camera four lanes, an M.2 M-key 2280 slot on PCIe x4 takes an NVMe SSD, and four USB 3.2 Gen 2 Type-A ports split into two native 10 Gbps ports and two behind a hub. A CAN 2.0 FD terminal block, a 40-pin header with six GPIO lines and TPM 2.0 cover control and security. HDMI runs at 3840 x 2160, and optional daughter boards add 5G, an 802.3af PoE PSE, out-of-band management or DisplayPort. AVerMedia supplies a JetPack 6.2 BSP for the D131S series.

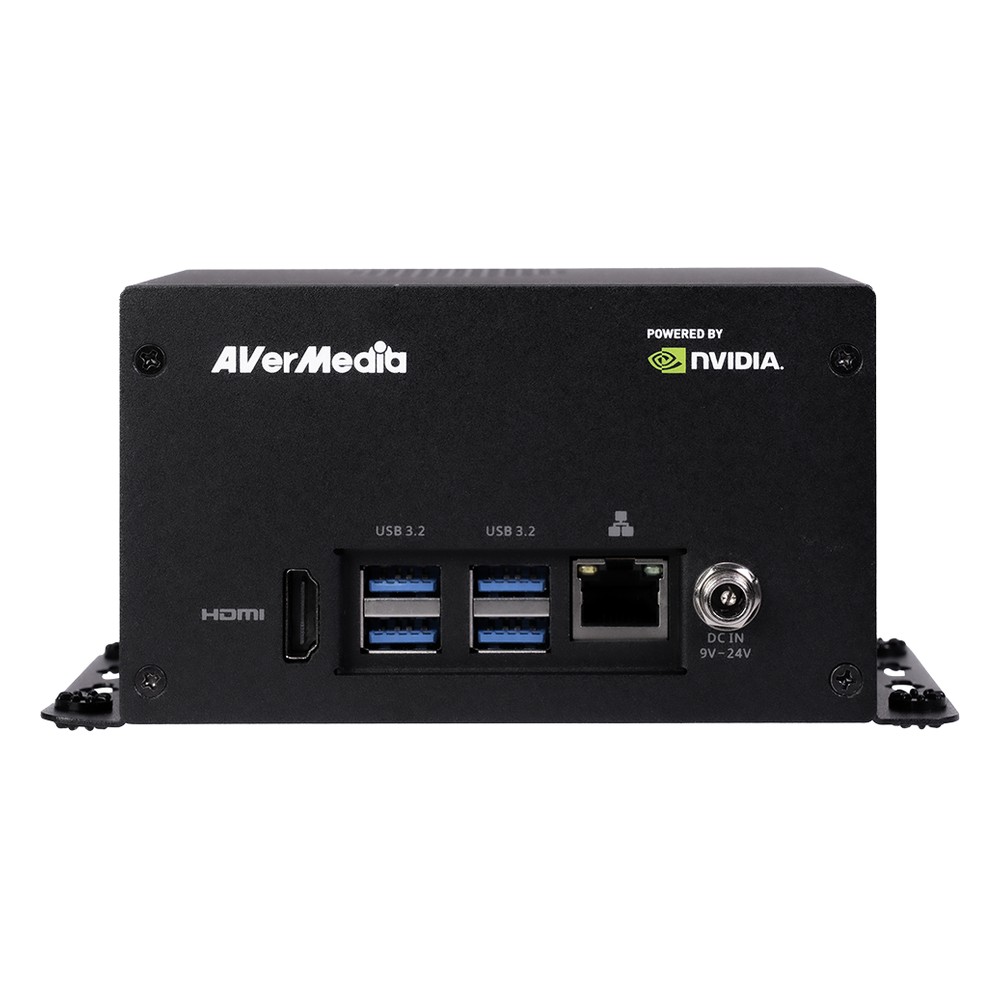

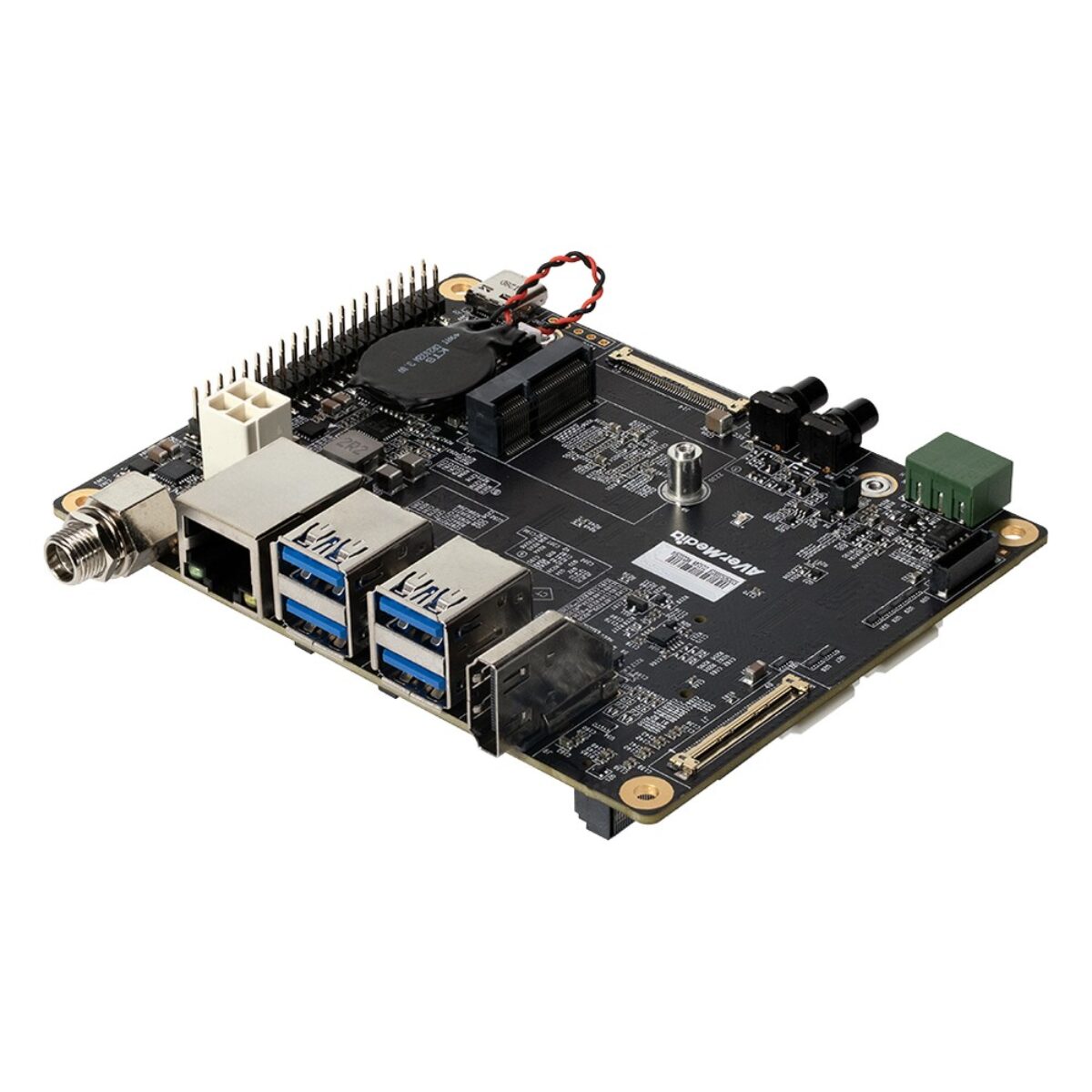

The range splits into two box PCs and two carrier boards. The D131SOXB is the box PC with a Jetson Orin NX 16GB or 8GB module and a 256 GB NVMe SSD, and the D131SONB uses the same box with an Orin Nano 8GB. Both use a heat sink with fan. The D131S-001 is the Industrial carrier board, rated from -40 °C to 85 °C for unheated or sealed enclosures, and the D131S-002 is the Commercial carrier board, rated from 0 °C to 70 °C for indoor equipment. Both carriers take Orin NX 16GB or 8GB and Orin Nano 8GB or 4GB, with the fan and heat sink optional.

In practice the D131S series suits AMRs, security analytics, inspection cells and kiosks that need four-lane cameras and a CAN FD link. Every product runs from a 12 V to 24 V DC input, and AVerMedia lists CE, FCC and VCCI, with RoHS 2 compliance. Optional OOB and PoE PSE boards let a fleet be monitored remotely and power a camera from the RJ45 where the project needs it. Where Allxon OOB built in and three MIPI connectors matter more than Super Mode, the D131 series is the closer AVerMedia family.
