AVerMedia D131SONB NVIDIA Jetson Orin Nano Super Mode Small Form Factor Embedded PC with 4x USB 3.2 Gen 2

Many robot and inspection projects run compact detection models that fit an Orin Nano, but still need four-lane cameras and a CAN link to the drive system. The AVerMedia D131SONB is an NVIDIA Jetson Orin Nano small form factor embedded PC from the D131S series, with Super Mode support, aimed at AMRs, smart security and smart inspection.

The D131SONB carries a Jetson Orin Nano 8GB module running in Super Mode, with a 256 GB NVMe SSD installed in the M.2 M-key 2280 slot on PCIe Gen3 x4. Two 4-lane MIPI CSI-2 connectors on 22-pin FPC take higher-resolution cameras. AVerMedia supplies a JetPack 6.2 BSP on Ubuntu 22.04. Where the model needs more memory or compute, the D131SOXB takes an Orin NX 16GB or 8GB in the same box.

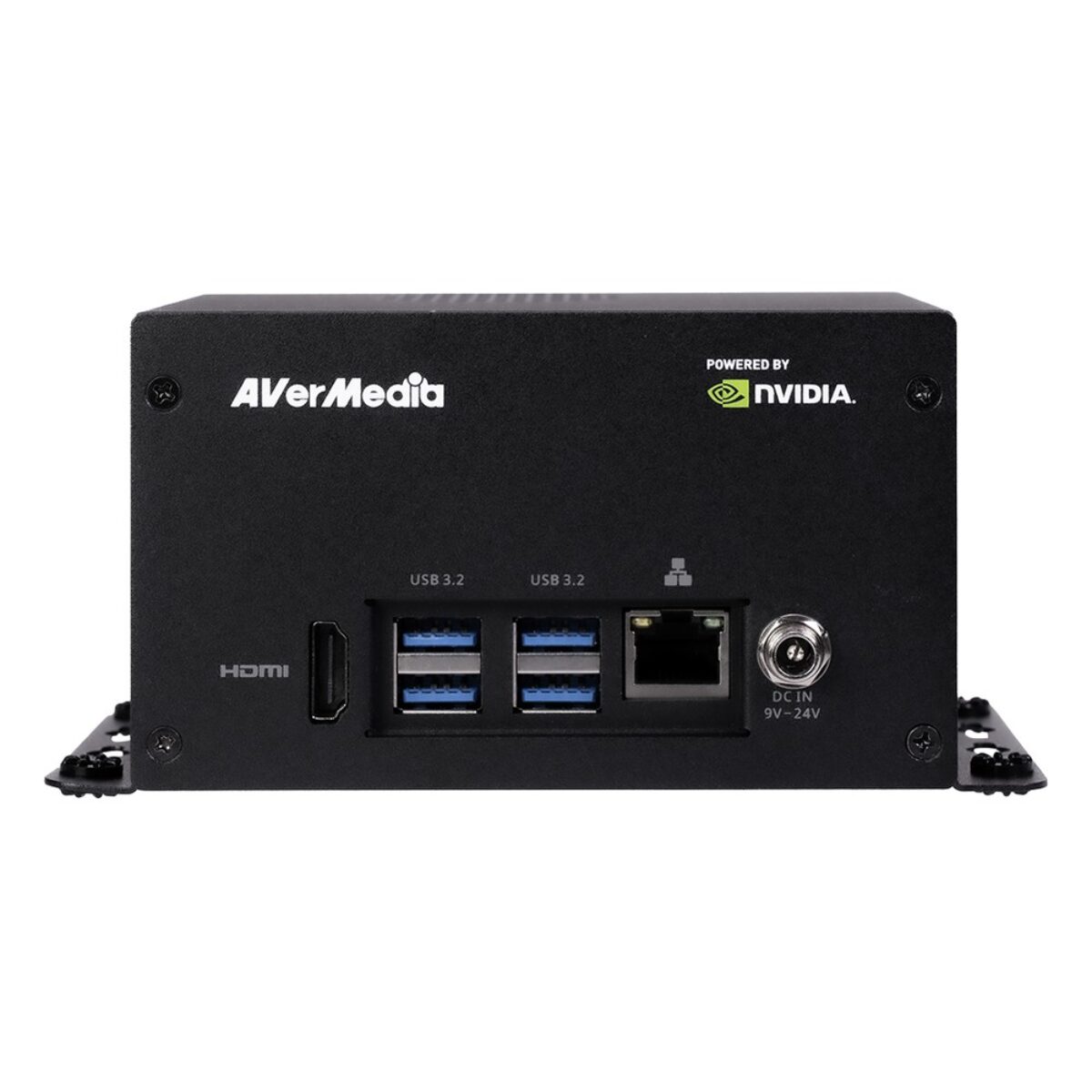

Four USB 3.2 Gen 2 Type-A ports split into two native 10 Gbps ports and two behind a hub sharing 10 Gbps. HDMI runs at 3840 x 2160 and 30 Hz with Orin Nano, beside a GbE RJ45. A CAN 2.0 FD terminal block connects motor and vehicle controllers, the 40-pin header carries UART, SPI, I2C, I2S and six GPIO lines, and TPM 2.0 is on board. Optional daughter boards add 5G, an 802.3af PoE PSE, out-of-band management or DisplayPort.

Power comes from a 12 V to 24 V DC input, and a heat sink with fan cools the module. AVerMedia lists CE, FCC and VCCI, and the D131SONB is RoHS 2 compliant. If your design needs Allxon OOB built in and three MIPI connectors instead, the D131ONB is the closer fit. We supply the D131SONB with JetPack flashed, the module and SSD fitted and any optional 5G modules and antennas fitted, tested before it ships.
